User Manual for ASUS TUF X299 Mark 2 LGA 2066 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS TUF X299 Mark 2 LGA
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS TUF X299 Mark 2 LGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

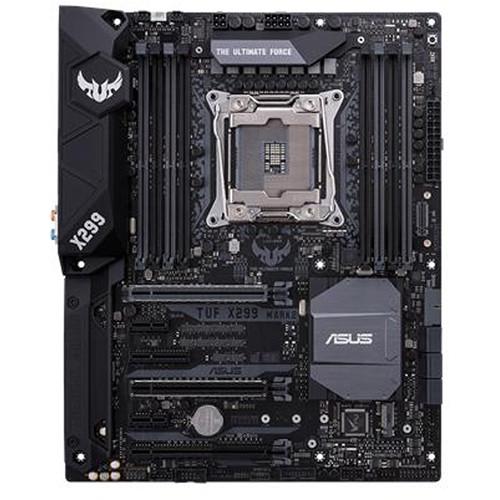

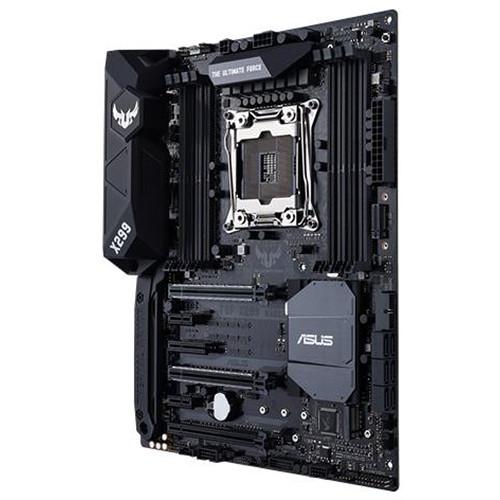

Product description The ASUS TUF X299 Mark 2 LGA 2066 ATX Motherboard comes equipped with an LGA 2066 socket and Intel X299 chipset, so you can build a Windows 10 system running on an Intel Core X-series processor. The TUF-series motherboard is armed with high-grade components and SafeSlots to maximize the lifespan of your system. In addition, this motherboard has two USB 3.1 ports with 10 Gb/s speeds.
The TUF X299 Mark 2 motherboard comes with eight DDR4 DIMM slots as well as one PCIe 3.0 x4, two PCIe 3.0 x1, and three PCIe 3.0 x16 slots. The memory and PCIe slots work under different modes based upon the number of cores and PCIe lanes offered from your Intel Core X-series processor. For 2.5"/3.5" storage drives and optical drives, six SATA connectors are available. You can also install PCIe- or SATA-based M.2 SSDs to the motherboard's two M.2 slots. Moreover, VROC support enables you to RAID your PCIe SSDs.
Accessing the Internet can be accomplished via a Gigabit Ethernet port. Aside from the two USB 3.1 ports, four USB 3.0 and four USB 2.0 ports are on board. For audio connections, sound is delivered through six audio jacks, which are powered by a Realtek ALC S1220A processor. The motherboard also has internal I/O headers, so you can provide your system with additional USB ports as well as Thunderbolt 3 ports, using an optional add-on card.
ASUS has outfitted the TUF X299 Mark 2 motherboard with onboard LEDs that are easily controlled using ASUS Aura Sync technology. RGB headers on the motherboard allow you to add optional RGB LED strips within your case. Aside from lighting, ASUS lets you easily overclock your unlocked processor by providing easy-to-use software and supporting liquid-cooling solutions. - Intel Core X-Series Processors for LGA 2066 Socket
- The LGA 2066 socket supports Intel Core X-series processors that sport four, six, and higher core counts. Four-core X-Series CPUs support dual-channel memory configurations and offer up to sixteen PCIe 3.0 lanes. With six-core and above, the motherboard can handle quad-channel memory builds, while the processor delivers up to 44 PCIe 3.0 lanes.
- Intel X299 Chipset
- The Intel X299 chipset supports LGA 2066-socket Intel Core X-series processors. It provides stability and performance by utilizing serial point-to-point links, allowing increased bandwidth. Additionally, X299 provides a maximum of 10 USB 3.0 ports and 8 SATA 6 Gbps ports along with 32 Gbps M.2 support for faster data retrieval.
- Audio
- The Realtek S1220A audio processor features a 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in. Additionally, an impedance-sensing circuit automatically adjusts the gain to ensure an optimal volume range for your headphones. It includes audio shielding, de-pop circuit, integrated amplifier, dedicated channel layouts, and Japanese-made capacitors.
- Aura Sync
- ASUS Aura offers full RGB lighting control with a variety of presets for the built-in RGB LEDs as well as sold-separately RGB strips connected to the onboard RGB headers.
- Additional Features
-
- ASUS PRO Clock II technology extends CPU and memory overclocking margins by enhancing voltage and BCLK overclocking control
- T-Topology circuit design provides memory-overclocking capability by minimizing coupling noise and signal reflection
- Thermal Radar 3 software allows you to control connected chassis fans, water pumps, AIOs, and even the fans of ASUS graphics cards
- ASUS TurboV Processing Unit (TPU) fine tunes voltages, monitors stats, adjusts overclocking parameters, and offers extreme tuning and stress tests
- Monitor, manage, and control your chassis fans with five onboard fan headers
- Energy Processing Unit (EPU) provides system-wide power savings by automatically optimizing power consumption and offering an Away mode, which shuts down unused I/O controllers
- Integrated recorder logs critical voltage readings, temperatures, and fan speeds over time
- SafeSlot integrates two PCIe 3.0 x16 slots with fortifying metal, which is firmly anchored to the PCB through additional solder points
- ESD Guards 2 protects TUF X299 Mark 2 from damaging electrostatic discharge
- TUF chokes, capacitors, and MOSFETs help maximize the lifespan of your system
- USB 3.1 ports transmit data at up to 10 Gb/s
- M.2 slots support up to 32 Gb/s data-transfer speeds
- Virtual RAID on CPU (VROC) supports up to four M.2 drives configured in a bootable RAID array via an optional ASUS Hyper M.2 X16 card
- Intel Optane memory ready for accelerating attached storage drives
- Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface, reducing network lag
- TUF LANGuard integrates signal-coupling technology and surface-mounted capacitors to improve throughput and protect the motherboard from lightning strikes and static electricity
UPC: 889349775172 In the Box ASUS TUF X299 Mark 2 LGA 2066 ATX Motherboard Q-Shield Vertical M.2 Bracket 4 x SATA 6 Gb/s Cables Package of M.2 Screws Support DVD SLI HB Bridge (2-Way-M) Q-Connector TUF Inside Sticker Limited 5-Year Warranty User Manual PDF 11.8mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS TUF X299 Mark 2 LGA 2066 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS TUF X299 MARK 2 Specs | | | Chipset | Intel X299 | | CPU Socket | LGA 2066 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A | | Display | None | | Audio | 5 x 3.5 mm
1 x S/PDIF | | Ethernet / Controller | 1 x Intel I219V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 3600, 4000 MHz | | Maximum Capacity | 128 GB | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4)
1 x M Key 2242, 2260, 2280, 22110 (SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 | | | | Expansion Slots | 3 x PCIe 3.0 x16
1 x PCIe 3.0 x4 (x2 mode)
2 x PCIe 3.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way
3-Way
4-Way NVIDIA SLI
4-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin M.2
2 x 4-Pin CPU
3 x 4-Pin System
1 x 5-Pin Extension | | Liquid Cooling | 2 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU | | LED Header | None | | Diagnostics | Clear CMOS, CPU Overclock, RAM Check | | Add-On | 1 x Thunderbolt Card Header | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek S1220A (8-Channel) | | | | Supported Operating Systems | Windows 10 | | | | Form Factor | ATX | | Dimensions | 12.0 x 9.6" / 30.5 x 24.4 cm | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 12.9 x 10.5 x 3.0" |
