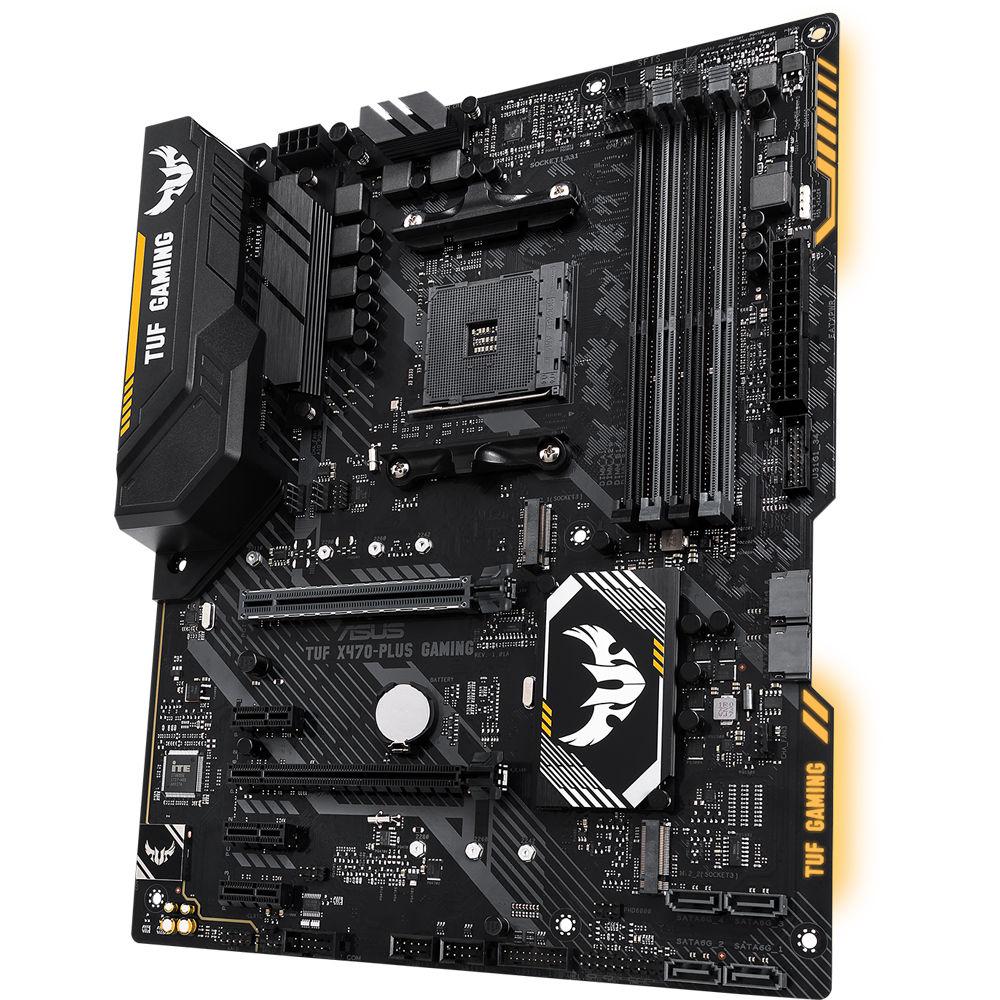

User Manual for ASUS TUF X470-Plus Gaming AM4 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS TUF X470-Plus Gaming AM4 ATX
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS TUF X470-Plus Gaming AM4 ATX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

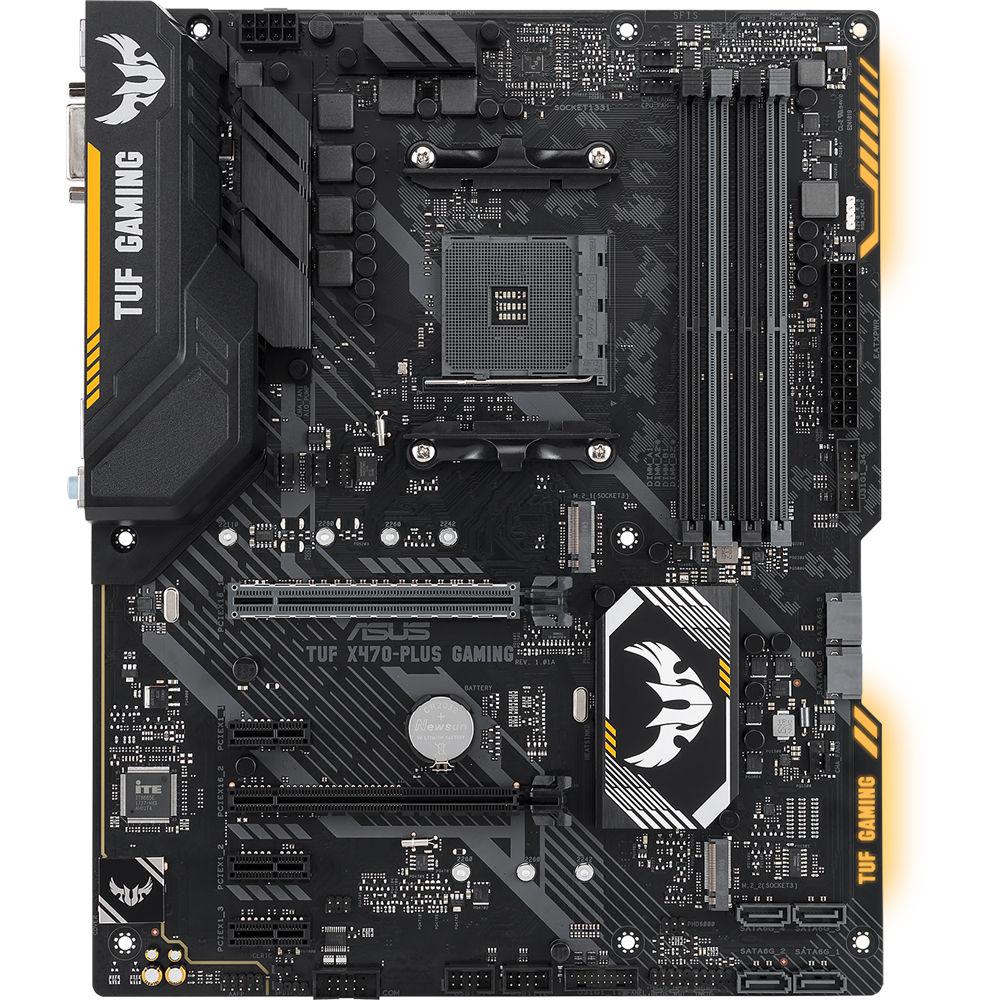

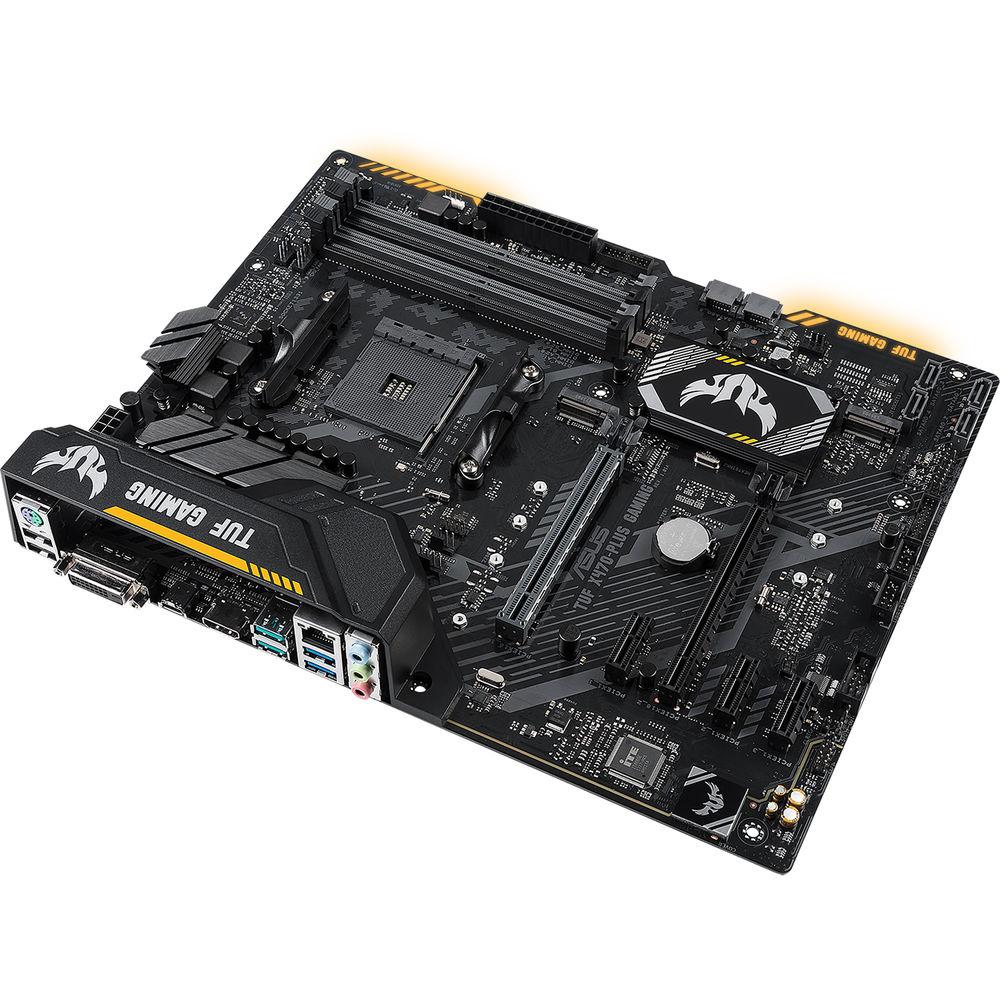

Product description The TUF X470-Plus Gaming AM4 ATX Motherboard from Asus is part of their TUF-series, designed with durable components and a military-themed aesthetic. It's built on the AMD X470 chipset with an AM4 socket that's compatible with 1st and 2nd generation Ryzen processors as well as 7th generation A-series and Athlon X4 processors. There are four dual-channel DDR4 slots, which support up to a max of 64GB of 3200 MHz overclocked RAM. For storage, it's equipped with six SATA III ports and two M.2 slots, one of which supports the PCIe 3.0 x4 mode for faster speeds. As for graphics cards, this motherboard has two PCIe 3.0 x16, one PCIe 2.0 x16, and three PCIe 2.0 x1 slots for other PCI-based expansion cards. Other notable mentions include Realtek RTL811H Gigabit LAN, Realtek ALC887-VD2 8-channel HD audio, as well as DVI-D and HDMI ports. - LED-Illuminated Edge
- The right side of the motherboard has built-in RGB LEDs. You can choose from a variety of lighting effects including static, breathing, rainbow, and more. Additionally, you can sync it with other Asus Aura Sync-compatible hardware and accessories.
- Gaming Audio
- DTS Custom onboard audio utilizes advanced emulation techniques to create positional cues via stereo headphones. It has three presets: Aerial for MOBA, RTA, and strategy games; Soundscape for MMO, RPG, action, and horror games; and Tactical for stealthy play where you need to hear an opponent's footsteps as he nears a corner.
- Shielded Audio
-
- Audio Shielding - Separate analog/digital signal domains for reduced multi-lateral interference.
- Dedicated Channel Layouts - Separate layers for left- and right-channels to preserve audio quality.
- TUF Gaming Audio Cover - EMI shielding to preserve audio signal integrity.
- Audio Enjoyment - Premium audio capacitors for warm, natural, and immersive sound.
- TUF Protection & Components
-
- SafeSlot is a metal-enhanced PCIe slot with additional retention and shearing resistance to hold heavy graphics cards in place.
- ESD Guards prolong the life of components by preventing electrostatic discharge damage.
- Digi+ VRM voltage-regulator module ensures smooth, clean power delivery to the CPU
- Onboard resettable fuses protect all connection ports and DRAM modules against over-current and short-circuit damage
- TUF's corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's 3X longer than traditional panels
- Chokes and capacitors are engineered to help improve system stability
- LANGuard integrates signal-coupling technology and premium surface-mounted capacitors to improve throughput, while protecting the motherboard from lightning strikes and static electricity
UPC: 889349951668 In the Box ASUS TUF X470-Plus Gaming AM4 ATX Motherboard Asus Q-Shield 2 x SATA III Cable M.2 Screw Package TUF Gaming Sticker TUF Certification Card Limited 3-Year Warranty User Manual PDF 6mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS TUF X470-Plus Gaming AM4 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

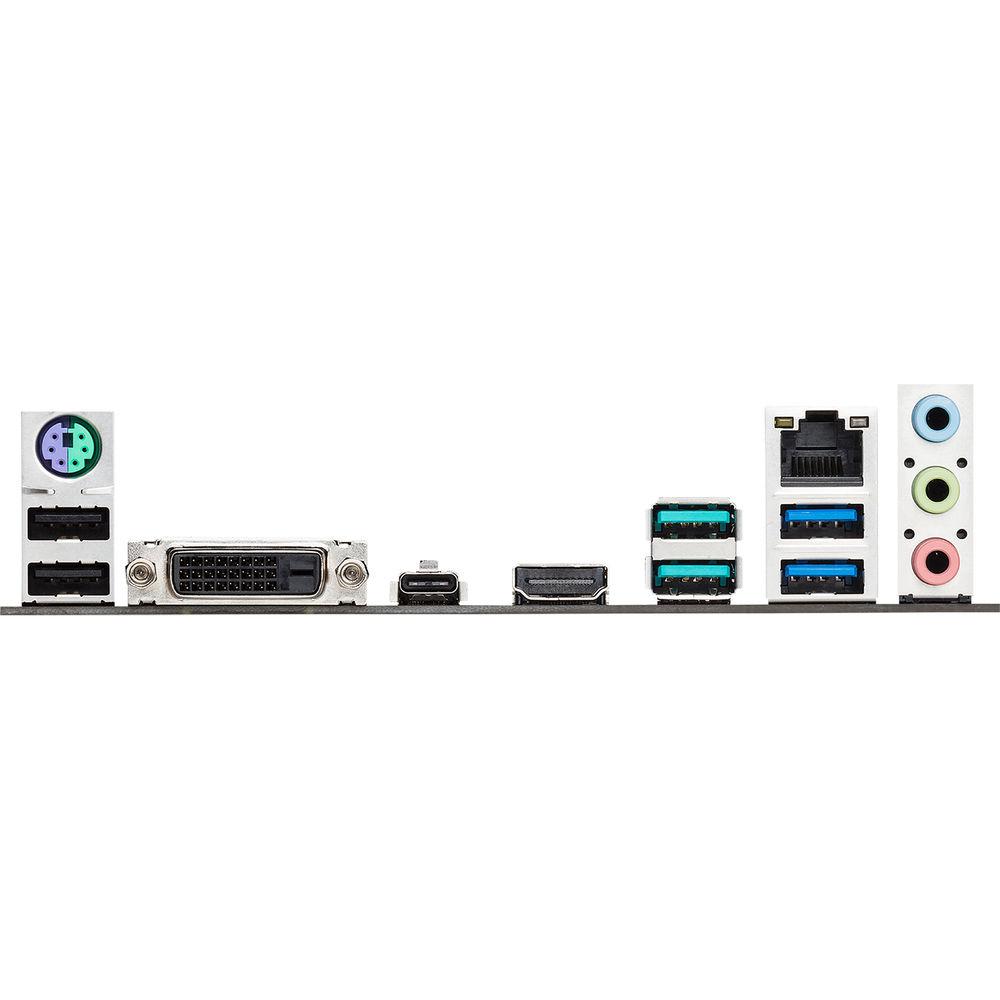

Technical parametersASUS TUF X470-PLUS GAMING Specs | | | Chipset | AMD X470 | | CPU Socket | AM4 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 1 Type-C
2 x USB 2.0 Type-A
1 x USB 3.1 Gen 1 Type-A | | Display | 1 x DVI-D
1 x HDMI | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Realtek RTL8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, SATA III) | | U.2 | None | | Optane Memory Support | No | | RAID Support | RAID 0, 1, 10 (SATA) | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 2.0 x16 (x4 mode)
3 x PCIe 2.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
3 x 4-Pin Assistant | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Audio | None | | Diagnostics | Clear CMOS | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC887-VD2 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 304.80 x 243.84 mm | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 13.0 x 10.6 x 2.2" |
