User Manual for ASUS TUF Z370-Plus Gaming II LGA 1151 ATX Motherboard Click to enlarge the picture
Contents of the user manual for the ASUS TUF Z370-Plus Gaming II LGA
- Product category: Motherboards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Motherboards
 |
User manual for the ASUS TUF Z370-Plus Gaming II LGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

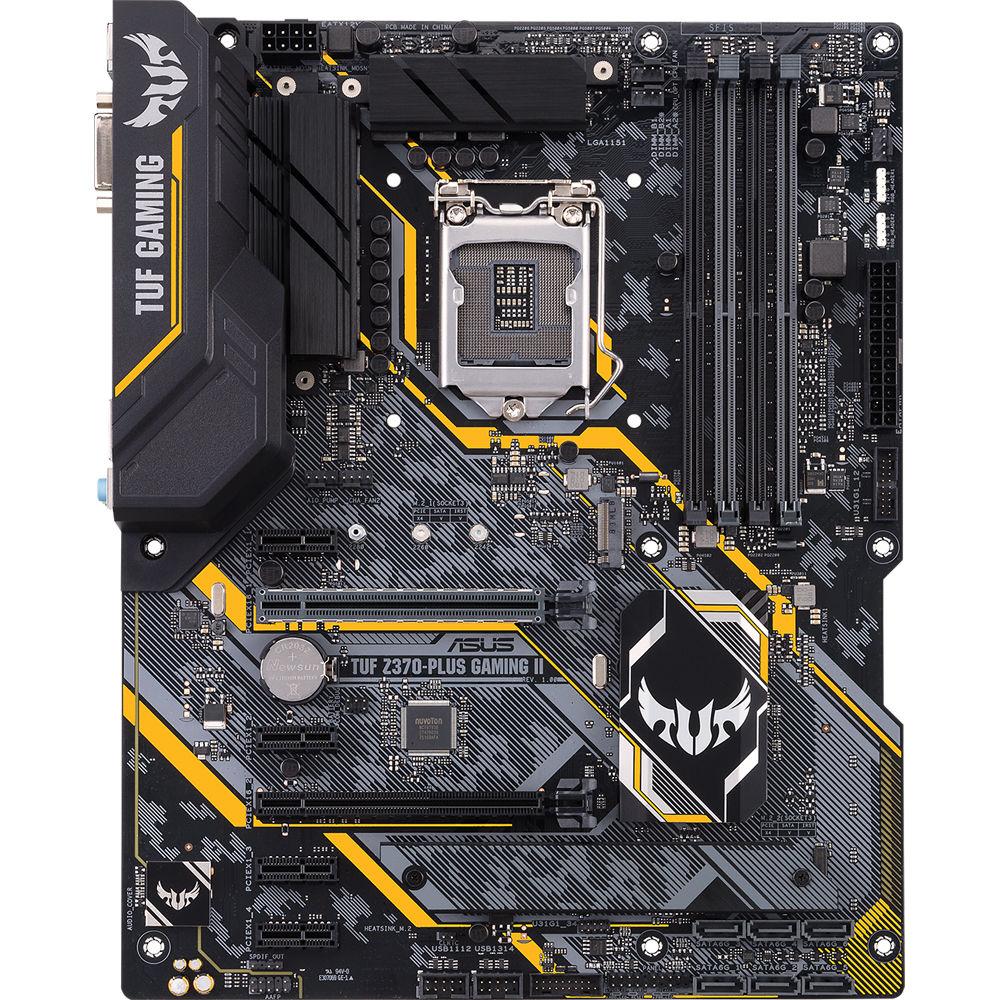

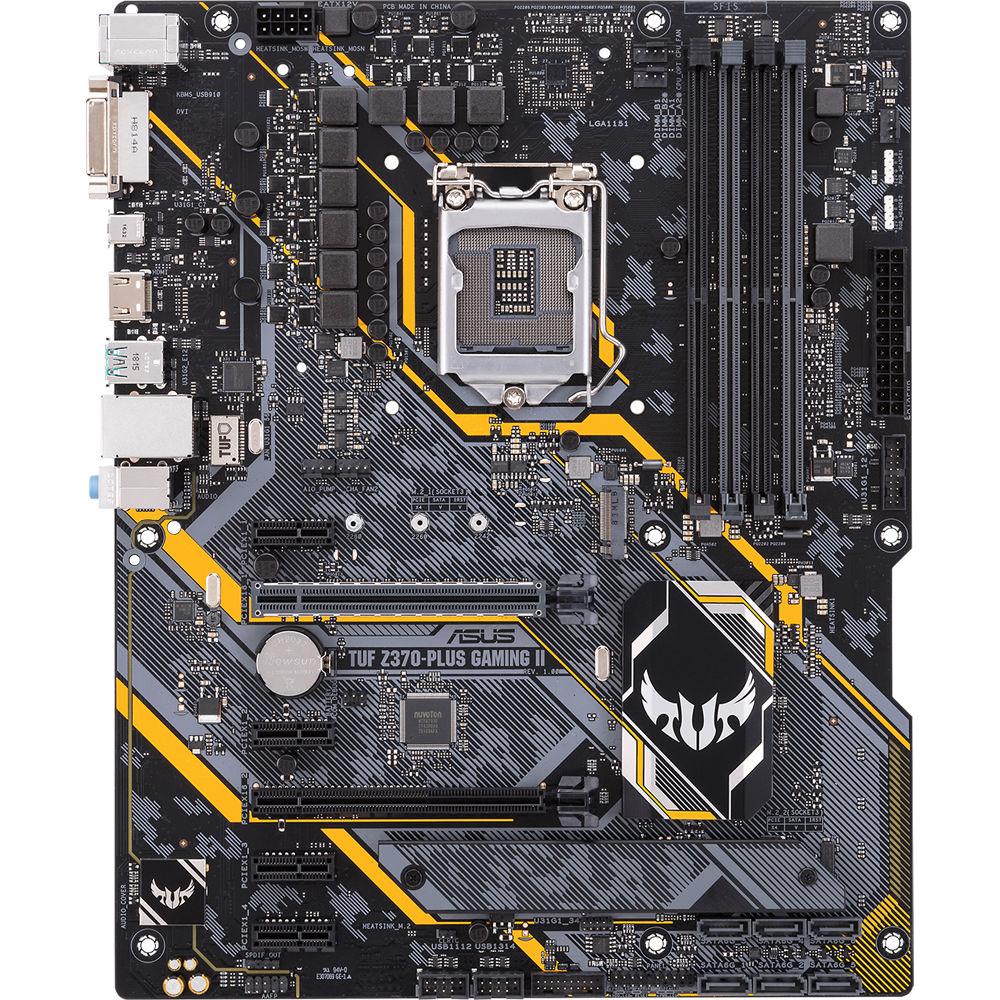

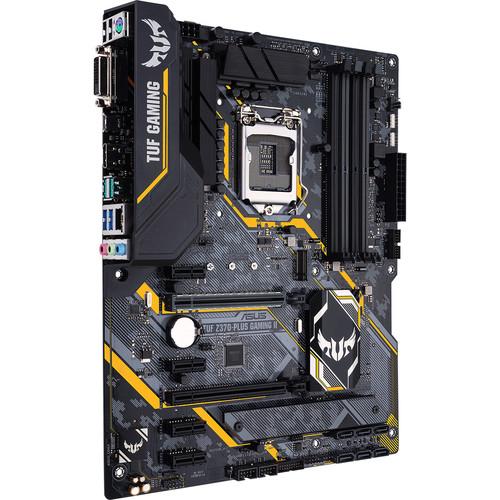

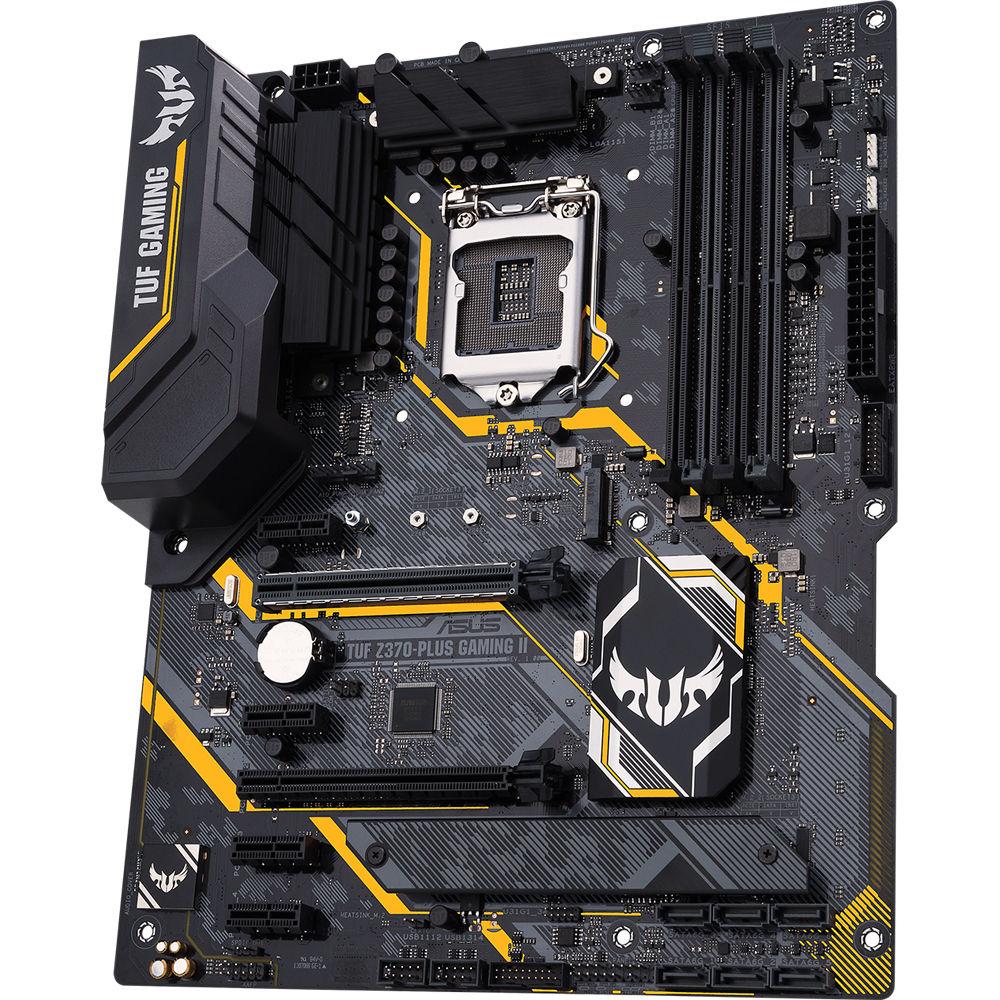

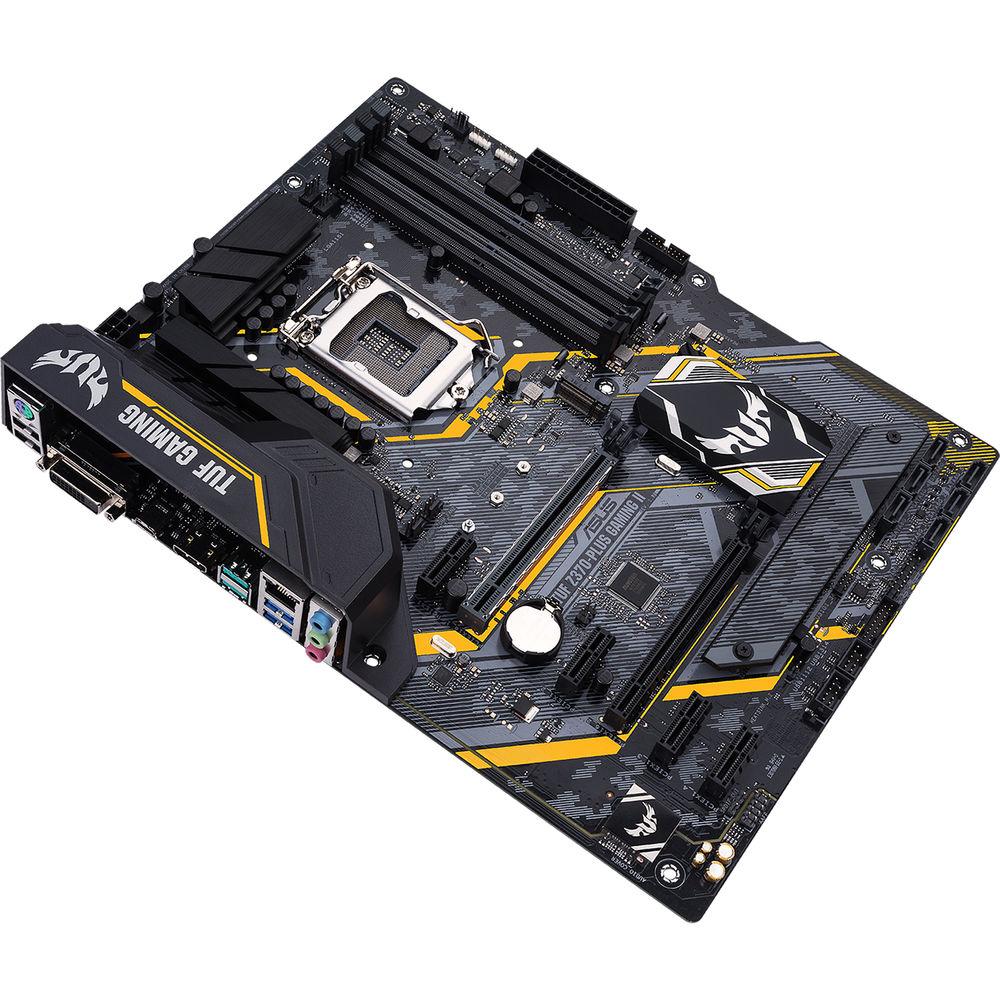

Product description The TUF Z370-Plus Gaming II LGA 1151 ATX Motherboard from Asus is built on the Intel Z370 chipset supporting 8th- and 9th-generation Intel Core, Pentium Gold, and Celeron processors with an LGA 1151 socket. It has four memory slots for up to 64GB of 4000MHz DDR4 RAM, six SATA III ports, two M.2 slots, two PCIe 3.0 x16 slots, and four PCIe 3.0 x1 slots. With two PCIe 3.0 x16 slots, this motherboard can be used for two-way AMD CrossFire setups. As for storage, the M.2 slots support up to PCIe 3.0 x4 speeds as well as Intel Optane memory for quick data transfer. Other integrated features include multiple fan headers, Intel I219V Gigabit LAN, and Realtek ALC887 8-channel HD audio. - Asus Aura Sync
- While the motherboard itself isn't equipped with RGB LED lighting, it does have two RGB headers. Asus Aura offers full RGB lighting control and can even by synced with other compatible hardware and peripherals.
- Gaming Audio
-
- DTS Custom for Gaming Headsets - DTS Custom onboard audio uses advanced simulation techniques to create positional audio. It also has three presets: Aerial, Soundscape, and Tactical for different types of games.
- Audio Shielding - Separated analog/digital signals to reduce multi-lateral interference.
- Dedicated Channel Layouts - Separate left- and right-layers to preserve signal quality.
- TUF Gaming Audio Cover - Additional shielding to preserve audio signal integrity.
- Audio Enjoyment - Premium audio capacitors for warm, natural, and immersive sound.
- Intel Ethernet
- Intel LAN reduces CPU overhead and offers high TCP and UDP throughput for faster, smoother data transfer. Moreover, it's built with TUF LANGuard to protect against lightning strikes and static electricity. On the software-side, Turbo LAN is a network optimization program that can customize packet prioritization.
- DDR4
- Asus OptiMem features an optimal routing design for memory signals while the T-Topology layout ensures time-aligned signals. With these combined, this motherboard offers improved stability and more headroom for overclocking for speeds of up to 4000 MHz.
- One-Click Overclocking
- Overclocking used to be a very in-depth process. Now with One-Click Overclocking, you can simply press a button and let your system find the right voltage and clock speeds for improved performance.
- Storage
- This TUF motherboard has two M.2 slots that support PCIe 3.0 x4 speeds as well as Intel Optane Memory. Furthermore, one of the slots has a heatsink to keep things cool and prevent throttling.
- TUF Protection
-
- SafeSlot - Metal-enhanced PCIe slot with stronger retention force and shearing support to keep it in place.
- ESD Guards - Located in the LAN port, keyboard and mouse connectors, and USB ports.
- Digi+ VRM Regulator Module - Ensures smooth and clean power delivery to the CPU.
- DRAM Overvoltage Protection - Onboard resettable fuses prevent overcurrent and short-circuit damage.
- Durable chokes, capacitors, and MOSFETs.
UPC: 192876138731 In the Box ASUS TUF Z370-Plus Gaming II LGA 1151 ATX Motherboard I/O Shield 2 x SATA III 6 Gb/s Cables M.2 Screw Package TUF Gaming Sticker TUF Certifications Card Limited 3-Year Warranty User Manual PDF 5.6mbvtceazqexqbtrrazceraqbabyfbzftd More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS TUF Z370-Plus Gaming II LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

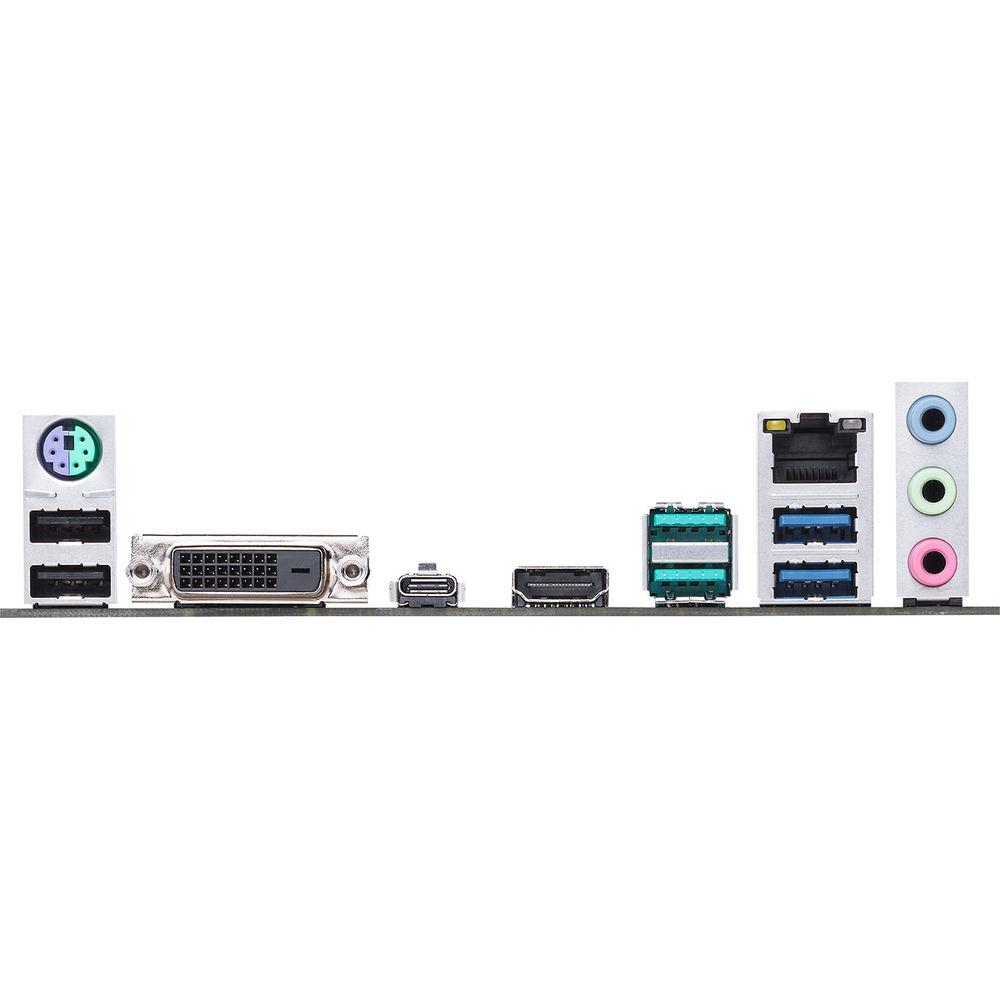

Technical parametersASUS TUF Z370-PLUS GAMING II Specs | | | Chipset | Intel Z370 | | CPU Socket | LGA 1151 | | | | USB | 1 x USB 3.1 Gen 1 Type-C
2 x USB 3.1 Gen 2 Type-A
2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Thunderbolt | None | | Display | 1 x DVI-D
1 x HDMI | | Audio | 3 x 3.5 mm | | Ethernet / Controller | 1 x Intel I219V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) | | U.2 | None | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 (SATA)
RAID 0, 1 (M.2) | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
3 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | LED Header | 2 x RGB | | Audio | 1 x S/PDIF | | Diagnostics | Clear CMOS | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 9.6 x 12" / 243.84 x 304.80 mm | | | | Package Weight | 2.735 lb | | Box Dimensions (LxWxH) | 13.1 x 10.8 x 2.25" |
