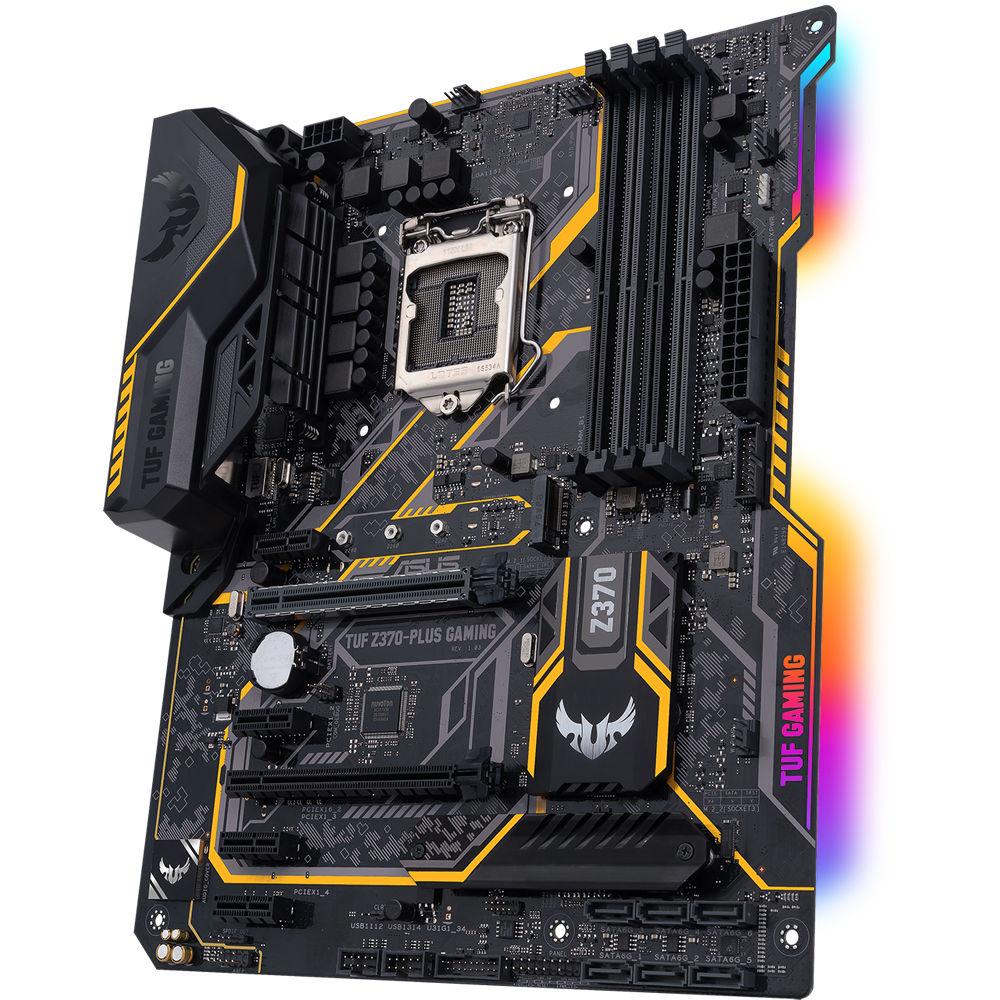

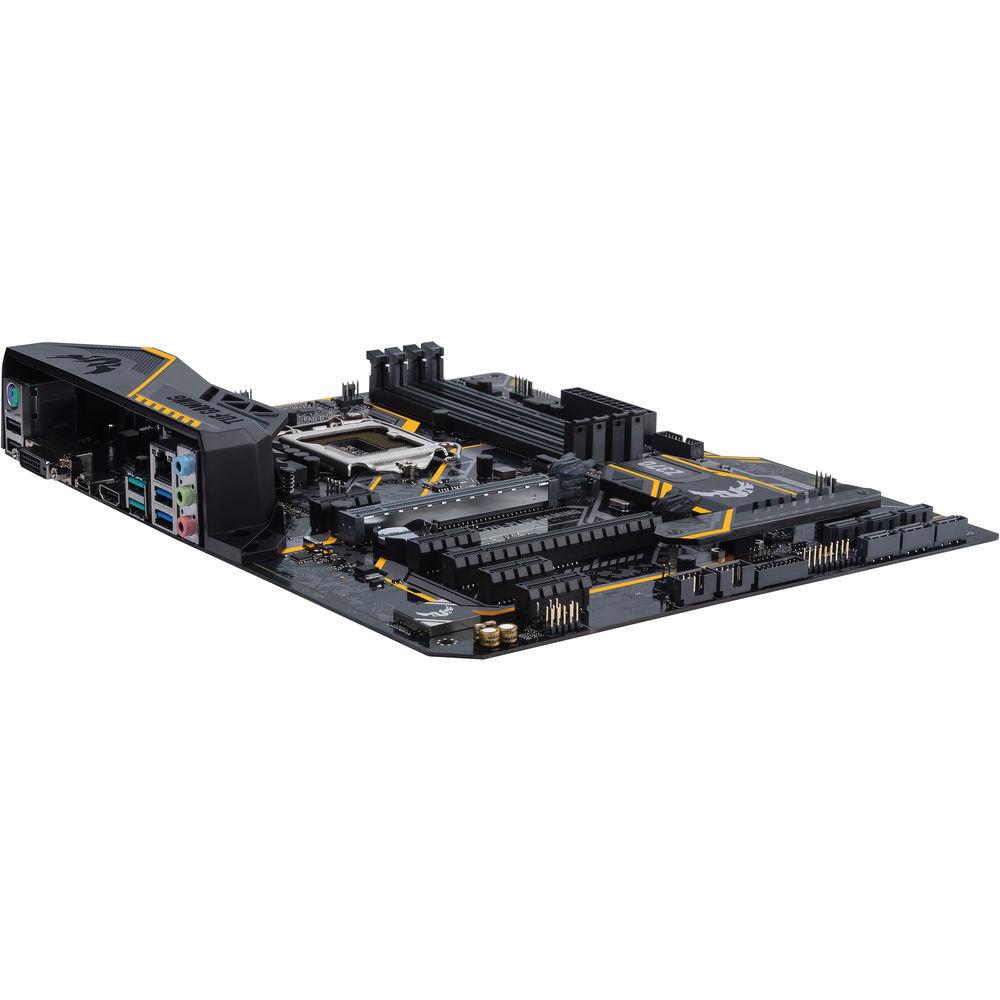

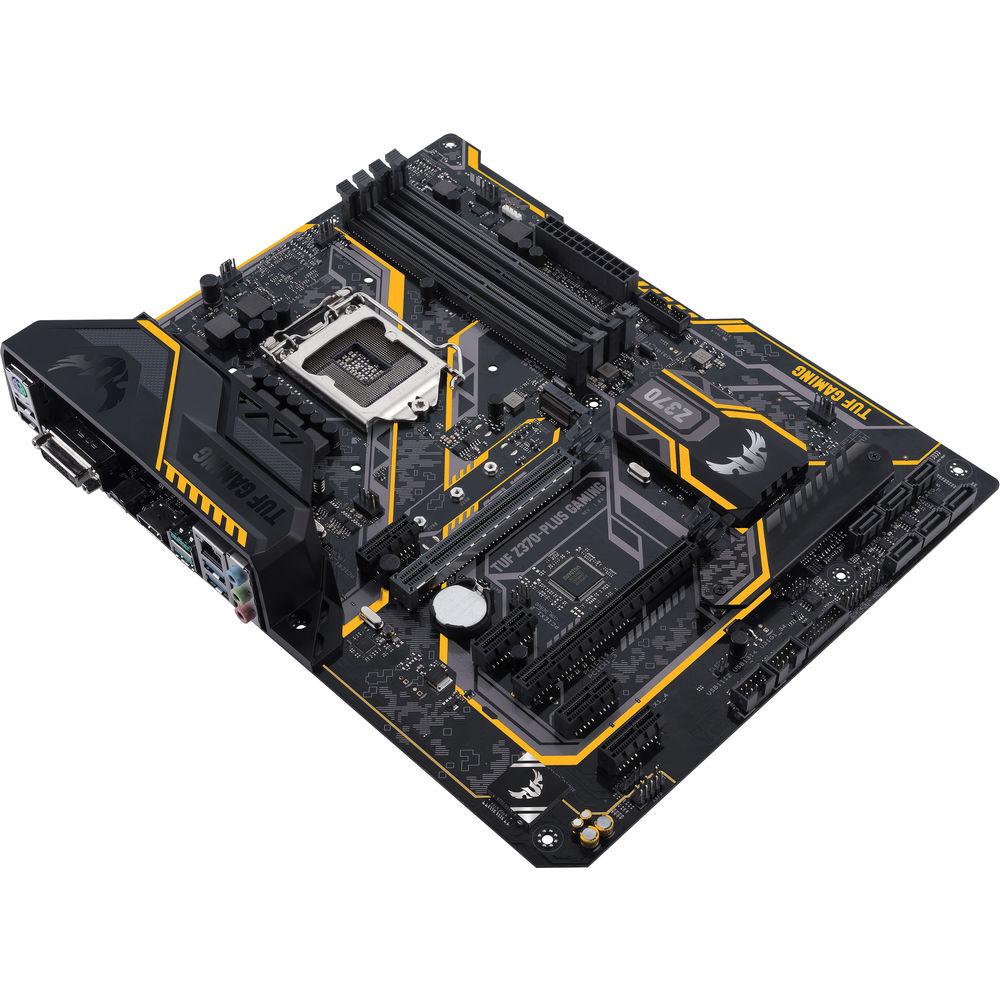

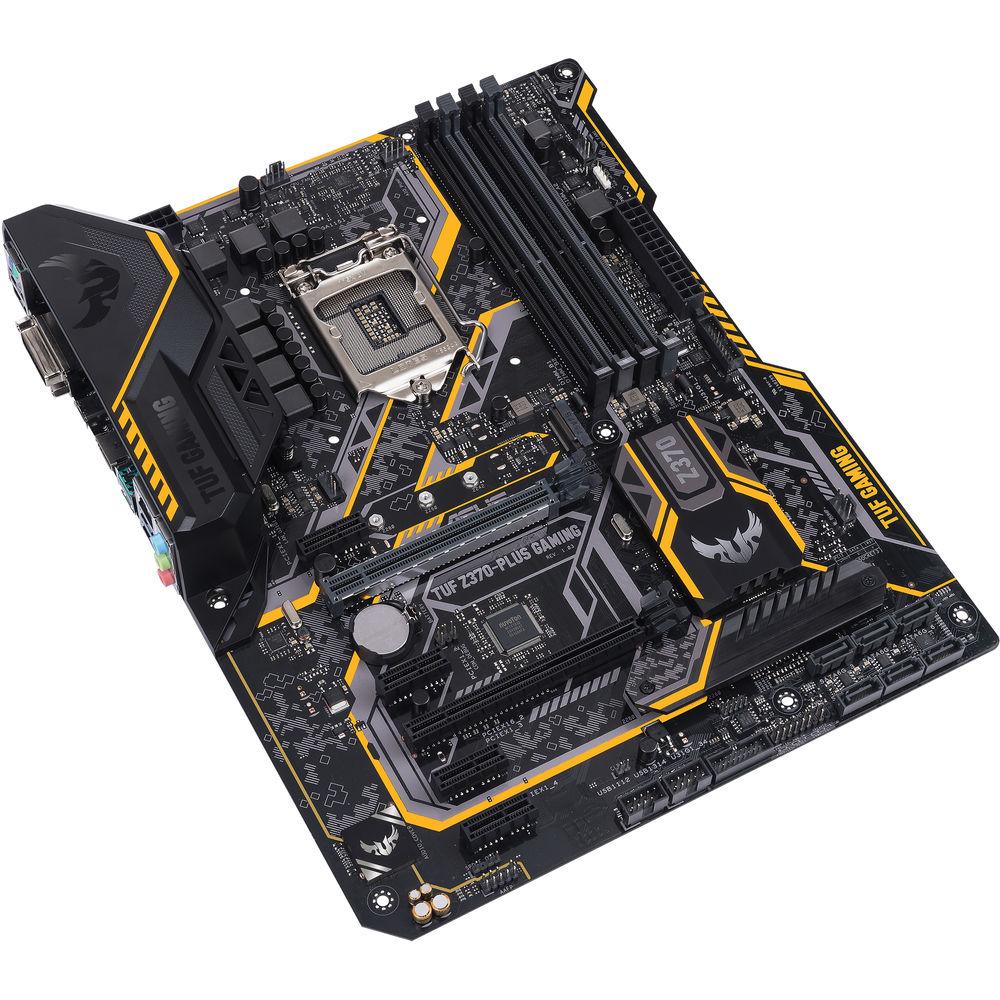

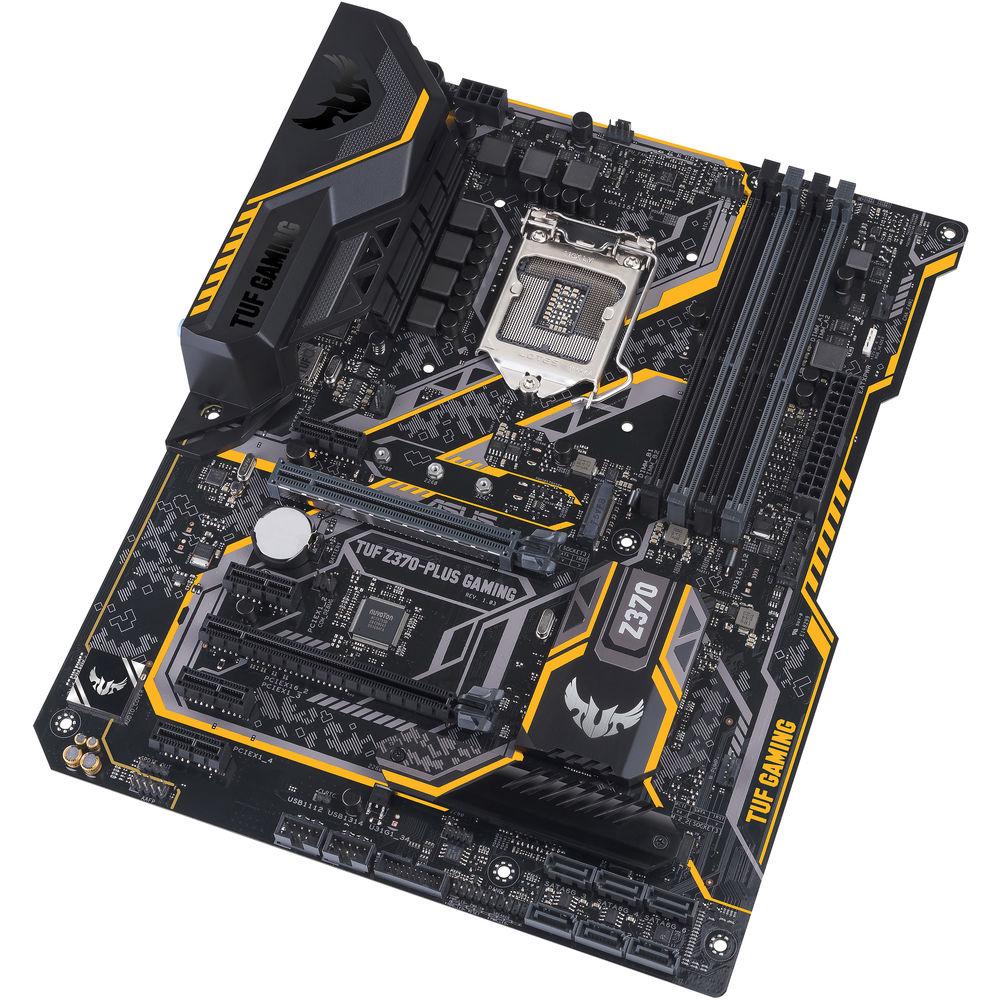

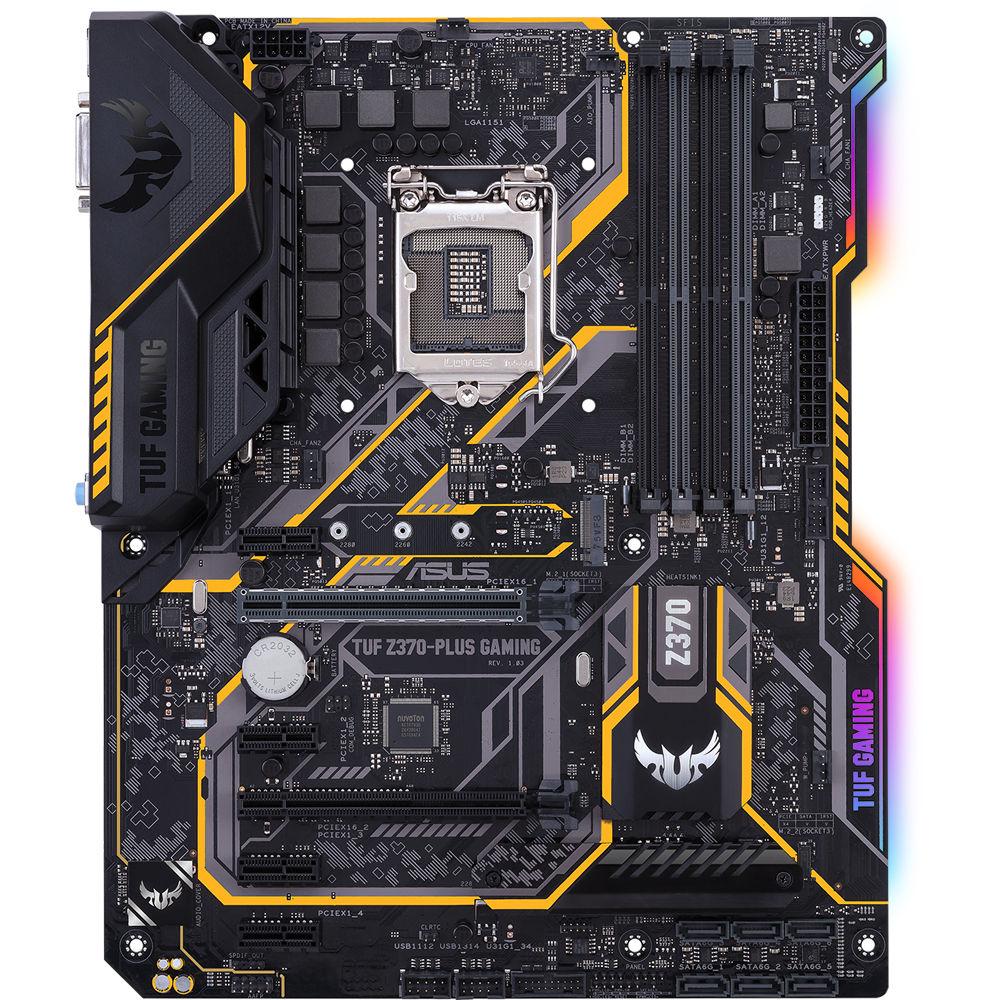

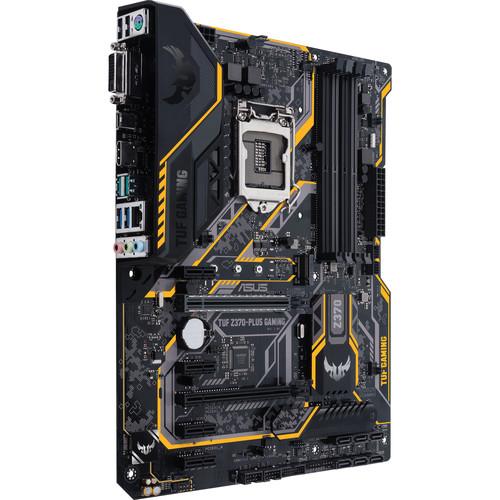

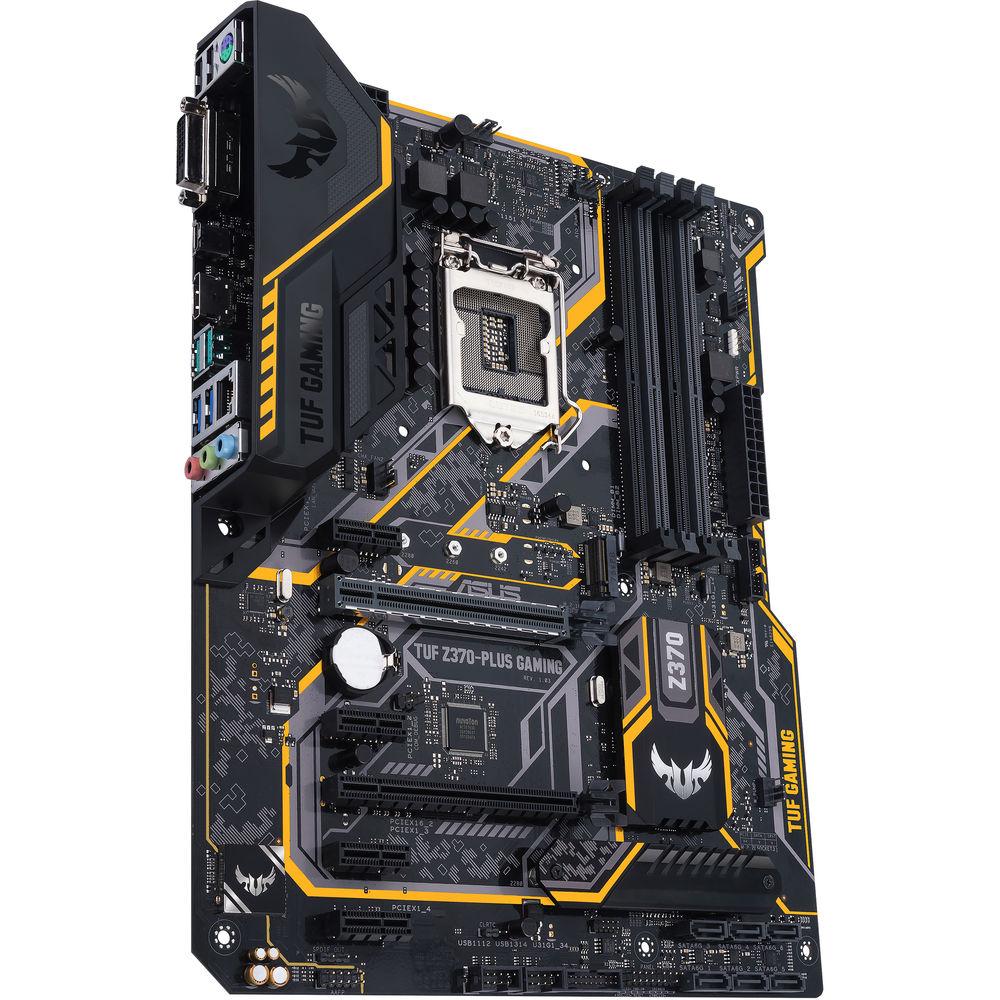

Product description The ASUS TUF Z370-Plus Gaming LGA1151 ATX Motherboard lets you build an 8th-generation Intel Core desktop system by offering an Intel Z370 chipset and an LGA1151 socket. The TUF Z370-Plus Gaming motherboard provides two PCIe 3.0 x16 slots, so you create a gaming system that runs on two graphics cards linked with AMD CrossFireX technology. Four DIMM slots are available for accommodating up to 64GB of DDR4 memory modules. For storage, the motherboard comes armed with six SATA connectors and two M.2 slots, which support SATA- and PCIe-based SSDs. There's also onboard LEDs on the motherboard to illuminate the insides of your case.
To access external peripherals, ASUS has outfitted this motherboard with three USB 3.0, two USB 3.1, and two USB 2.0 ports. One of the USB 3.0 ports features a USB Type-C design, while the USB 3.1 ports offer 10 Gb/s speeds. Additional connections can be added to the system by installing PCIe cards to the motherboard's four PCIe 3.0 x1 slots. If you choose a non-gaming build, the motherboard can utilize the processor's integrated graphics chipset to deliver 4K visuals via the motherboard's DVI-D and HDMI outputs. Other notable features include one PS/2 port and Gigabit Ethernet along with three audio jacks, powered by a Realtek ALC887 audio processor. - Intel Z370 Chipset
- The Intel Z370 is a single-chipset design that supports 8th-generation Intel Core LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z370 provides a maximum of ten USB 3.0 ports, six SATA 6 Gbps ports, and 32 Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z370 also supports integrated-graphics.
- LGA1151 Core Processors
- This motherboard supports 8th Generation Intel Core processors in the LGA1151 package. With integrated graphics, memory, and PCI Express controllers, it supports onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory, and 16 PCI Express 3.0/2.0 lanes.
- Gaming Audio
- DTS Custom onboard audio uses emulation techniques to create positional cues via stereo headphones. With Aerial, Soundscape, and Tactical presets designed for different genres, you'll have a distinct advantage while gaming. Aerial mode produces audio as though hovering above the game world, making it suitable for MOBA, RTA, strategy, and sports titles. Soundscape puts you in the center of the action for MMO, RPG, action, and horror games. To detect and locate footsteps, Tactical mode emphasizes detailed sounds. In addition, this motherboard comes with an audio cover and audio shielding as well as dedicated channel layouts and audio capacitors, which produce a warm and natural sounds
- ASUS Aura
- ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs and optional RGB strips connected to the onboard RGB headers. It provides Static, Breathing, Strobing, Rainbow, Color Cycle, Comet, Flash & Dash, Wave, Glowing Yo-Yo, Starry Night, Music, and CPU temperature effects.
- ASUS OptiMem
- ASUS OptiMem preserves the memory signal integrity by routing memory traces to the PCB layer. This T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. This provides more overclocking headroom and improved stability, allowing DDR4 memory speeds of 4000 MHz with all slots populated.
- Additional Features
-
- Intel Ethernet controllers reduce CPU overhead and offer high TCP and UDP throughputs
- LANGuard integrates signal-coupling technology and premium surface-mounted capacitors to improve throughput, while protecting the motherboard from lightning strikes and static electricity
- Turbo LAN with cFosSpeed traffic-shaping technology helps reduce lag
- OC Tuner overclocks your system with a single click by providing precise voltage control and monitoring
- The USB 3.1 ports transfer data at speeds of up to 10 Gb/s
- Intel Optane memory support accelerates attached storage to reduce boot and load times
- Dual onboard M.2 slots, both operating through PCI Express 3.0 x4 lanes, provide 32 Gb/s of bandwidth
- Multiple temperature sources enable full control of PWM and DC water pumps
- Every onboard header supports auto-detection of PWM or DC fans
- A dedicated integrated circuit protects each fan header from over-temperature and overcurrent
- SafeSlot integrates fortifying metal for a stronger slot, which is then firmly anchored to the PCB through additional solder points
- ESD Guards prolong the life of components while preventing damage from electrostatic discharge
- Digi+ VRM voltage-regulator module ensures smooth, clean power delivery to the CPU
- Onboard resettable fuses protect all connection ports and DRAM modules against overcurrent and short-circuit damage
- TUF's corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's 3X longer than traditional panels
- Chokes and capacitors are engineered to help improve system stability

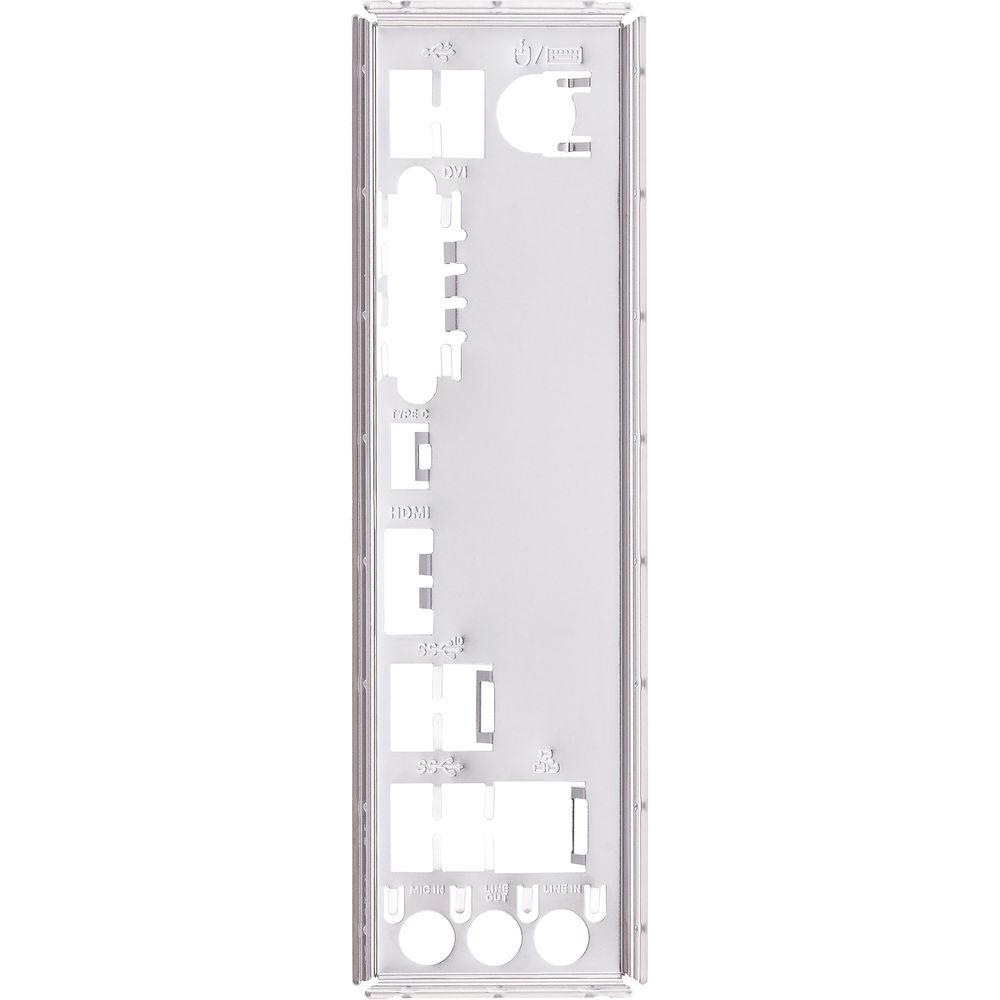

UPC: 889349848968 In the Box ASUS TUF Z370-Plus Gaming LGA1151 ATX Motherboard I/O Shield 2 x SATA 6 Gb/s Cables M.2 Screw Package TUF Gaming Sticker SCD Limited 3-Year Warranty User Manual PDF 4.9mbbwxrwvdsbtfyavuxyartryxvaywv More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS TUF Z370-Plus Gaming LGA1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS TUF Z370-PLUS GAMING Specs | CPU | Intel Socket LGA 1151 for 8th-generation Core processors | | Chipset | Intel Z370 | | Memory | 4 x DIMM, Max. 64 GB, DDR4 4000 (OC), 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666, 2400, and 2133 MHz non-ECC unbuffered memory
Dual-Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) | | Graphics | Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB | | Expansion Slots | 1 x PCIe 3.0/2.0 x16
1 x PCIe 3.0/2.0 x16 (x4 mode)
4 x PCIe 3.0/2.0 x1

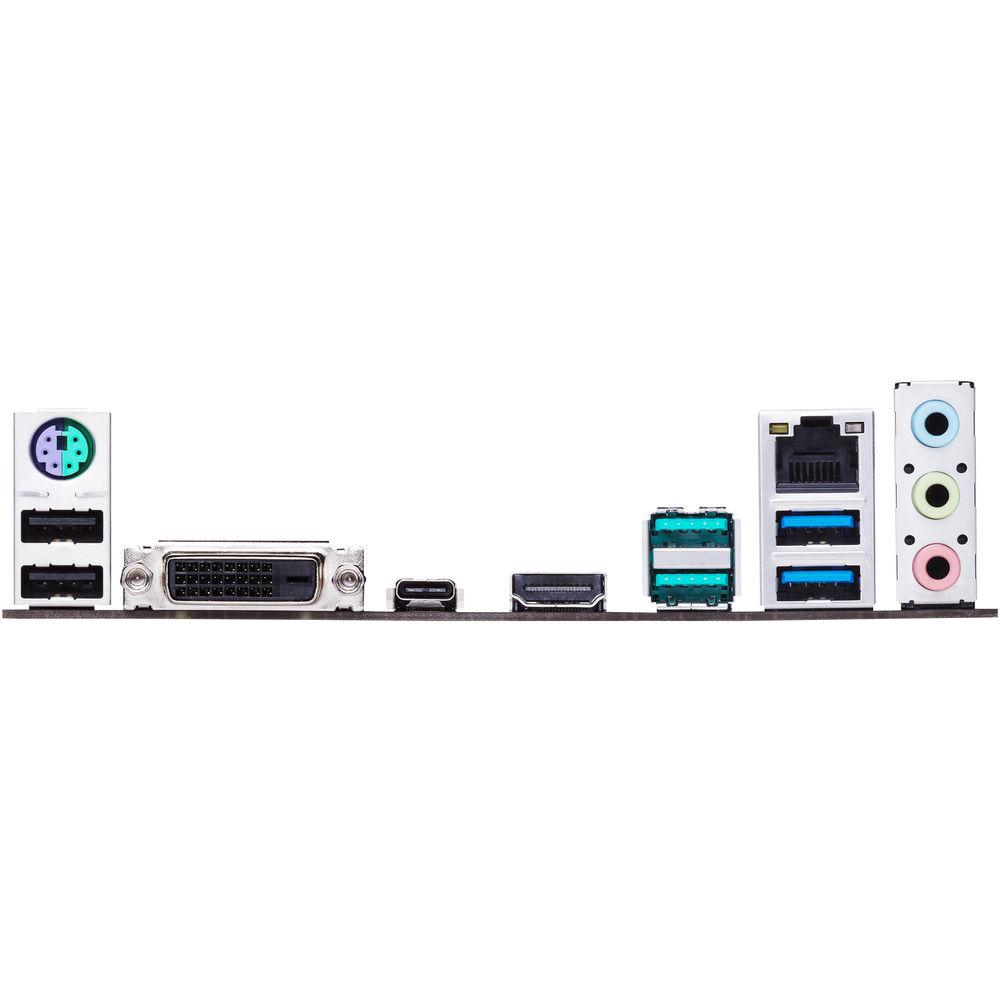

AMD CrossFireX Support | | Audio | Realtek ALC887 8-Channel | | I/O Ports | 1 x PS/2 keyboard/mouse combo port
1 x DVI-D
1 x HDMI
1 x Intel I219V Gigabit Ethernet port
1 x USB 3.0 Type-C port (3 A power output)
2 x USB 3.1 Type-A ports
2 x USB 3.0 Type-A ports
2 x USB 2.0 Type-A ports
3 x Audio jacks | | Internal Ports | 1 x RGB Header
2 x USB 3.0 connectors (support additional 4 USB 3.0 ports, 19-pin)
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA and PCIe x4 modes)
6 x SATA 6 Gb/s connectors
1 x CPU Fan connector (1 x 4-pin)
2 x Chassis Fan connectors (2 x 4-pin)
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x Front panel audio connector (AAFP)
1 x Clear CMOS jumper
1 x System panel connector
1 x W_Pump + Header
1 x AIO PUMP Header | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 30.5 x 24.4 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 13.0 x 10.3 x 2.3" |
