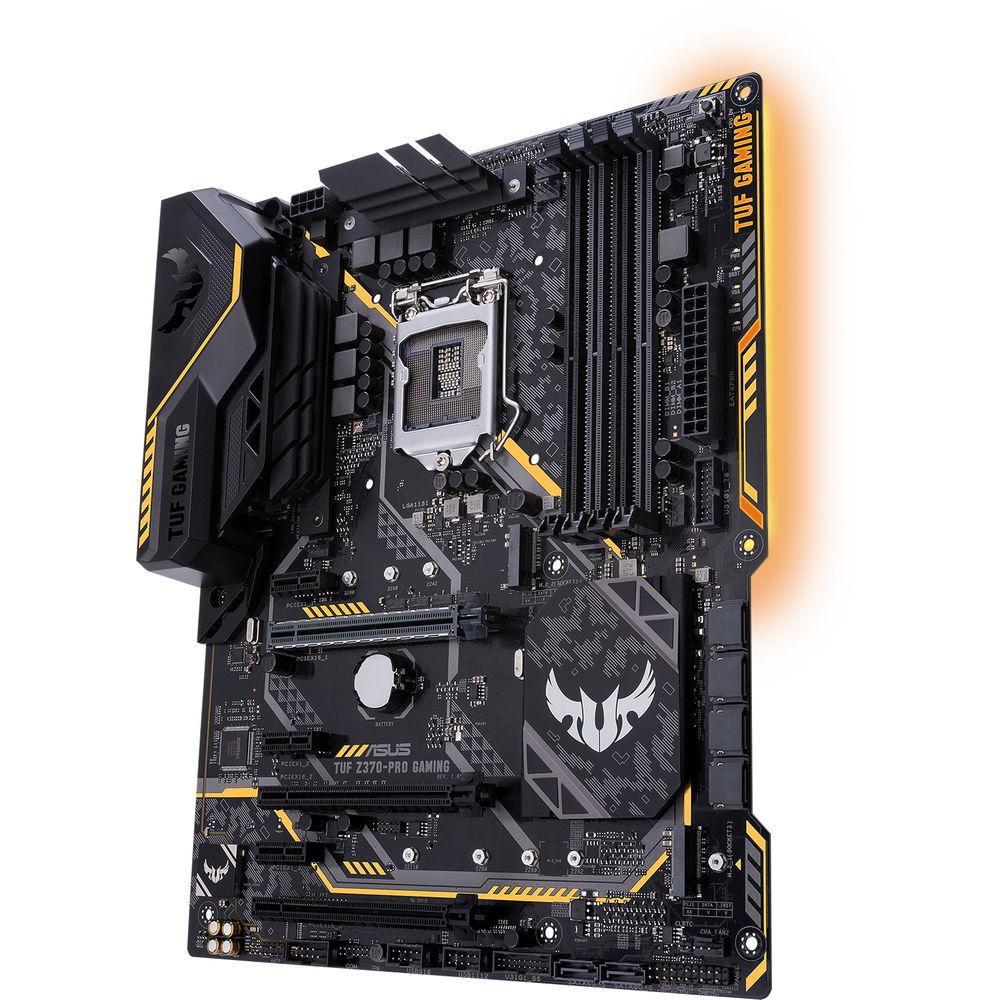

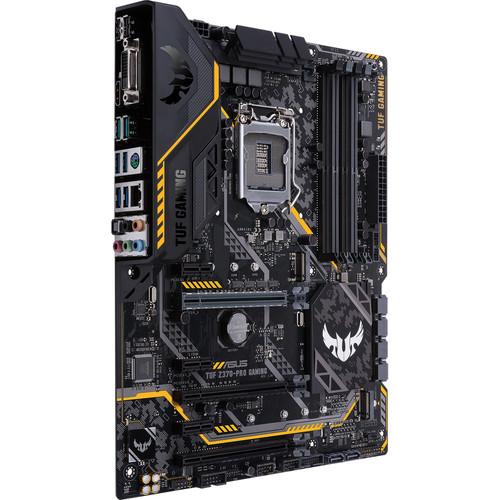

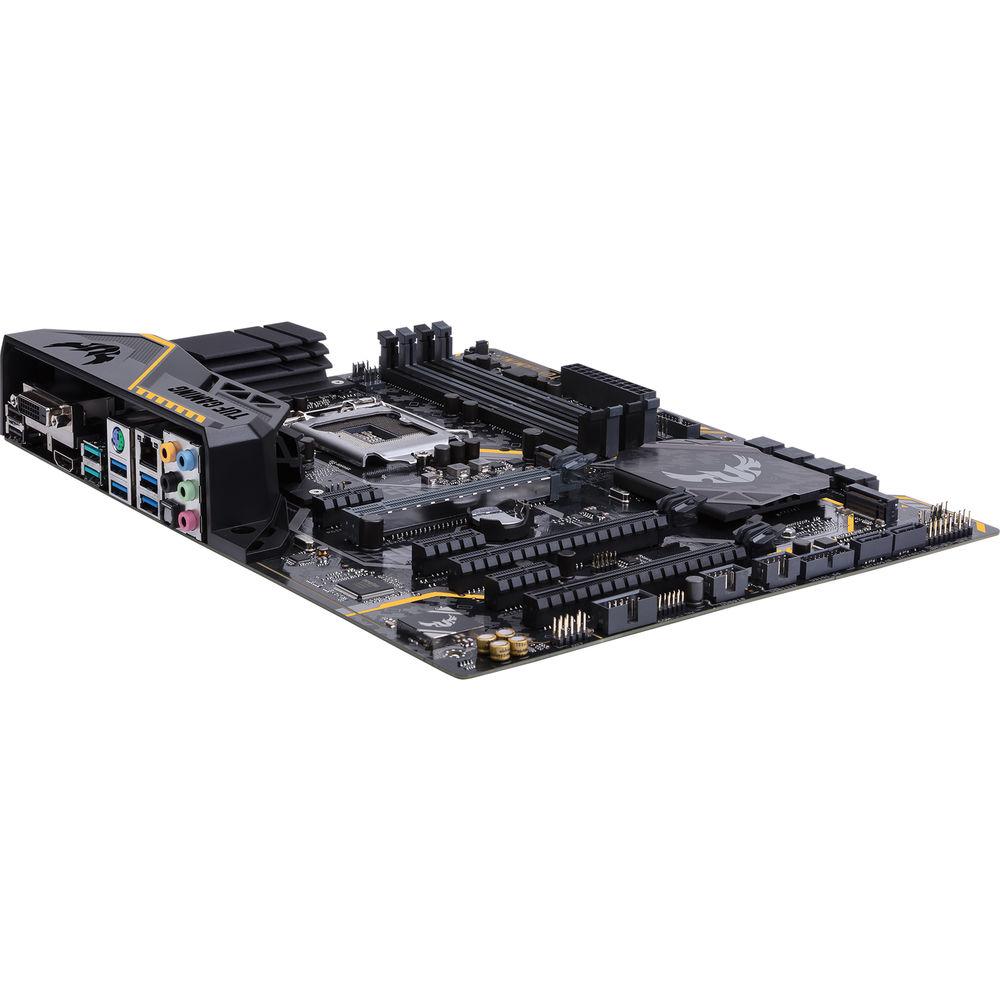

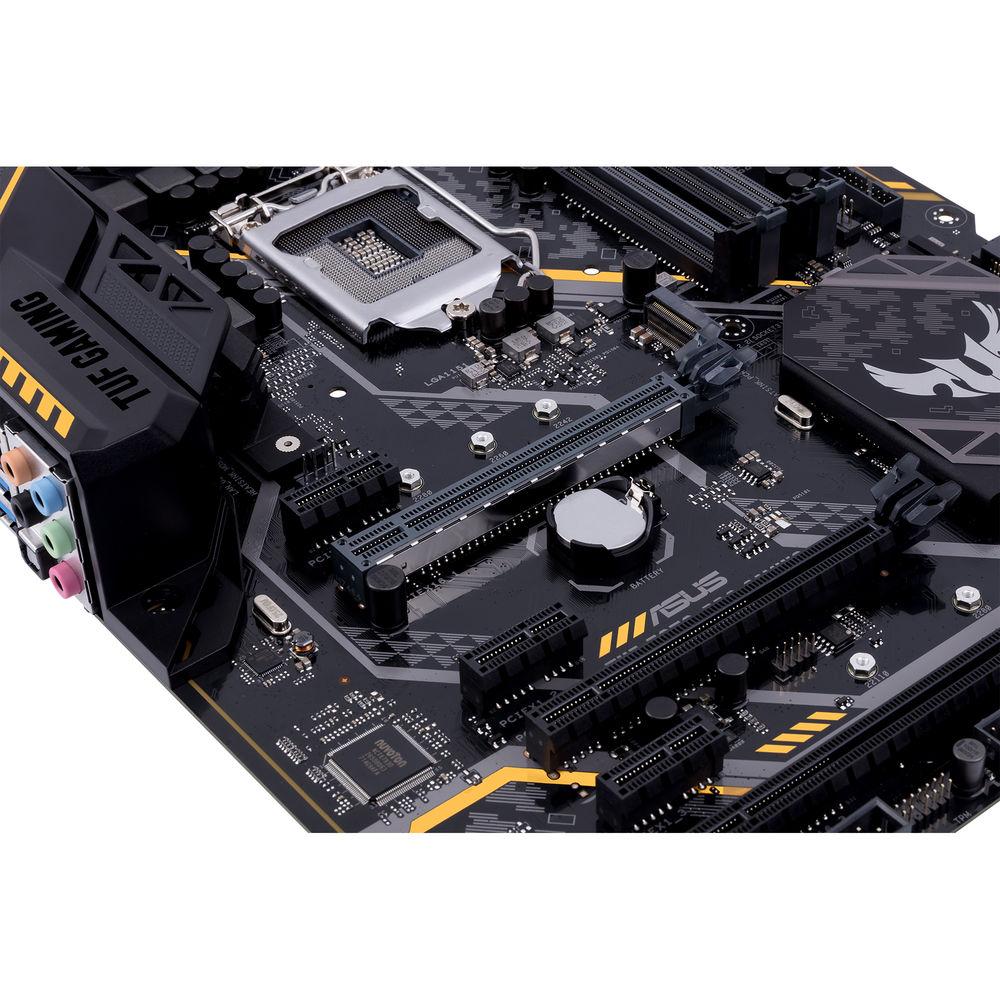

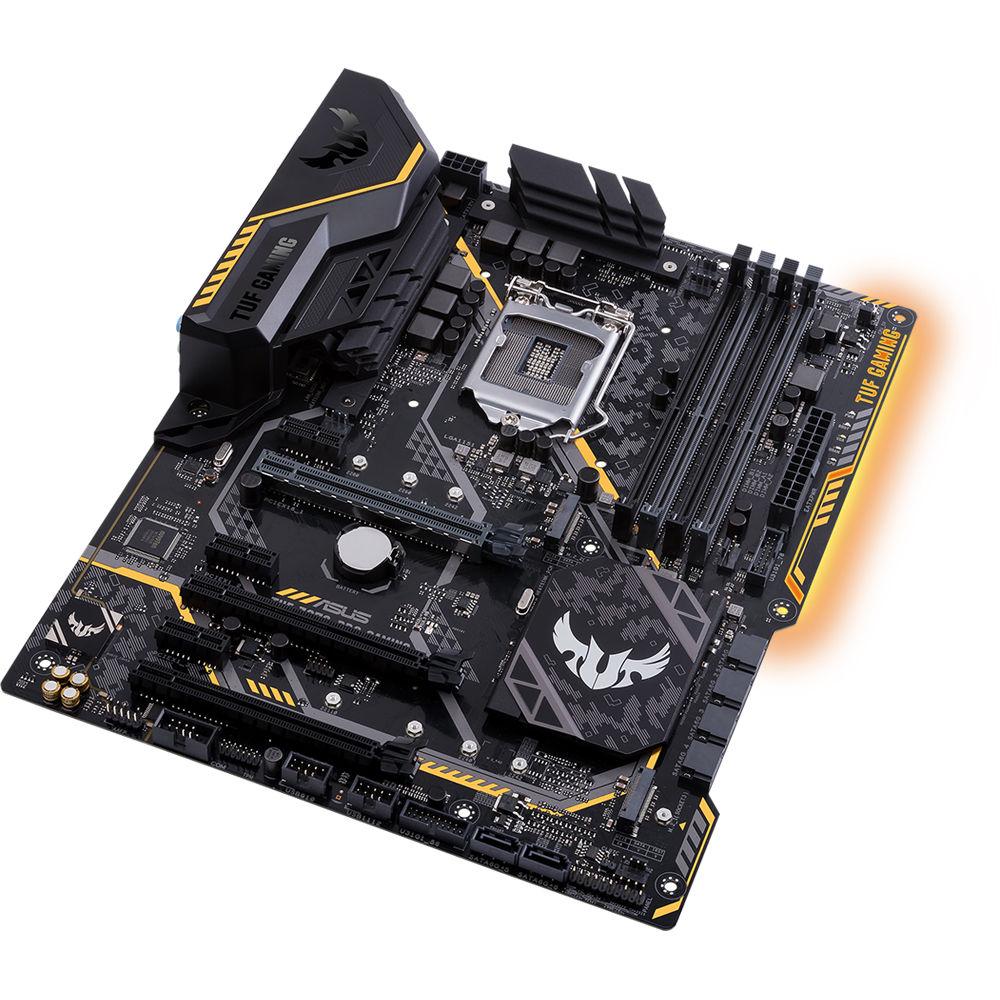

Product description The TUF Z370-PRO GAMING LGA 1151 ATX Motherboard from Asus is built on the Intel Z370 chipset with an LGA 1151 socket designed for 8th generation Core processors. It has four memory slots that support up to 64GB of 4000 MHz overclocked DDR4 RAM, six SATA III ports, and two M.2 slots, both of which support the PCIe 3.0 x4 interface. For expansion cards and graphics cards, this motherboard is equipped with three PCIe 3.0 x16 slots, one of which can only run at x2 mode, and three PCIe 3.0 x1 slots. Other integrated features include multiple USB ports and audio jacks, Intel I219V Gigabit LAN, and Realtek ALC887 8-channel HD audio. - LED-Illuminated Edge

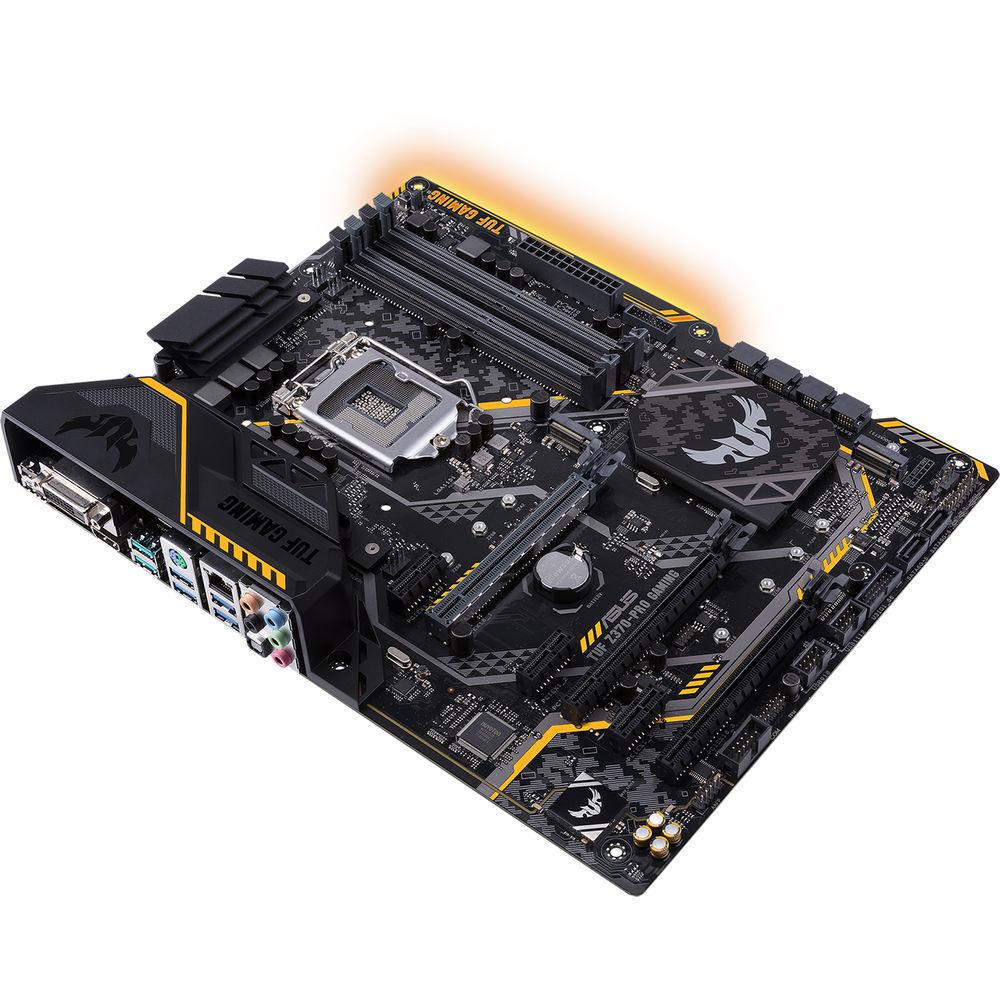

- The right side of the motherboard has built-in orange LEDs. You can customize its lighting pattern for a continuous glow, an on and off breathing effect, or turn it off when needed.
- Cooling
- The TUF Z370-Pro has plenty of 4-pin fan headers with both PWM and DC support. Moreover, some are dedicated for pumps should you decide to water cool your system. Each fan header is also equipped with an integrated circuit that protects from over-temperature and over-current.
Performance Level Up - Asus OptiMem
- Asus OptiMem uses optimized memory trace routes to preserve memory signal integrity for higher headroom for overclocking and improved stability.
- One-Click Overclocking
- The OC Tuner feature can improve system performance with precise voltage control and one-click overclocking.
- Multi-GPU Support
- When one graphics card isn't enough, you can install another for an SLI or CrossFire setup. A SLI HB bridge is included.
- M.2
- With PCIe 3.0 Gen 3 x4, M.2 drives can achieve transfer speeds of up to 32 Gb/s, allowing for faster boot and application load times.
- Intel Optane Memory Ready
- Intel Optane is a non-volatile memory technology that when paired with a hard drive or solid-state drive, can increase system responsiveness as well as decrease loading times.
Gaming Audio - Gaming Audio
- DTS Custom onboard audio utilizes advanced emulation techniques to create positional cues via stereo headphones. It has three presets: Aerial for MOBA, RTA, and strategy games; Soundscape for MMO, RPG, action, and horror games; and Tactical for stealthy play where you need to hear an opponent's footsteps as he nears a corner.
- Shielded Audio
-
- Audio Shielding - Separate analog/digital signal domains for reduced multi-lateral interference.
- Dedicated Channel Layouts - Separate layers for left- and right-channels to preserve audio quality.
- TUF Gaming Audio Cover - EMI shielding to preserve audio signal integrity.
- Audio Enjoyment - Premium audio capacitors for warm, natural, and immersive sound.
Gaming Network - Intel Ethernet
- Intel LAN reduces CPU overhead and offers high TCP and UDP throughput for faster and smoother data transfer.
- TUF LANguard
- TUF LANguard utilizes signal-coupling technology and surface mounted capacitors to improve throughput and protect the motherboard from power surges and static electricity.
- Turbo LAN
- Turbo LAN is a network-optimization software with customizable packet prioritization. It also has a Game Mode that prioritizes game-related data for smoother gaming.
TUF Protection - SafeSlot
- SafeSlot is a reinforced PCIe slot fortified with metal to enhance retention and shearing resistance to prevent heavy graphics cards from damaging the slot.
- ESD Guards
- ESD Guards are designed to prolong the life of components and prevent electrostatic discharge damage.
UPC: 889349857274 In the Box ASUS TUF Z370-PRO GAMING LGA 1151 ATX Motherboard I/O Shield 2 x SATA III Cable M.2 Screw Package CPU Installation Tool TUF Gaming Sticker 2-Way NVIDIA SLI Bridge Q-Connector Limited 3-Year Warranty User Manual PDF 8mbvqtydbcdex More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS TUF Z370-PRO GAMING LGA 1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

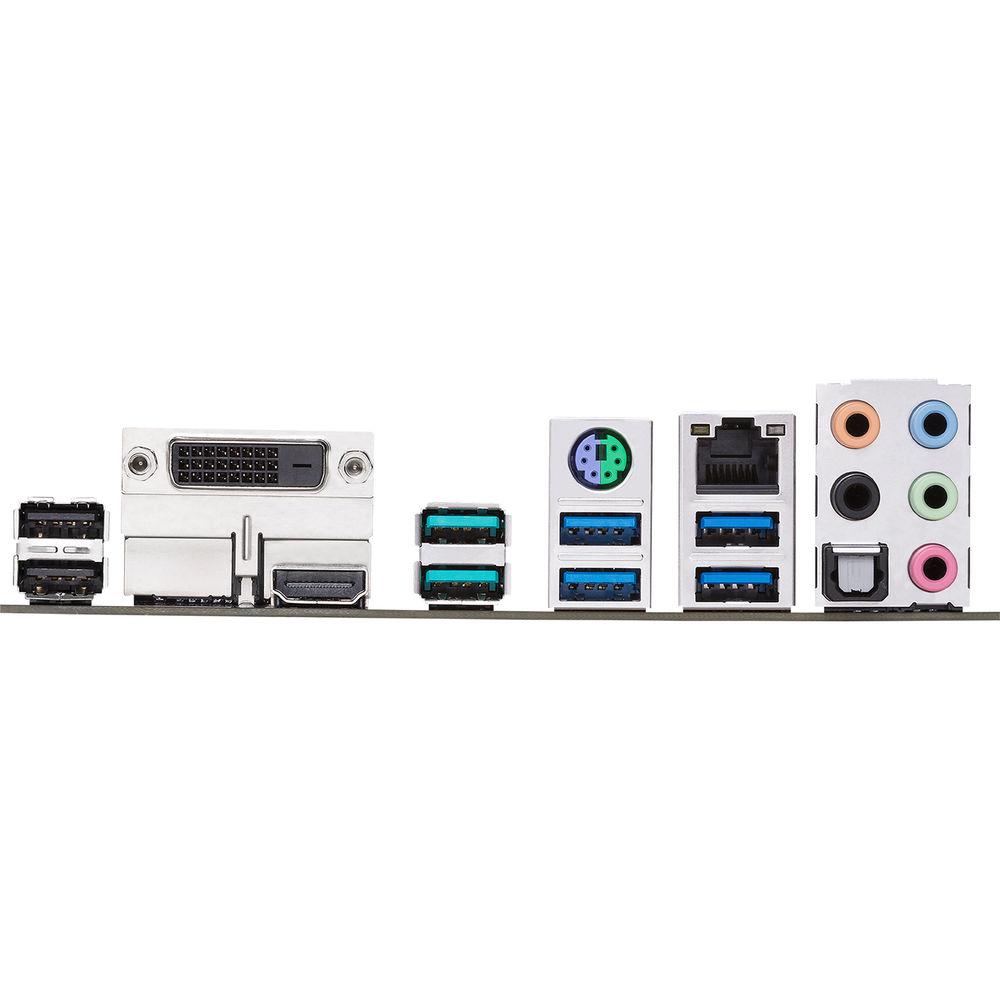

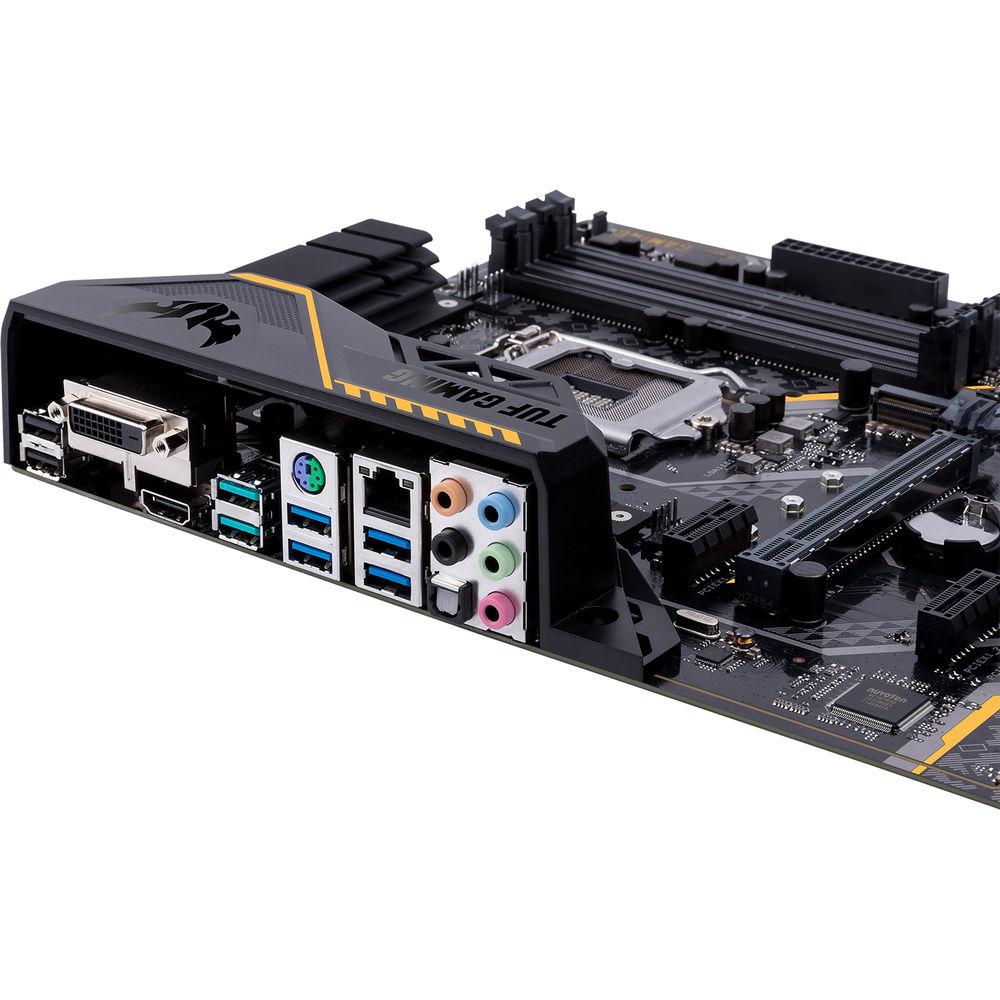

Technical parametersASUS TUF Z370-PRO GAMING Specs | | | Chipset | Intel Z370 | | CPU Socket | LGA 1151 | | | | USB | 2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Display | 1 x DVI-D
1 x HDMI | | Audio | 1 x S/PDIF
5 x 3.5 mm | | Ethernet / Controller | 1 x Intel I219V Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | ECC Support | Non-ECC Unbuffered | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 (SATA) | | | | Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x2 mode) | | USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX
2-Way NVIDIA SLI | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin Assistant
2 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | Audio | None | | Diagnostics | Clear CMOS, CPU Overclock, RAM Check | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC887 (8-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | ATX | | Dimensions | 12 x 9.6" / 304.80 x 243.84 mm | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 12.9 x 10.3 x 2.7" |
