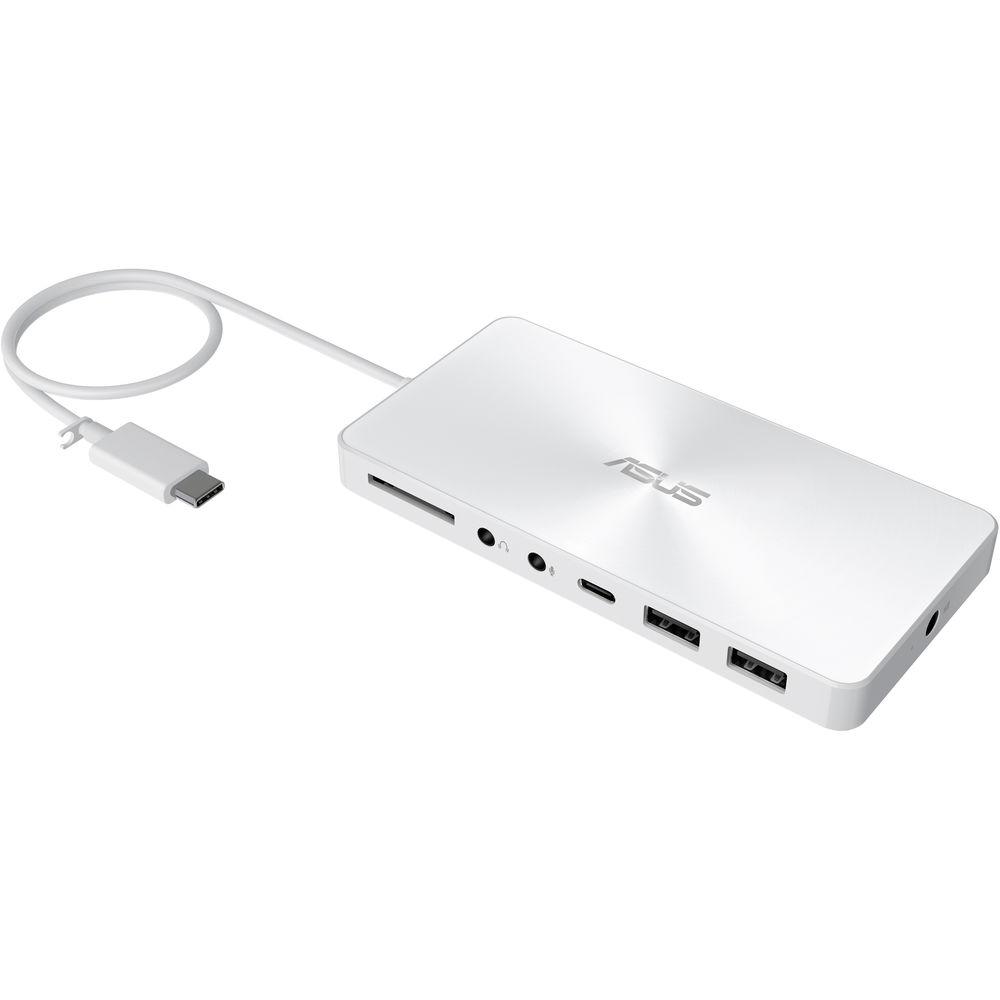

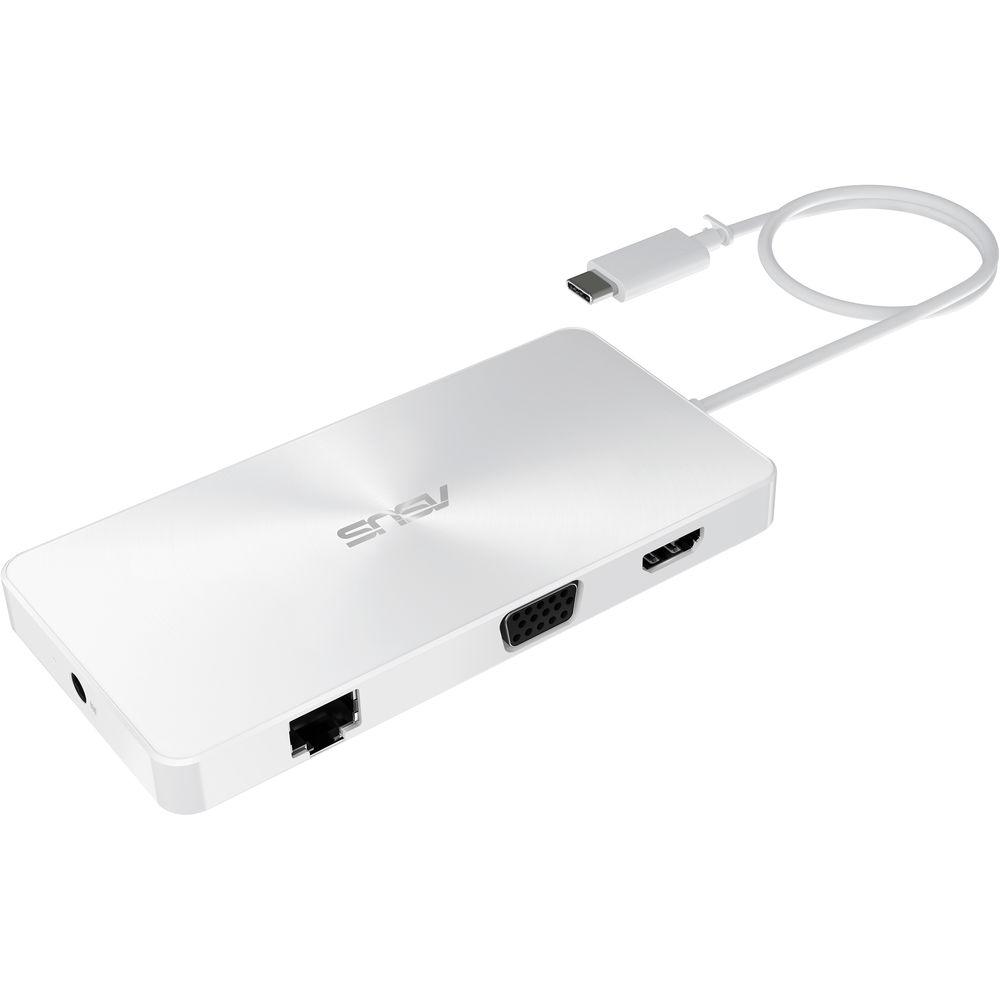

User Manual for ASUS Universal USB 3.1 Gen 1 Type-C Docking Station Click to enlarge the picture
Contents of the user manual for the ASUS Universal USB 3.1 Gen 1
- Product category: Docking Stations & Port Replicators ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Docking Stations & Port Replicators
 |
User manual for the ASUS Universal USB 3.1 Gen 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

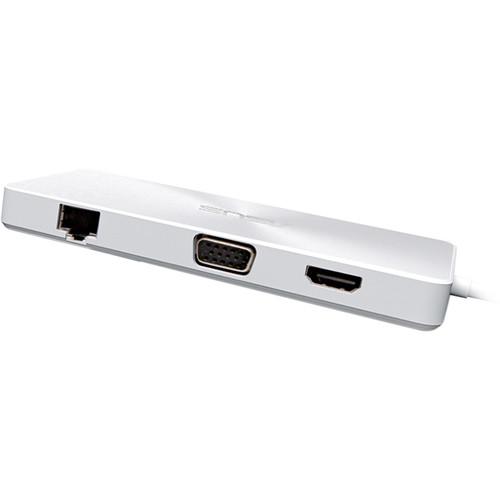

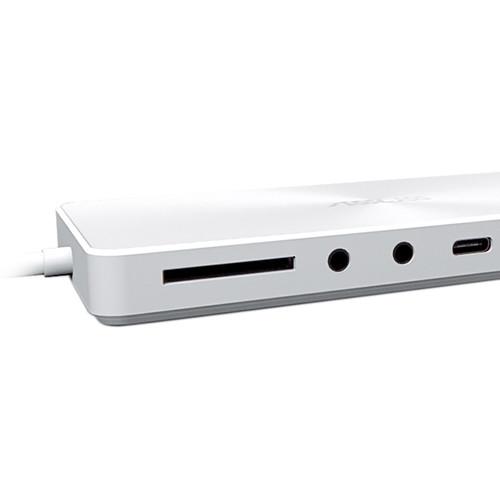

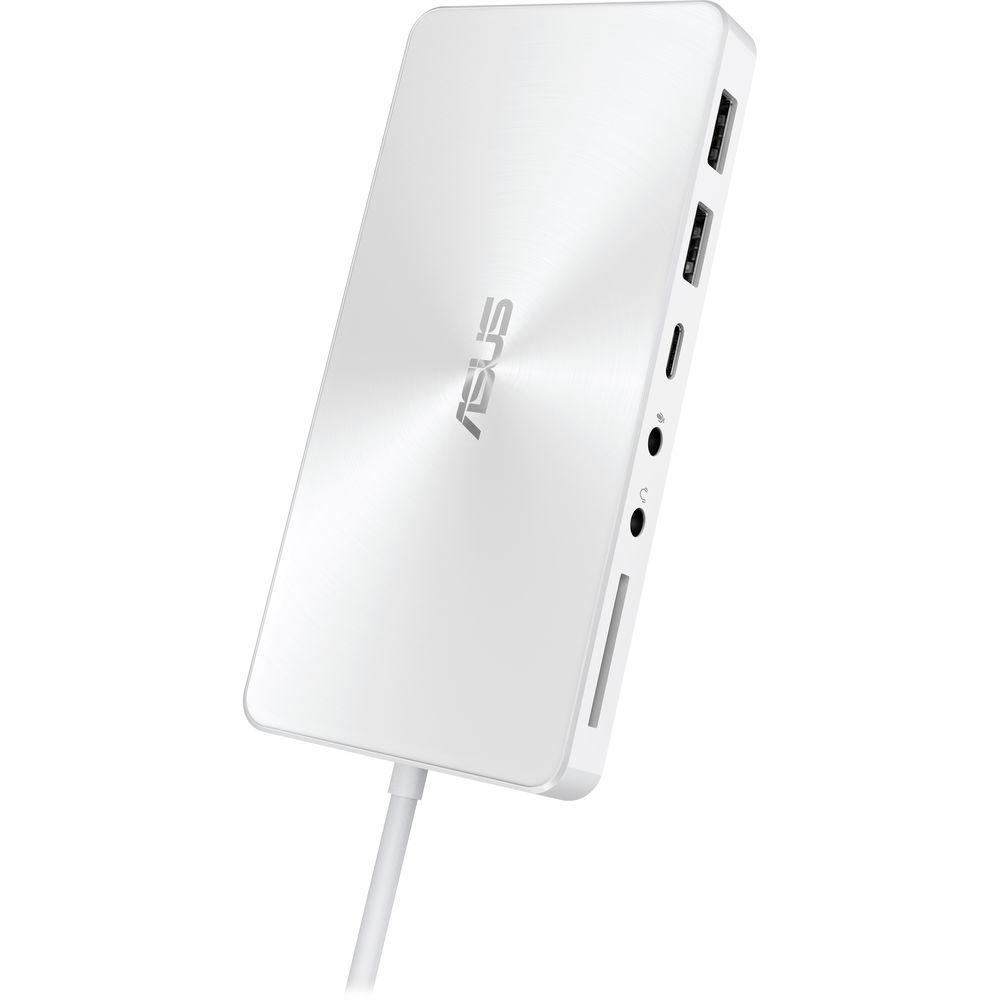

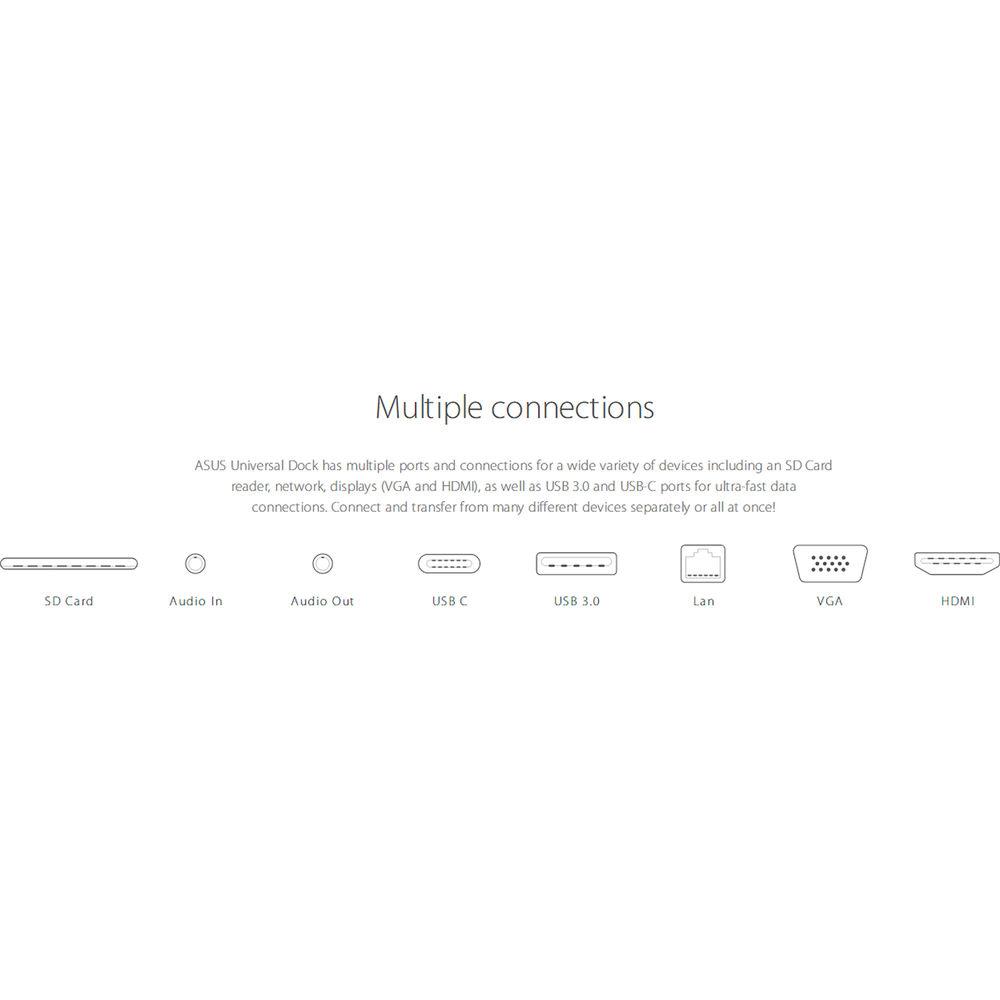

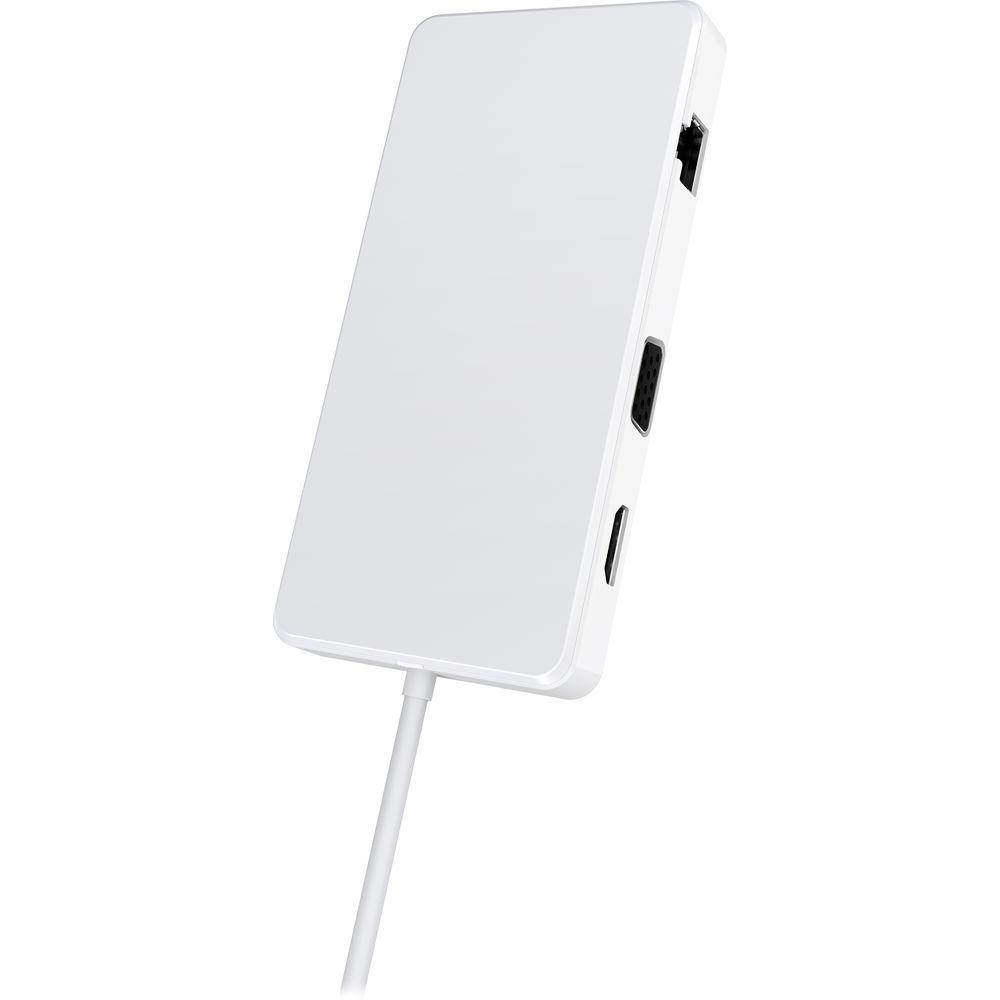

Product description The ASUS Universal Docking Station is compatible with an ASUS laptop featuring a USB Type-C port and provides quick access to a wide-variety of devices by offering additional connections. The docking station comes with one USB Type-C port and two USB 3.0 Type-A ports, so the laptop can access printers, external storage drives, and more. For a reliable and fast Internet connection, the dock has a Gigabit Ethernet port. To expand the laptops onscreen workspace, HDMI 1.4 and VGA ports are on board; however, only one external monitor is supported at a time. There's also a pair of audio jacks for connecting a headset to complete the multimedia experience. Aside from these connections, the dock grants you with a 3-in-1 card reader that can accept an SD, SDHC, or SDXC memory card.

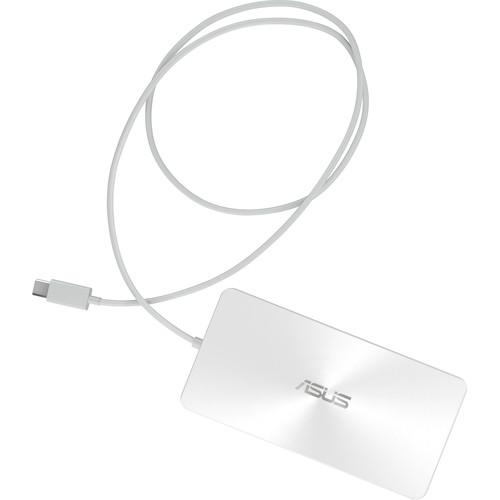

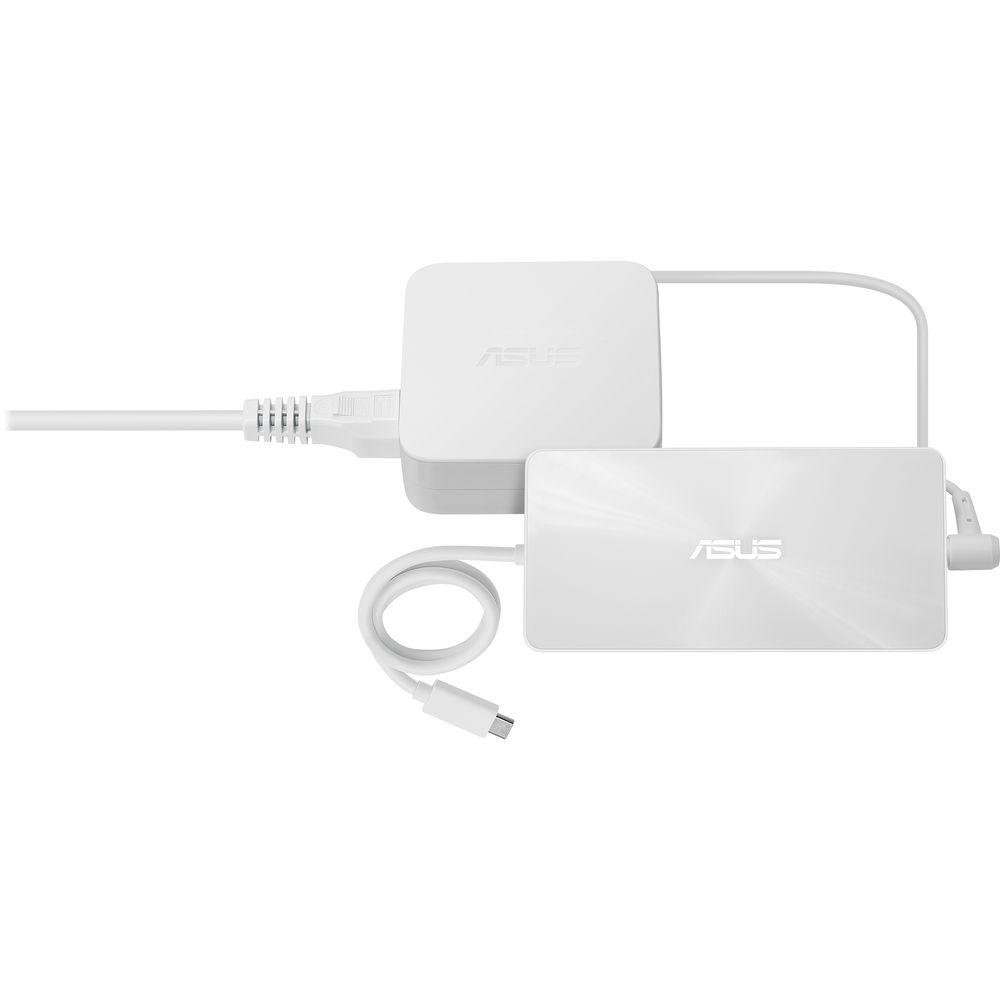

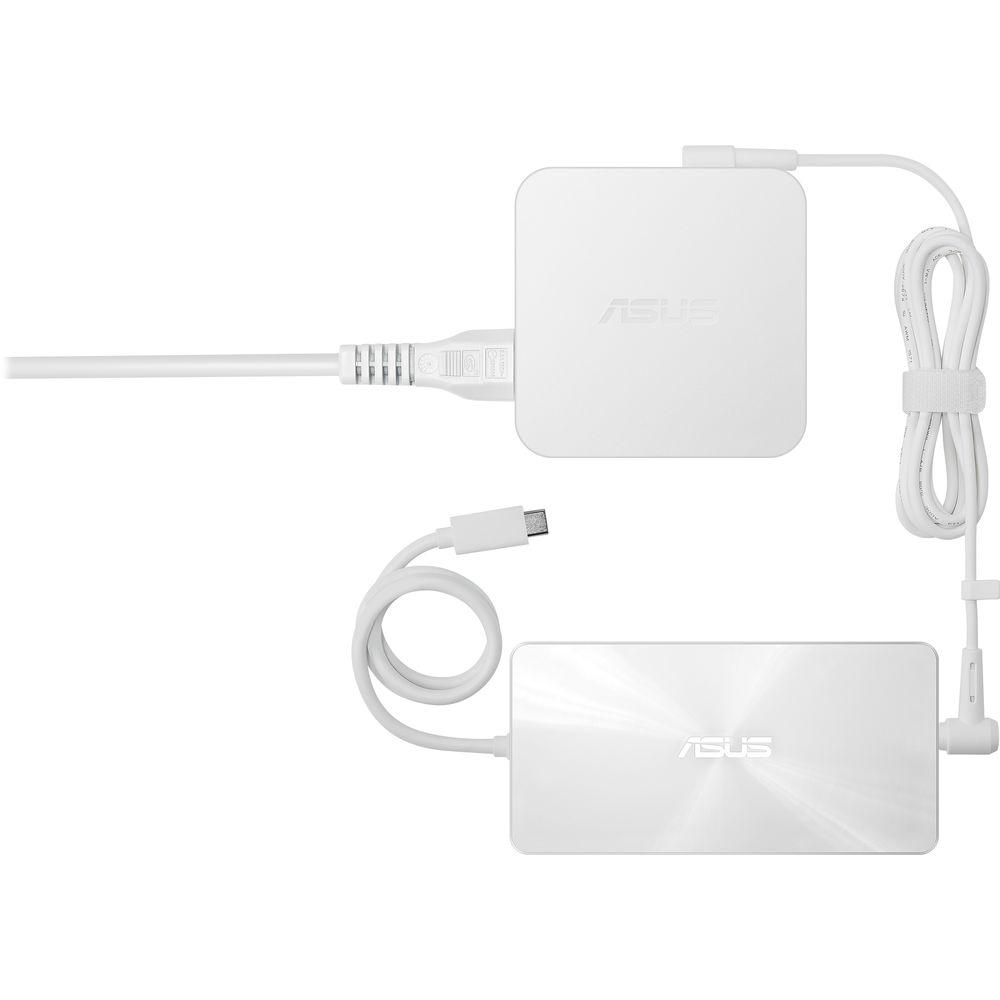

The docking station connects to the host system via an integrated USB Type-C cable and draws power using an included 90W power adapter. The dock comes with a USB-C power pass-through feature, which lets the supplied power adapter recharge the device's internal battery. - Compatibility
- UX390UA
UX370UA
T303UA
T305CA
T304UA
B9440UA UPC: 889349454077 In the Box ASUS Universal USB 3.1 Gen 1 Type-C Docking Station 90W Power Adapter Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Universal USB 3.1 Gen 1 Type-C Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS 90NB0DH1-P00010 Specs | | | USB | 2 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-C | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x VGA
1 x HDMI 1.4 | | Audio | 1 x 1/8" / 3.5 mm Headphone
1 x 1/8" / 3.5 mm Microphone | | Memory Card Slots | 1 x SDXC | | | | System Connection | 1 x USB 3.1 Gen 1 Type-C Male | | Connection Type | Integrated Cable | | | | Maximum Resolution Supported | 3840 x 2160 at 30 Hz | | | | Power Source | AC Adapter | | Maximum Power Consumption | 90 W | | DC Input Power | 19 VDC at 4.74 A | | | | Dimensions | 5.2 x 2.6 x 0.5" / 13.1 x 6.5 x 1.4 cm | | Weight | 4.1 oz / 117.5 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.6 x 6.3 x 2.6" |
