User Manual for ASUS USB-AC56 Dual-Band Wireless-AC1300 USB 3.1 Gen 1 Wi-Fi Adapter Click to enlarge the picture
Contents of the user manual for the ASUS USB-AC56 Dual-Band Wireless-AC1300 USB 3.1
- Product category: Wireless Adapters & Cards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Wireless Adapters & Cards
 |
User manual for the ASUS USB-AC56 Dual-Band Wireless-AC1300 USB 3.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

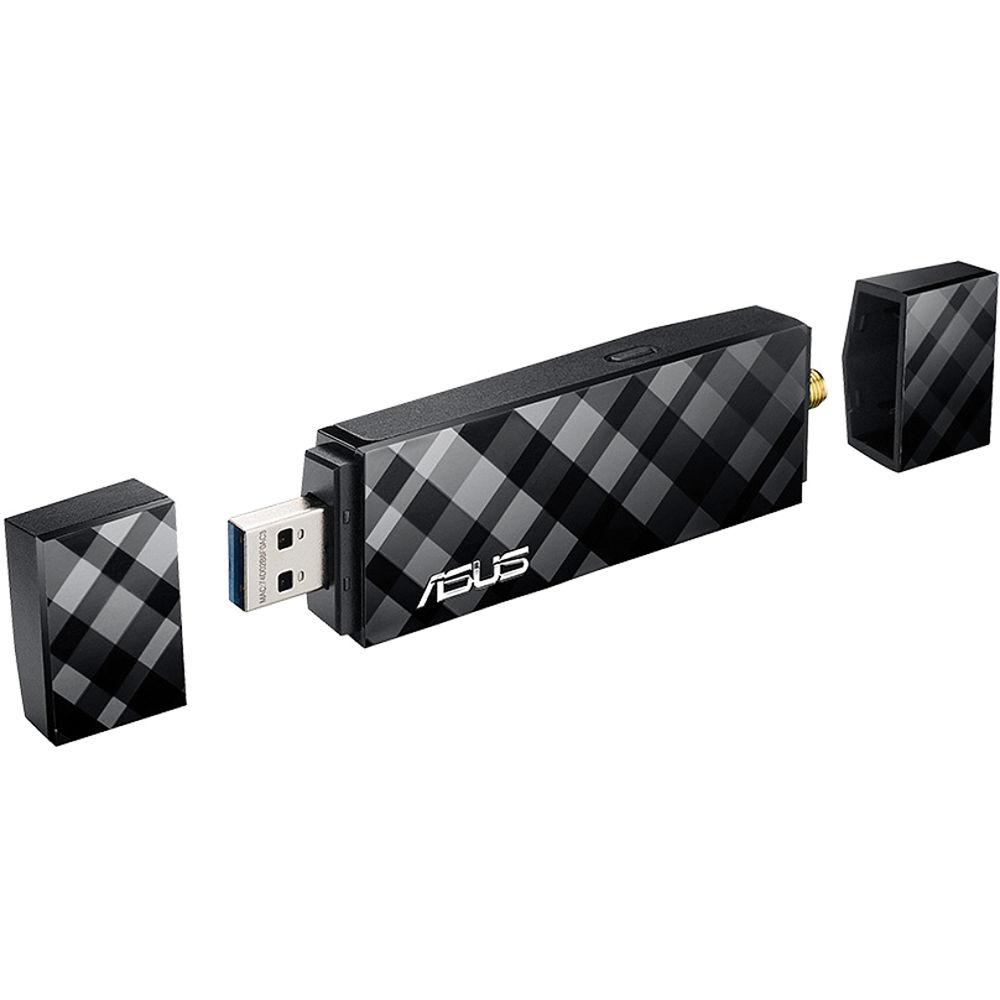

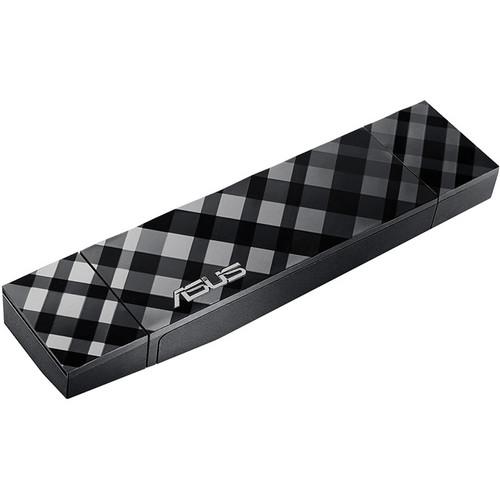

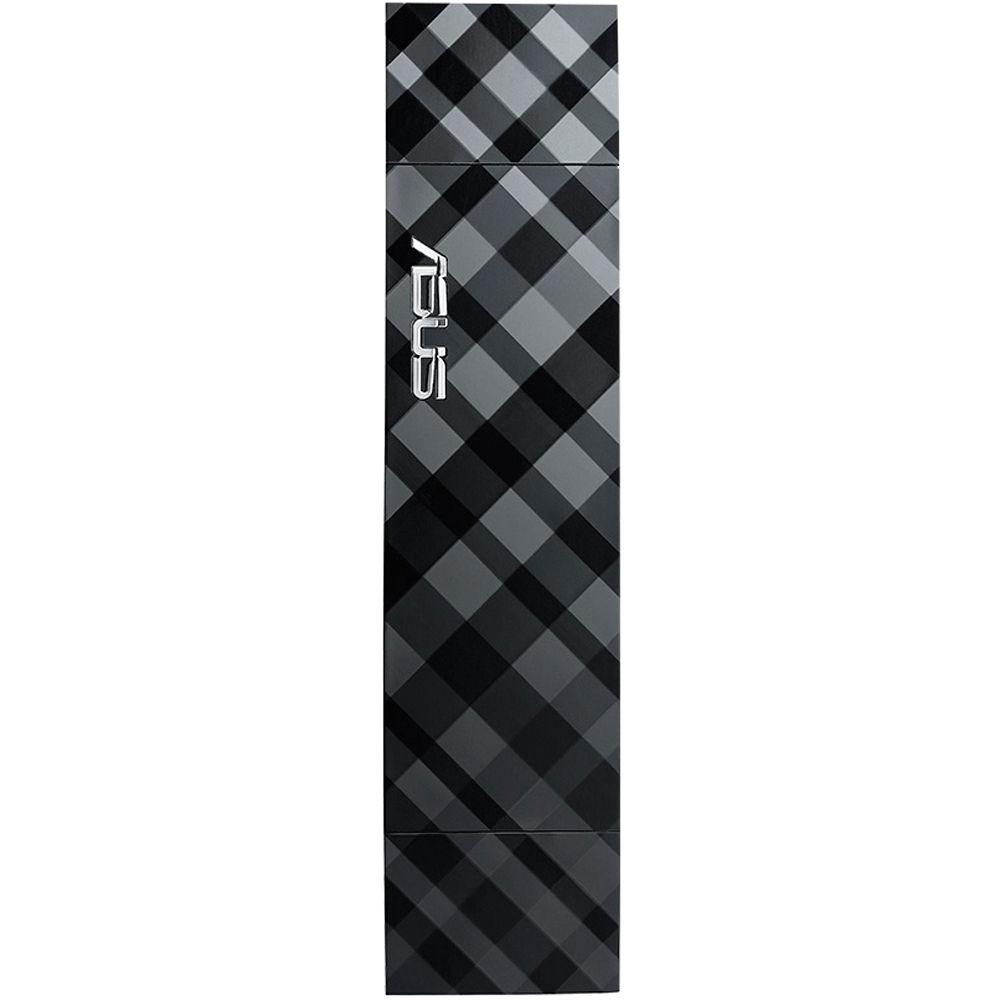

Product description The USB-AC56 Dual-Band Wireless-AC1300 USB 3.0 Wi-Fi Adapter from ASUS features enhanced wireless 802.11ac network compatibility allowing you to take advantage of network speed up to 867 Mbps. Aside from enhanced network compatibility you can also connect to both the 2.4 GHz and 5 GHz frequencies making it possible to allocate more data intensive tasks to the less congested 5 GHz frequency.

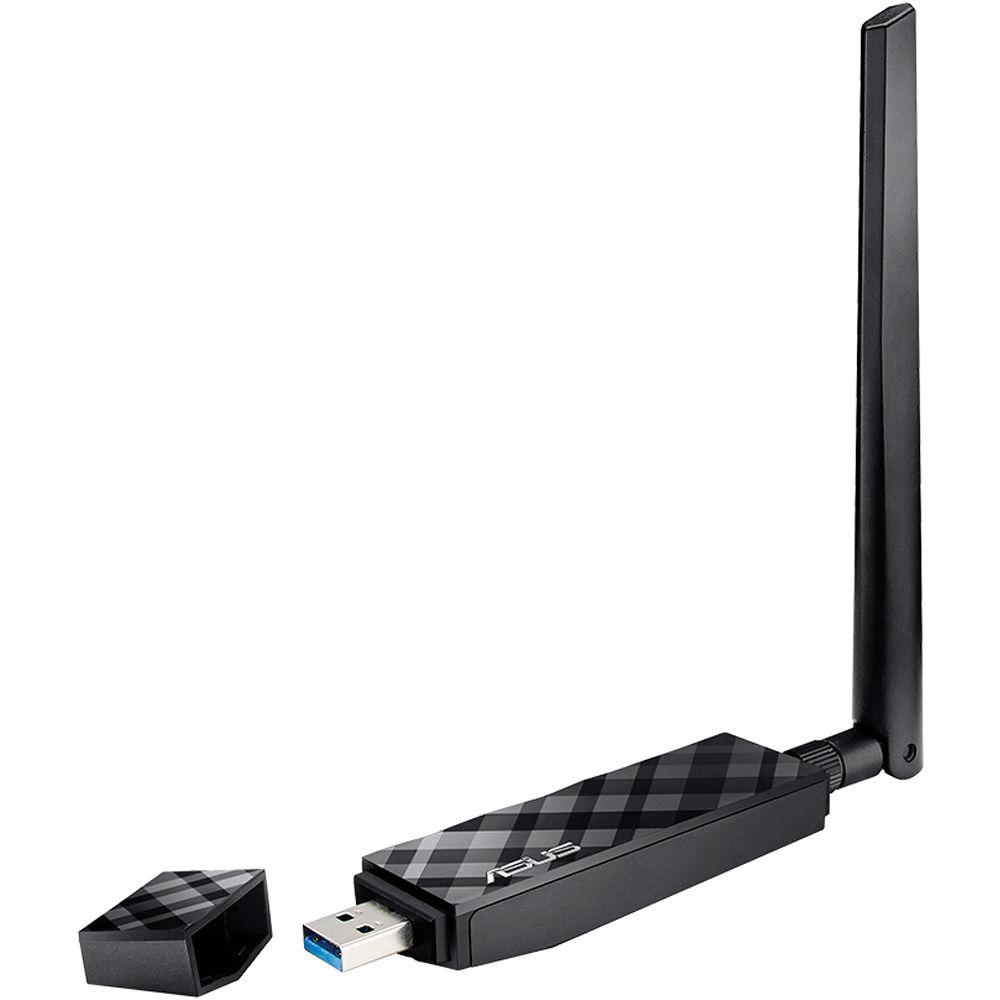

The USB-AC56 Wi-Fi Adapter comes equipped with two internal 2 dBi antennas and one external dipole antenna to connect at long distances. In addition to 802.11ac network compatibility, you can connect to networks supporting IEEE 802.11a/b/g/n Wi-Fi standards. The connection can be kept secure as this adapter supports 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, and WPS encryption standards. - Enhanced 802.11ac Wireless Connectivity
- With data transfer speeds up to 867 Mbps on the 5 GHz band you benefit from faster connectivity through a variety of USB compatible devices.
- Maximum Flexibility for Maximum Wireless Coverage
- The USB-AC56 wireless-AC 1300 USB adapter can cover larger homes and offices, including multi-floor locations. Its detachable high-gain external antenna and strong dual internal antennas provide ample transmission power for bigger areas. The detachable antenna can be removed to reduce power draw and emissions should medium-range coverage be sufficient. It can also be upgraded with a more powerful antenna if needed.
- Intelligent Signal Management for Stable Wireless Connections
- ASUS AiRadar intelligently strengthens wireless device connectivity using precise directional signal amplification for extended coverage, increased data throughput speed, and enhanced stability. Because connection strength varies based on your environment, the USB-AC56 Dual-Band Wireless-AC 1300 USB wireless adapter uses two internal antennas and an external high gain antenna and high-powered beam packing to detect wireless router locations to shape transmissions so they're optimized for the fastest, most stable connection strength.
- USB 3.0 for Full 802.11ac Performance
- USB 3.0 allows the USB-AC56 Dual-Band Wireless-AC 1300 USB wireless adapter to pair with notebooks and desktops using a bandwidth up to ten times that of USB 2.0. It means the full advantage of 802.11ac networking is realized, as the adapter has enough throughput overhead to support much faster network speeds.

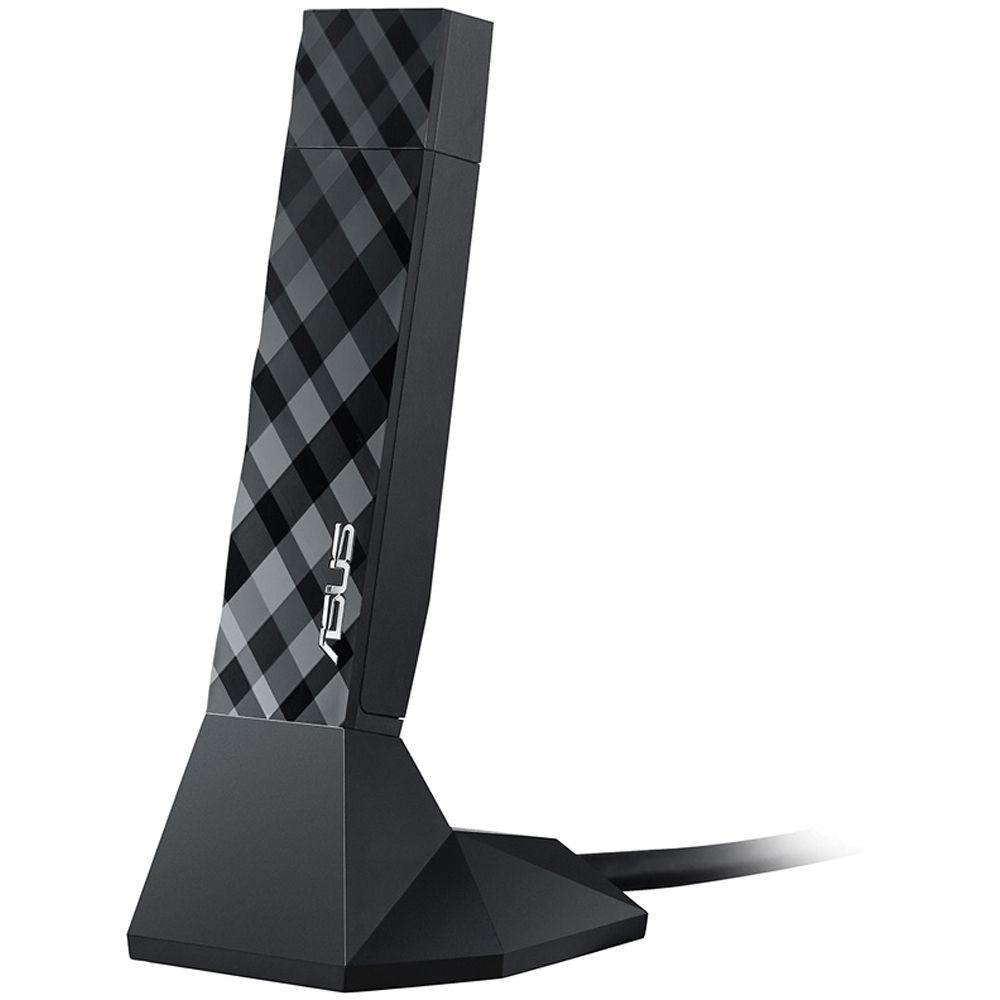

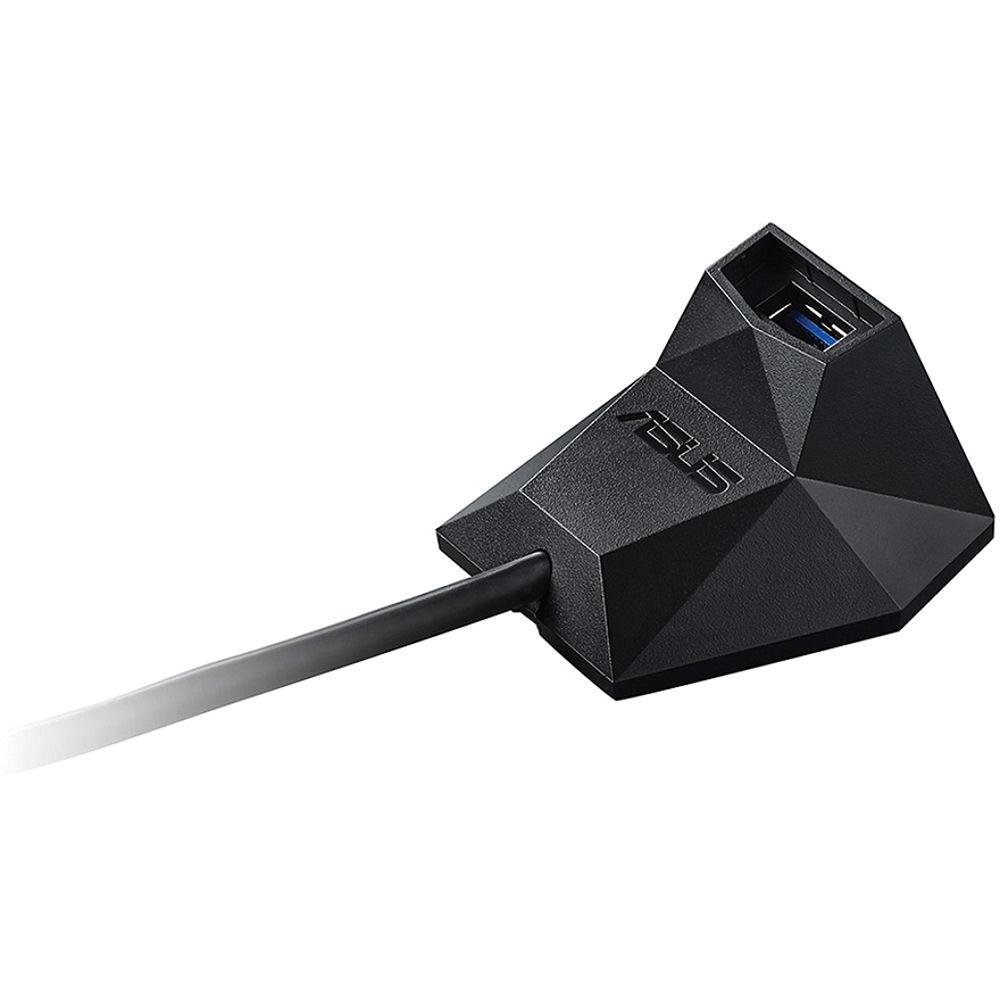

- Desktop Cradle
- The USB-AC56 also includes a desktop cradle with a three-foot cable for more flexible positioning in troublesome Wi-Fi reception areas.

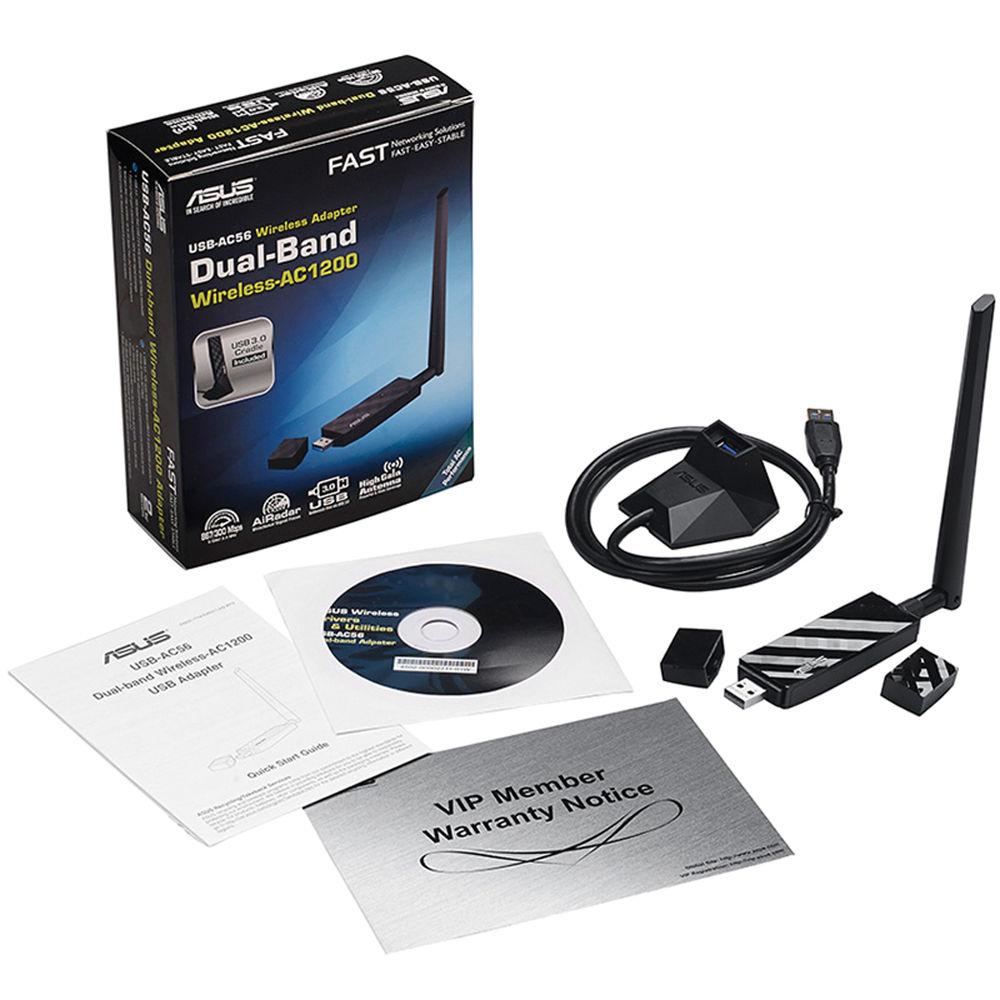

UPC: 886227407484 In the Box ASUS USB-AC56 Dual-Band Wireless-AC1300 USB 3.1 Gen 1 Wi-Fi Adapter Limited 1-Year Manufacturer Warranty More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS USB-AC56 Dual-Band Wireless-AC1300 USB 3.1 Gen 1 Wi-Fi Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ASUS USB-AC56 Dual-Band Wireless-AC1300 USB 3.1 Gen 1 Wi-Fi Adapter can be downloaded in PDF format at the link stated below.
Technical parametersASUS USB-AC56 Specs | Network Standard | IEEE 802.11a/b/g/n/ac | | Product Segment | AC1300 enhanced AC performance; 400+867 Mbps | | Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: up to 300 Mbps
802.11ac: up to 867 Mbps | | Antenna | 2 x internal 2 dBi PCB antenna

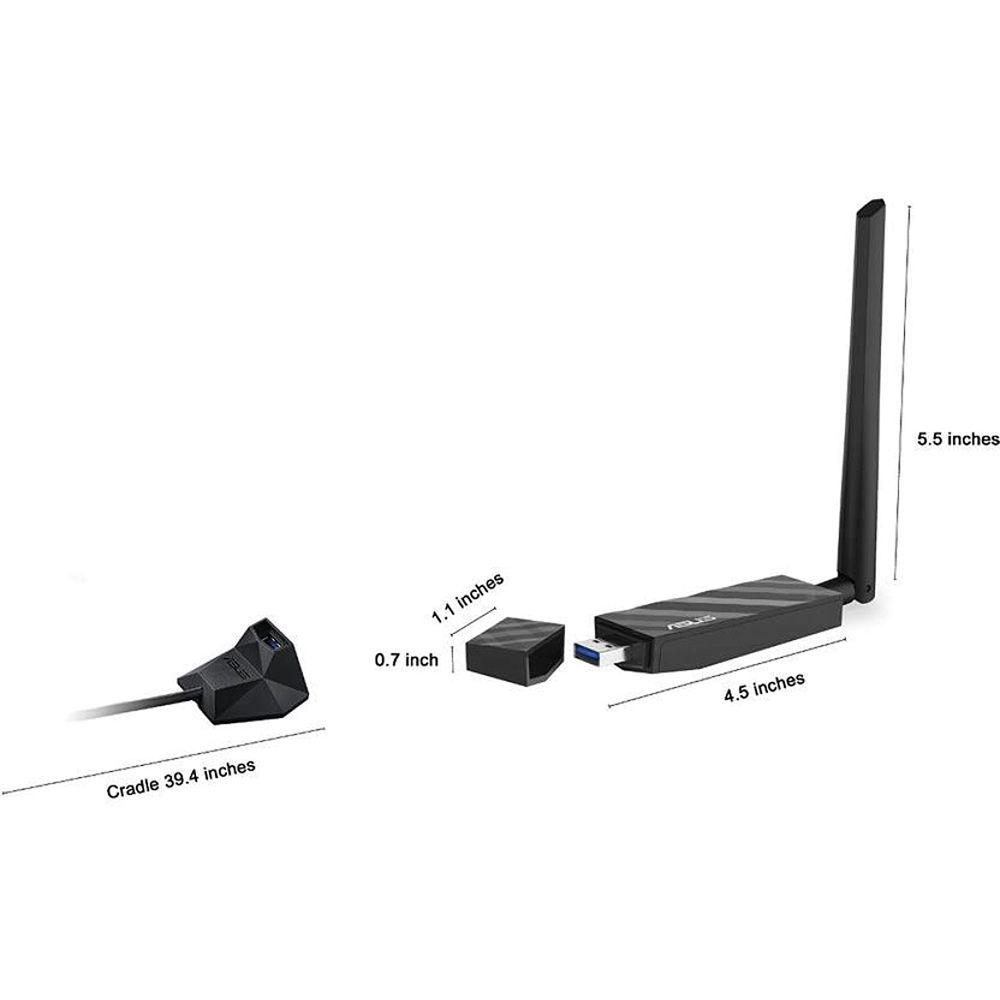

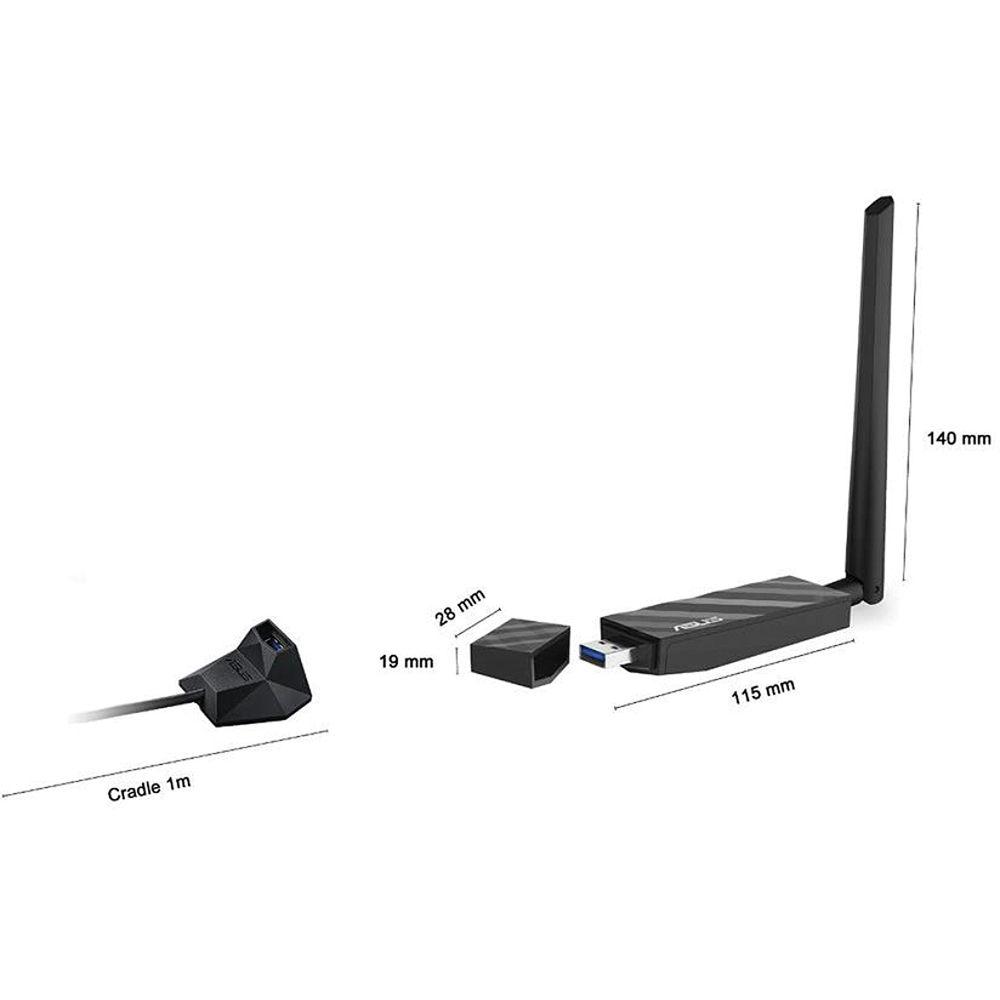

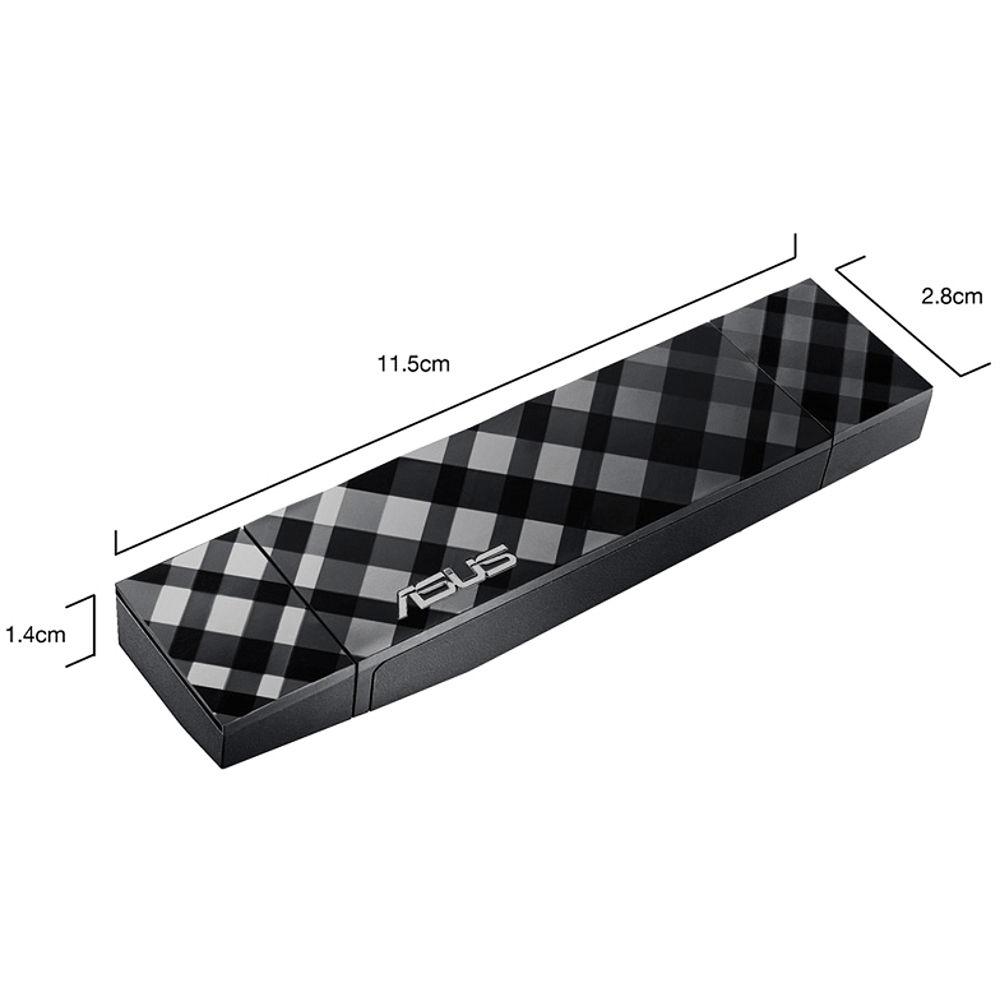

1 x external dipole antenna | | Operating Frequency | 2.4 GHz / 5 GHz | | Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPS support | | Utilities | ASUS USB-AC56 utility | | Ports | 1 x USB 3.0 | | Button | WPS button | | OS Support | Windows 8 32bit/64bit, Windows 7 32bit/64bit, Windows Vista 32bit/64bit, Windows XP 32bit/64bit, Mac OS X 10.5, Mac OS X 10.6, Mac OS X 10.7, Mac OS X 10.8 | | Dimensions (WxDxH) | 4.5 x 1.1 x 0.7" / 11.5 x 2.8 x 1.9 cm | | Weight | 1.8 oz / 50 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.4 x 5.7 x 2.2" |
