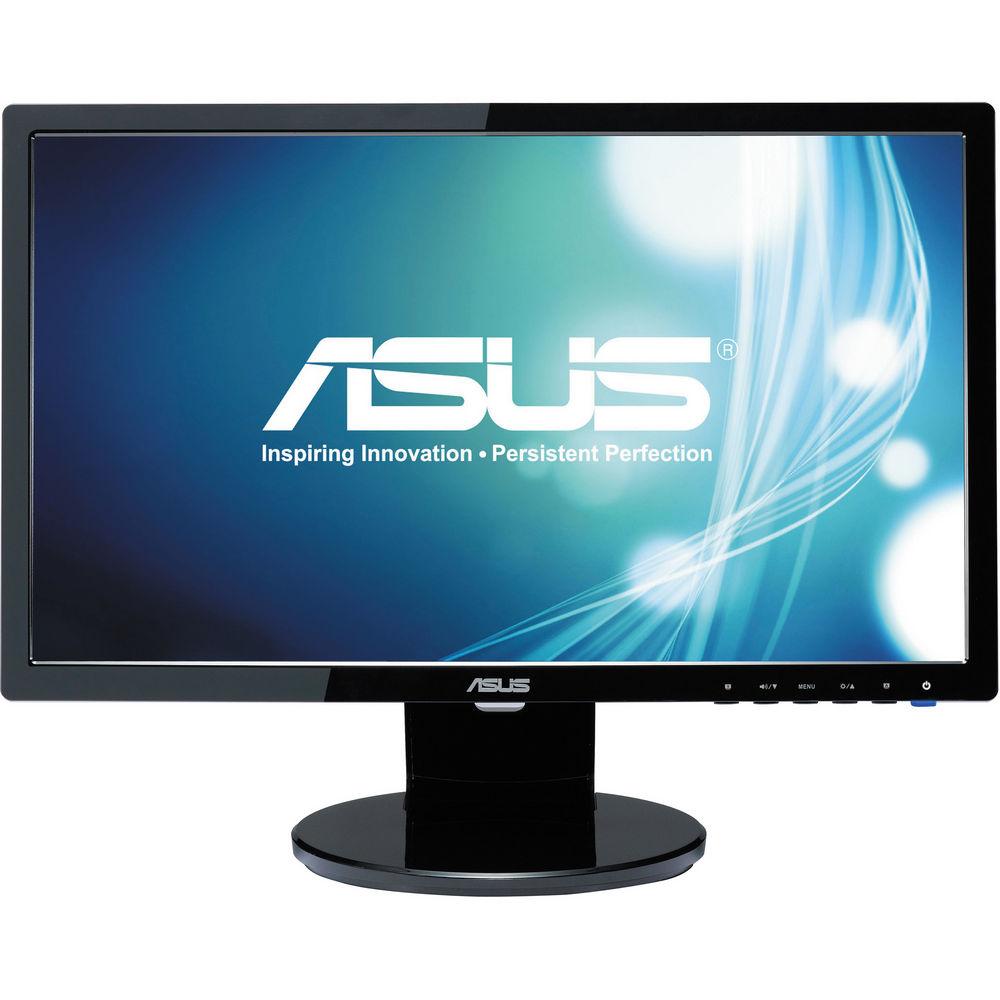

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More zbbatefystdrybu The VE198T 19" LED Backlit Widescreen Computer Monitor from ASUS is a wide-screen computer monitor designed for high-performance and energy efficiency. The monitor features two stereo speakers for playing computer audio and has VGA and DVI-D input ports for connecting to your computer. The monitor supports HDCP with DVI-D.
The monitor has a native resolution of 1440 x 900. Plus, you can switch between the 16:10 aspect ratio to 4:3, depending on whether or not you want to play games or watch movies for instance. The display features a 10,000,000:1 dynamic contrast ratio, 170°/160° viewing angles, 250cd/m² brightness, and support for 16.7 million colors.

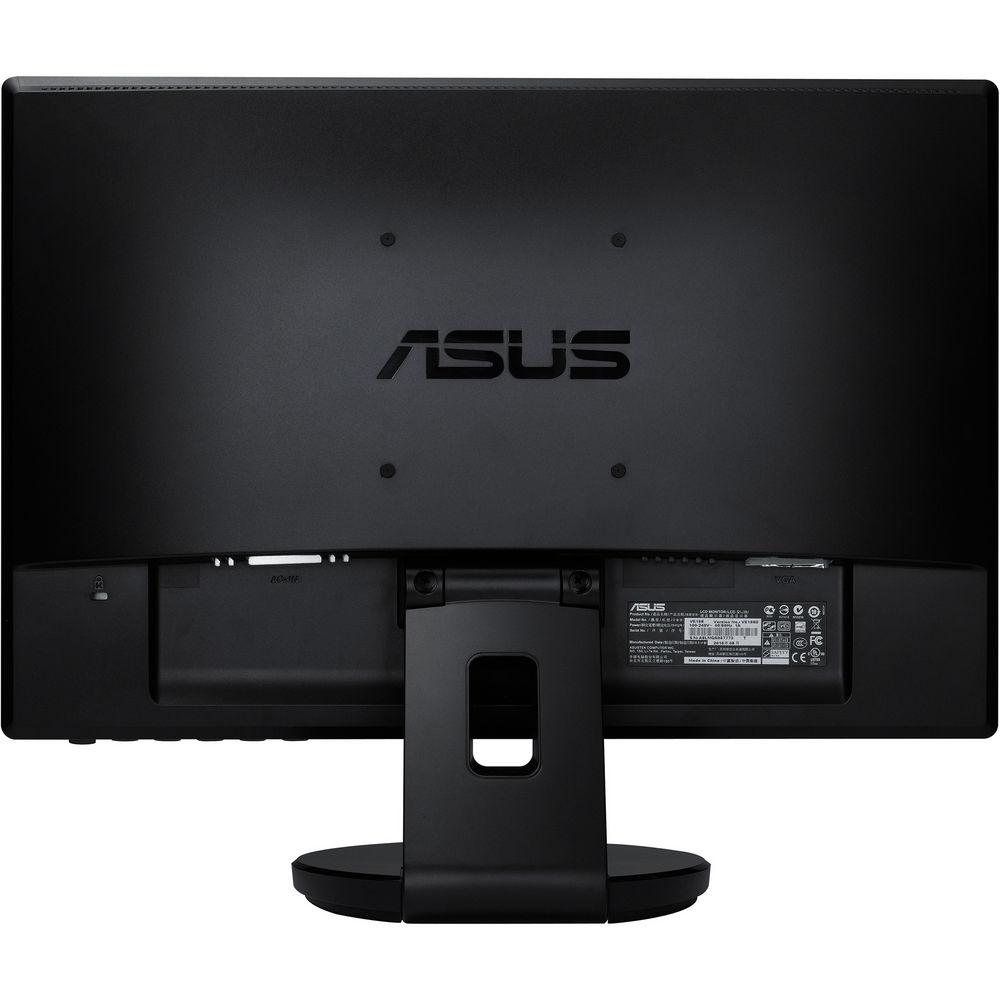

The monitor's desktop stand supports tilt adjustment, and you have the option of mounting the display to a wall thanks to its standard VESA 100mm mounting pattern. It can also be secured via a standard Kensington security lock. - 10,000,000:1 ASUS Smart Contrast Ratio
- Dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white - delivering lifelike images.
- Exceptional Visual Performance
- · Indulge your visual senses with 1440 x 900 resolution and 5ms quick response time for work and entertainment.
· The best dual-display companion with your widescreen notebook enlarges the visual space for multi-tasking efficiency.
· Dual Inputs of D-sub and DVI-D with HDCP Supported.
· With the Aspect Control function, the monitor's aspect ratio can be switched between 16:10 or 4:3 without data loss or image distortion. This feature allows you to choose the best display ratio for games and movies. - Splendid Video Intelligence Technology
- The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 5 preset video modes (Scenery, Theater, Game, Night View, and Standard) can be selected via a hotkey.
- Stylish and User-friendly Design for Modern Sophistication
- · Glare black frame and smooth base design create a fresh new look of LCD monitors.
· Built-in hidden stereo speakers enable audio enjoyment together with true-to-life visuals.

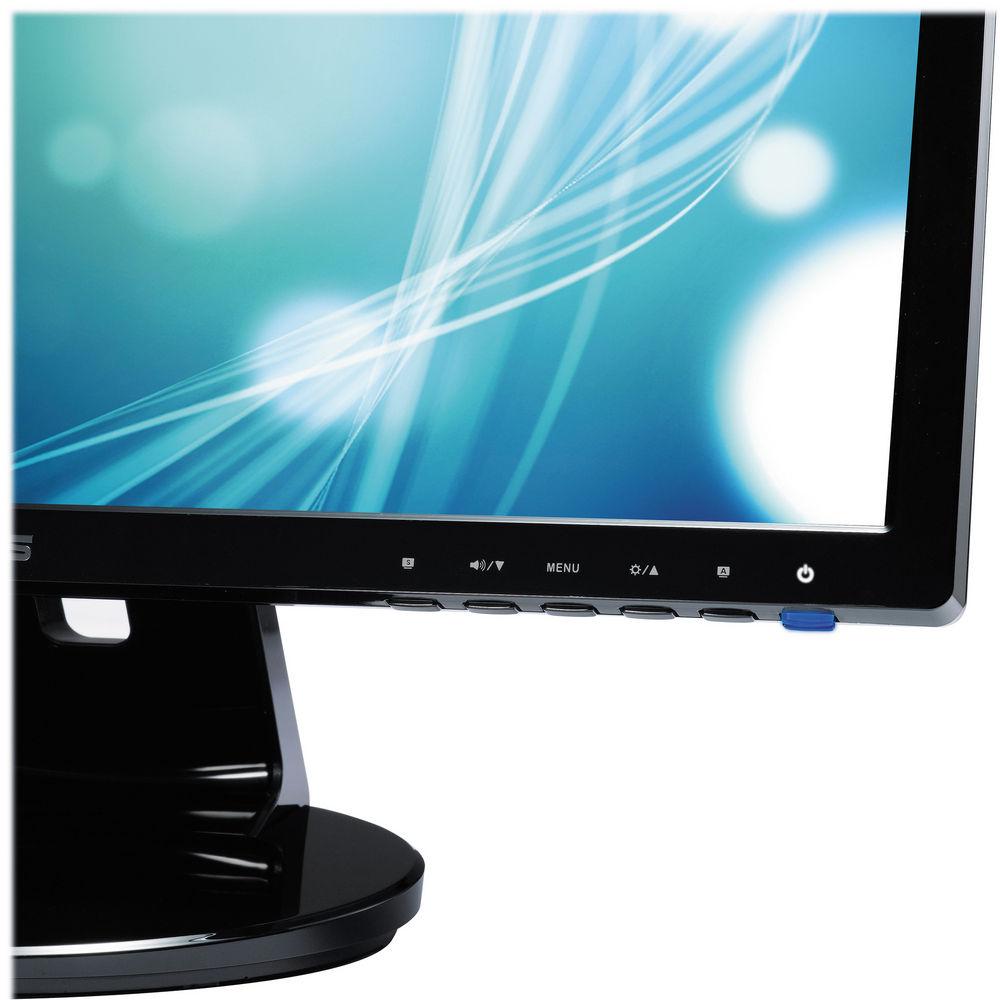

· Convenient key controls for functional set-up in the multi-language On-screen Display.
· Cable manager gets rid of tangling cables and wires.
·VESA Wall Mount Standard (100 x 100 mm).

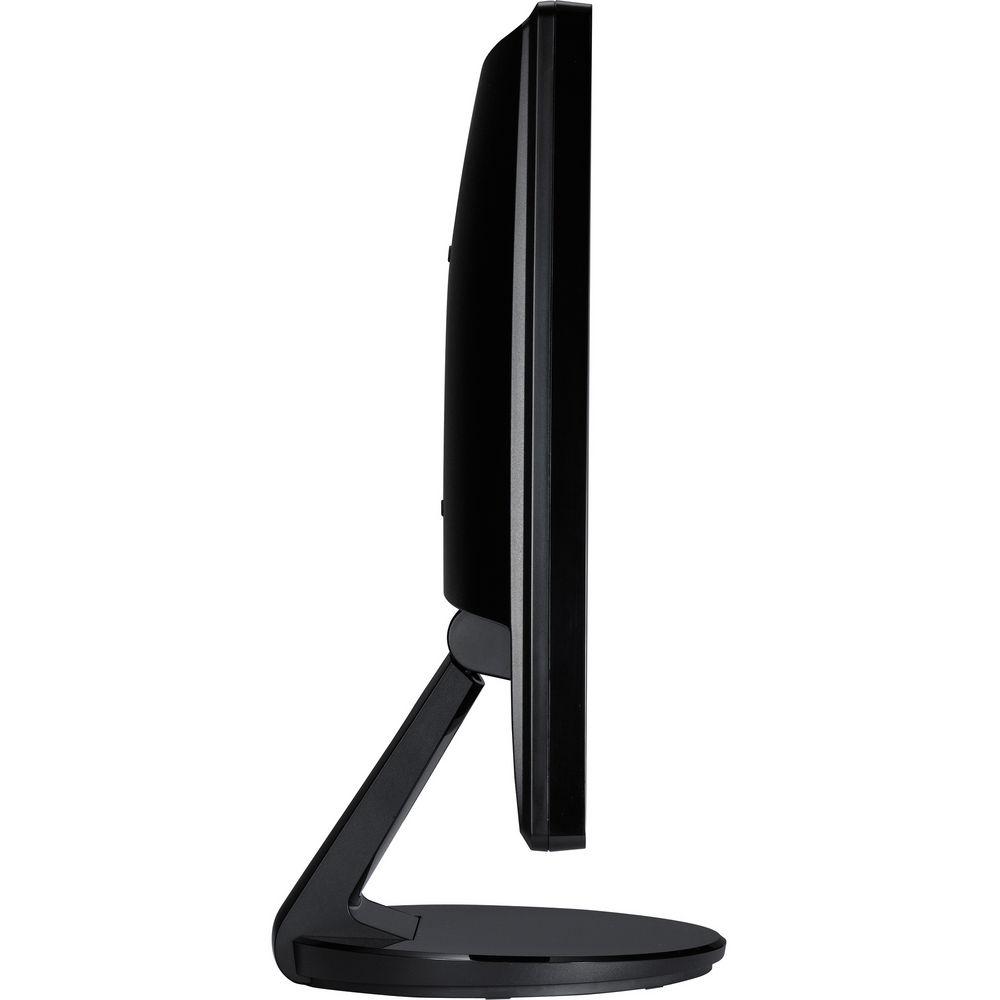

· 25° Tilting Angle (forward 5°, backwards 20°).
· KENSINGTON Security Lock. - Green Materials
- ·The LED backlit panel is mercury-free.
·Slim-flat packaging allows for more cartons to fit per cargo, reducing transportation costs and CO₂ emission.
·The monitor is packaged in corrugated cardboard that is made up of at least 80% recycled content. UPC: 610839329175 In the Box ASUS VE198T 19" LED Backlit Widescreen Computer Monitor VGA Cable DVI Cable Audio Cable Power Cord Quick Start Guide Limited 1-Year North American Warranty (USA, Canada & Mexico) Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VE198T 19" LED Backlit Widescreen Computer Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VE198T Specs | | | Size | 19" | | Touchscreen | No | | Resolution | 1440 x 900 | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 10,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 80 kHz | | Vertical Frequency | 55 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.2835 x 0.2835 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI-D
1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 1 W (Standby)
25 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 17.5 x 14.4 x 7.2" / 44.5 x 36.6 x 18.2 cm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 19.5 x 17.0 x 5.25" |
