User Manual for ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VE228H 21.5" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VE228H 21.5" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

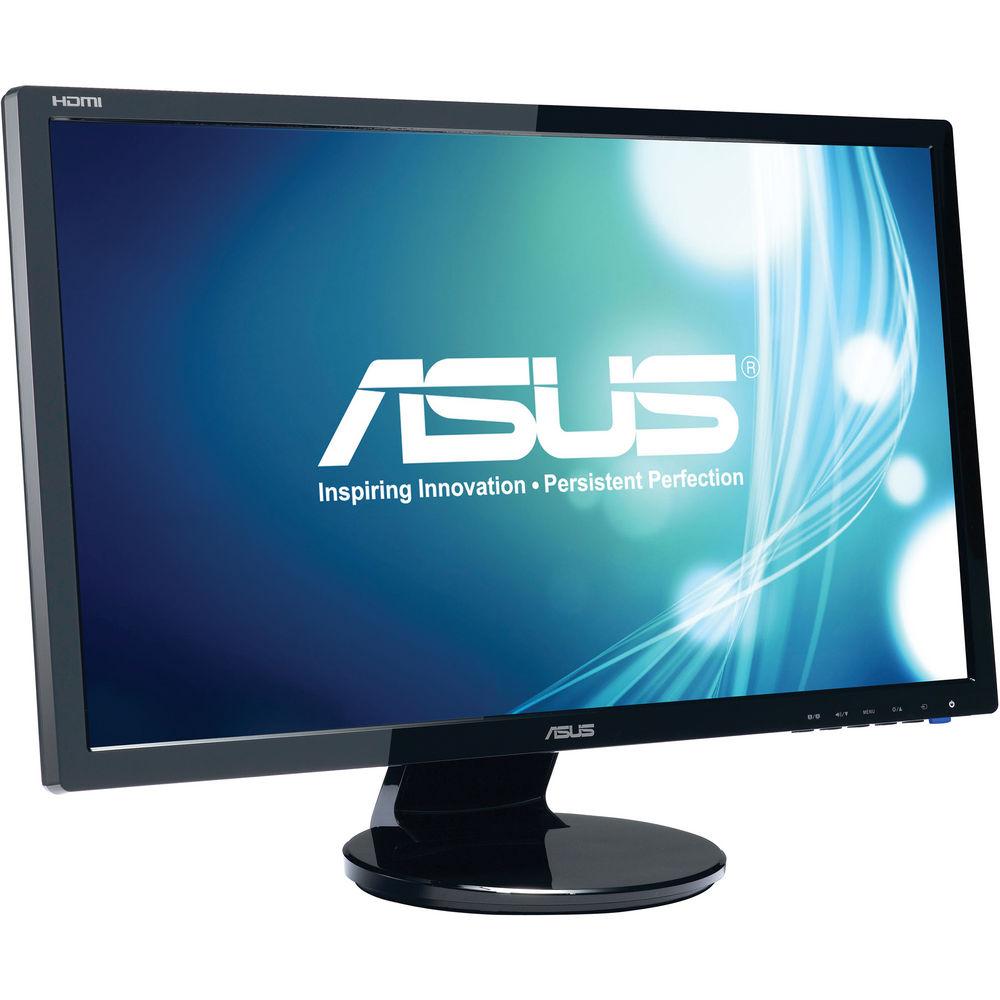

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VE228H 21.5" LCD Widescreen Computer Display from ASUS is a desktop computer monitor with a 16:9 aspect ratio. The display features a modern design, highlighted by a glossy black frame and smooth desktop stand. Built-in stereo speakers provide audio output.
The display features a native resolution of 1920 x 1080. It also boasts an amazing 10,000,000:1 dynamic contrast ratio, 250cd/m² brightness rating, 5ms response time, support for 16.7 million colors, and 170°/160° viewing angles. It can connect to a computer via VGA, DVI-D, or HDMI. True-to-Life Pictures - 10,000,000:1 ASUS Smart Contrast Ratio
- Dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white -- delivering lifelike images.
- Full HD with HDMI
- Enter a spectacular world of colors with Full HD 1080p (1920 x 1080) support and HDMI port.
- Advanced Video Technologies for Exceptional Visuals

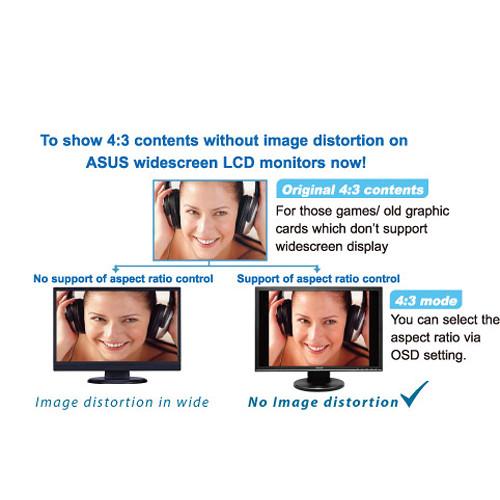

- Aspect Control function allows users to select a preferred display mode among Full and 4:3 for true-to-life gaming or movie watching without any data loss or image distortion.
- Splendid Video Intelligence Technology
- The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. Five preset video modes (Scenery, Theater, Game, Night View, and Standard) can be selected via a hotkey.
- Stylish and User-Friendly Design for Modern Sophistication
-

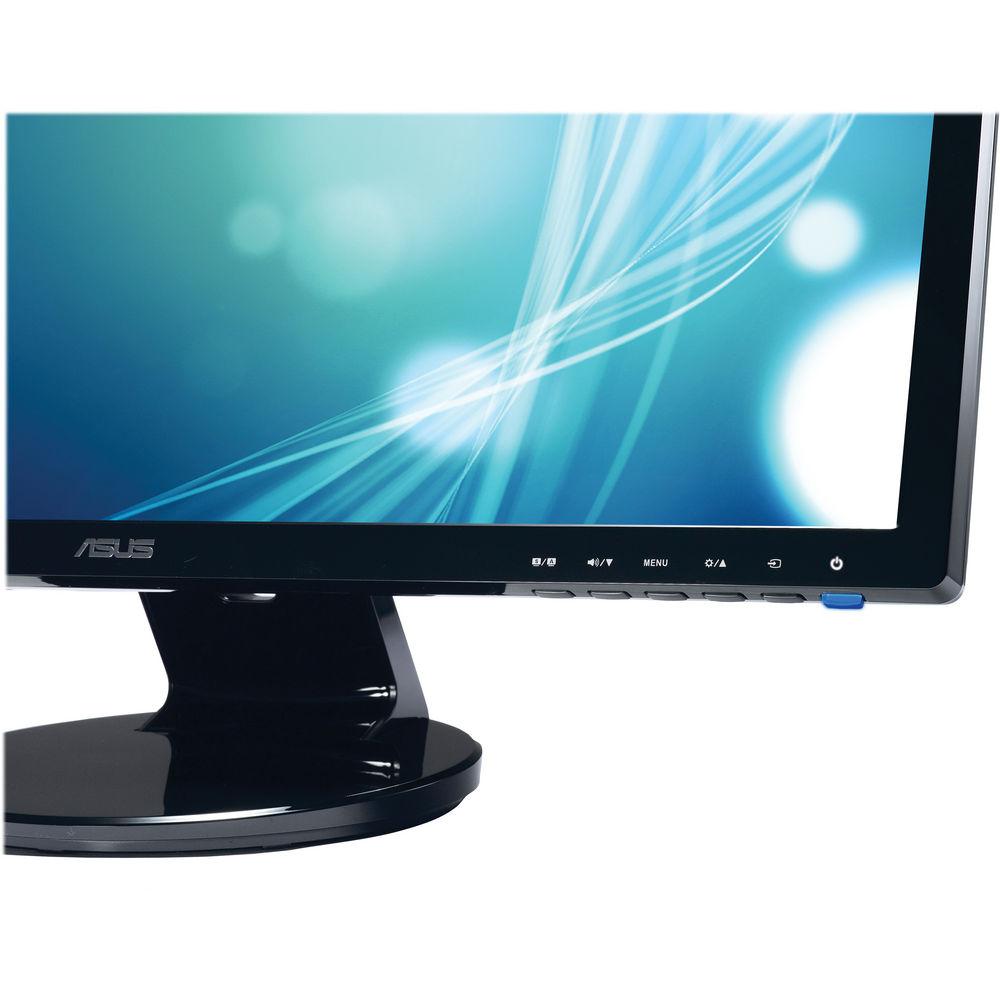

- Convenient key controls for functional set-up in the multi-language OSD
- Built-in hidden stereo speakers enable audio enjoyment together with true-to-life visual
- Cable manager gets rid of tangling cables and wires

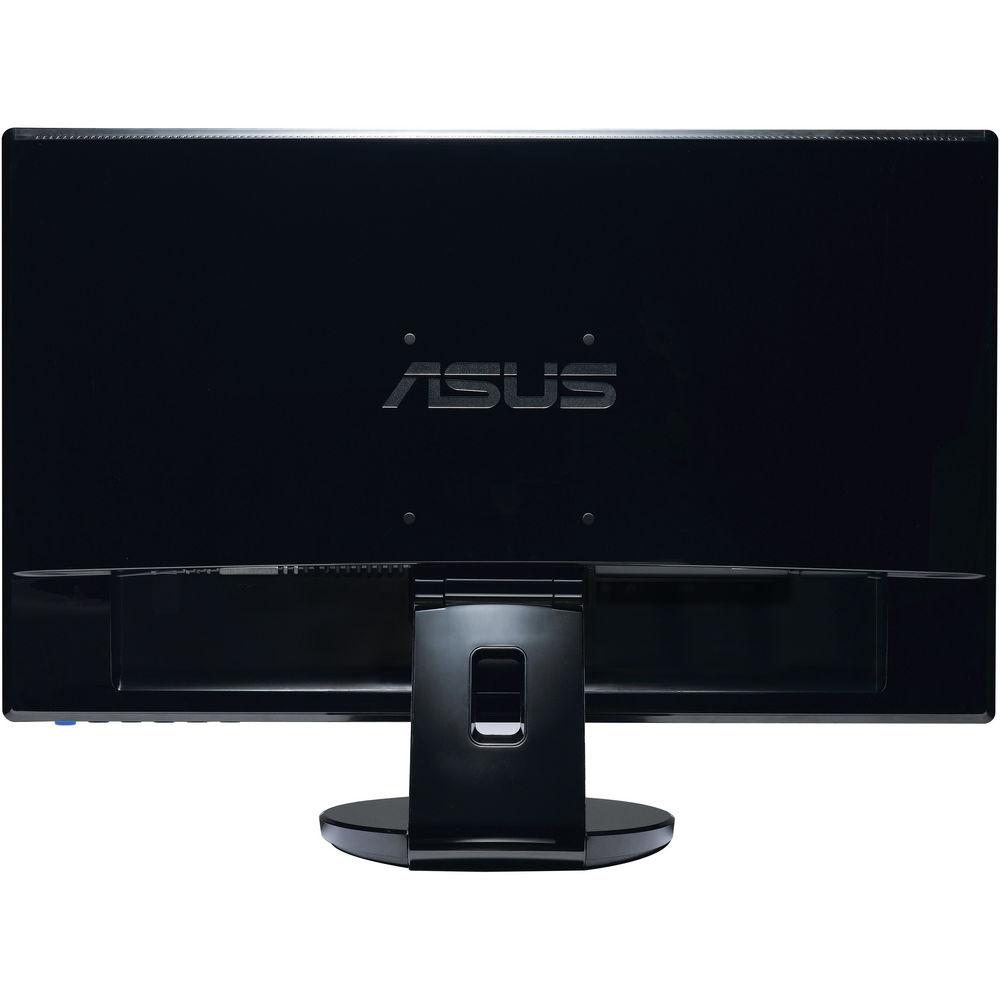

- Easily detachable base for wall mount
- VESA Wall Mount Standard (100 x 100mm)

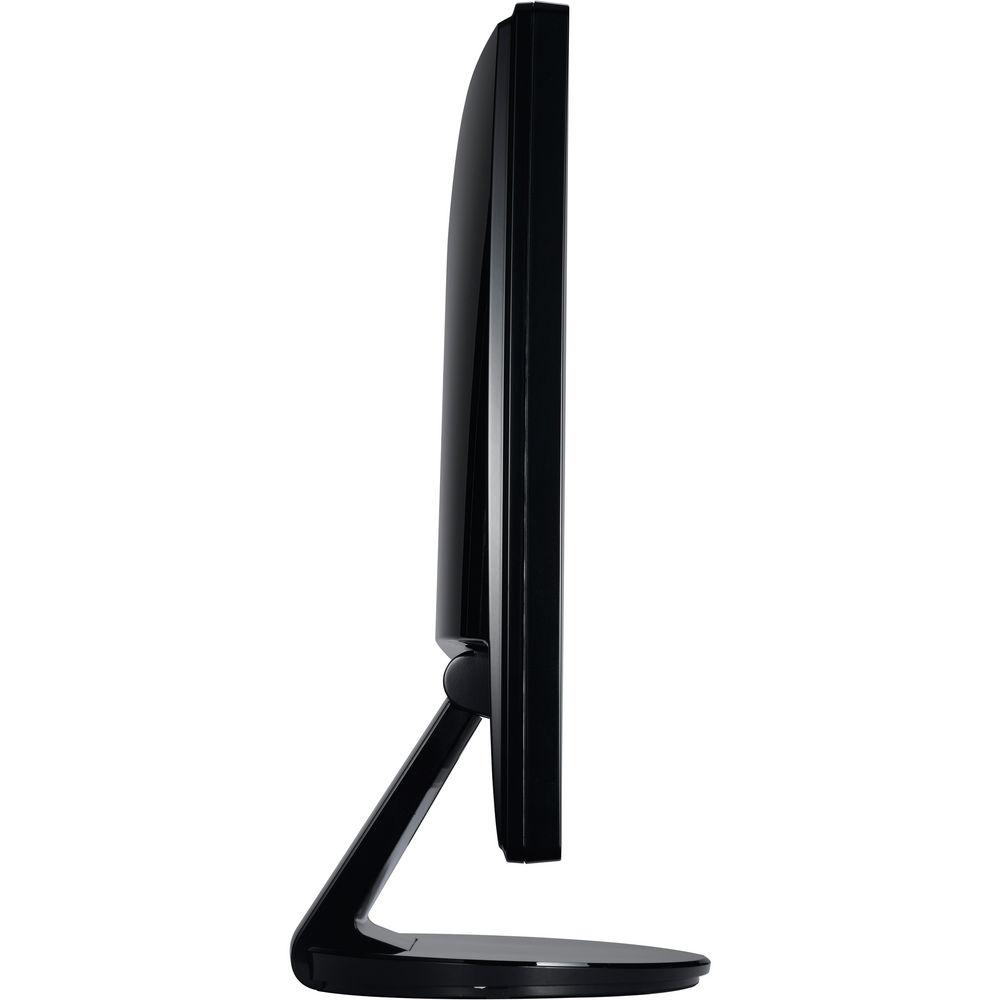

- 25° (Forward 5°, Backwards 20°) Tilting Angle
- Kensington Security Lock
Green in Mind - Greener Materials
-
- Corrugated cardboard packaging with at least 80% recycled content
- Slim-flat packaging allows more cartons to be fitted per cargo, reducing transportation costs and CO₂ emission
- Energy and Planet Saving
-
- 37.2kWh electricity saving
- 23.6kg reduction in CO₂ emissions, equivalent to:
- 1.9 trees planted
- 2 years of oxygen for a family of four
UPC: 610839326068 In the Box ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor VGA Cable DVI Cable Audio Cable Power Cord Quick Start Guide Limited 1-Year North American Warranty (USA, Canada & Mexico) Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VE228H 21.5" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VE228H Specs | | | Size | 21.5" | | Touchscreen | No | | Resolution | 1920 x 1080 | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 10,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 50 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 68% NTSC | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.248 x 0.248 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI-D
1 x HDMI 1.3
1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 1 W (Standby)
30 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.2 x 15.2 x 7.9" / 51.3 x 38.6 x 20.1 cm | | Weight | 9 lb / 4.1 kg | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 22.5 x 18.7 x 5.9" |
