User Manual for ASUS VE247H 23.6" Widescreen LED Backlit Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VE247H 23.6" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VE247H 23.6" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

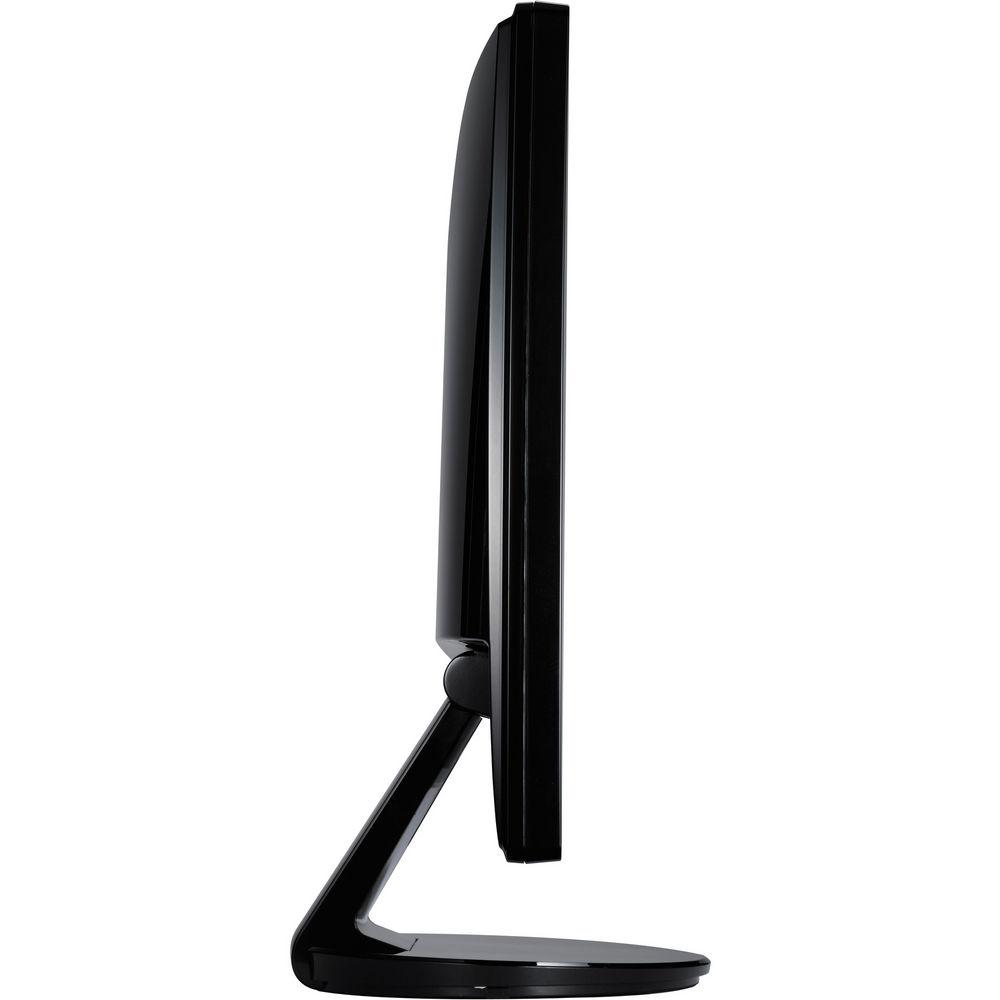

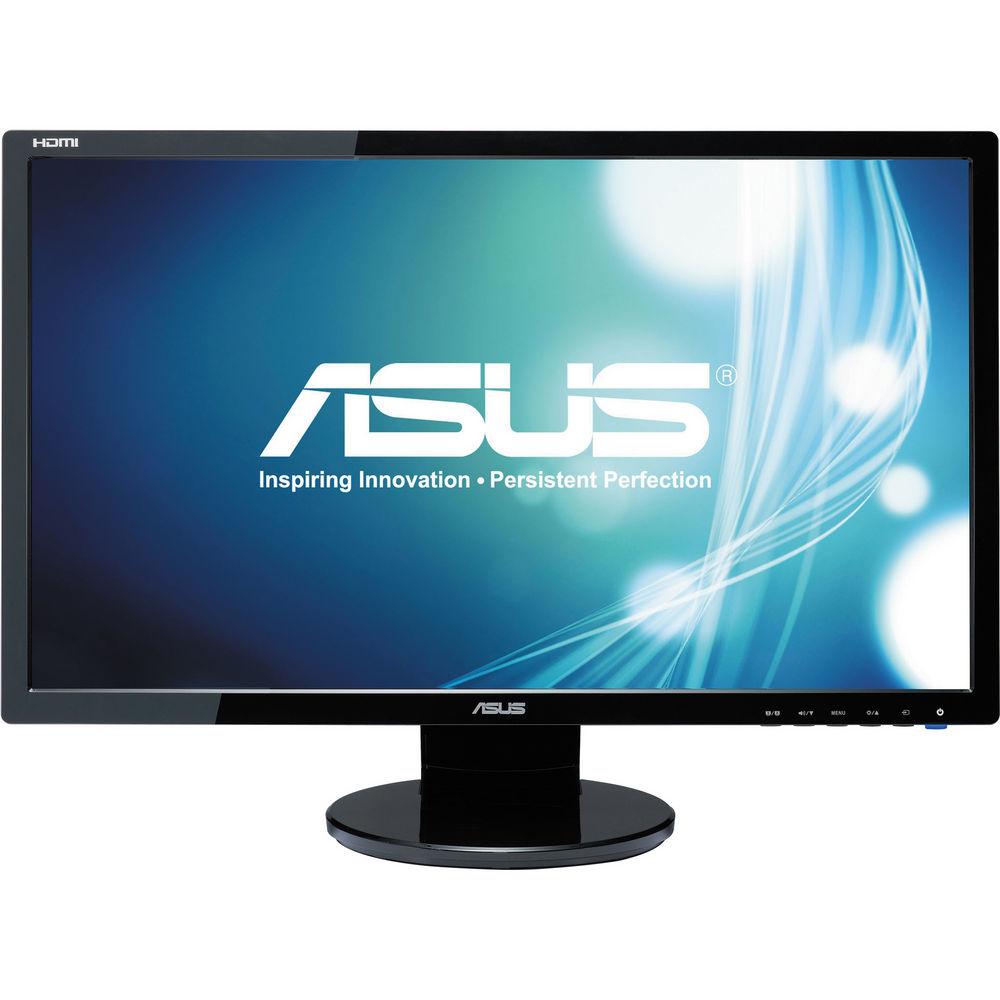

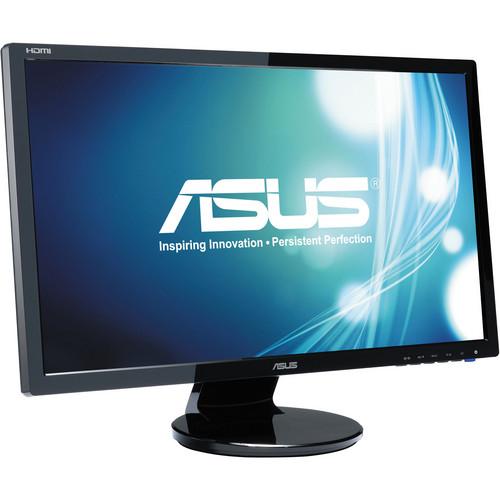

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More ubrvtxtqxutvzcuwssx The VE247H 23.6" Widescreen LED Backlit Monitor from ASUS is an exceptional computer monitor with a variety of input ports. You'll be able to connect it to your computer via VGA, DVI, or HDMI. The monitor has a resolution of 1920 x 1080 and is capable of displaying 1080p HD video.
The monitor features a 10,000,000:1 dynamic contrast ratio, 170°/160° viewing angles, 300cd/m² brightness, and support for 16.7 million colors. It can output audio thanks to integrated stereo speakers and has a built-in jack for listening to audio with headphones.
The desktop stand supports tilt adjustment, and you have the option of mounting the display to a wall thanks to its standard VESA 100mm mounting pattern. You can also secure the monitor with a standard Kensington security lock. - 10,000,000:1 ASUS Smart Contrast Ratio
- Dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white - delivering lifelike images.
- Full HD with HDMI
- Enter a spectacular world of colors with the HDMI port and Full HD 1080p (1920x1080) support.
- Adjustable Aspec Control for Excellent Visual Performance
- The Aspect Control function allows you to select full or 4:3 display ratio. That way, you can watch movies or play games without data loss or image distortion.
- Splendid Video Intelligence Technology
- The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness in varying proportions. 5 preset video modes allow you to tweak your settings as you please (Scenery, Theater, Game, Night View, and Standard) via a selected hotkey.
- 2ms Response Time
- Quick response time of 2ms (GTG) eliminates ghosting and tracers for more fluid video playback.
- Sleek and User-Friendly Design for Modern Sophistication
- · Built-in hidden stereo speakers for multimedia enjoyment.

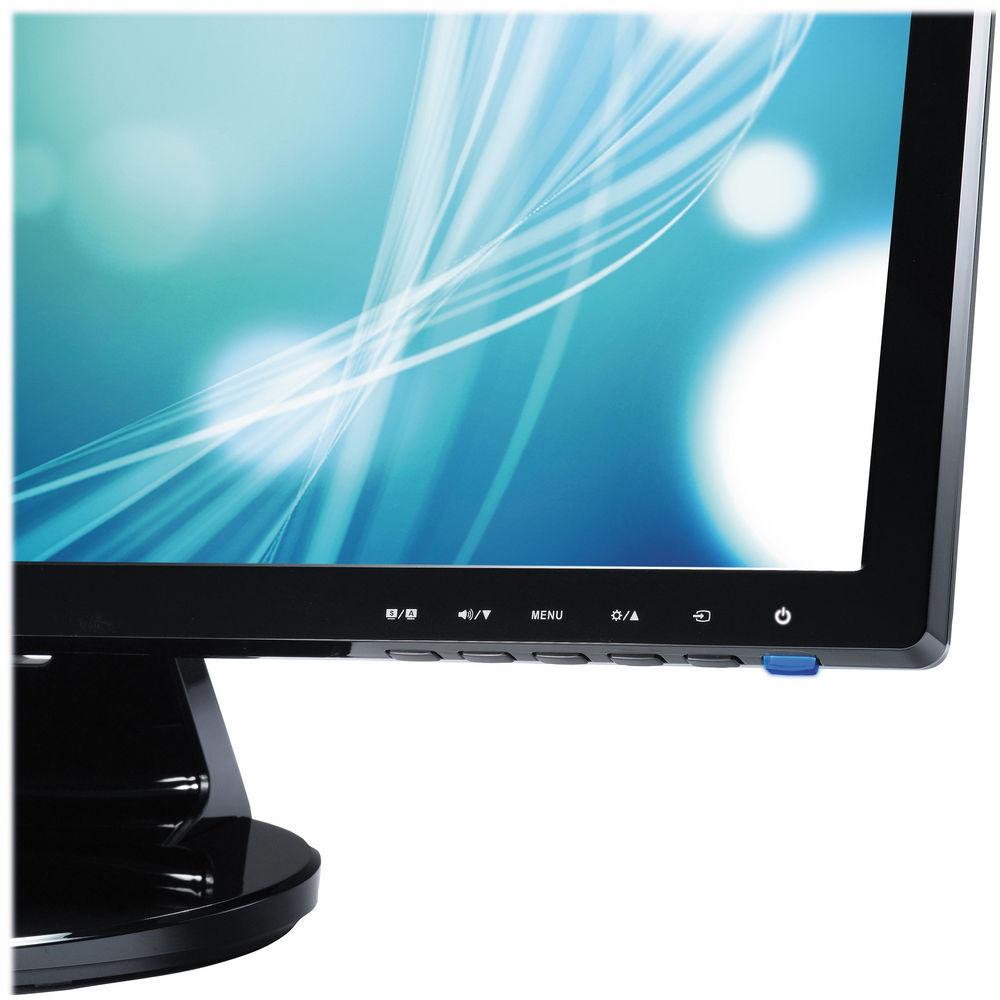

·Convenient key controls for functional set-up in the multi-language On-screen Display.
·Cable manager gets rid of tangling cables and wires.
·VESA Wall Mount Standard (100 x 100mm).
·25° Tilting Angle (forward 5°, backwards 20°).
·KENSINGTON Security Lock. - Greener Materials
- ·The LED backlit panel is mercury-free
·Slim-flat packaging allows for more cartons to be fit per cargo, reducing transportation costs and CO₂ emission
·The monitor is packaged in corrugated cardboard that is made up of at least 80% recycled content UPC: 610839331574 In the Box ASUS VE247H 23.6" Widescreen LED Backlit Monitor DVI Cable VGA Cable Audio Cable Power Cord Quick Start Guide Limited 3-Year North American Warranty (USA, Canada & Mexico) Manual PDF 1.9mbubrvtxtqxutvzcuwssx More info from ASUS ubrvtxtqxutvzcuwssx Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VE247H 23.6" Widescreen LED Backlit Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VE247H Specs | | | Size | 23.6" | | Touchscreen | No | | Resolution | 1920 x 1080 | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 10,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 50 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 2 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.272 x 0.272 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI
1 x HDMI 1.3
1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 1 W (Standby)
35 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.4 x 16.1 x 7.9" / 56.9 x 41.0 x 20.1 cm | | Weight | 9.7 lb / 4.4 kg | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 25.0 x 18.8 x 6.2" |
