User Manual for ASUS VE248H 24" Widescreen LED Backlit LCD Monitor

Click to enlarge the picture
ASUS VE248H 24" Widescreen LED Backlit LCD Monitor Contents of the user manual for the ASUS VE248H 24" Widescreen LED Backlit
  • Product category: Computer Monitors ASUS
  • Brand: ASUS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ASUS Computer Monitors

ASUS VE248H 24" Widescreen LED Backlit LCD Monitor ASUS VE248H 24" Widescreen LED Backlit LCD Monitor ASUS VE248H 24" Widescreen LED Backlit LCD Monitor ASUS VE248H 24" Widescreen LED Backlit LCD Monitor
User manual for the ASUS VE248H 24" Widescreen LED Backlit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ASUS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!



Product description

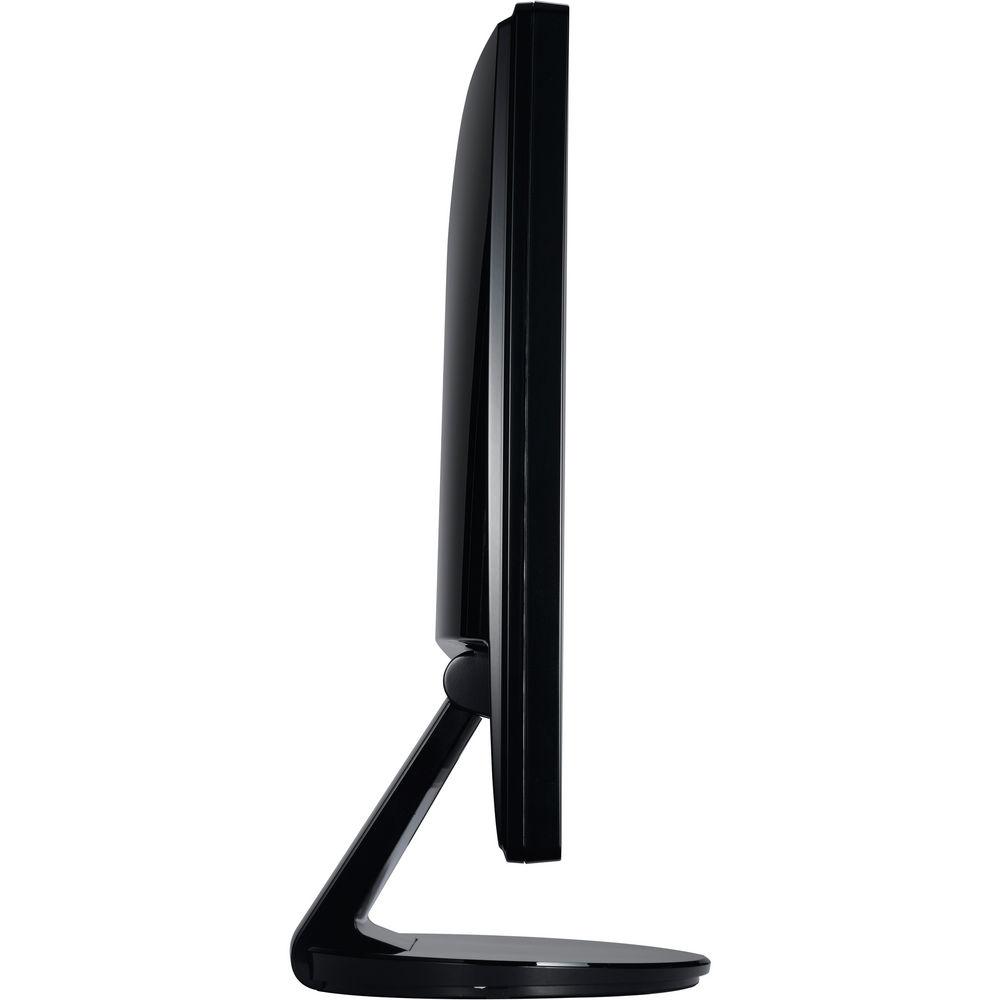

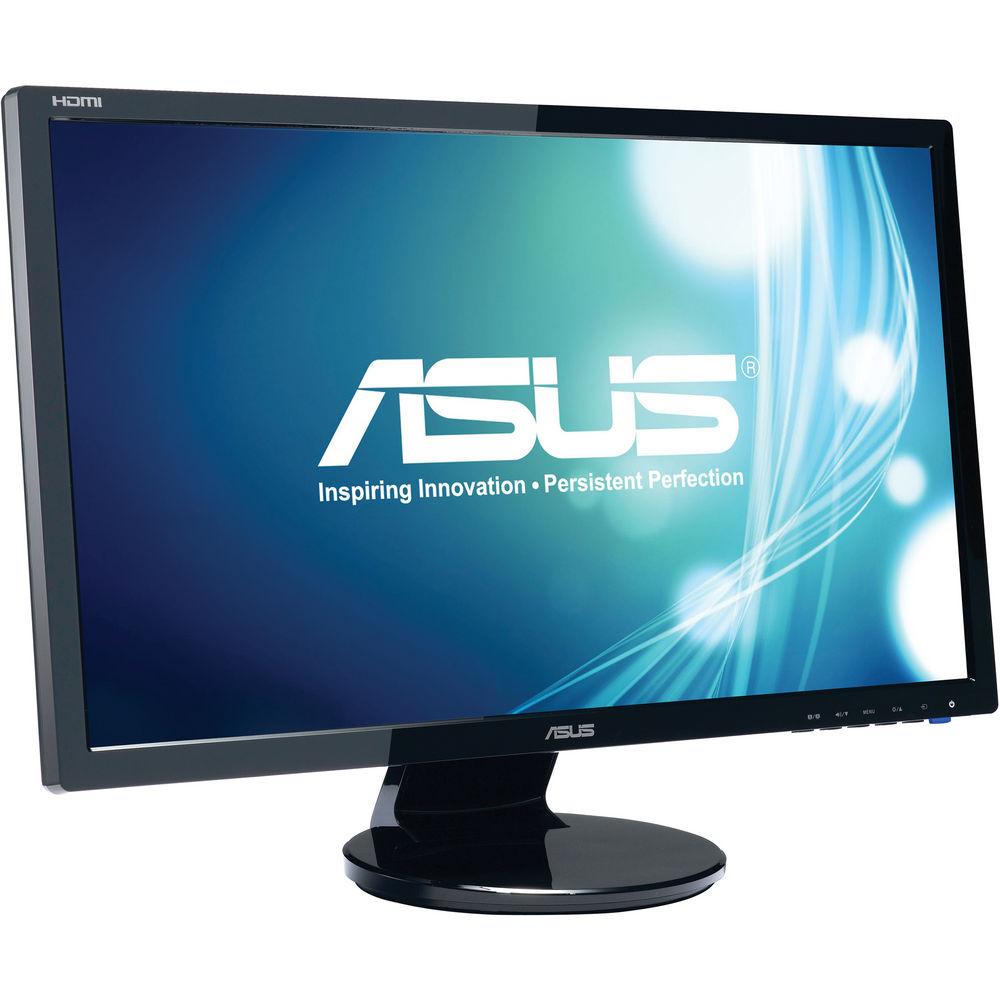

10 Factors to Consider When Selecting A Monitor for Video Editing Read More rtwxcsesbszscxdtsw The VE248H 24" Widescreen LED Backlit LCD Monitor from ASUS is a desktop computer monitor with a 16:9 aspect ratio and energy-efficient LED backlight. The display features a modern design, highlighted by a black frame and smooth desktop stand.

The display features a native resolution of 1920 x 1080. It also boasts a 10,000,000:1 dynamic contrast ratio, 250cd/m² brightness rating, 2ms response time, support for 16.7 million colors, and 170°/160° viewing angles. It can connect to a computer via VGA, DVI-D, or HDMI. This display also features built-in stereo speakers for added audio fun.

True-to-Life Pictures Powered by LED

    10,000,000:1 ASUS Smart Contrast Ratio
  • Dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white -- delivering lifelike images.
    Ergonomic Design for Personal Visual Comfort
  • You can easily reach a desired viewing angle with support of tilt, height adjustment, and swivel functions.
    Full HD with HDMI
  • ·Indulge your visual senses with 1440 x 900 resolution and a 5 ms quick response time for work and entertainment
    · You can view content on both your notebook and on this display for wider screen space. Switching between windows becomes much easier with more than one screen
    ·Dual Inputs of D-sub and DVI with HDCP supported
    ·You can switch between the full 16:9 aspect ratio and 4:3, depending on whether you want to watch a movie or play a game. Plus, you can switch without any data loss or image distortion
    Splendid Video Intelligence Technology
  • The Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. Five preset video modes (Scenery, Theater, Game, Night View, and Standard) can be selected via a hotkey
    Stylish and User-Friendly Design for Modern Sophistication
  • ·Built-in hidden stereo speakers enable audio enjoyment together with true-to-life visual

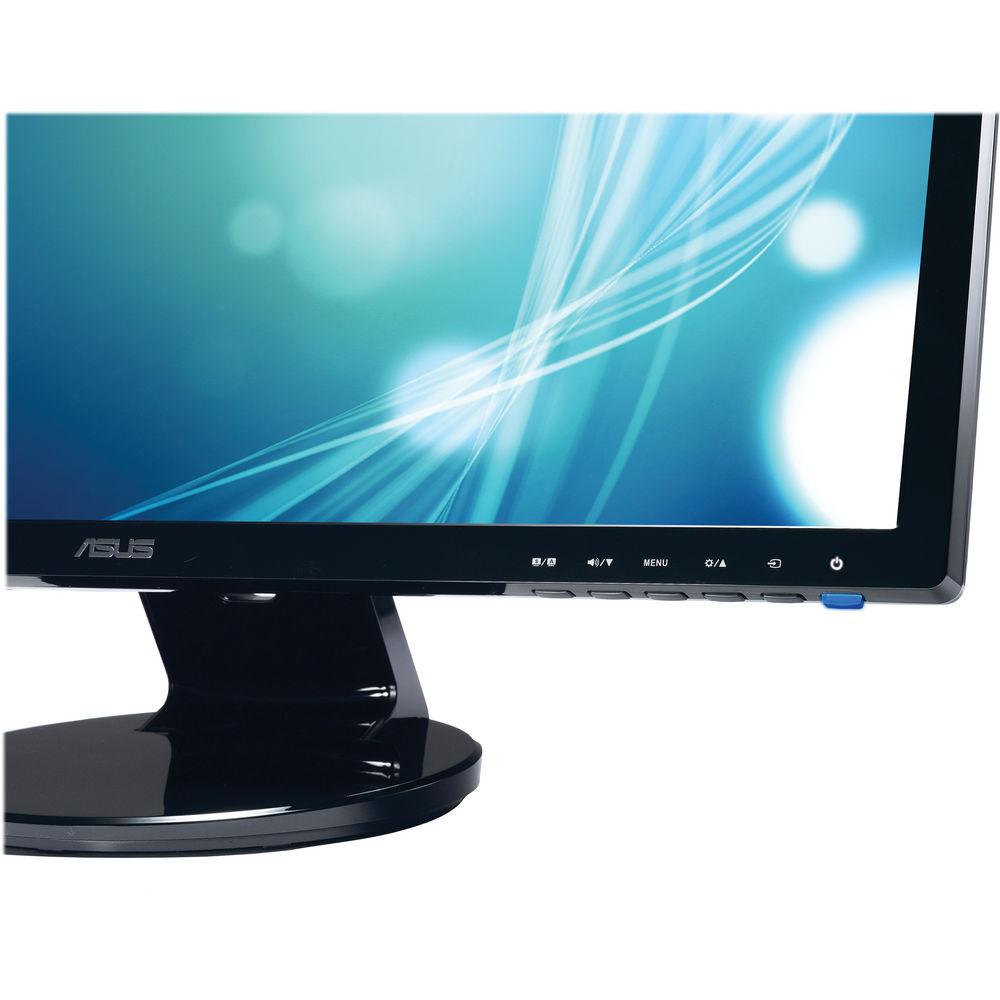

    ·Convenient key controls for functional set-up in the multi-language On-Screen Display
    ·Cable manager gets rid of tangling cables and wires

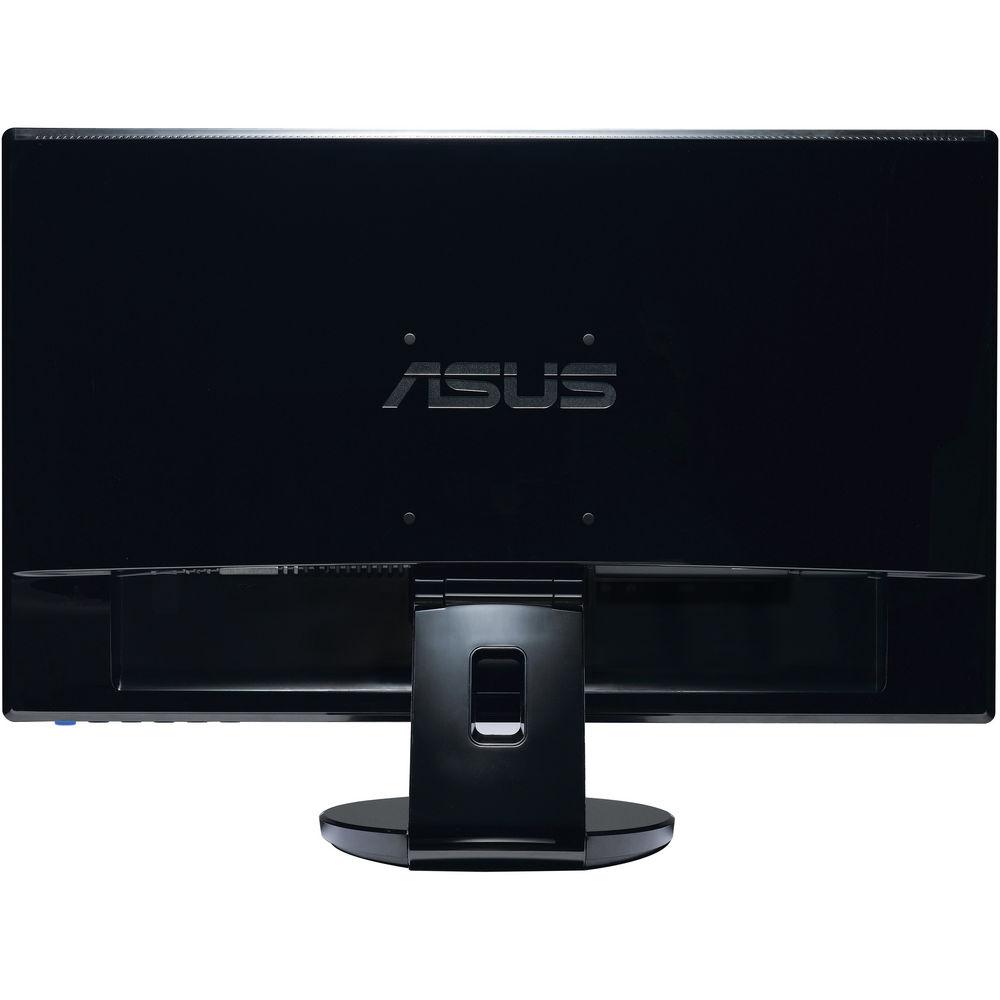

    ·VESA Wall Mount Standard (100 x 100 mm)
    · 25° (forward 5°, backwards 20°) Tilting Angle
    ·KENSINGTON Security Lock
    Complete After-Sale Service
  • ASUS's limited warranty covers the display and panel for three years, and provides free pick-up service in select countries.

Green in Mind

    Greener Materials
  • ·Mercury-free LED-backlit panel
    ·Corrugated cardboard packaging with at least 80% recycled content
    ·Slim-flat packaging allows more cartons to be fitted per cargo, reducing transportation costs and CO₂ emission
    Compliance
  • This display is TAA Compliant and EPEAT Gold Certified
UPC: 610839331871 In the Box ASUS VE248H 24" Widescreen LED Backlit LCD Monitor
  • DVI Cable
  • VGA Cable
  • Power Cord
  • Audio Cable
  • Quick Start Guide
  • Limited 1-Year North American Warranty (USA, Canada & Mexico)
  • Manual PDF 1.9mbrtwxcsesbszscxdtsw More info from ASUS Table of Contents




    Upload User Manual

    Have you got an user manual for the ASUS VE248H 24" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ASUS VE248H Specs

    Size 24"
    Touchscreen No
    Resolution 1920 x 1080
    Maximum Brightness 250 cd/m2
    Dynamic Contrast Ratio 100,000:1
    Adaptive Sync Technology None
    Horizontal Frequency 30 to 83 kHz
    Vertical Frequency 50 to 76 Hz
    Bit Depth / Color Support 8-Bit (16.7 Million Colors)
    Response Time 2 ms (GtG)
    Viewing Angle Horizontal: 170°
    Vertical: 160°
    Dot Pitch 0.277 x 0.277 mm
    Connectivity 1 x 3.5 mm Input/Output
    1 x 3.5 mm Output
    1 x DVI-D
    1 x HDMI 1.3
    1 x VGA
    Built-In Speakers Yes, 2 x 1 W
    Power Consumption 1 W (Standby)
    35 W (Typical)
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Certifications ENERGY STAR, RoHS, WEEE, as per Manufacturer
    Tilt Adjustment -5 to 20°
    Mounting-Hole Pattern 100 x 100 mm
    Lock Slot Yes
    Dimensions (W x H x D) 22.6 x 16.2 x 8.1" / 57.3 x 41.2 x 20.6 cm
    Weight 9.7 lb / 4.4 kg
    Package Weight 13.5 lb
    Box Dimensions (LxWxH) 26.0 x 18.9 x 5.9"
