User Manual for ASUS VE248Q 24" LED Backlit Widescreen Computer Display Click to enlarge the picture
Contents of the user manual for the ASUS VE248Q 24" LED Backlit Widescreen
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VE248Q 24" LED Backlit Widescreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

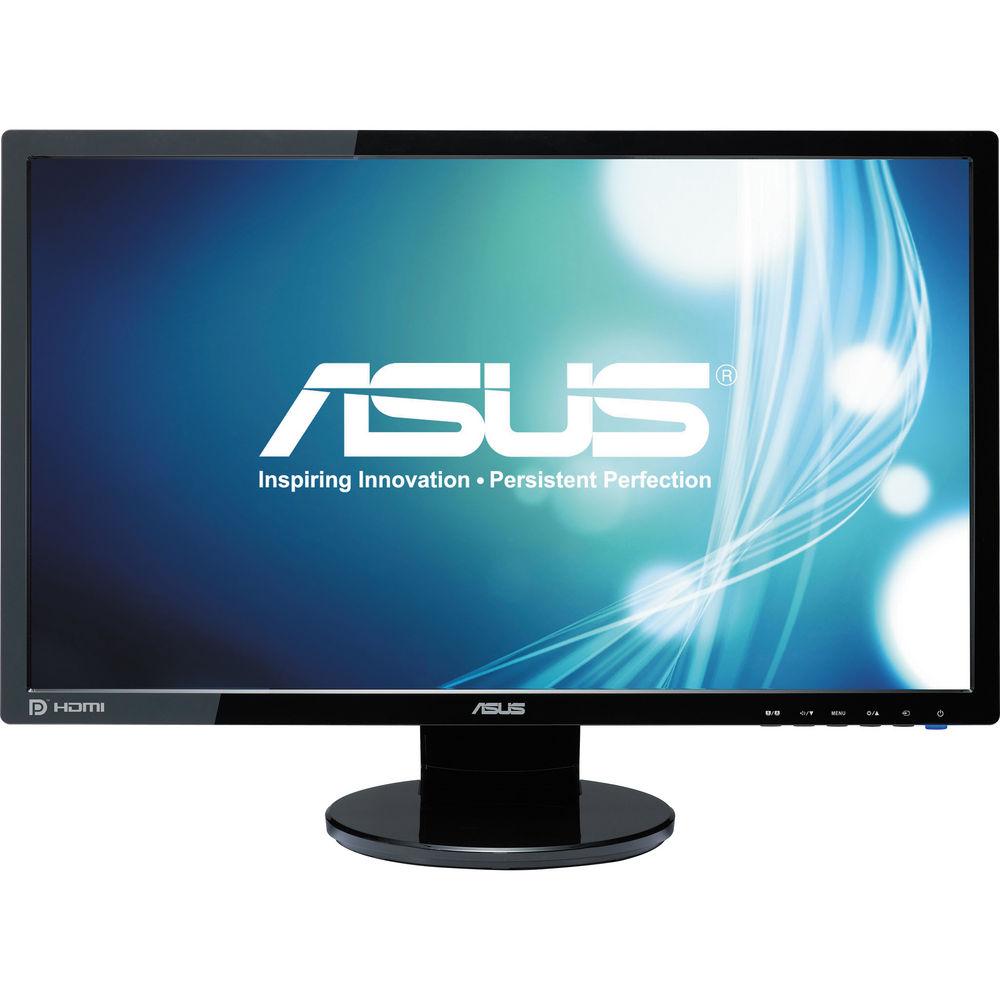

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More cyrxevftedudusyabwezyrvvrvyuee The VE248Q 24" LED Backlit Widescreen Computer Display from ASUS is designed to give you an amply-sized screen with a few added features for multimedia fun. This desktop display features a native resolution of 1920 x 1080 and has a 16:9 aspect ratio. It relies upon an energy-efficient LED backlight to illuminate the screen without drawing an excess of power. You can connect your computer or media player to the display via its VGA, DisplayPort, or HDMI ports. Plus, the integrated built-in speakers deliver excellent sound for movies, games, and more.
In terms of visual specs, this display boasts a 50,000,000:1 dynamic contrast ratio, 250cd/m² brightness rating, 2ms response time, support for 16.7 million colors, and 170°/160° viewing angles.
Once you do connect the display, you can take advantage of the Splendid Video Intelligence Technology. It optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. Six preset video modes (Scenery, Theater, Game, Night View, sRGB and Standard) can be selected via a hotkey. You can also select between three skin-tone modes and four color temperature modes. The display sits on a stand on your desktop, can detach from the stand to mount on your wall, has a cable manager for eliminating tangles of wire, and is easy to setup. True-to-Life Pictures Powered by LED - 50,000,000:1 ASUS Smart Contrast Ratio
- Dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white -- delivering lifelike images.
- Full HD with HDMI
- Enter a spectacular world of colors with Full HD 1080p (1920 x 1080) support and HDMI port.
- Versatile Connectivity
- With embedded digital HDMI and DisplayPort inputs, the VE248Q enables the most advanced graphic cards and computer connections. The DisplayPort interface also offers better support of multiple display streams, longer cable connection, and interoperability with other inputs, such as VGA, DisplayPort and HDMI.
- 2ms Response Time
- Quick response time of 2ms (GTG) eliminates ghosting and tracers for more fluid video playback.
- Splendid Video Intelligence Technology
- The Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. Six preset video modes (Scenery, Theater, Game, Night View, sRGB, and Standard) can be selected via a hotkey. It also offers three skin-tone selection modes and four color temperature selection modes.
- Stylish and User-Friendly Design for Modern Sophistication
-

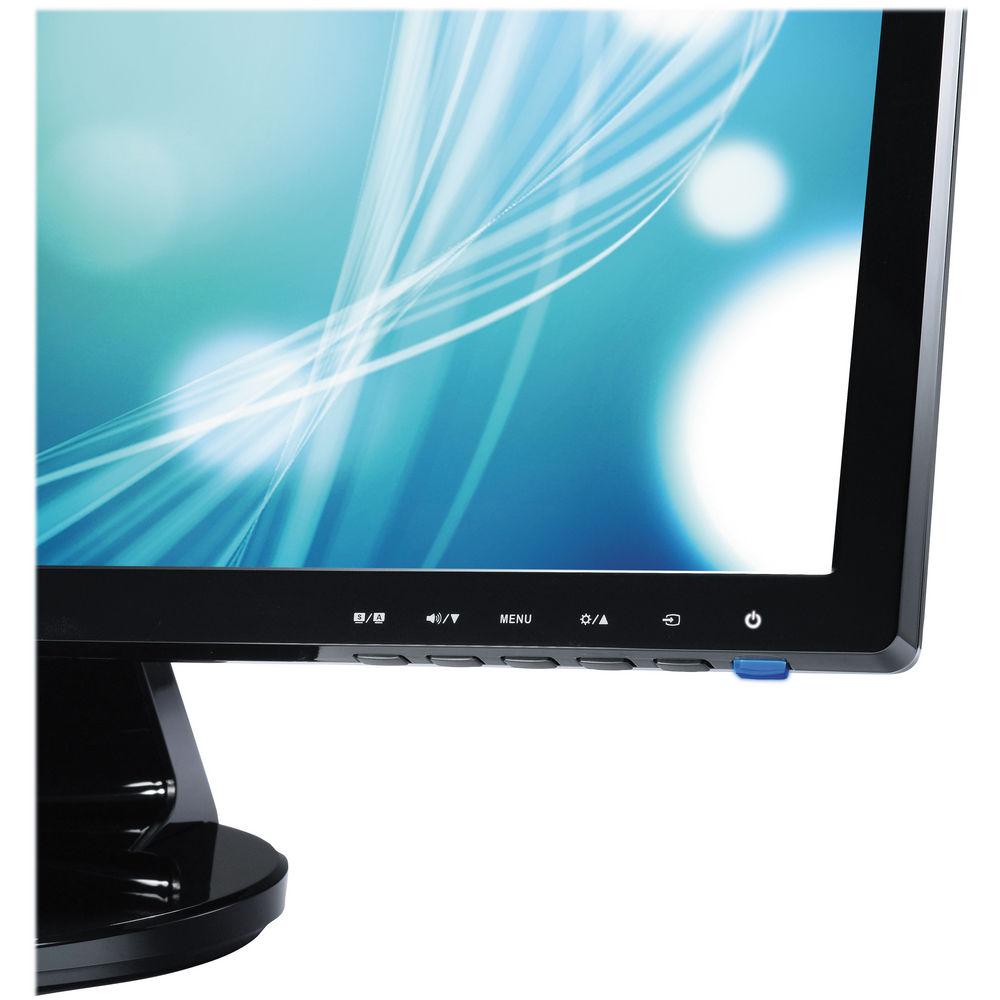

- Convenient key controls for functional set-up in the multi-language OSD
- Built-in hidden stereo speakers enable audio enjoyment together with true-to-life visual
- Cable manager gets rid of tangling cables and wires

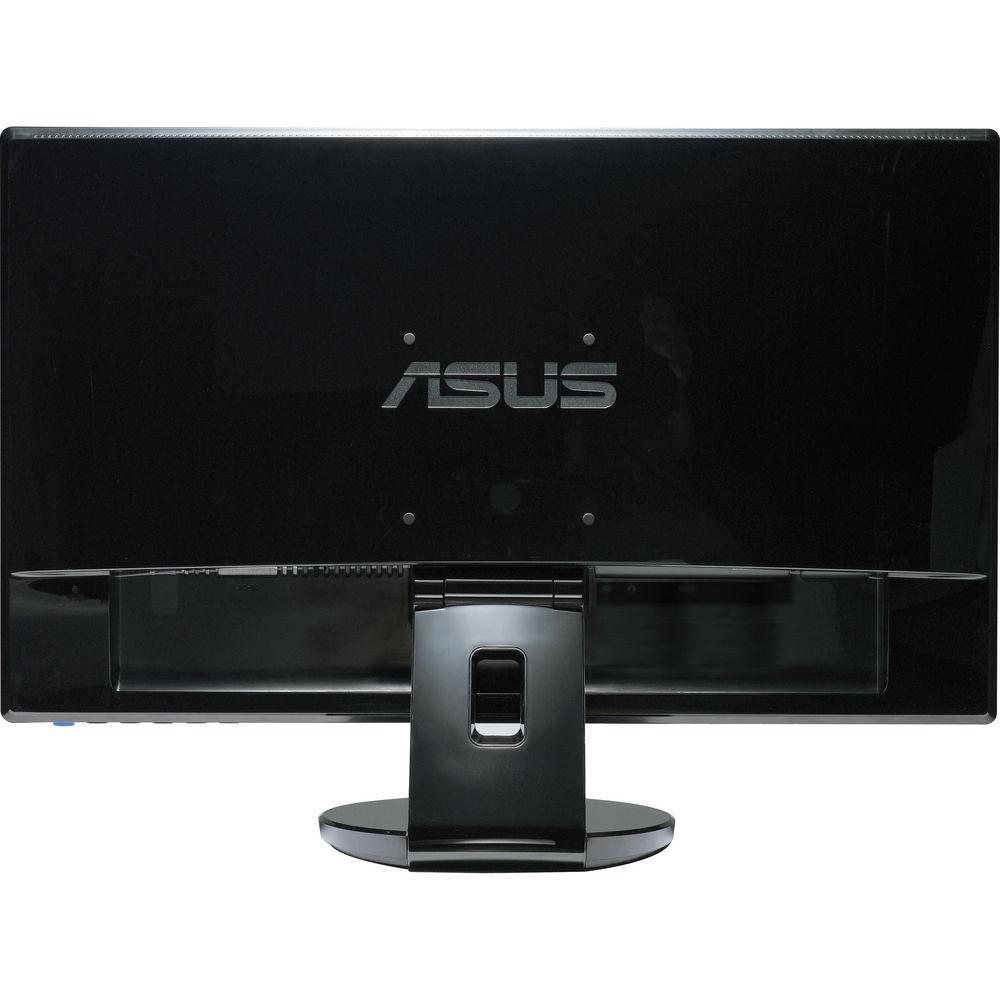

- Easily detachable base for wall mount
- VESA Wall Mount Standard (100 x 100mm)

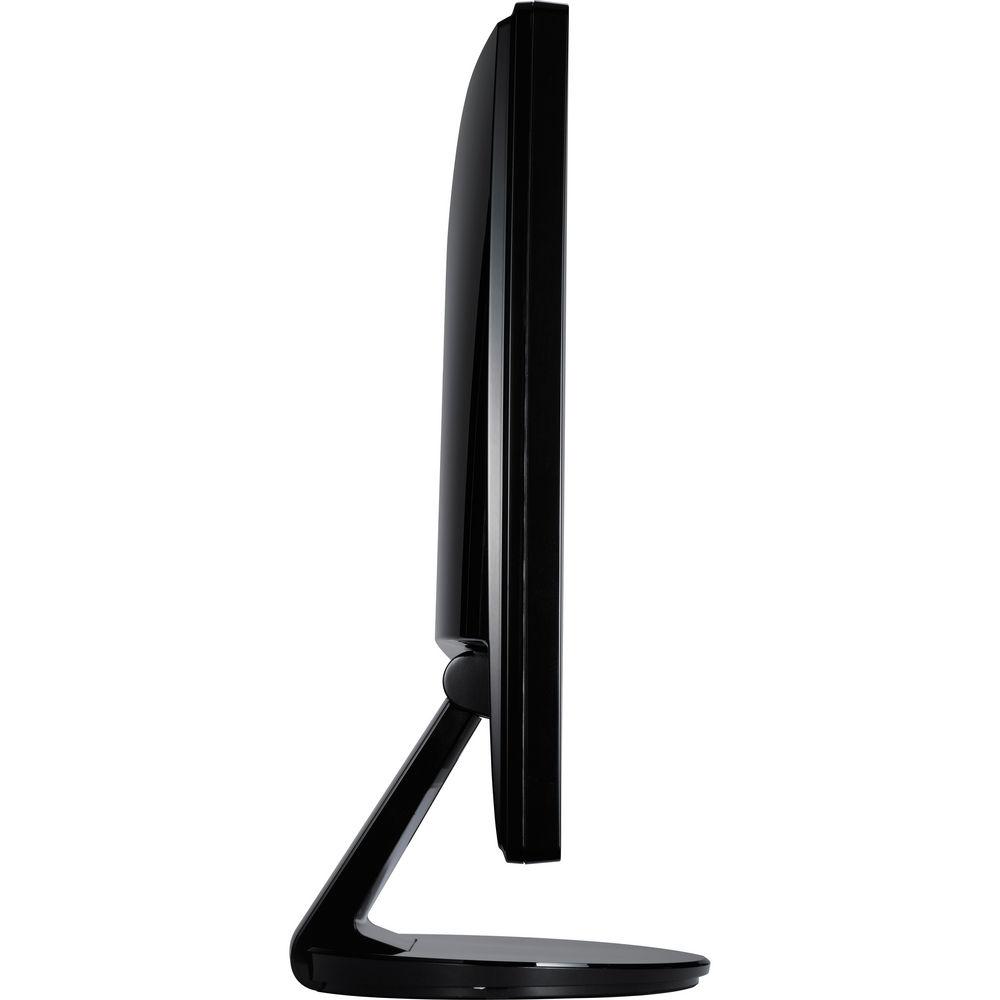

- 25° (Forward 5°, Backwards 20°) Tilting Angle
- Kensington Security Lock
Green in Mind - Greener Materials
-
- Mercury-free LED-backlit panel
- Corrugated cardboard packaging with at least 80% recycled content
- Slim-flat packaging allows more cartons to be fitted per cargo, reducing transportation costs and CO₂ emission
UPC: 610839386246 In the Box ASUS VE248Q 24" LED Backlit Widescreen Computer Display VGA Cable Audio Cable Power Cord Quick Start Guide HDMI-to-DVI Cable Limited 1-Year North American Warranty (USA, Canada & Mexico) More info from ASUS cyrxevftedudusyabwezyrvvrvyuee Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VE248Q 24" LED Backlit Widescreen Computer Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VE248Q Specs | | | Size | 24" | | Touchscreen | No | | Resolution | 1920 x 1080 | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 50 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 2 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.277 x 0.277 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DisplayPort Input
1 x HDMI 1.3
1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 0.5 W (Standby)
35 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.4 x 16.1 x 7.9" / 56.9 x 41.0 x 20.1 cm | | Weight | 9.7 lb / 4.4 kg | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 25.0 x 18.8 x 6.1" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
