User Manual for ASUS VE278Q 27" Widescreen LCD Computer Display Click to enlarge the picture
Contents of the user manual for the ASUS VE278Q 27" Widescreen LCD Computer
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VE278Q 27" Widescreen LCD Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

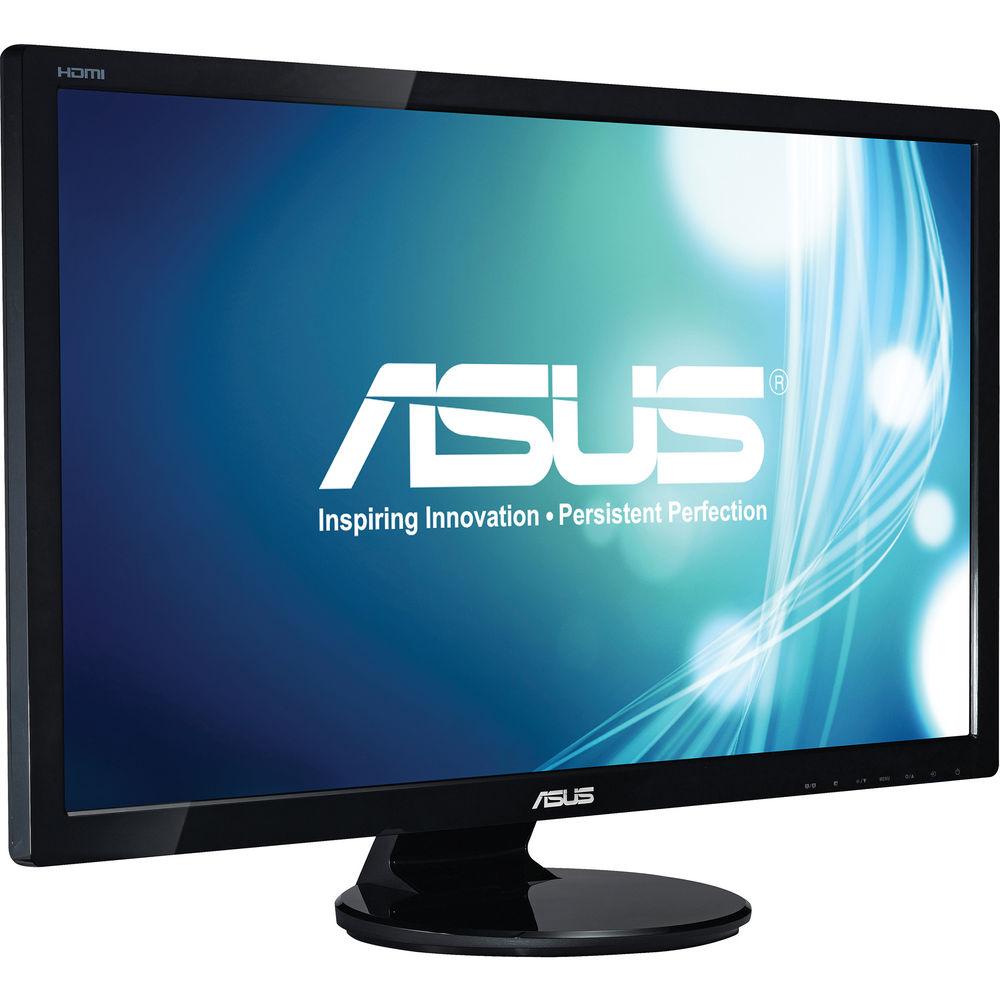

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More eyfzvfdsrcxzdcwzrsxtsrtasvcre The VE278Q 27" Widescreen LCD Computer Display from ASUS is large-screen computer monitor with a wealth of input ports. You'll be able to connect it to your computer via VGA, DVI, DisplayPort, or HDMI. The monitor is capable of displaying 1080p video at native resolution, and can also output audio thanks to integrated stereo speakers.
The display features a 10,000,000:1 dynamic contrast ratio, 170°/160° viewing angles, 300cd/m² brightness, and support for 16.7 million colors. It uses an energy-efficient LED backlight, which offers more even lighting than traditional CCFL lamps -- without the need for warm-up time. Its desktop stand supports tilt adjustment, and you have the option of mounting the display to a wall thanks to its standard VESA 100mm mounting pattern. It can also be secured via a standard Kensington security lock. - 10,000,000:1 ASUS Smart Contrast Ratio
- The ASUS Smart Contrast Ratio dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white -- delivering lifelike images.
- 2ms Response Time
- Quick response time of 2ms (Gray-to-Gray) eliminates ghosting and tracers for more fluid video playback.
- Full HD with HDMI
- VE278Q leads you to enter a big and spectacular world of colors with support for Full HD 1080p video and an HDMI port.
- AI Light for Brightness Optimization
- AI Light function enables the VE278Q to automatically adjust to a lower brightness, making your eyes feel more comfortable in dim environments -- all while reducing power consumption by up to 25%.
- Rich I/O Ports -- Allow Simultaneous Connections to More Video Devices
- Embedded digital HDMI and DisplayPort inputs, enable connection with the most advanced graphic cards and computers. The DisplayPort interface also offers better support of multiple display streams, longer cable connection, and interoperability with other inputs, such as VGA, DVI, and HDMI.
- Picture in Picture - Display 2 Different Signals Simultaneously
- Need to research on the Internet, but a championship game is about to start on TV? The VE278Q offers PIP (Picture in Picture) function (via hotkey) and has the capability to display images of two different signals at the same time.
- Splendid Video Intelligence Technology
- The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. Six preset video modes (Scenery, Theater, Game, Night View, sRGB and Standard) can be selected via a hotkey.
- Greener Materials
-
- Mercury-free LED backlit panel
- Corrugated cardboard packaging with at least 80% recycled content
- Slim-flat packaging allows more cartons to be fitted per cargo, reducing transportation costs and CO2 emission
UPC: 610839326983 In the Box ASUS VE278Q 27" Widescreen LCD Computer Display DVI Cable VGA Cable Audio Cable Power Cord Quick Start Guide Limited 3-Year North American Warranty (USA, Canada & Mexico) More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VE278Q 27" Widescreen LCD Computer Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VE278Q Specs | | | Size | 27" | | Touchscreen | No | | Resolution | 1920 x 1080 | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 10,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 92 kHz | | Vertical Frequency | 50 to 85 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 2 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.311 x 0.311 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 2 W (Standby)
45 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 25.3 x 17.5 x 8.7" / 64.3 x 44.6 x 22.0 cm | | Weight | 14.3 lb / 6.5 kg | | | | Package Weight | 18.8 lb | | Box Dimensions (LxWxH) | 28.5 x 22.0 x 7.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
