User Manual for ASUS VG275Q 27" 16:9 LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VG275Q 27" 16:9 LCD Gaming
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VG275Q 27" 16:9 LCD Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

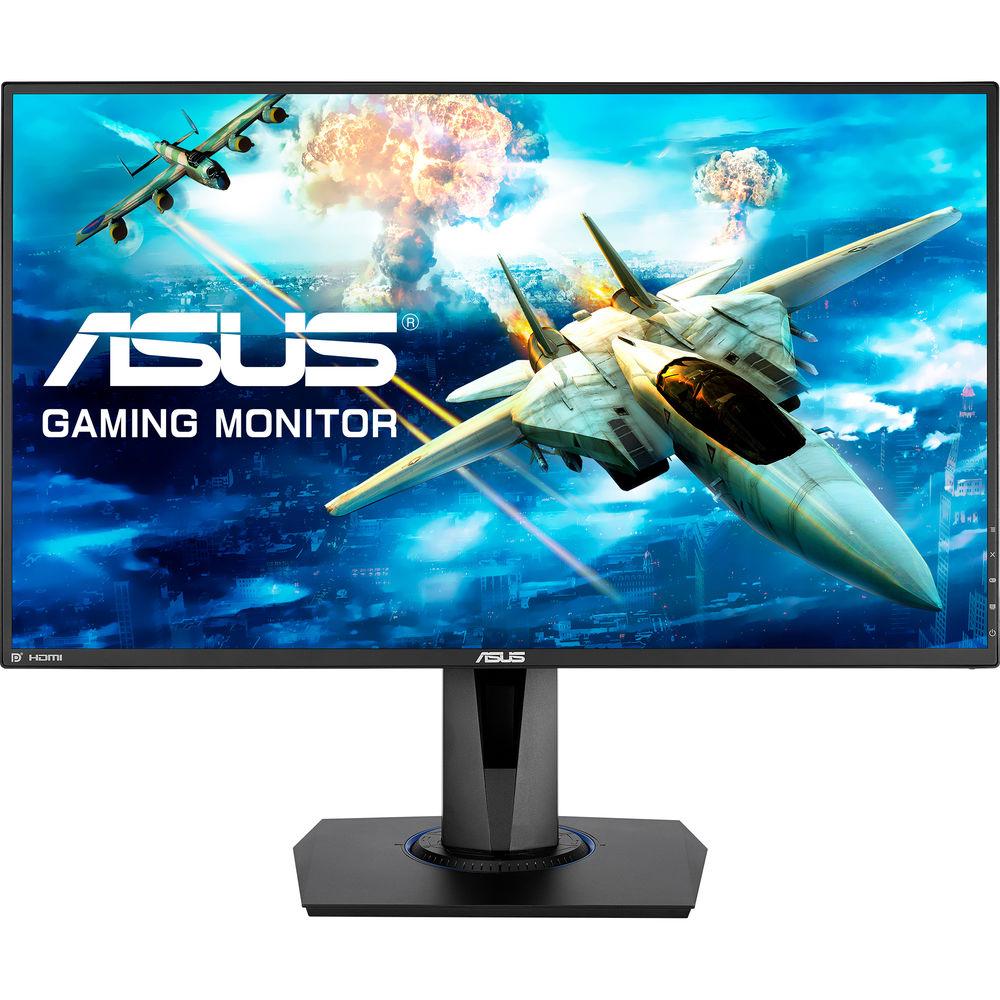

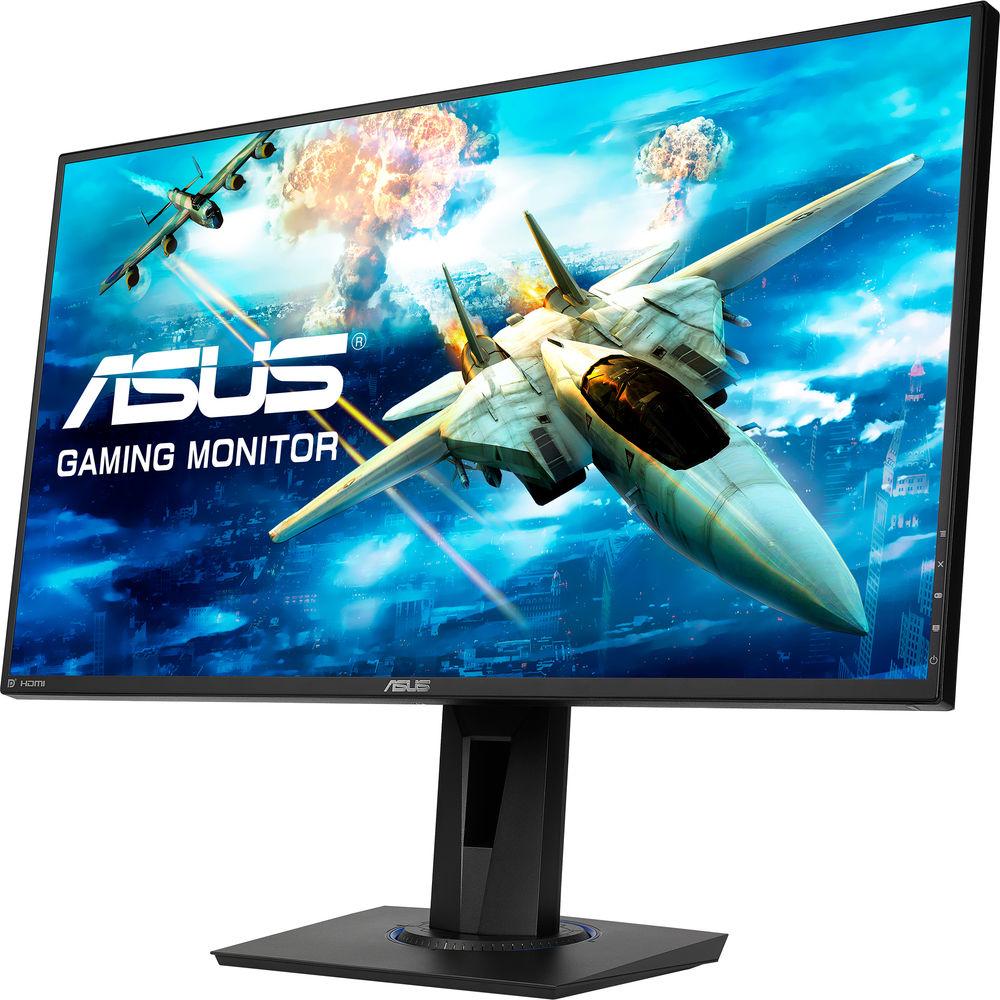

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a fast 1 ms response time and ASUS' own GameFast Input Technology, the VG275Q 27" 16:9 LCD Gaming Monitor from ASUS offers an enhanced gaming experience with reduced ghosting. In addition to GameFast Input technology, this ASUS gaming monitor also features AMD FreeSync technology, which is designed to synchronize the monitor with an AMD FreeSync enabled GPU to greatly reduce stuttering resulting in smooth lag free gameplay.
Setup and configuration of the ASUS VG275Q gaming monitor is simple as it comes equipped with dual HDMI ports, a single D-Sub, and one DisplayPort. The dual HDMI ports make it possible to connect this monitor to two different sources such as a media player and game console. Once setup, this monitor boasts a 1920 x 1080 Full HD resolution along with a 1 ms response time, and a 300 cd/m² brightness rating. To complete the viewing experience, the user can tilt, swivel, pivot, and adjust the height of the monitor for maximum comfort. - Enhanced Gaming Experience
- The 27" ASUS VG275Q Full HD gaming monitor features an ultra-fast 1 ms response time and 75 Hz refresh rate. It also has GameFast Input Technology for a lag-free experience along with two low input lag HDMI ports, so you can enjoy smooth visuals, and keep it hooked up to two devices. In addition, AMD FreeSync technology helps eliminate image tearing for fast gameplay over HDMI input for smooth gameplay.
- GameFast Input Technology
- Input lag is the time delay between pressing a button and seeing its effects onscreen. Slow input lag may cause a laggy connection that gives you trouble keeping up with the fast action. The VG275Q features the GameFast Input Technology to minimizes input lag, so you'll always be up to speed with the action at the precise timing to respond as quickly as you should.
- 1 ms Response Time
- The ASUS VG275Q boasts a 1 ms response time so all your fast-paced gaming action will be rendered smoothly without smearing, ghosting, and motion blur.

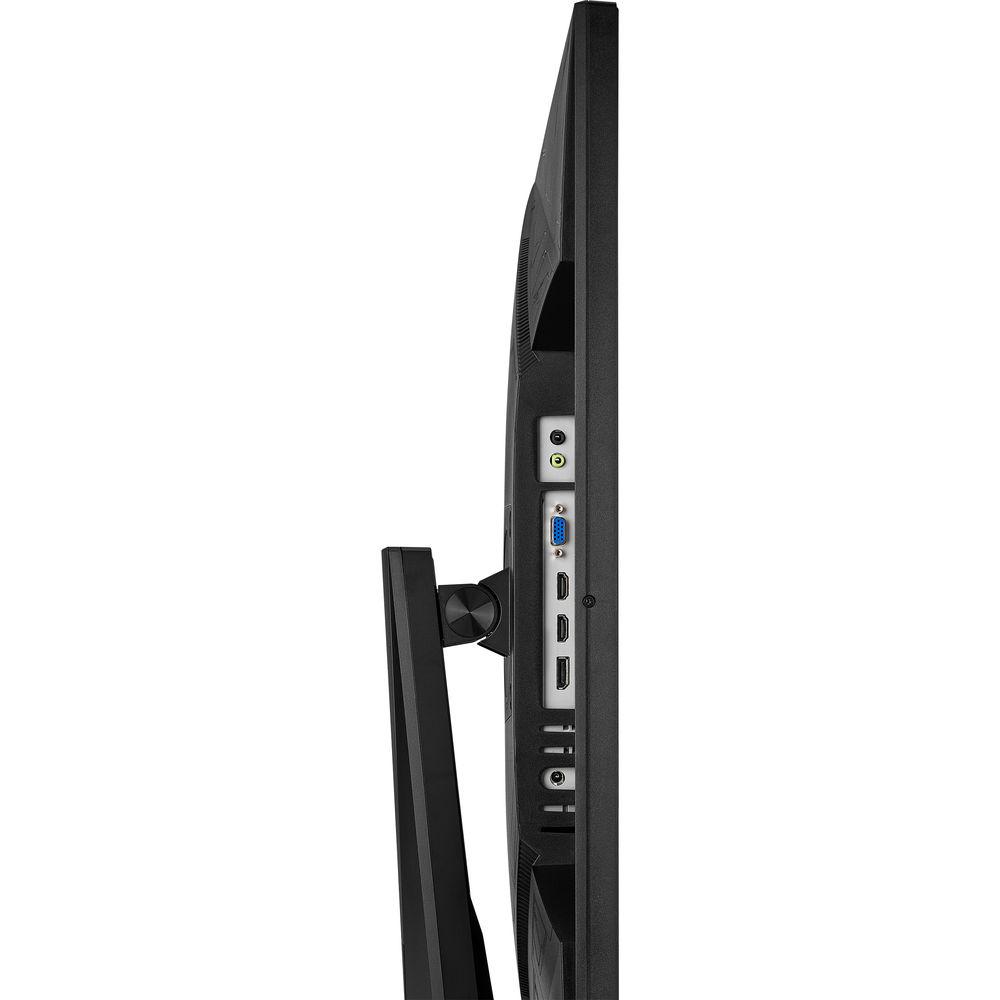

- Flexible Connectivity
- The ASUS VG275Q features two HDMI ports and one DisplayPort allowing you to connect your game console and another HDMI device at the same time. So, there's no need to frequently plug and change your connection.
- AMD FreeSync Technology
- The ASUS VG275Q features AMD FreeSync technology to eliminate screen tearing and choppy frame rates to give you seamless visuals and smooth gameplay. This gives you the upper hand in first person shooters, racing, real-time strategy, and sports titles.
- GamePlus Hotkey
- The ASUS VG275Q features the ASUS-exclusive GamePlus hotkey to give you in-game enhancements that help you get more out of your game.
- ASUS GameVisual Technology
- ASUS GameVisual Technology has six pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the On-Screen Display (OSD) settings menu.
- Navigation Joystick and Hotkeys
- The ASUS VG275Q features an exclusive 5-way OSD navigation joystick, input select, GamePlus, and GameVisual functionality. Additionally, the monitor implements a smart cable management design that helps you organize and hide cables to keep your gaming area neat.
- Flicker-Free Technology
- Flicker-free technology reduces flicker to give you a comfortable gaming experience. This minimizes instances of eyestrain and other potentially damaging eye ailments when you're embroiled in long, drawn-out gaming sessions.
- ASUS Ultra-Low Blue Light
- ASUS Ultra-Low Blue Light technology reduces the amount of harmful blue light emitted. You can access and select four different filter settings onscreen easily through the OSD menu or DisplayWidget UI to find the best one that suits the task at hand.
The VG275Q gaming monitor has undergone stringent performance tests and is certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels. - Ergonomic Design

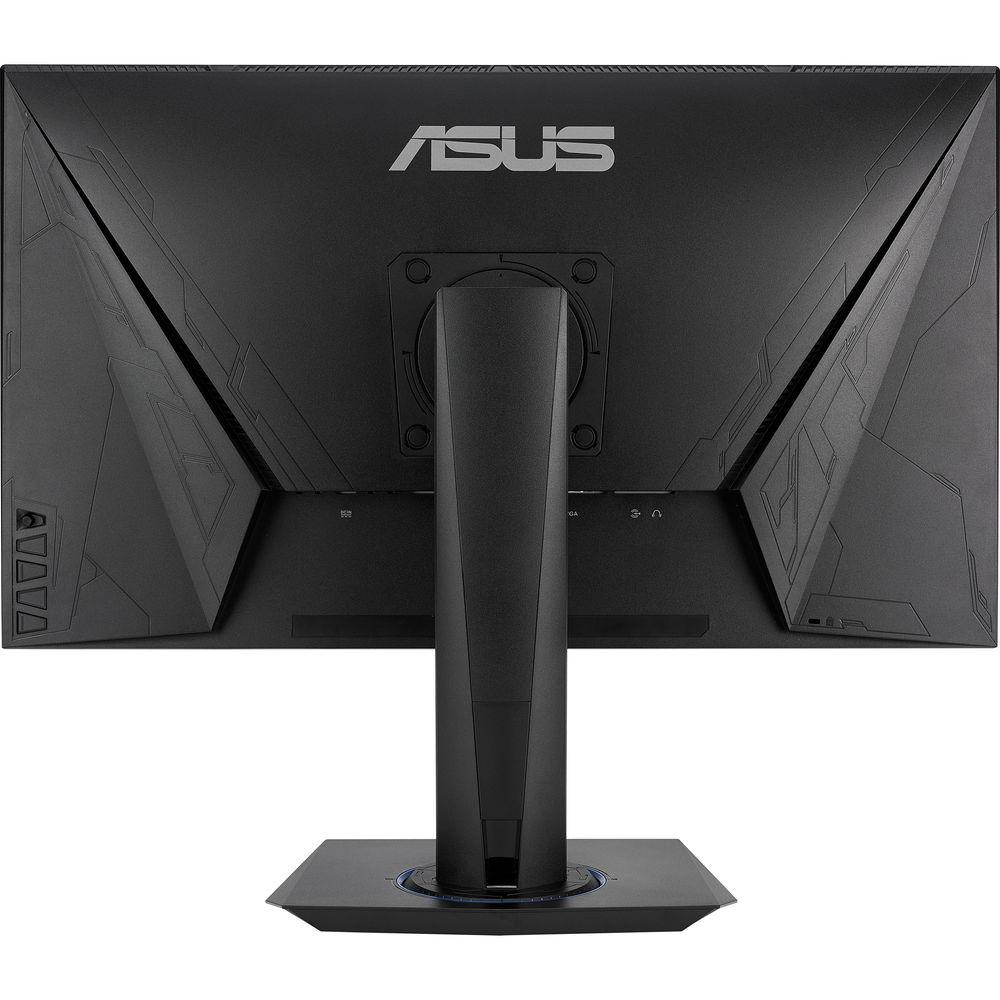

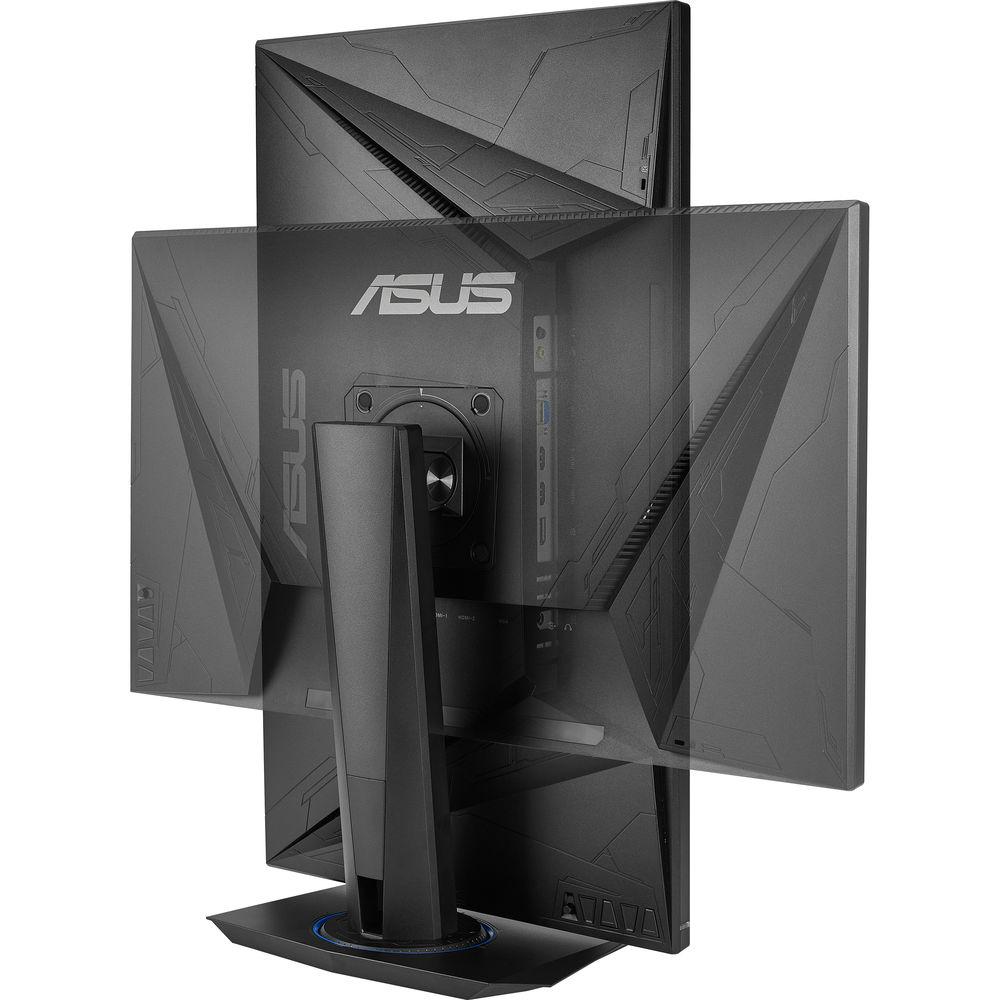

- The ASUS VG245H is specially designed for long marathon gaming sessions. Its ergonomically-designed stand lets you adjust the tilt, swivel, pivot, and height of the monitor so you always find your ideal viewing position. It can also be VESA wall-mounted to fit in any limited space.
UPC: 889349725481 In the Box ASUS VG275Q 27" 16:9 LCD Gaming Monitor Power Cord Power Adapter Limited 3-Year Warranty User Manual PDF 3.8mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VG275Q 27" 16:9 LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VG275Q Specs | | | Panel Size | Wide Screen 27" / 68.58 cm | | Color Saturation | 72% (NTSC) | | Panel Type | TN | | Resolution | 1920 x 1080 | | Display Viewing Area | 23.53 x 13.23" / 597.60 x 336.15 mm | | Aspect Ratio | 16:9 | | Display Surface | Non-glare | | Pixel Pitch | 0.311 mm | | Brightness | 300 cd/m² | | Contrast Ratio | 1,000:1 | | ASUS Smart Contrast Ratio (ASCR) | 100,000,000:1 | | Viewing Angle (CR≧10) | 170°/160° (H/V) | | Response Time | 1 ms (GtG) | | Display Colors | 16.7 million | | Flicker Free | Yes | | | | Trace Free Technology | Yes | | GameVisual | 6 Modes (Scenery/Racing/Cinema/RTS/RPG/FPS/sRGB Modes) | | FreeSync | Yes | | | | Speakers | 2 x 2 W RMS speakers | | | | Key Functions | GamePlus
5-way OSD Navigation Joystick
GameVisual | | | | Signal Input | 2 x HDMI
1 x D-Sub
1 x DisplayPort | | Audio Output | 3.5 mm mini-jack | | Earphone Jack | 3.5 mm mini-jack | | | | Signal Frequency | Analog Signal Frequency
30~90 KHz(H) / 50~76 Hz(V)
Digital Signal Frequency
Display Port - 90~90 KHz(H) / 40~75 Hz(V) | | | | Power Consumption | Power Consumption: < 40 W
Power Saving Mode: < 0.5 W
Power Off Mode: < 0.5 W | | Mechanical Design | Tilt: -5~33°
Swivel: ±90°
Pivot: ±90°
Height Adjustment: 0~5.1" / 0~130 mm | | VESA Wall Mounting | 100 x 100 mm | | Security | Kensington lock | | Compliance and Standards | BSMI, CB, CE, CU, ErP, FCC, ISO-9241-307, KCC, PSE, RoHS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), MEPS, TUV Flicker-free , eStandby, TUV Low Blue Light | | Dimensions | With Stand
24.3 x 14.8-19.9 x 8.3" / 619 x 376-506 x 211 mm
Without Stand
24.3 x 14.3 x 2.0" / 619 x 363 x 50 mm | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 17.9 lb | | Box Dimensions (LxWxH) | 27.5 x 17.8 x 7.5" |
