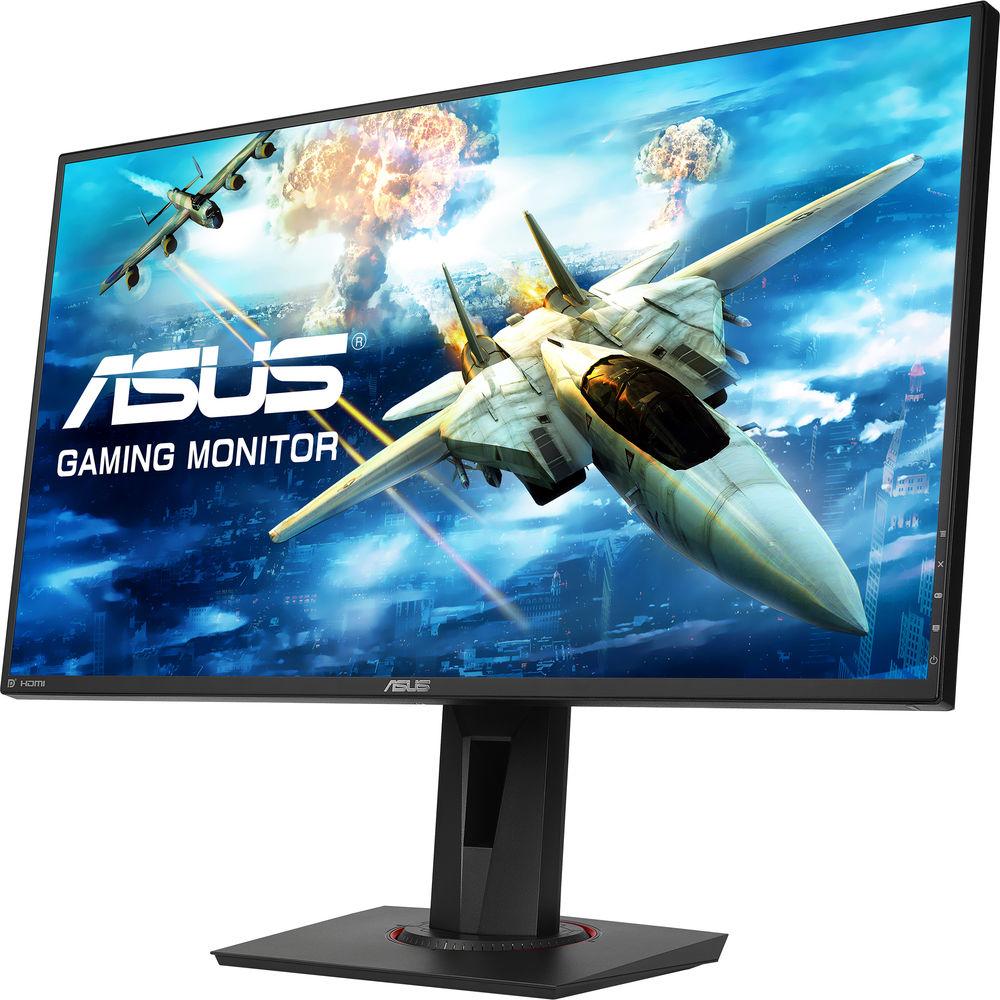

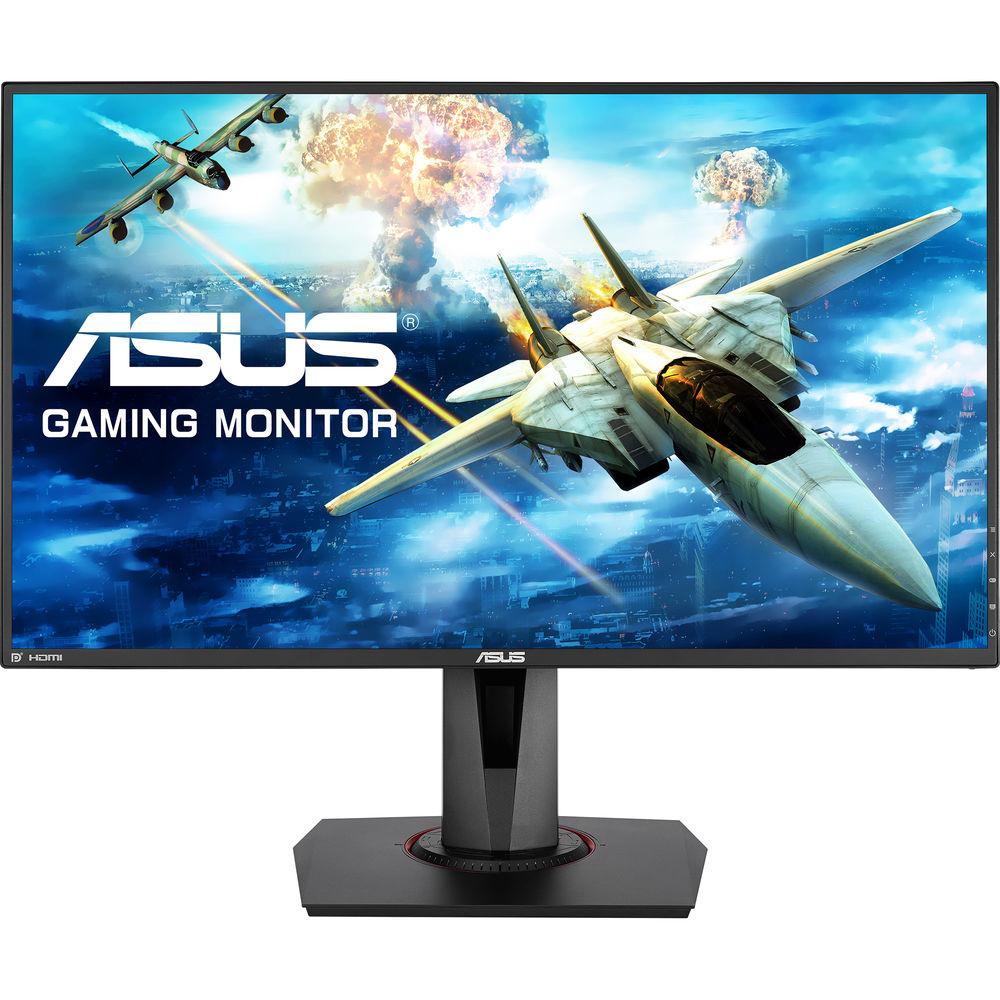

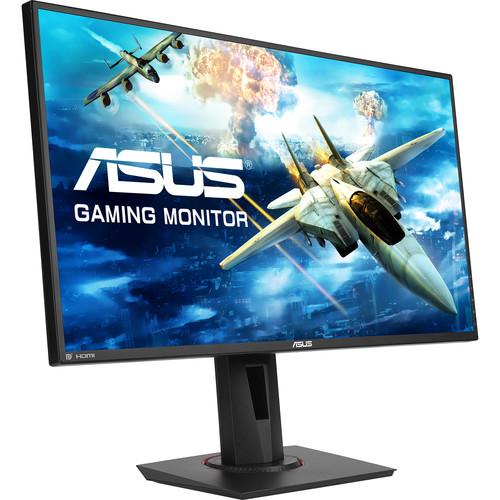

User Manual for ASUS VG278Q 27" 16:9 144 Hz FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VG278Q 27" 16:9 144 Hz
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VG278Q 27" 16:9 144 Hz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More xfzaeyrbdfwrsrwubauuufevtbycdf The VG278Q 27" 16:9 144 Hz FreeSync LCD Monitor from Asus is packed with multiple features designed to help enhance your gameplay. With support for AMD FreeSync and NVIDIA G-Sync technology, it can sync its refresh rate, up to 144 Hz, with your graphics card's frame rate output to reduce screen tearing and stuttering for a smoother experience. Its TN (Twisted Nematic) panel has a 1920 x 1080 Full HD resolution and offers a fast 1 ms (GtG) response time. Furthermore, is has a 400 cd/m² brightness rating, a 1000:1 static contrast ratio, and support for 16.7 million colors to deliver darker blacks and brighter bright colors. Connect this display to your system via HDMI, DisplayPort, or DVI-D, and then adjust it to your viewing preference. Otherwise, you can install an optional mount, stand, or arm using the 100 x 100mm VESA mounting holes on the back. - NVIDIA G-Sync Compatible
- While this is an AMD FreeSync monitor, it's also NVIDIA G-Sync compatible by updating to the latest video drivers.
- AMD FreeSync Technology
- AMD FreeSync Technology syncs the display's refresh rate with the graphics card's frame rate output to reduce screen tearing and stuttering. When combined with its 1 ms (GtG) response time with low motion blur and a 144 Hz refresh rate, you'll be able to enjoy a smoother gaming experience.
- GameFast Input Technology
- GameFast Input Technology minimizes input lag for more responsive commands, allowing you to react instantly.
- GamePlus Technology
- The GamePlus hotkey provides you with a few enhancements so you can get the most out of your game. It includes an on-screen crosshair, timer, FPS counter, and display alignment options.
- GameVisual Technology
- GameVisual Technology offers seven preset and optimized display modes for different content. You can easily change through them using a hotkey or the On-Screen Display menu. They include modes for: scenery, racing, cinema, RTS, RPG, FPS, sRGB, and MOBA.
- Narrow Bezels & Smart Cable Management
- The Asus VG278Q has 1cm thin bezels for a more immersive viewing experience. The stand also features a cable management hole that you can use to keep your cables tidy.
- Flicker-Free & Ultra-Low Blue Light
- Flicker-Free and Ultra-Low Blue Light technology reduces flickering and blue light emissions for more comfortable viewing even after extended use.
- Additional Features
-
- Trace Free Technology
- Skin-Tone Selection: 3 Modes
- Color Temperature Selection: 4 Modes
- Low Blue Light
- HDCP support
- VividPixel
- Smart View Technology
- Extreme Low Motion Blur
UPC: 889349747155 In the Box ASUS VG278Q 27" 16:9 144 Hz FreeSync LCD Monitor Audio Cable Power Cable & Adapter Limited 3-Year Warranty User Manual PDF 4.9mbxfzaeyrbdfwrsrwubauuufevtbycdf More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VG278Q 27" 16:9 144 Hz FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VG278Q Specs | | | Size | 27" | | Screen Area | 23.53 x 13.23" / 597.6 x 336.15 mm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 81 ppi | | Finish | Matte | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | G-Sync, FreeSync | | Horizontal Frequency | 160 to 160 kHz (DisplayPort)
30 to 140 kHz (HDMI)
30 to 160 kHz (DVI) | | Vertical Frequency | 40 to 144 Hz (DisplayPort)
40 to 120 Hz (HDMI)
50 to 144 Hz (DVI) | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC | | Response Time | 1 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.311 x 0.311 mm | | | | Connectivity | 1 x HDMI 1.4
1 x DisplayPort 1.2
1 x DVI-D
1 x 3.5 mm | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 40 W (Typical)
0.5 W (Standby) | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 180° (-90 to 90°) | | Tilt Adjustment | -5 to 33° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 24.4 x 19.9 x 8.3" / 619.0 x 506.0 x 211.0 mm (With Stand)
24.4 x 14.3 x 2.0" / 619.0 x 363.0 x 50.0 mm (Without Stand) | | Weight | 12.35 lb / 5.6 kg (With Stand)
7.05 lb / 3.2 kg (Without Stand) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 27.5 x 18.0 x 7.0" |
