User Manual for ASUS VK278Q 27" Widescreen LCD Computer Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VK278Q 27" Widescreen LCD Computer
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VK278Q 27" Widescreen LCD Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

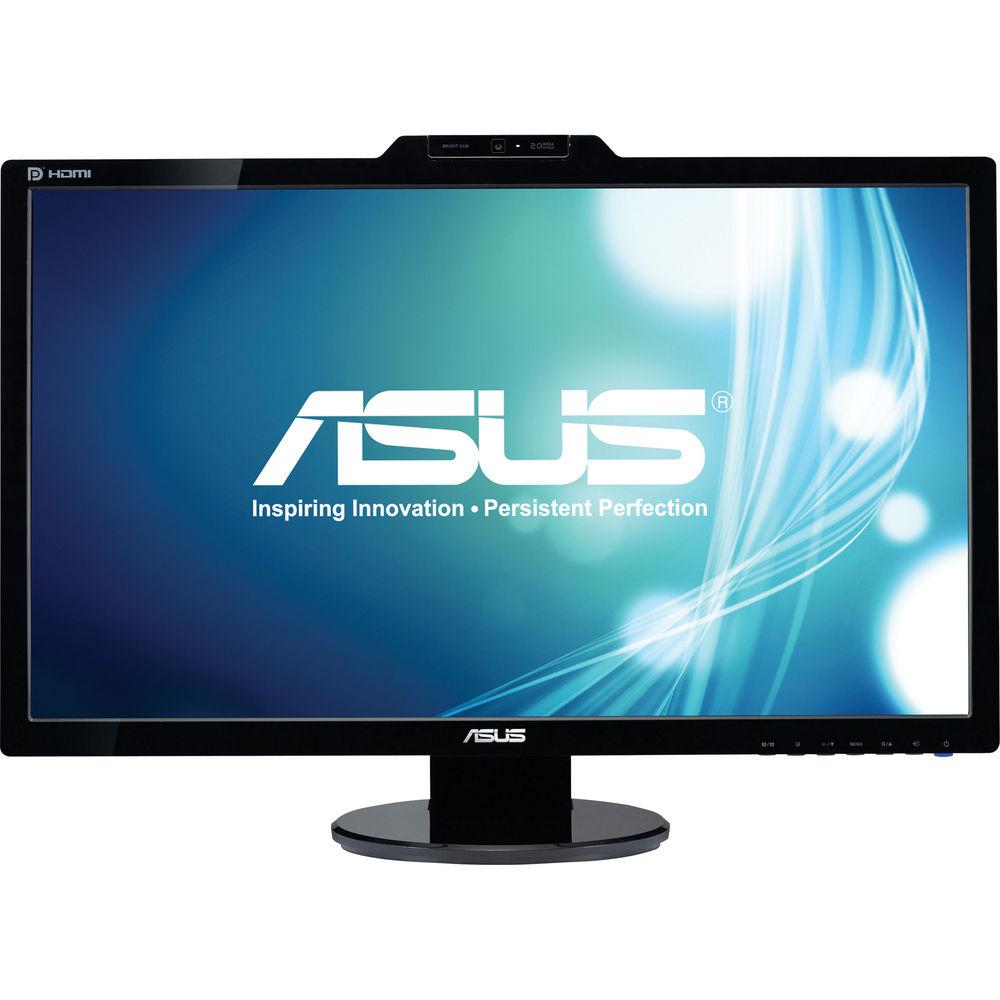

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More rdvtexfwcysxybezqacwzebxyfccc The VK278Q 27" Widescreen LCD Computer Monitor from ASUS is a large-screen computer monitor with a wealth of input ports and a built-in webcam! The webcam is capable of 2.0 megapixel video capture and is rotatable. Since its plug-and-play, just connect a USB cable from your computer to this monitor's USB port to start capturing video. Beyond the webcam, you can connect up the monitor to your computer via VGA, DVI, DisplayPort, or HDMI. The monitor is capable of displaying 1080p video at native resolution, and can also output audio thanks to integrated stereo speakers.

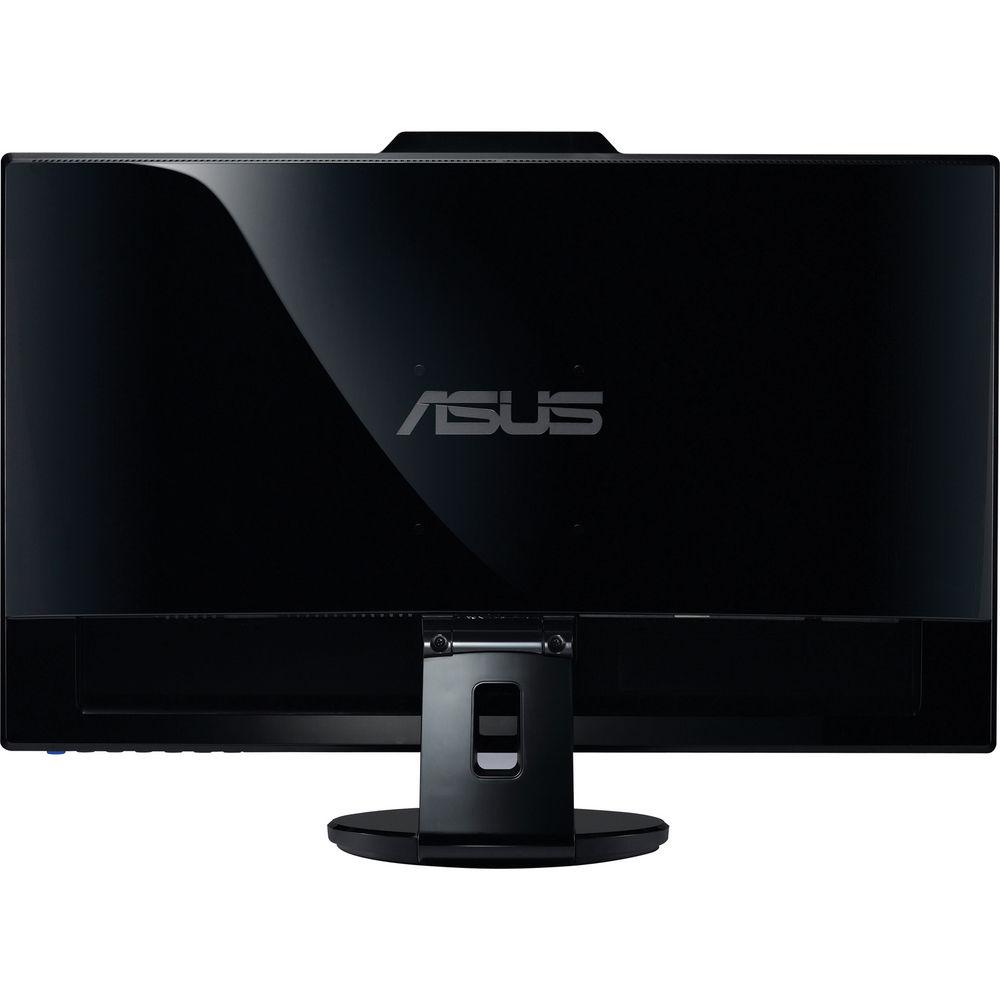

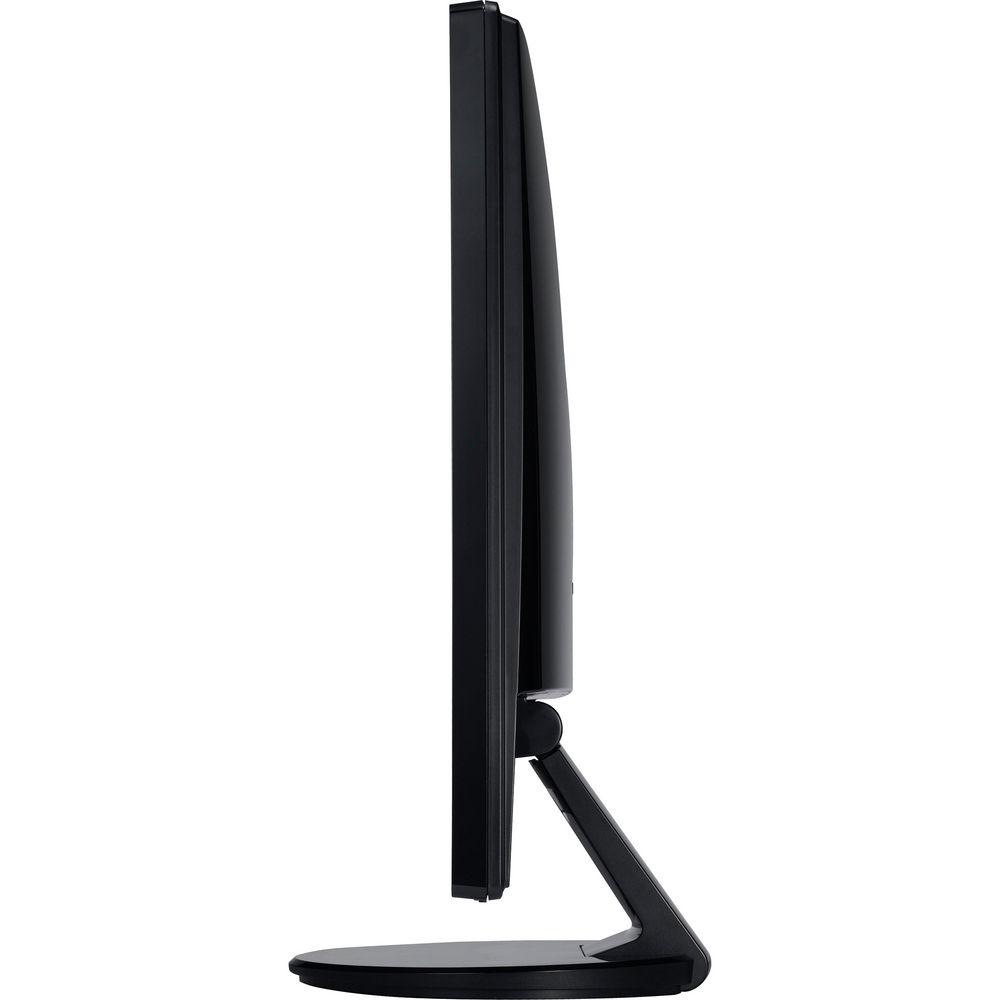

The display features a 10,000,000:1 dynamic contrast ratio, 170°/160° viewing angles, 300cd/m² brightness, and support for 16.7 million colors. It uses an energy-efficient LED backlight, which offers more even lighting than traditional CCFL lamps -- without the need for warm-up time. Its desktop stand supports tilt adjustment, and you have the option of mounting the display to a wall thanks to its standard VESA 100mm mounting pattern. It can also be secured via a standard Kensington security lock. - Integrated with Real-time Video Communication

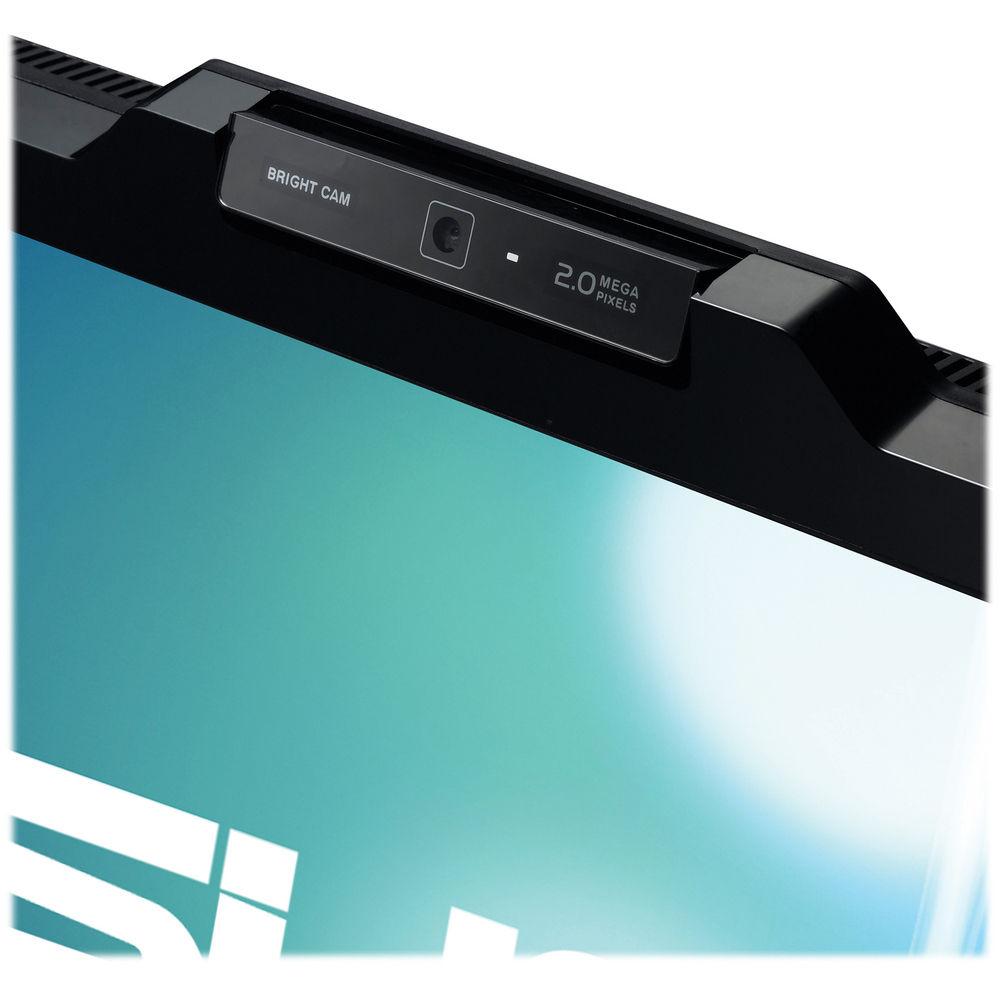

- ·The built-in, rotatable 2.0M pixel webcam makes it easy to conduct face-to-face live conversations with family, friends or online game partners.
·The high-quality webcam with 2.0 aperture enhances image quality in the dusk environment and delivers excellent visual performance with auto image control functions. ·The webcam is plug-and-play for easy connection and easy use through the USB interface without requiring you to install extra drivers.
·Create your own video clip and side show by bundled LifeFrame2 software. - 10,000,000:1 ASUS Smart Contrast Ratio
- The ASUS Smart Contrast Ratio dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white -- delivering lifelike images.
- 2ms Response Time
- Quick response time of 2ms (GTG) eliminates ghosting and tracers for more fluid video playback.
- Full HD with HDMI
- VK278Q leads you to enter a big and spectacular world of colors with Full HD 1080p (1920x1080) support and HDMI port.
- AI Light for Brightness Optimization
- AI Light function enables the VK278Q automatically adjusting to lower brightness and make your eyes feel more comfortable in the dim environment. Furthermore, it helps save more 25% power consumption

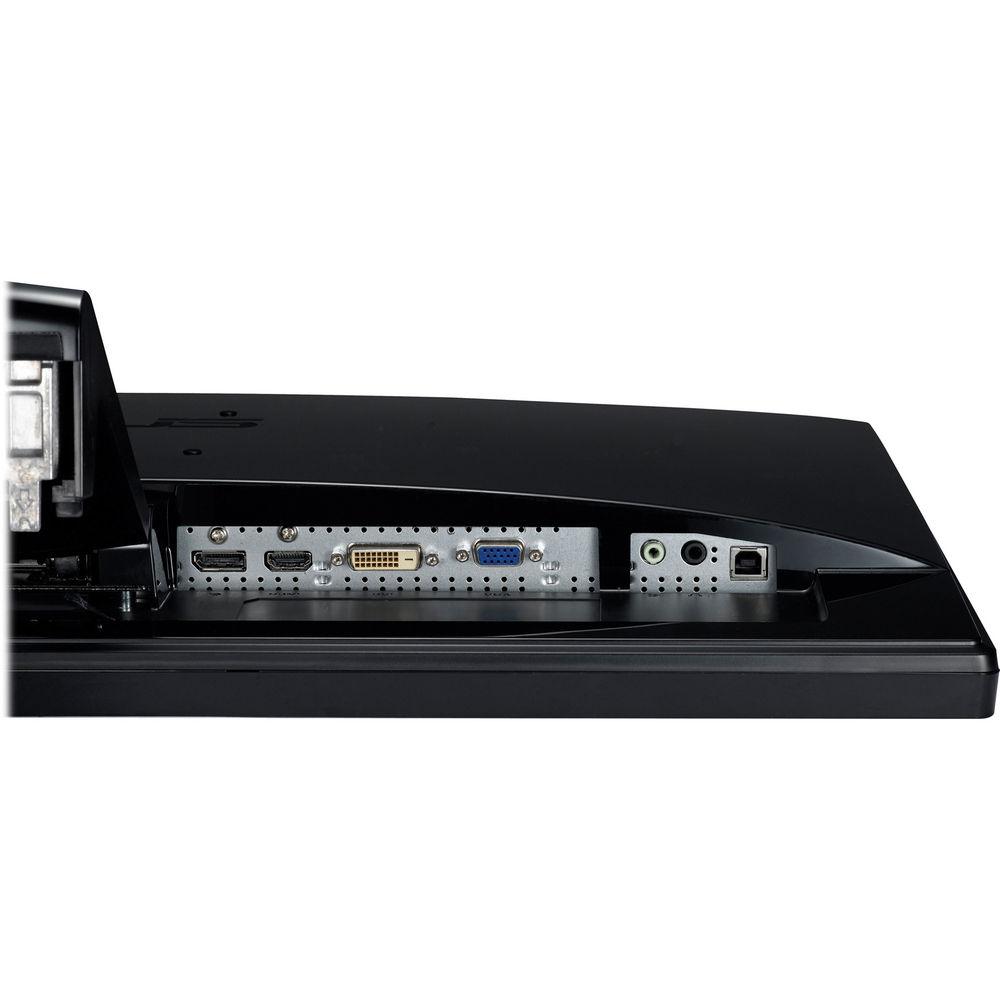

- Rich I/O Ports- Allow Simultaneous Connections to More Video Devices
- With embedded digital HDMI and DisplayPort inputs, the VK278Q enables the most advanced graphic cards and computer connections. The DisplayPort interface also offers better support of multiple display streams, longer cable connections, and interoperability with other inputs, such as VGA, DVI and HDM
- Picture in Picture - Display 2 Different Signals Simultaneously
- Need to research on the Internet, but a championship game is about to start on TV? The VK278Q offers PIP(Picture in Picture) function (via hotkey) and has the capability to display images of two different signals at the same time
- Splendid Video Intelligence Technology
- The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 6 preset video modes can be selected via a hotkey (Scenery, Theater, Game, Night View, sRGB and Standard)
- Greener Materials
- This monitor utilizes a mercury-free LED-backlit panel and comes packaged in corrugated cardboard made of at least 80% recycled content
- Eco-Conscious Transport
- The slim-flat packaging allows more cartons to be fitted per cargo, reducing transportation costs and CO2 emission
UPC: 610839327058 In the Box ASUS VK278Q 27" Widescreen LCD Computer Monitor DVI Cable VGA Cable Audio Cable USB Cable Power Cord Quick Start Guide Support CD (LifeFrame2) Limited 1-Year North American Warranty (USA, Canada & Mexico) Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VK278Q 27" Widescreen LCD Computer Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VK278Q Specs | | | Size | 27" | | Touchscreen | No | | Resolution | 1920 x 1080 | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 10,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 92 kHz | | Vertical Frequency | 50 to 85 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 2 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.311 x 0.311 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x USB Type-A
1 x DVI-D
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 2 W (Standby)
45 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 25.3 x 17.5 x 8.7" / 64.3 x 44.6 x 22.0 cm | | Weight | 14.3 lb / 6.5 kg | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 28.0 x 22.0 x 7.0" |
