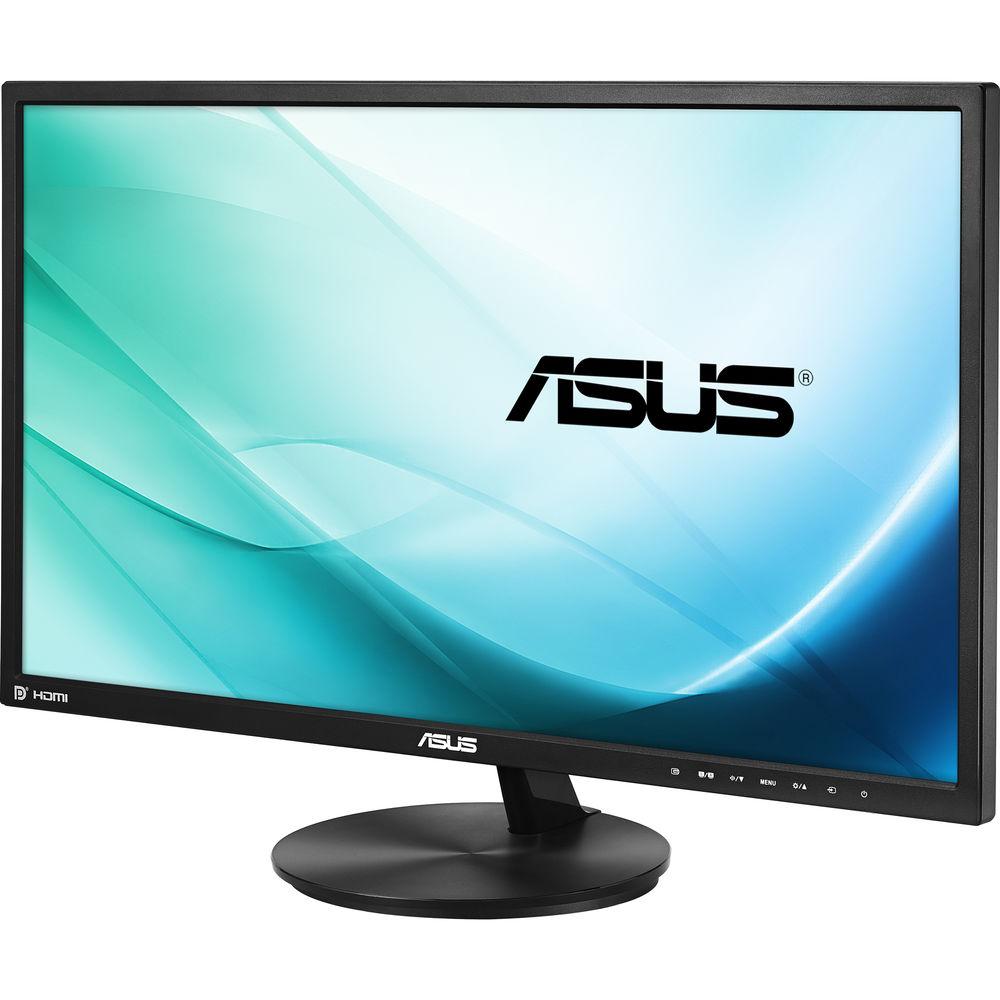

User Manual for ASUS VN248Q-P 23.8" IPS LED-Backlit Display Click to enlarge the picture
Contents of the user manual for the ASUS VN248Q-P 23.8" IPS LED-Backlit Display
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VN248Q-P 23.8" IPS LED-Backlit Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

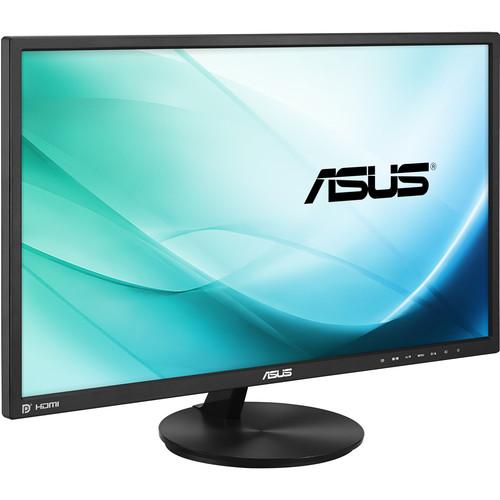

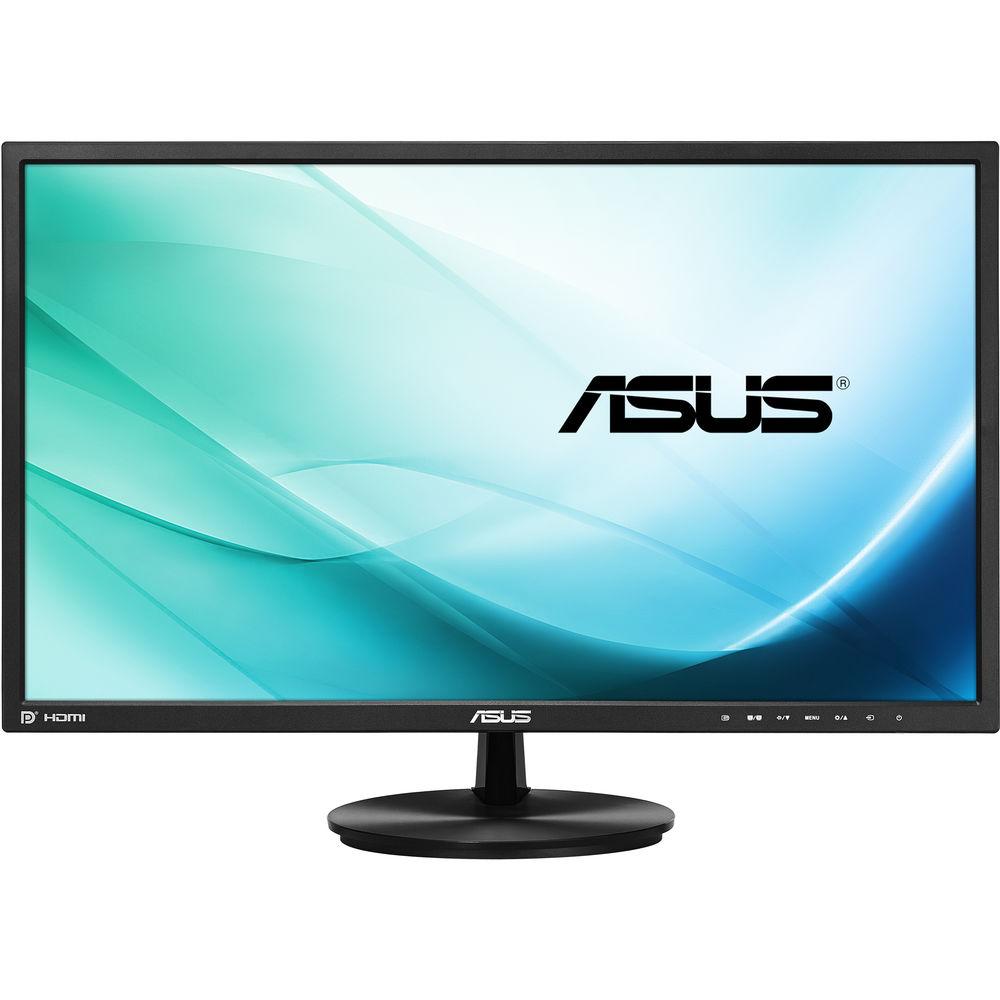

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More yabqufbftzeytuxv Display content at up to Full HD 1080p (1920 x 1080) resolution using the VN248Q-P 23.8" IPS LED-Backlit Display from ASUS. The VN248Q-P features a compact design with a narrow bezel of just 0.4", which when combined with its VESA wall mount compatibility, has the capability to be used as a multi-screen display solution.
The VN248Q-P features In-Plane Switching (IPS) Technology, LED backlighting, a screen size of 23.8", a widescreen 16:9 aspect ratio, an ASUS Smart Contrast Ratio of 80,000,000:1, 250 cd/m2 brightness, and a 5 ms (gray to gray) response time. Using viewing angles of 178° and tilt angles of -5 to 20°, it is possible to watch content from varying positions.
The display also features strong color reproduction with 16.7 million colors and has 1 x DisplayPort 1.2, 1 x HDMI, and 1 x VGA (D-Sub) inputs. For multimedia performance and playback, this display also features 1 x 3.5mm line-in jack, 1 x 3.5mm earphone jack, and dual 2W stereo RMS speakers, and two low blue light modes. Included with this display are a VGA cable, an audio cable, and a power cord. - Multi-Screen Solution, Super Narrow Frame

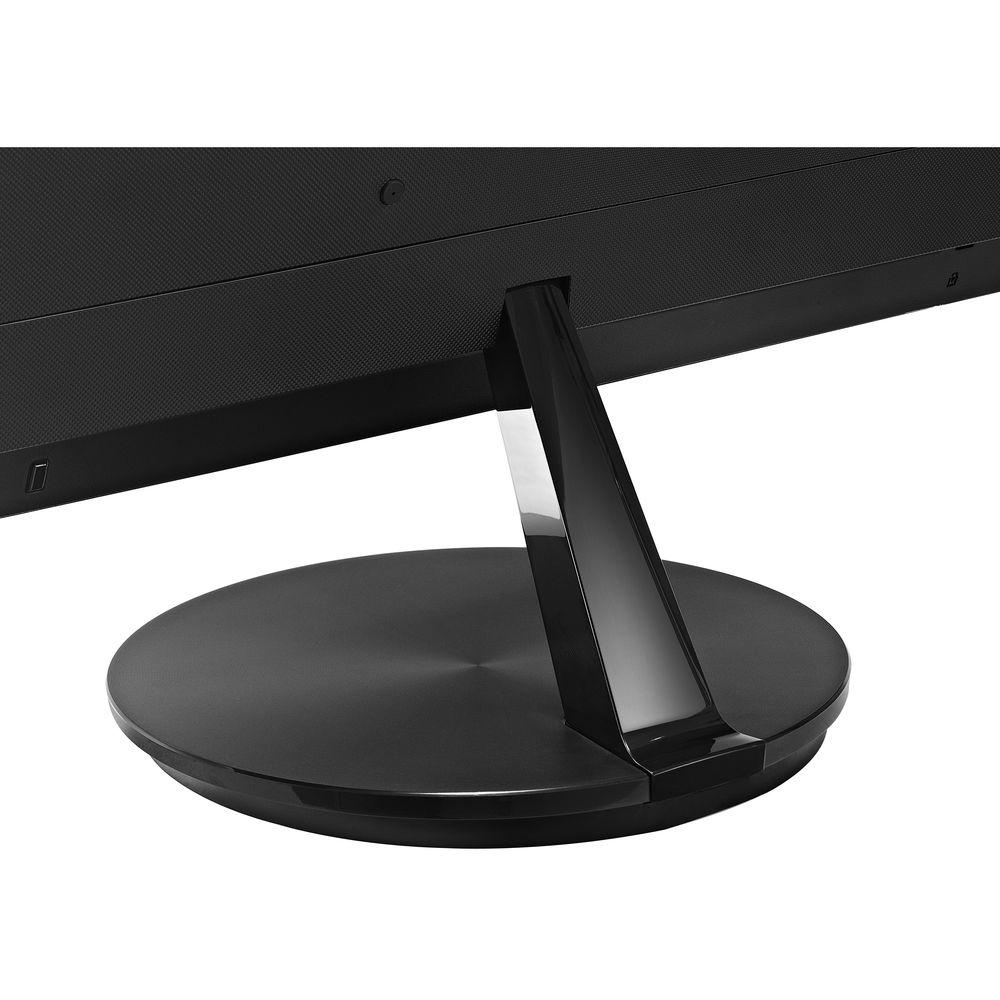

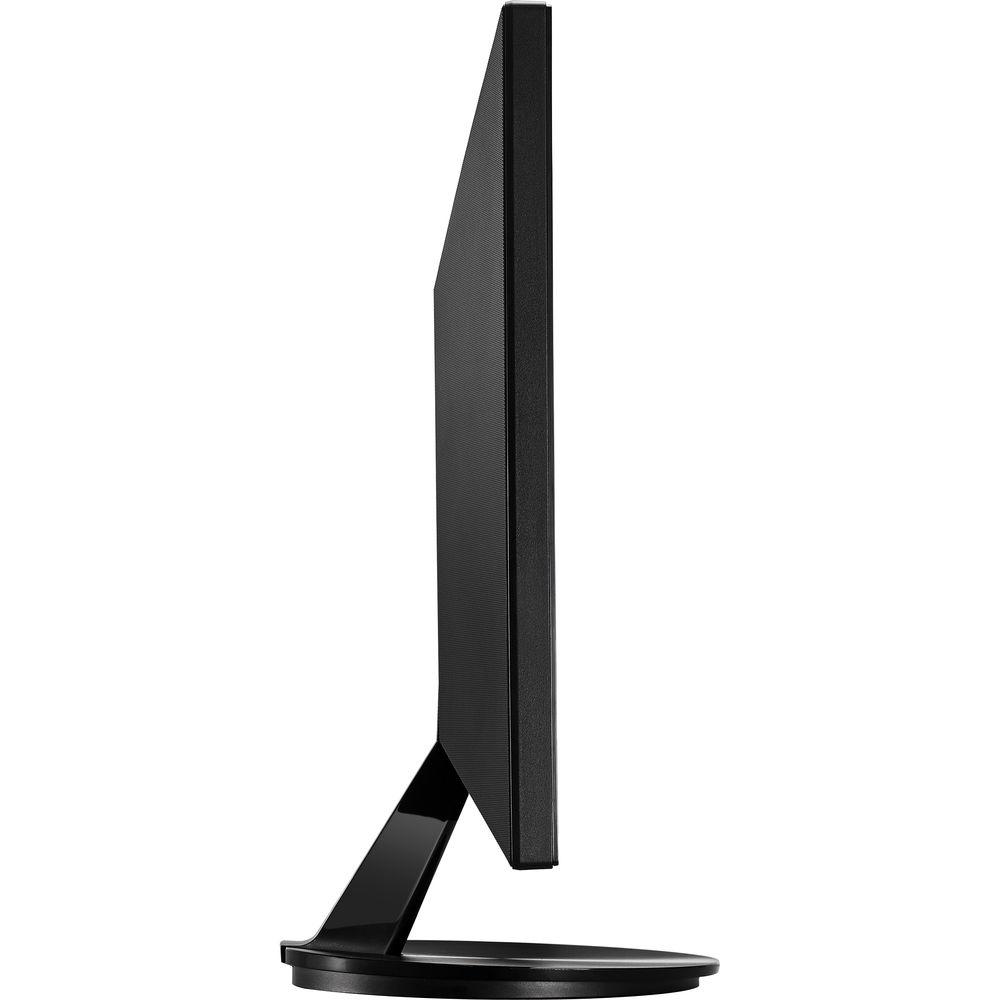

- The ASUS VN series features compact dimensions. This 23.8" display has a super narrow bezel of just 0.4", bringing a broader and improved vision without compromising on style and comfort. Its pedestal boasts a sleek concentric circle design and the rear bezel comes with a textured finish that is scratch-proof. The VN248Q-P is also VESA wall mount compatible, and has the capabilities to turn into a stunning multi-screen solution
- Visuals for Work and Play
- The ASUS VN248Q-P features In-Plane Switching display technology for color accuracy, a brighter image from increased backlight transmission, and lower power consumption. It also uses 178° (H) / 178° (V) wide viewing angles that help eliminate color shifts from virtually any direction
- Full HD Images
- The VN248Q-P leads you to a big and spectacular world of colors with Full HD 1080p (1920 x 1080) support
- SplendidPlus Video Intelligence Technology
- ASUS' SplendidPlus Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. Eight preset video modes (Reading, Darkroom, Scenery, Theater, Game, Night View, sRGB and Standard) can be selected via a hotkey. There are also two blue light modes for your viewing comfort:
Reading Mode - Create a comfortable experience as if reading actual books by adjusting the monitor's color temperature and reducing blue light levels, simulating paperback books
Darkroom Mode - Well suited for soft ambient light environments by reducing blue light for visual pleasure - VividPixel Technology
- ASUS VividPixel Technology helps enhance image outlines and reduce noise bars for crystal-clear and detail-oriented viewing
- Smart Contrast Ratio
- With an 80,000,000:1 ASUS Smart Contrast Ratio (ASCR) and 250 cd/m² brightness, the VN248Q-P enhances display contrast and sharpness by adjusting backlight luminance to achieve the deep black tones and bright whites, resulting in clear visuals that truly come to life
- ASUS QuickFit Virtual Scale
- ASUS includes its exclusive QuickFit Virtual Scale feature with the VN248Q-P, allowing you to preview photos and documents on-screen in their actual size prior to printing. It can be activated via a monitor hotkey, and serves as a highly useful guide to accurately view and edit photos in their native size
- Extensive Connectivity and Built-in Stereo Speakers for Multimedia Enjoyment
- The VN248Q-P comes with rich connectivity including DisplayPort, HDMI and VGA (D-Sub) so that users may easily connect it to Full HD Blu-ray Disc players and a myriad of HD playback devices like DVD players and set-top boxes for entertainment and multimedia enjoyment with the built-in 2 x 2W stereo speakers
- User-Friendly Design
- - Built-in hidden stereo speakers enable audio enjoyment together with true-to-life visuals

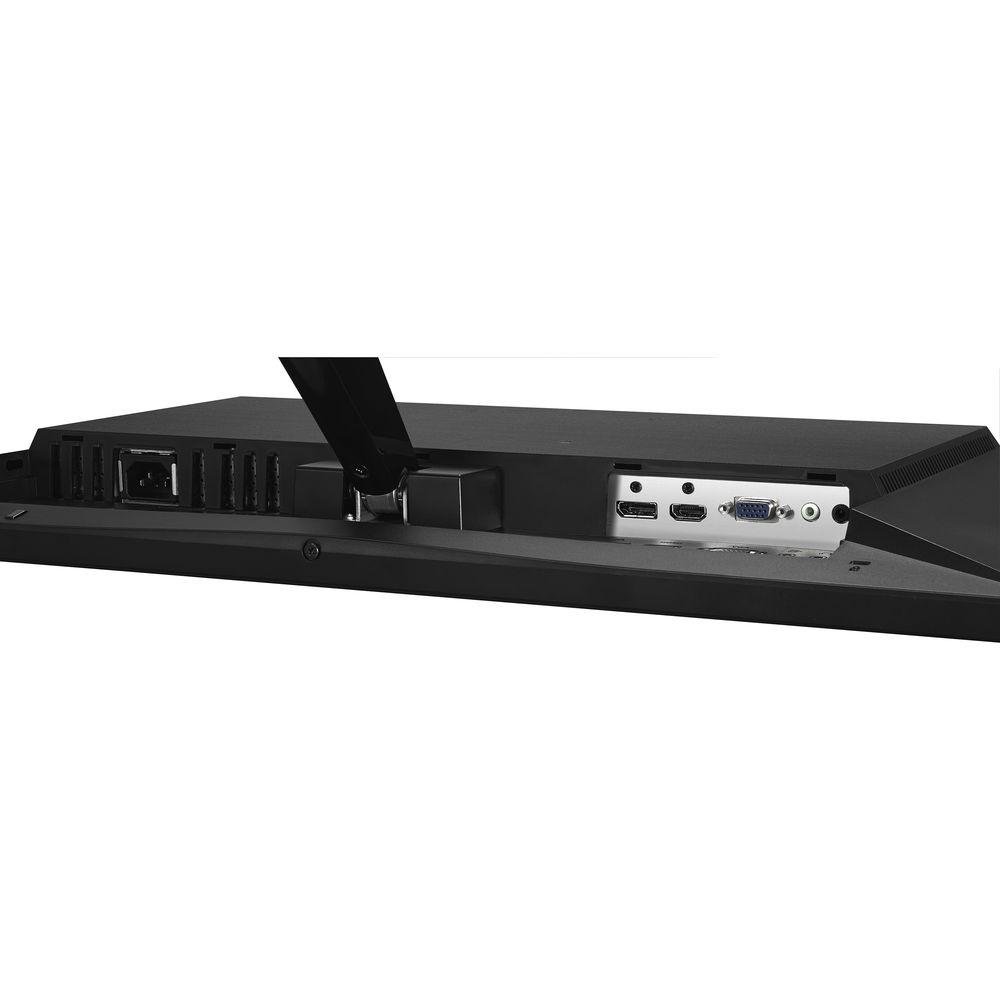

- An I/O port hidden behind the detachable rear cover keeps the back bezel simple and clean

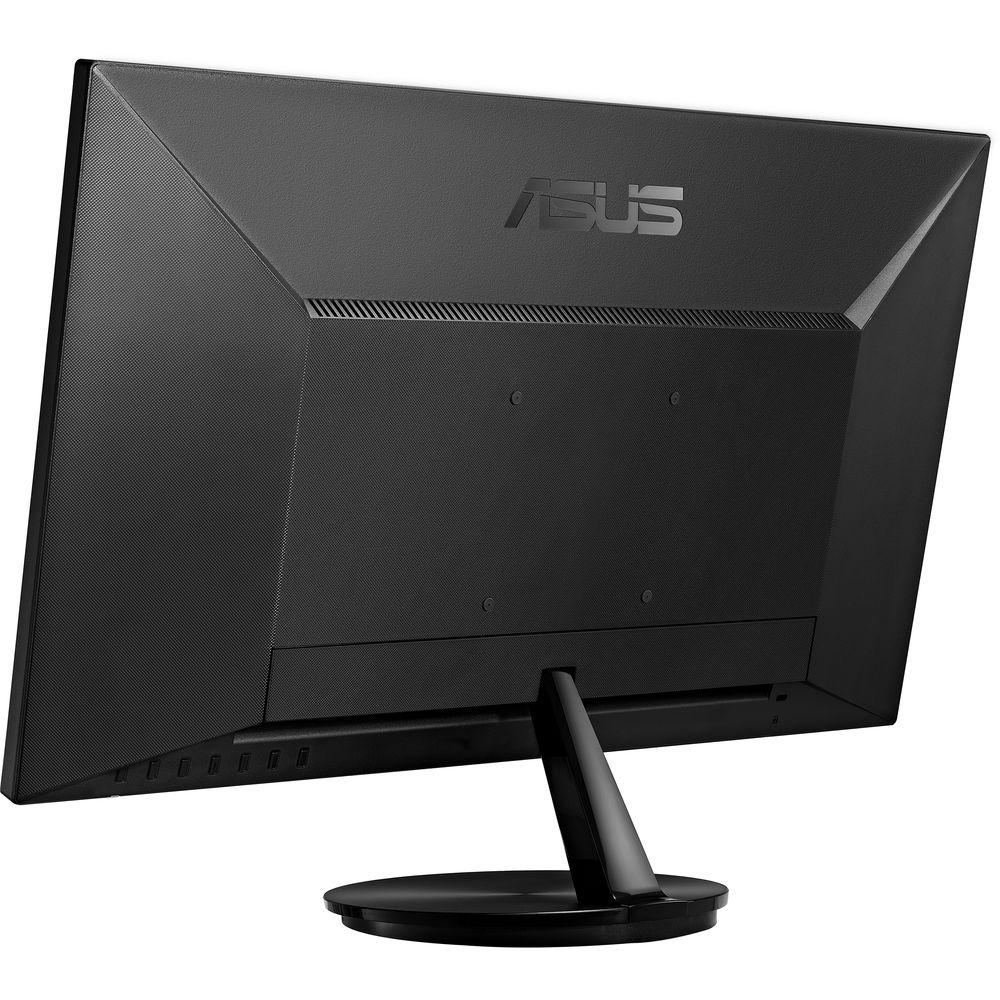

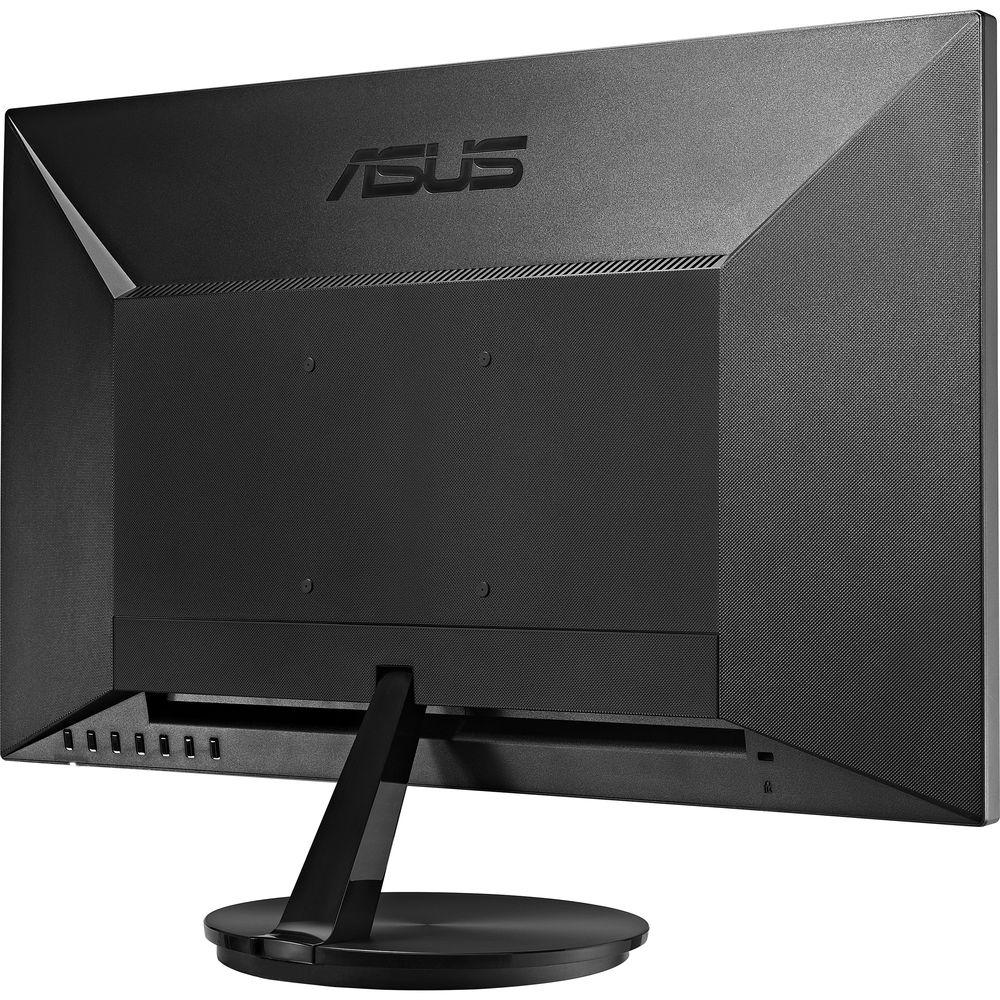

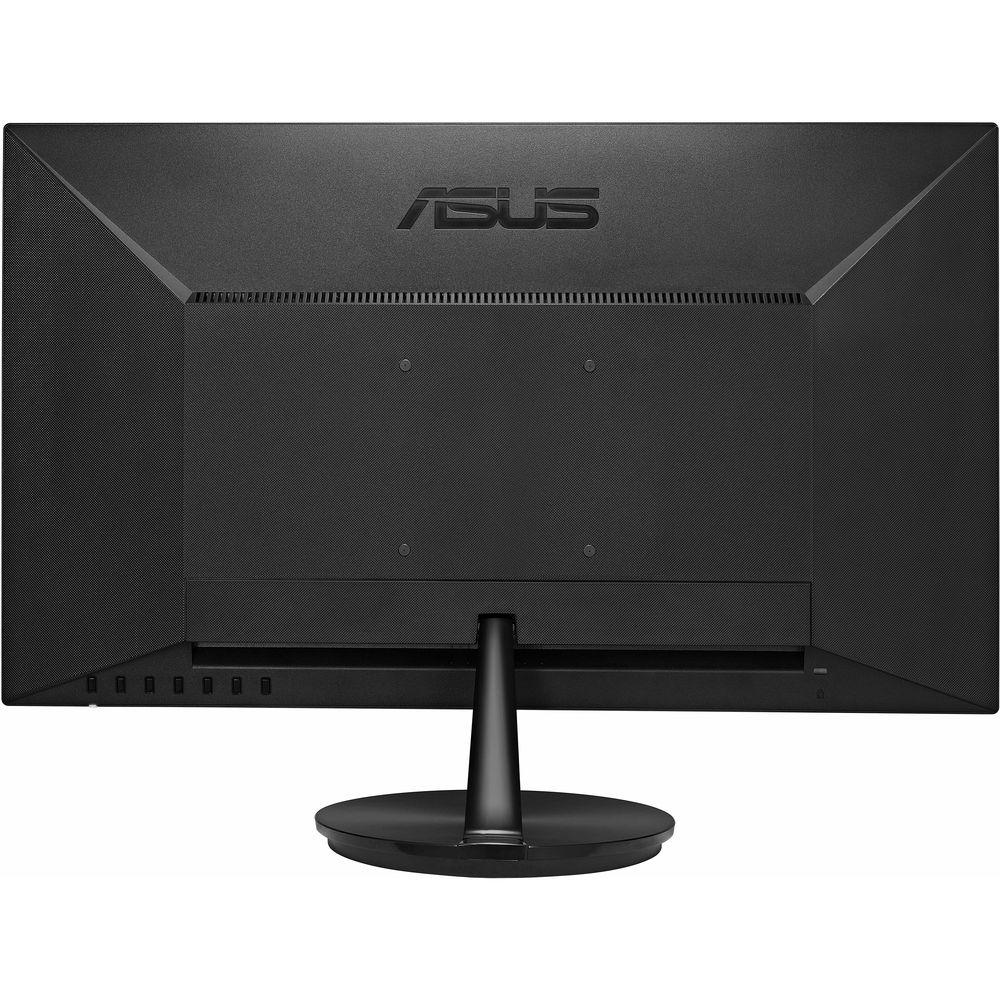

- VESA Wall Mount Standard (100 x 100mm)
- 25° (forward 5°, backwards 20° ) Tilting Angle
- Kensington Security Lock - Greener Materials
- - Mercury-free LED-backlit panel
- Corrugated cardboard packaging with at least 80% recycled content - Energy and Planet Saving
- - 37.2kWh electricity savings - 52.0 lb / 23.6kg reduction in CO2 emissions, equivalent to:
1.9 trees planted
2 years of oxygen for a family of four - Certification
- EPEAT Gold Certified
UPC: 886227994366 In the Box ASUS VN248Q-P 23.8" IPS LED-Backlit Display VGA Cable Audio Cable Power Cord Limited 3-Year System Warranty Limited 3-Year Panel Warranty yabqufbftzeytuxv Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VN248Q-P 23.8" IPS LED-Backlit Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VN248Q-P Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 80,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 80 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2745 x 0.2745 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DisplayPort 1.2 Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 0.5 W (Standby)
23 W (Typical) | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.8 x 12.9 x 1.9" / 55.5 x 32.9 x 4.7 mm (Without Stand)
21.8 x 15.5 x 7.6" / 55.5 x 39.3 x 19.4 mm (With Stand) | | Weight | 8.8 lb / 4 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 29.0 x 17.0 x 17.0" |
