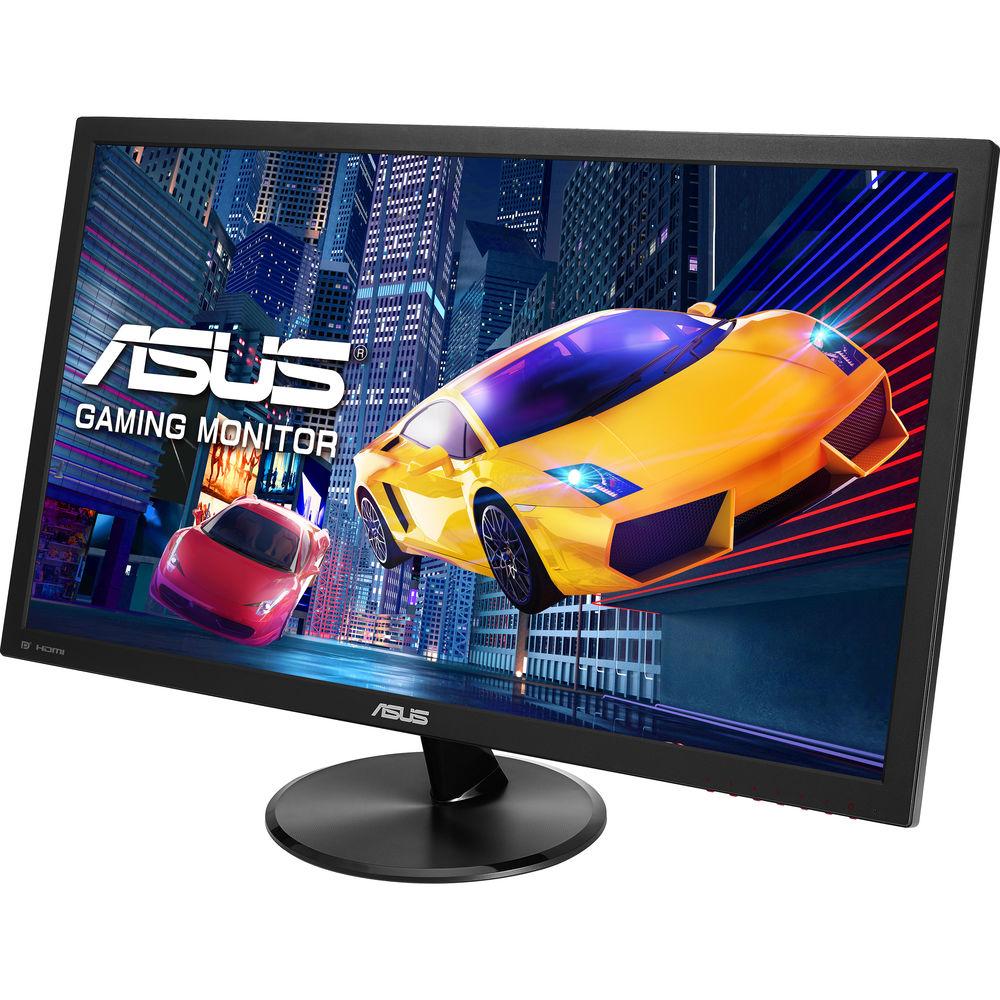

User Manual for ASUS VP228QG 21.5" 16:9 FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VP228QG 21.5" 16:9 FreeSync LCD
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VP228QG 21.5" 16:9 FreeSync LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

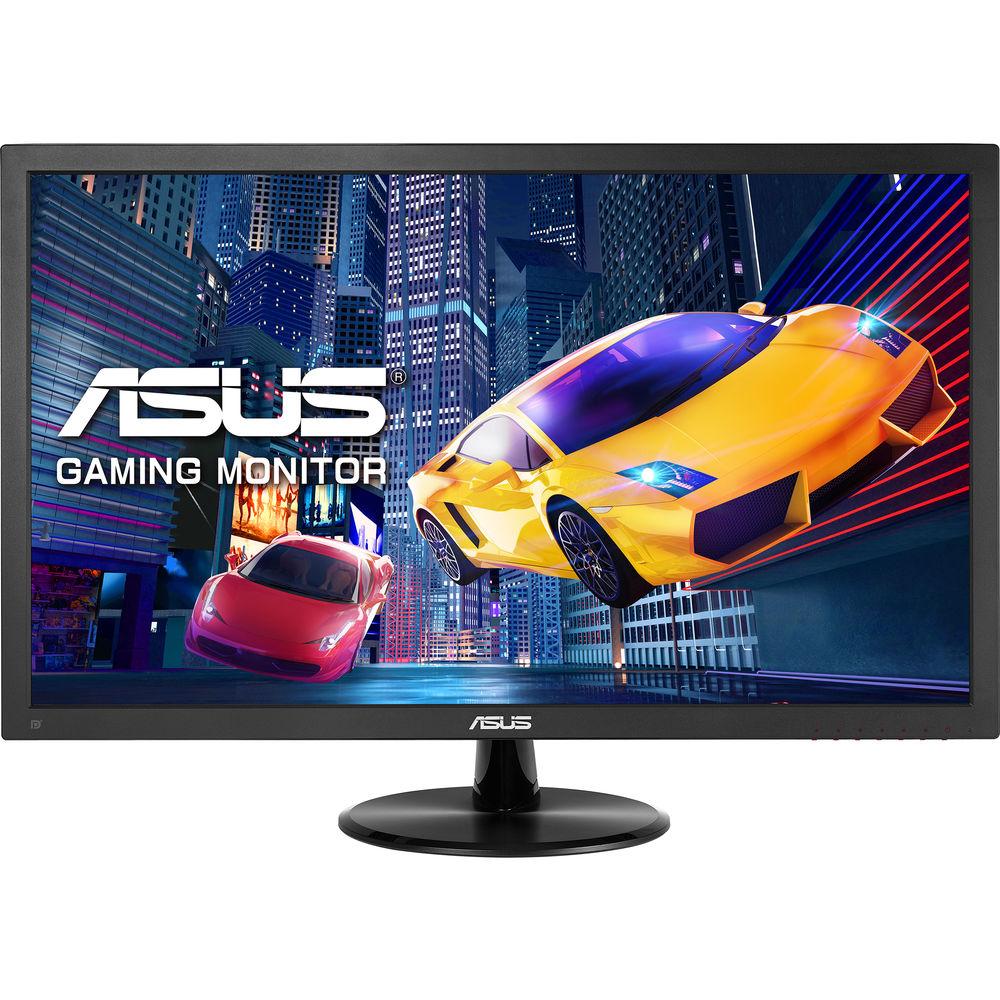

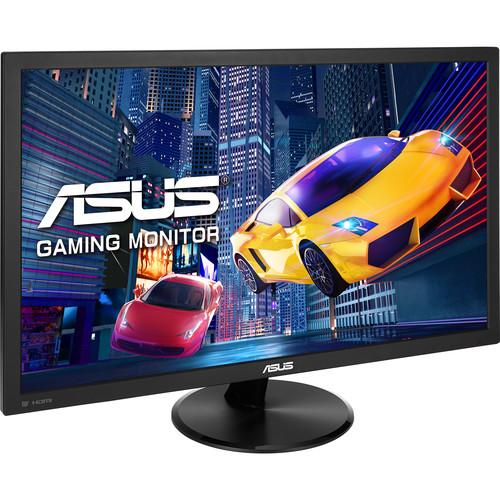

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VP228QG 21.5" 16:9 FreeSync LCD Monitor from ASUS delivers high image quality within a classic, elegant design, thanks to SplendidPlus and VividPixel technologies, plus a slim profile. It has an anti-glare panel featuring a native resolution of 1920 x 1080 with a 75 Hz refresh rate, Twisted Nematic (TN) technology, support for 16.7 million colors and 72% of the NTSC color gamut, a widescreen 16:9 aspect ratio, a static contrast ratio of 1000:1, an ASUS Smart Contrast Ratio of 100,000,000:1, 250 cd/m2 brightness, and a 1 ms (GtG) response time. Using the 170° horizontal and 160° vertical viewing angles, it is possible to watch content from virtually any position. This display has one HDMI port, one DisplayPort, and one VGA port. The DisplayPort and HDMI ports also support audio, which can be output using the dual integrated 1.5W stereo speakers, and there is also a 3.5mm audio input jack.
ASUS has engineered the VP228QG with support for AMD FreeSync, which helps to eliminate screen tearing and choppy frame rates, as well as their Blue Light Filter to emit flicker-free images with low blue light levels. To further help improve viewing and accessibility, the display features a vertical tilt of -5 to 20°. General Features - Image Quality Meets a Classic Design
- The VP228QG 21.5" Full HD monitor with a 100,000,000:1 dynamic contrast ratio, plus ASUS-exclusive SplendidPlus and VividPixel technologies is optimized for fine image and color quality. This approach extends to the sturdy stand and slim profile, while maintaining stability and durability.
- 100,000,000:1 ASUS Smart Contrast Ratio
- A 100,000,000:1 smart contrast ratio dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the dark blacks and bright whites.
- 1 ms Quick Response Time
- The ASUS VP228QG eliminates smearing and motion blur thanks to a 1 ms response time. In addition, Adaptive Sync technology eliminates screen tearing and choppy frame rates for even more seamlessly smooth gameplay.
- Smooth Visuals with AMD FreeSync
- The ASUS VP228QG features Adaptive Sync/FreeSync technology to eliminate screen tearing and choppy frame rates to give smooth visuals and gameplay. This can help in first person shooters, racing, real-time strategy, and sports titles. Adaptive Sync/FreeSync works at fresh rates ranging from 48 to 75 Hz.
- GamePlus Technology
- The ASUS VP228QG features ASUS' exclusive GamePlus hotkey with Crosshair, Timer, FPS Counter, and Display Alignment functions to give you in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
- SplendidPlus Technologies
- ASUS has raised the bar by incorporating some of their proprietary technologies into the ASUS VP228QG to give you a vivid visual experience. The VP228QG features SplendidPlus Video Intelligence Technology that optimizes videos and images by enhancing color brightness, contrast, and sharpness. SplendidPlus features two new modes - Reading and Darkroom - in addition to the Scenery, Standard, Theater, sRGB, and Night View modes. Low-Blue Light and Flicker-free technologies also reduce the strain on your eyes after long periods of use.
Reading
Reading creates a comfortable experience as if reading book by adjust the monitor's color temperature and brightness.
Darkroom
Darkroom is a good choice for an environment with soft, ambient light.
Scenery
Scenery increases the brightness range, introducing more contrast gradations and selectively tweaking color saturation for more lush landscapes.
Theater
Theater enhances the contrast and color saturation of the image, delivering livelier and more vivid visuals for greater immersion.
sRGB
sRGB is meant for viewing graphics.
Game
Game brings out dark, hard-to-see areas while leaving well-lit portions untouched, allowing you to see opponents lurking in obscure corners.
Night View
Night View intelligently raises Y-luminance to highlight poorly lit details, capture each scene's beauty in a crisp and vibrant fashion.
Standard
Standard delivers clear document viewing and web browsing experiences with optimized color and contrast. - VividPixel Technology
- ASUS VividPixel Technology helps enhance image outlines and reduce noise bars for crystal-clear and detail-oriented viewing.
- ASUS Blue Light Filter
- The T
|
Upload User Manual
Have you got an user manual for the ASUS VP228QG 21.5" 16:9 FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VP228QG Specs | | | Size | 21.5" | | Screen Area | 18.77 x 10.56" / 476.64 x 268.11 mm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 102 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 24 to 83 kHz (DisplayPort, HDMI, VGA) | | Vertical Frequency | 48 to 75 Hz (DisplayPort, HDMI, VGA) | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC | | Response Time | 1 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.2482 x 0.2482 mm | | | | Connectivity | 1 x HDMI Input
1 x DisplayPort Input
1 x VGA Input
1 x 3.5 mm Input | | HDCP Support | Yes, Version 1.4 | | Built-In Speakers | Yes, 2 x 1.5 W | | | | Power Consumption | 16 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | CCC, CE, ENERGY STAR, ErP Lot 6, FCC, Kcc, Microsoft WHQL, RCM, RoHS, TUV, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 20.2 x 14.7 x 7.9" / 513.0 x 373.0 x 199.4 mm (With Stand)
20.2 x 12.2 x 2.1" / 513.0 x 309.0 x 52.1 mm (Without Stand) | | Weight | 7.72 lb / 3.5 kg (With Stand)
6.39 lb / 2.9 kg (Without Stand) | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 22.3 x 17.2 x 4.11" |
