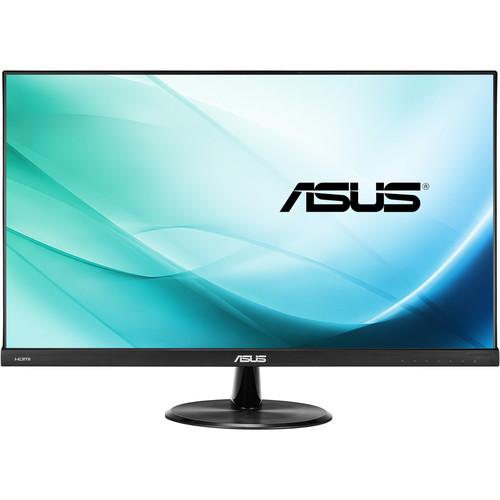

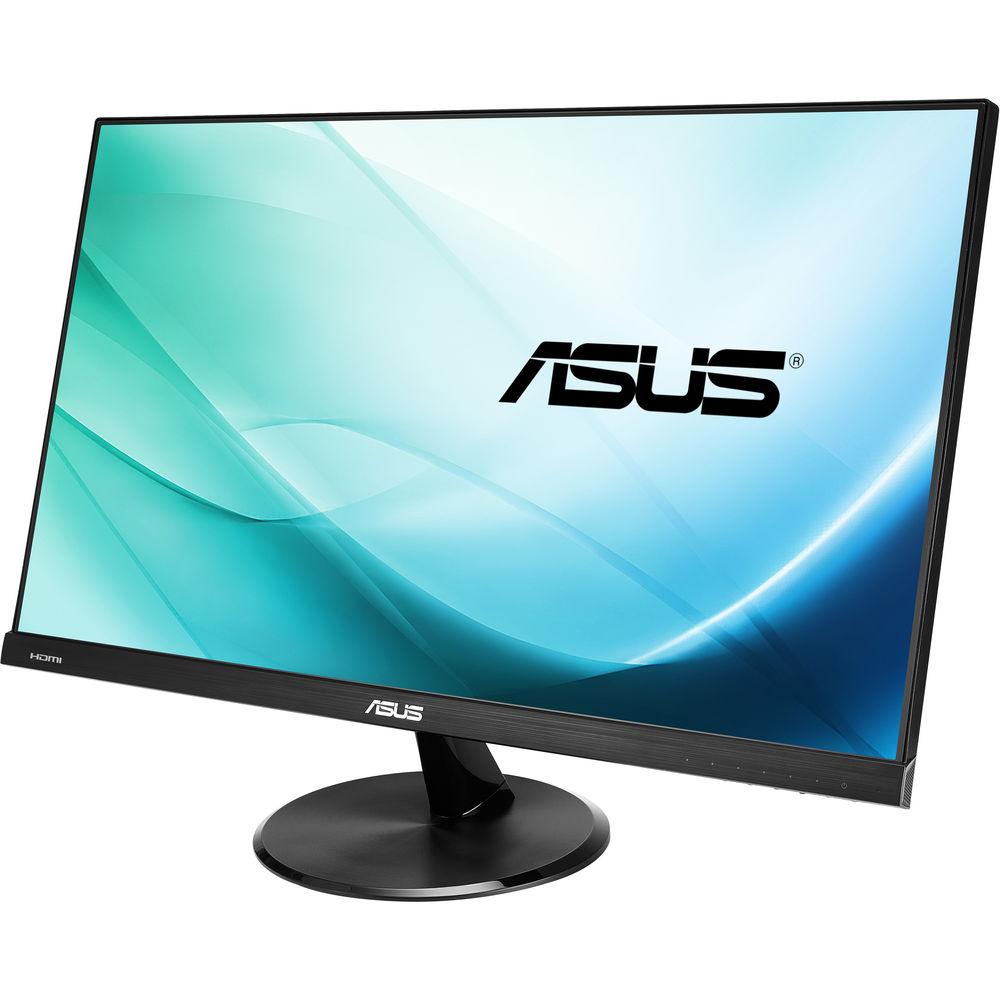

User Manual for ASUS VP239H-P 23" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VP239H-P 23" 16:9 IPS Monitor
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VP239H-P 23" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

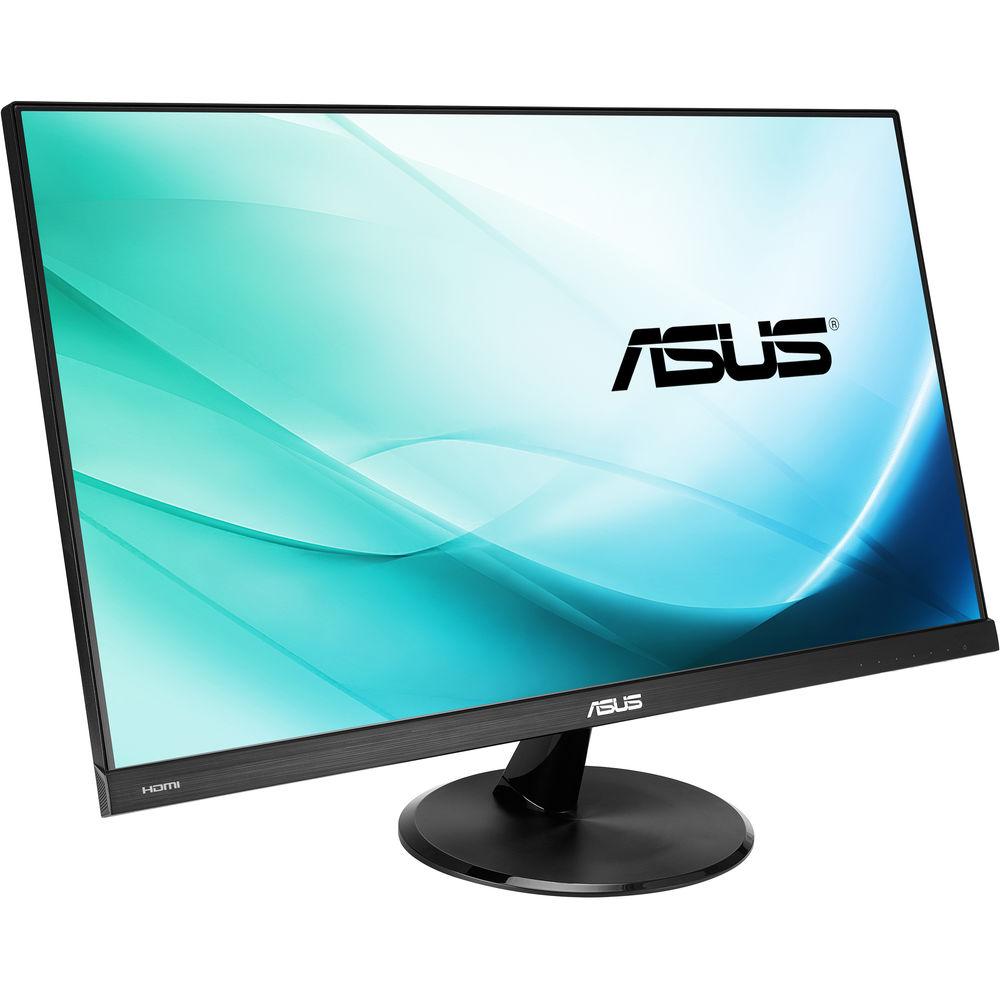

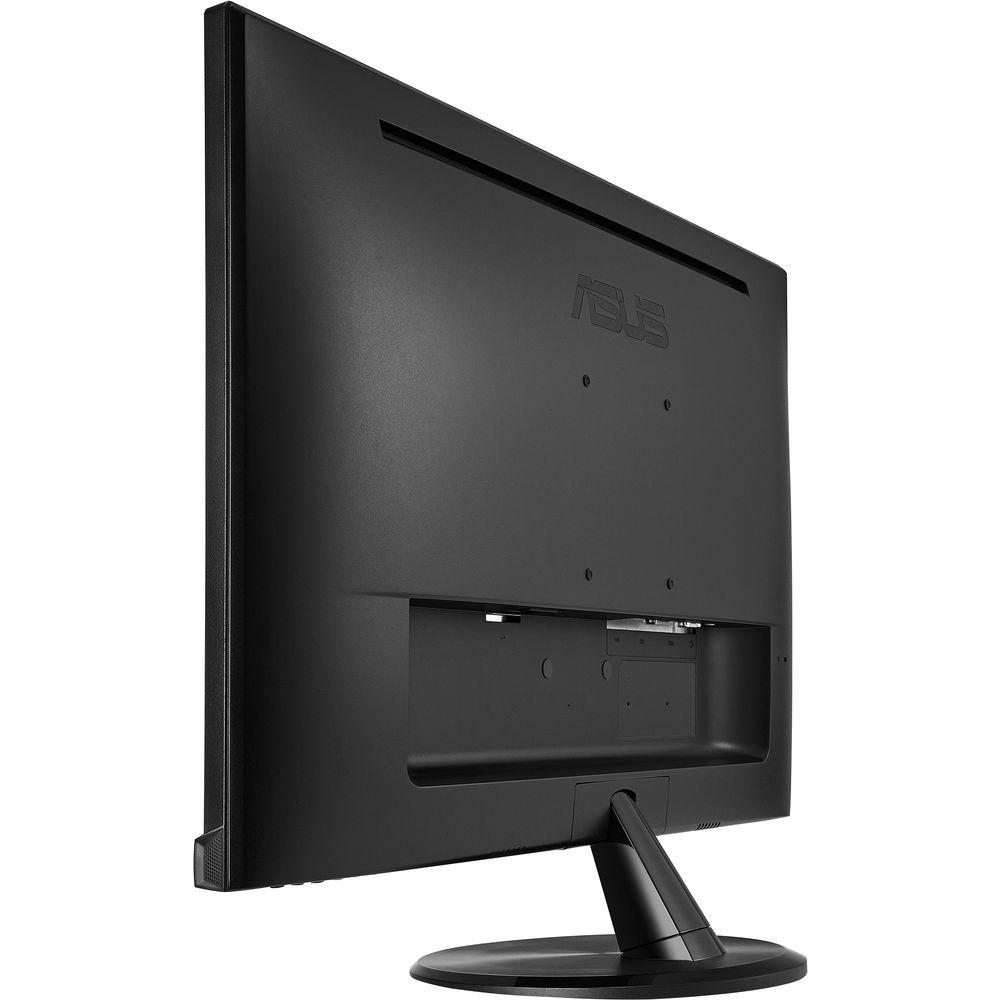

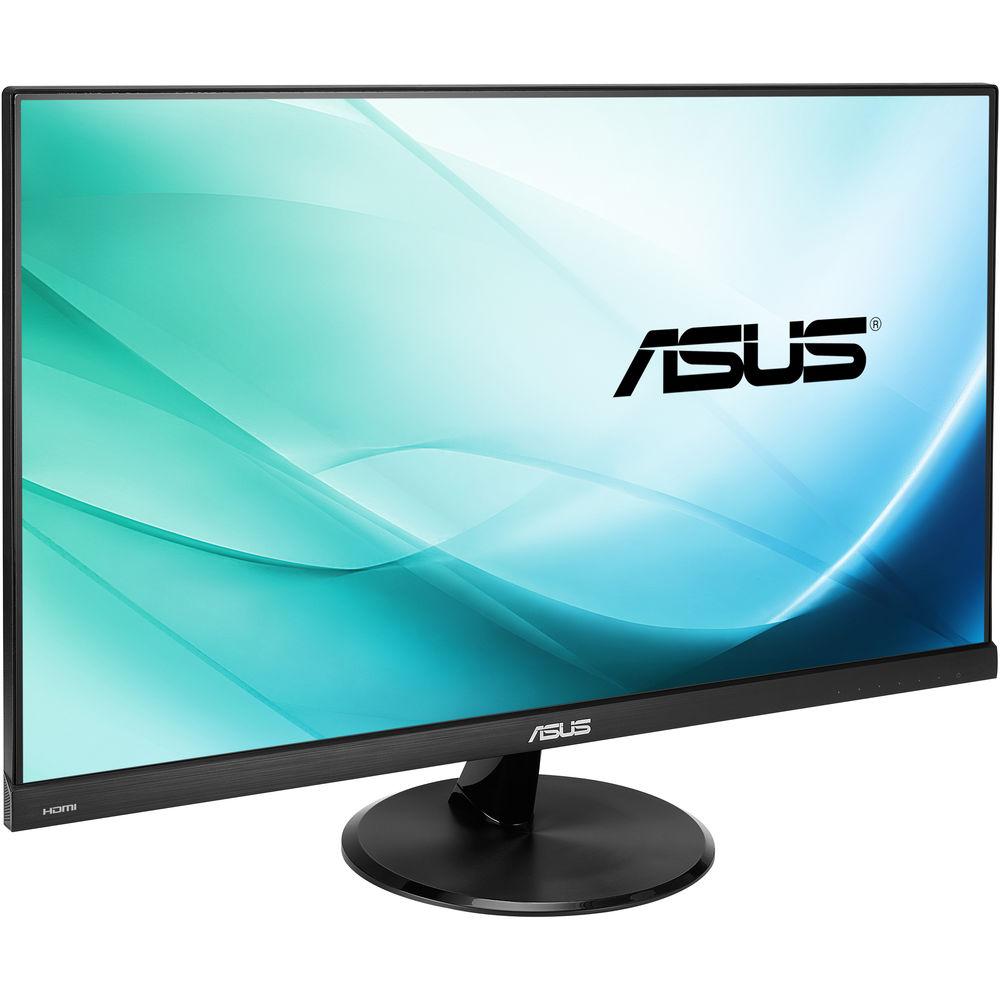

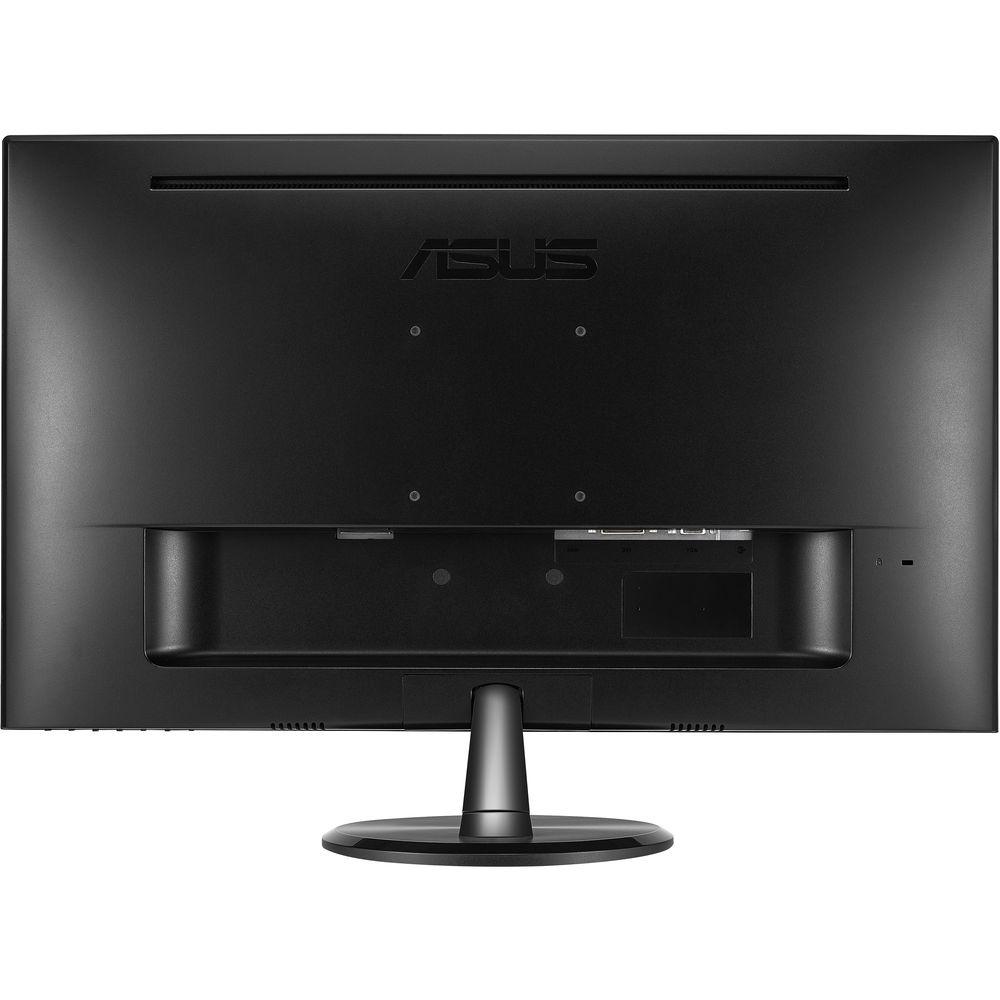

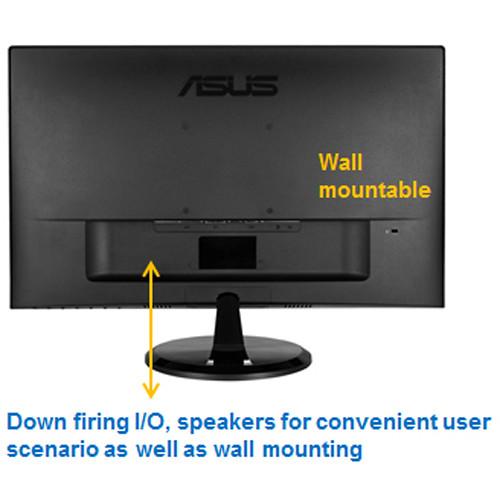

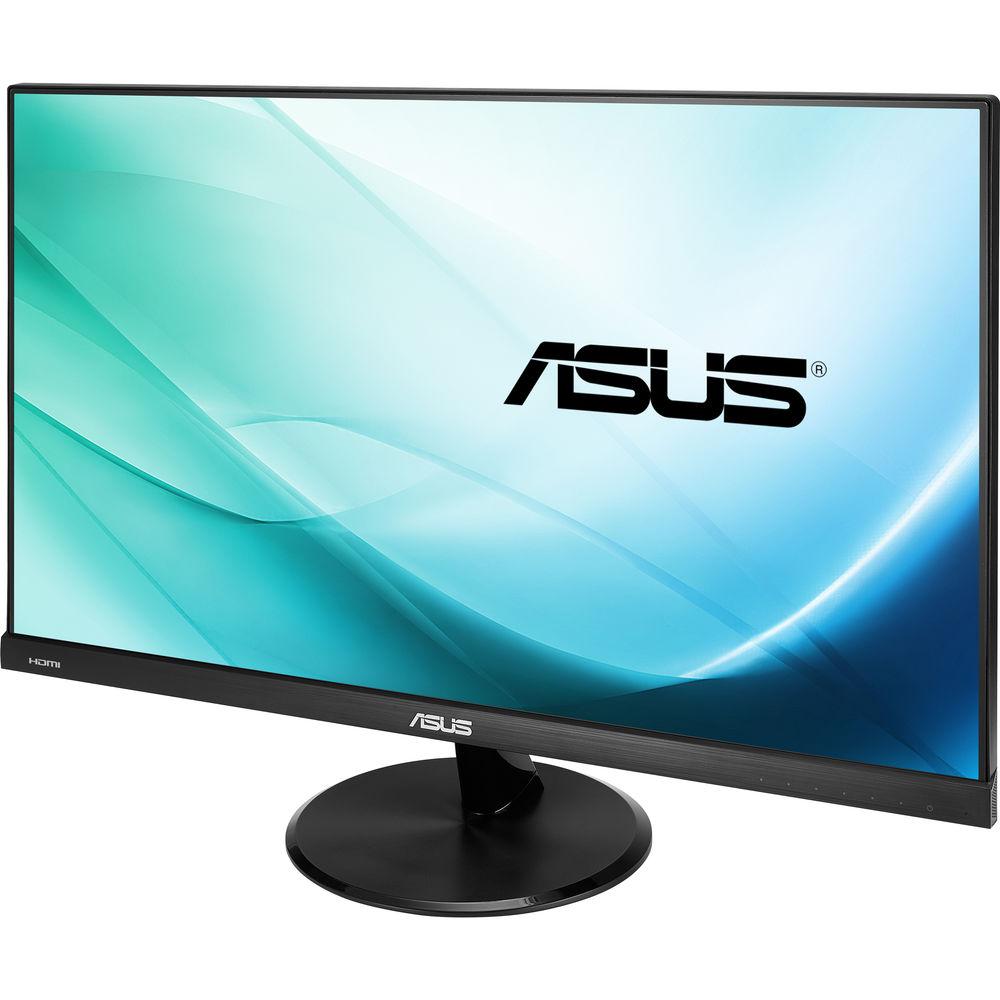

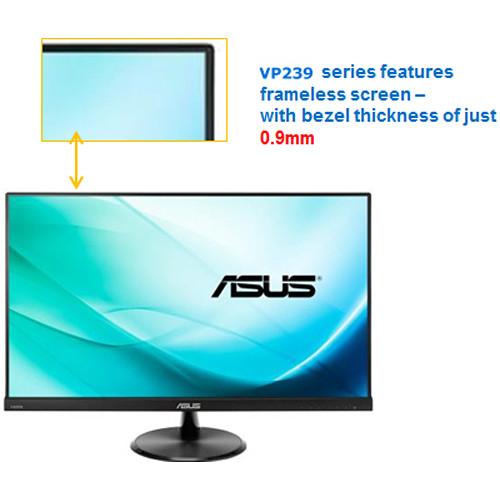

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More ASUS has managed to virtually eliminate the bezel on the VP239H-P 23" 16:9 IPS Monitor for an enhanced overall viewing experience. In addition to the physical design of the monitor, ASUS has also included a blue light filter and nearly eliminated all flicker from within the display. By lowering blue light emissions and eliminating display flicker users benefit from increased viewing comfort and reduced eye strain. Additionally, ASUS has included their own GamePlus functionality providing gamers with both OSD crosshair and timer features. Installation of the ASUS VP239H-P is simple as it comes equipped with HDMI, D-Sub, and DVI-D inputs and can be mounted to the wall using a VESA compatible wall mount. Once installed, users can begin viewing their multimedia content, documents, and more with increased clarity thanks to the Full HD 1920 x 1080 resolution IPS panel. This display also features a 5 ms response time, a 250 cd/m² brightness rating, and supports up to 16.7 million colors. - GamePlus Functionality

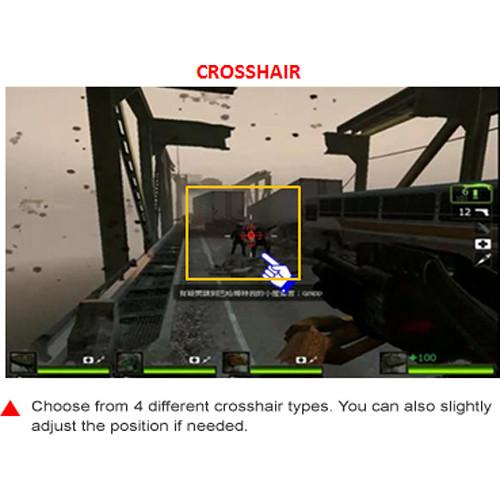

- The GamePlus hotkey enables OSD crosshair and timer functions. Select from four different crosshair settings to suit your gaming environment, and keep track of spawn and build times with the on-screen timer.
- Vivid, Lifelike Visuals
- The VP239H-P series monitor features an In-Plane Switching technology panel with a 178° wide-view angle that minimizes color shift, on both horizontal and vertical planes, to ensure quality visuals from almost any direction.
- 80,000,000:1 ASUS Smart Contrast Ratio
- With an ASUS Smart Contrast Ratio (ASCR) of 80,000,000:1 and 250 cd/m² brightness, the VP239H-P augments display contrast and sharpness by adjusting backlighting luminance to achieve the deepest blacks and brightest whites for truly lifelike visuals
- ASUS VividPixel Technology
- The VividPixel Technology enhances outline, sharpness, and color saturation of images and videos to deliver a high-quality visual experience.
- QuickFit Virtual Scale
- ASUS includes its exclusive QuickFit Virtual Scale feature with the VP239H-P, allowing you to preview photos and documents on-screen in their actual size prior to printing. It can be activated via a monitor hotkey, and serves as a highly useful guide to accurately view and edit photos in their native size.
UPC: 889349138540 In the Box ASUS VP239H-P 23" 16:9 IPS Monitor VGA Cable HDMI Cable Audio Cable Power Cord ASUS Advance Swap Program / Rapid Replacement / 2-Way Free Shipping Limited 3-Year Warranty More info from ASUS cvtsazzbatavzyvqfdczeuxrzzfxedus Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VP239H-P 23" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VP239H-P Specs | | | Size | 23" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 80,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 80 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2652 x 0.2652 mm | | | | Connectivity | 1 x DVI-D
1 x HDMI
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1.5 W | | | | Power Consumption | 0.5 W (Standby)
22 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.0 x 15.2 x 8.1" / 53.3 x 38.7 x 20.4 mm (With Stand)
21.0 x 12.7 x 2.2" / 53.3 x 32.2 x 5.5 mm (Without Stand) | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 22.9 x 17.7 x 5.4" |
