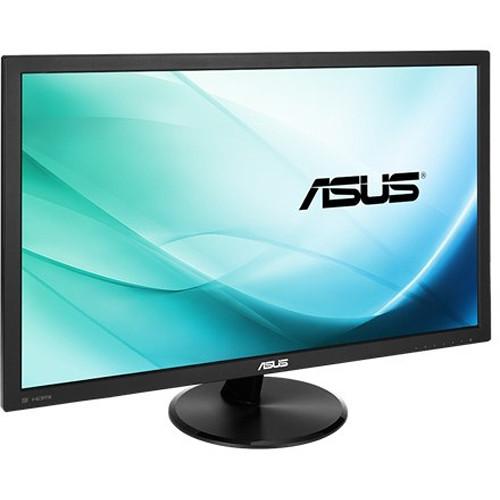

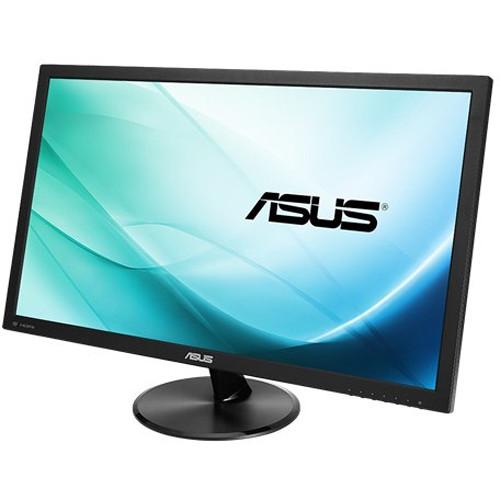

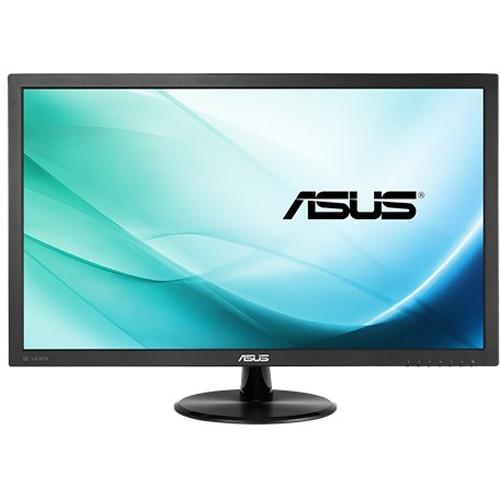

User Manual for ASUS VP247H-P 23.6" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VP247H-P 23.6" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VP247H-P 23.6" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 1 ms response time, the VP247H-P 23.6" Widescreen LED Backlit LCD Monitor from ASUS eliminates nearly all ghosting and tracing when playing games or watching movies. Combine the ultra fast response time with ASUS' own GamePlus feature which includes crosshair and timer functionality, and take advantage of an improved overall gaming experience. Regardless of the task at hand, the VP247H-P has a viewing mode to suit your needs thanks to ASUS' SplendidPlus Technology. This technology allows you to choose from Reading, Darkroom, Scenery, Theater, sRGB, Game, Night View, and Standard modes to be sure the monitor accommodates the content being viewed on the screen. Whether viewing the monitor for 5 minutes or 5 hours, Flicker-Free technology and the built-in ASUS Blue Light Filter help to ease eye strain for increased viewing comfort. Setup and configuration of the VP247H-P is simple as it comes with HDMI, D-Sub, and DVI-D inputs and can be mounted to the wall with the help of a VESA compliant mount. - 100,000,000:1 ASUS Smart Contrast Ratio
- With an ASUS Smart Contrast Ratio (ASCR) of 100,000,000:1 and 250 cd/m² brightness, the VP247H-P augments display contrast and sharpness by adjusting backlighting luminance to achieve the deepest blacks and brightest whites for truly lifelike visuals.
- 1 ms Quick Response Time
- The 1 ms response time found on the ASUS VP247H-P helps to eliminate ghosting and tracers for more fluid video playback.
- GamePlus Functionality
- The GamePlus hotkey enables OSD crosshair and timer functions. Select from four different crosshair settings to suit your gaming environment, and keep track of spawn and build times with the on-screen timer.
- ASUS SplendidPlus Technologies
- The VP247H-P features the new SplendidPlus Video Intelligence Technology that optimizes videos and images by enhancing color brightness, contrast, and sharpness. SplendidPlus features two new modes - Reading and Darkroom - in addition to the Scenery, Standard, Theater, sRGB, and Night View modes. Low-blue Light and Flicker-Free technologies also reduce the strain on your eyes after long periods of use.
- VividPixel Technology
- ASUS VividPixel Technology helps enhance image outlines and reduce noise bars for crystal-clear and detail-oriented viewing.
- Flicker-Free Technology
- The VP247H-P features TÜV Rheinland-certified ASUS Flicker-Free technology designed to reduce flicker for a comfortable viewing experience. This minimizes instances of eyestrain and other damaging effects when you spend long hours in front of a display.
- ASUS Blue Light Filter
- The VP247H-P also comes with the TÜV Rheinland-certified ASUS Blue Light Filter to protect you from harmful blue light; an integrated OSD menu lets you easily access and select four different filter settings onscreen.
UPC: 889349100943 In the Box ASUS VP247H-P 23.6" Widescreen LED Backlit LCD Monitor VGA Cable Audio Cable Power Cord ASUS Advance Swap Program / Rapid Replacement / 2-Way Free Shipping Limited 3-Year Warranty User Manual PDF 1.9mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VP247H-P 23.6" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VP247H-P Specs | | | Size | 23.6" | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 80 kHz | | Vertical Frequency | 55 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 1 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.2715 x 0.2715 mm | | | | Connectivity | 1 x 3.5 mm Input
1 x DVI-D
1 x HDMI
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1.5 W | | | | Power Consumption | 22.7 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, TCO Certified, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.1 x 15.8 x 7.9" / 56.1 x 40.0 x 20.0 mm (With Stand)
22.1 x 13.2 x 20.4" / 56.1 x 33.6 x 5.2 mm (Without Stand) | | Weight | 8.8 lb / 4 kg | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 5.0" |
