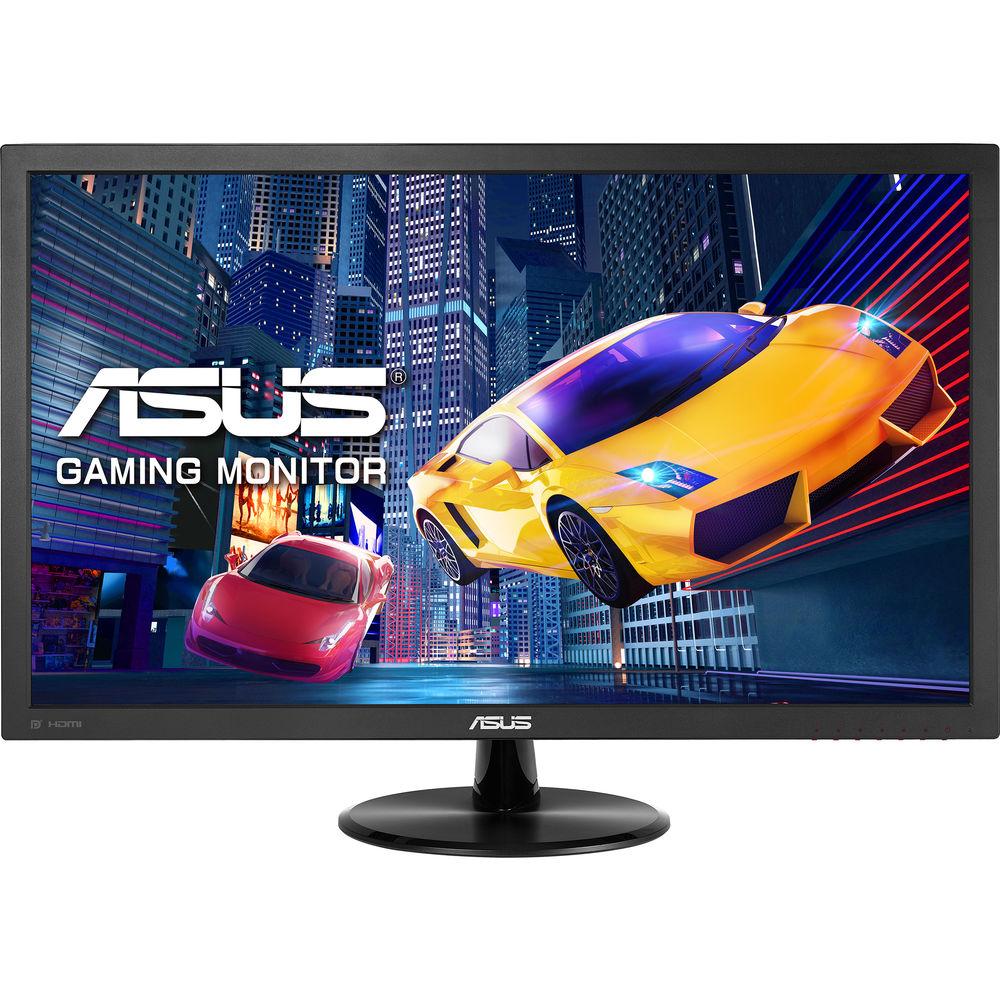

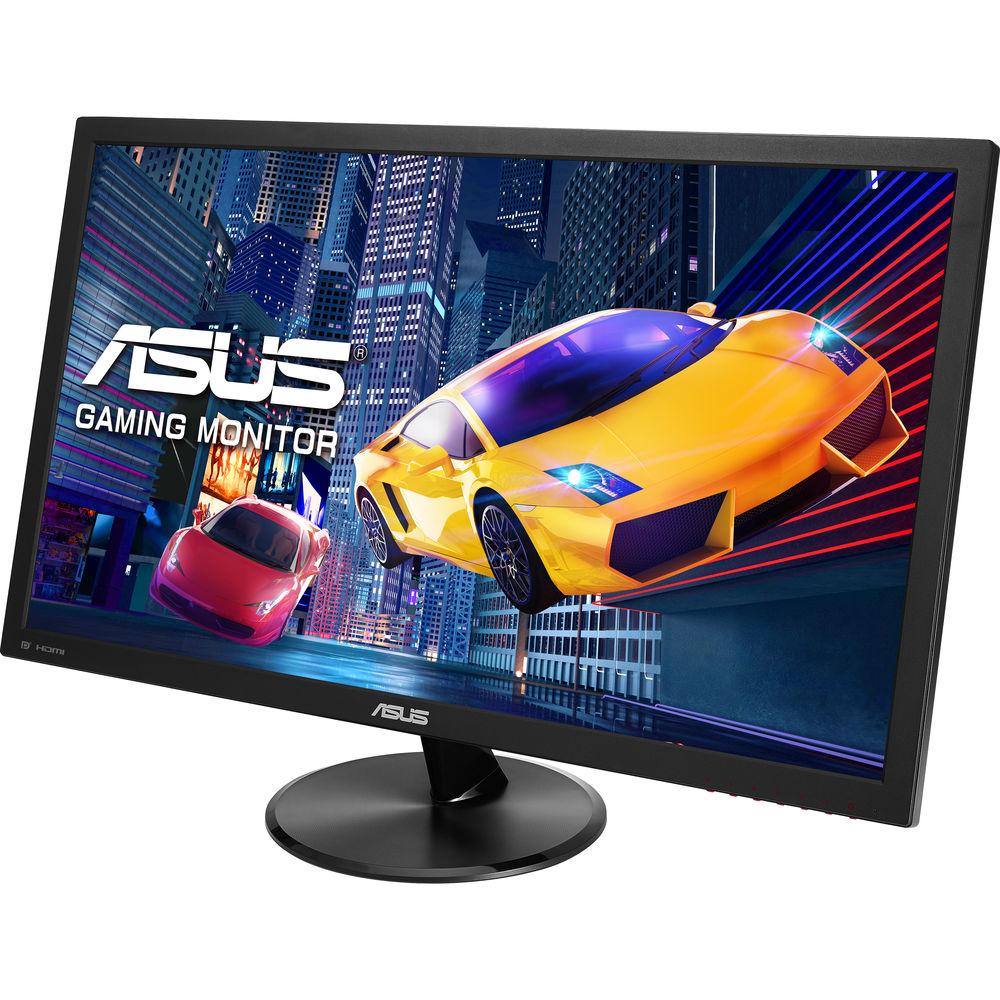

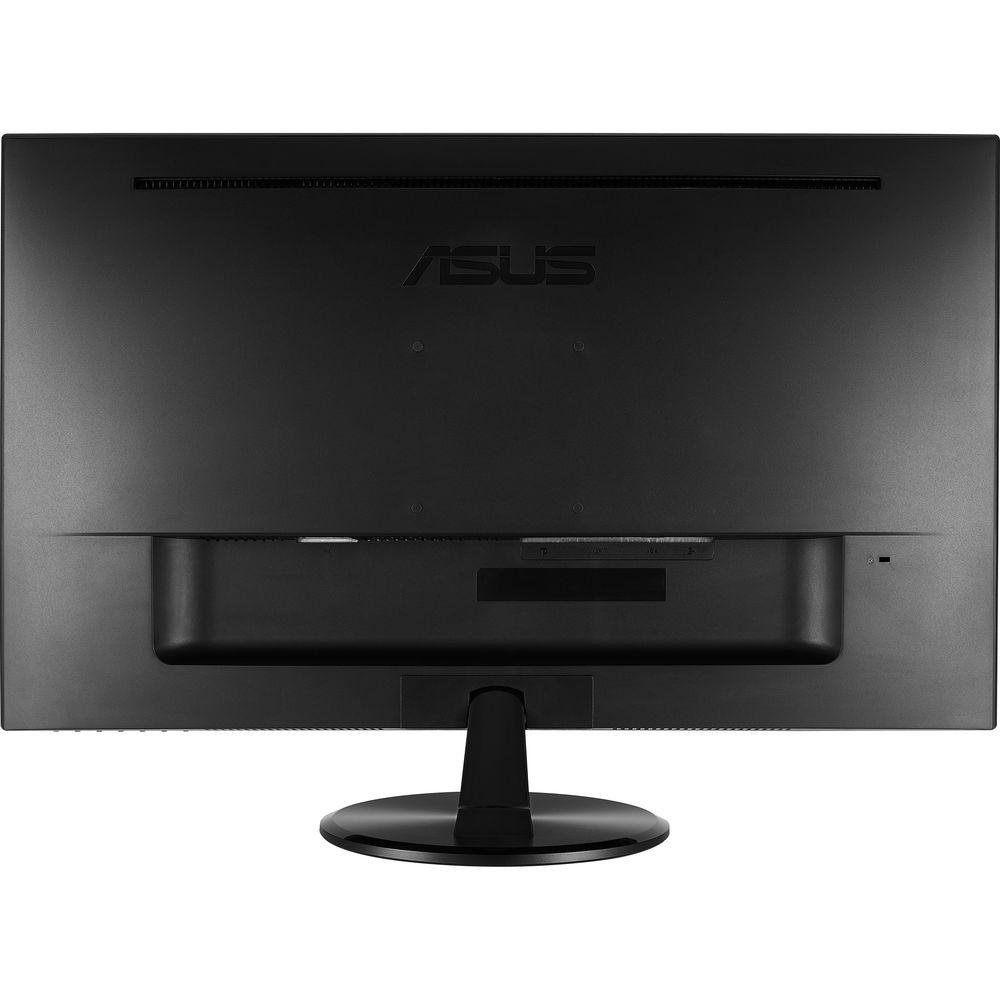

User Manual for ASUS VP247QG 23.6" 16:9 LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VP247QG 23.6" 16:9 LCD Gaming
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VP247QG 23.6" 16:9 LCD Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Immerse yourself in your favorite game with the VP247QG 23.6" 16:9 LCD Gaming Monitor from ASUS. This gaming monitor comes equipped with both Adaptive Sync and AMD FreeSync technologies, which are designed to enhance response times to virtually eliminate ghosting and blur during fast moving games. In addition to gamer-centric technologies, this monitor comes equipped with a 1920 x 1080 Full HD display, a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and a 1 ms response time to produce a crisp, clear picture quality.
Setup is simple as the ASUS VP247QG comes equipped with HDMI, D-Sub, and DisplayPort inputs. Once configured gamers and can take advantage of ASUS-exclusive GamePlus technology with support for crosshair, timer, FPS counter, and display alignment functions to further enhance the gaming experience. ASUS has also included both Low Blue Light and Flicker-Free technologies directly in to the display to help alleviate the strain on your eyes during extended gaming sessions. - Improved Image Quality & Classic Design
- The VP247QG 23.6" Full HD monitor features a 100,000,000:1 high contrast ratio, ASUS-exclusive SplendidPlus, and VivdPixel technologies, and is optimized for fine image and color quality.
- ASUS Smart Contrast Ratio
- ASUS Smart Contrast Ratio dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve dark black and bright white - delivering lifelike images.
- 1 ms Quick Response Time
- The ASUS VP247QG display virtually eliminates smearing and motion blur thanks to a 1 ms response time. In addition, Adaptive-Sync/FreeSync technology eliminates screen tearing and choppy frame rates for even more seamlessly smooth gameplay.
(AMD FreeSync works at fresh rates ranging from 48 to 75 Hz) - ASUS-Exclusive GamePlus Technology
- The ASUS VP247QG features the ASUS exclusive GamePlus hotkey with crosshair, timer, FPS counter, and display alignment functions to give you in-game enhancements that help you get more out of your game. These tools allow gamers to practice and improve on their gaming skills.
- ASUS-Exclusive SplendidPlus Technologies
- The VP247QG features the new SplendidPlus Video Intelligence Technology that optimizes videos and images by enhancing color brightness, contrast, and sharpness. SplendidPlus features two new modes - Reading and Darkroom - in addition to the Scenery, Standard, Theater, sRGB, and Night View modes.
- VividPixel Technology
- ASUS VividPixel Technology helps enhance image outlines and reduce noise bars for crystal-clear and detail-oriented viewing.
- ASUS Eye Care Technology
- ASUS Blue Light Filter
The T
|
Upload User Manual
Have you got an user manual for the ASUS VP247QG 23.6" 16:9 LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VP247QG Specs | Panel Size | 23.6" / 59.9 cm | | Panel Type | TN (Twisted Nematic) | | Aspect Ratio | 16:9 | | Color Saturation | 72% (NTSC) | | Resolution | 1920 x 1080 | | Display Surface | Non-glare | | Pixel Pitch | 0.2715 mm | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | ASUS Smart Contrast Ratio (ASCR) | 100,000,000:1 | | Viewing Angles (H/V) | 170°/160° | | Response Time (GtG) | 1 ms | | Display Colors | 16.7 million | | Video Specifications | Trace Free Technology: Yes
SPLENDID Video Preset Modes: 8 modes
Skin-Tone Selection: 3 modes
Color Temperature Selection: 4 modes
QuickFit (Modes): Yes (Letter/A4/B5/Alignment Grid/Photo)
GamePlus (Modes): Yes (Crosshair/Timer/FPS Counter/Display Alignment)
Low Blue Light: Yes
HDCP Support: Yes
VividPixel: Yes
Smart View Technology: Yes
FreeSync Technology supported | | Audio | 2 x 1.5 W stereo RMS speakers | | Convenient Hotkey | Blue Light Filter
Brightness Adjustment
Input Selection
QuickFit | | I/O Ports | Signal Input
1 x HDMI
1 x D-Sub
1 x DisplayPort
Audio Input
1 x 3.5 mm mini-jack
AV Audio Input
1 x HDMI
1 x DisplayPort | | Signal Frequency | Analog Signal Frequency
D-Sub: 27~84 kHz (H) / 48~75 Hz (V)
Digital Signal Frequency
DisplayPort/HDMI: 27~84 kHz (H) / 48~75 Hz (V) | | Power | Power Adapter
100-240 V; 50/60 Hz
Power Consumption
Power On: 16.8 W
Power Saving/Off: <0.5 W | | Tilt | -5 to 20° | | VESA Wall Mounting | 100 x 100 mm | | Kensington Security Slot | Yes | | Compliance and Standards | ENERGY STAR, CB, CCC, CE, CEL level 1, CU, EPEAT (Gold) by region, ErP, FCC, ISO-9241-307, J-MOSS, PSE, UL/cUL, WEEE, WHQL (Windows 8.1/7), MEPS, RCM, TUV Low Blue Light | | Dimensions | With Stand
22.1 x 15.8 x 7.9" / 56.1x 40 x 19.9 cm
Without Stand
22.1 x 13.2 x 2" / 56.1 x 33.6 x 5.2 cm | | Weight | With Stand
8.8 lb / 4 kg
Without Stand
7.4 lb / 3.4 kg | | | | Package Weight | 12.15 lb | | Box Dimensions (LxWxH) | 24.1 x 17.7 x 5.3" |
