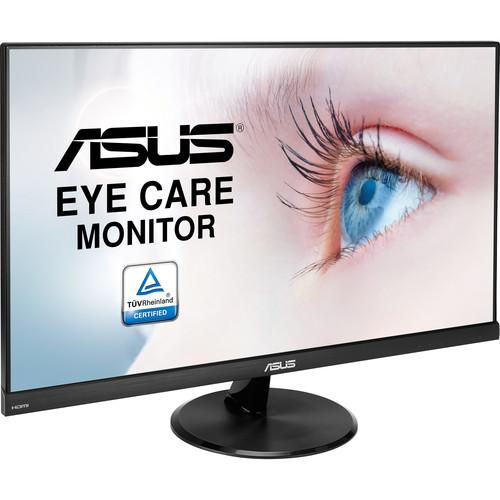

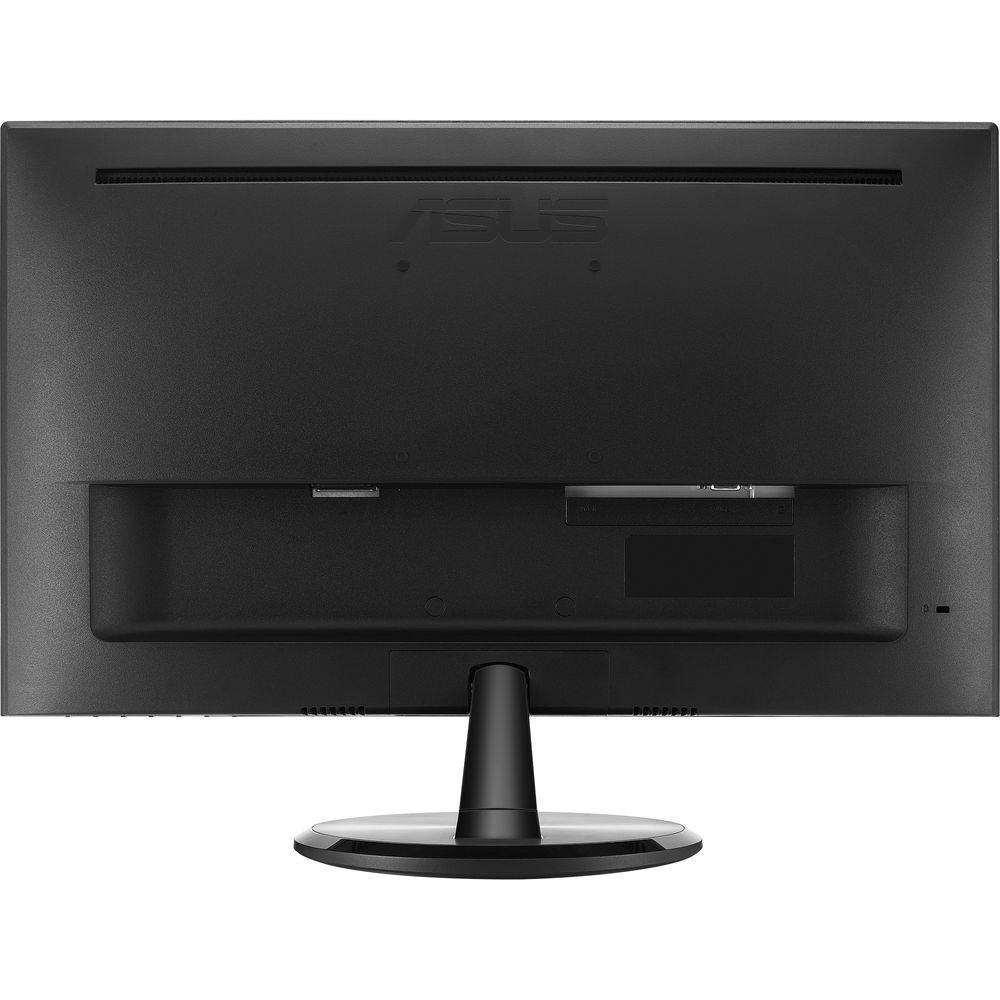

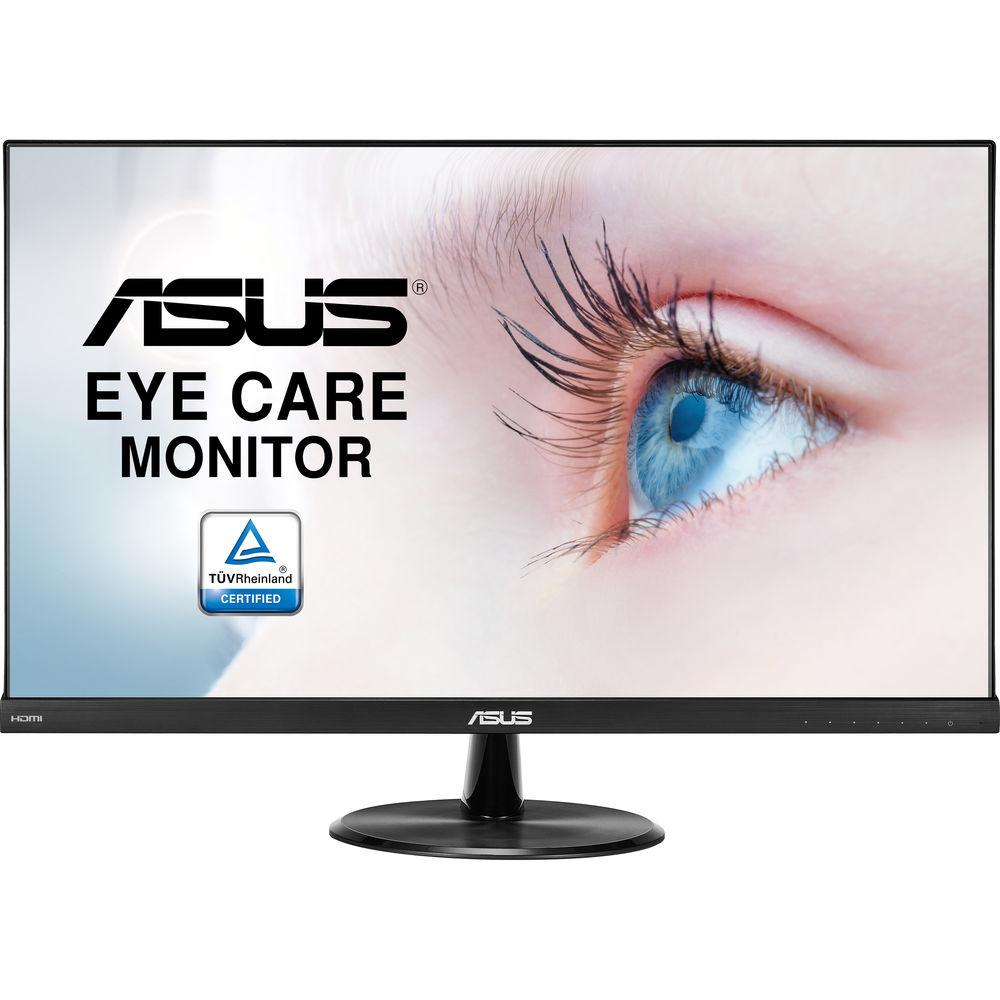

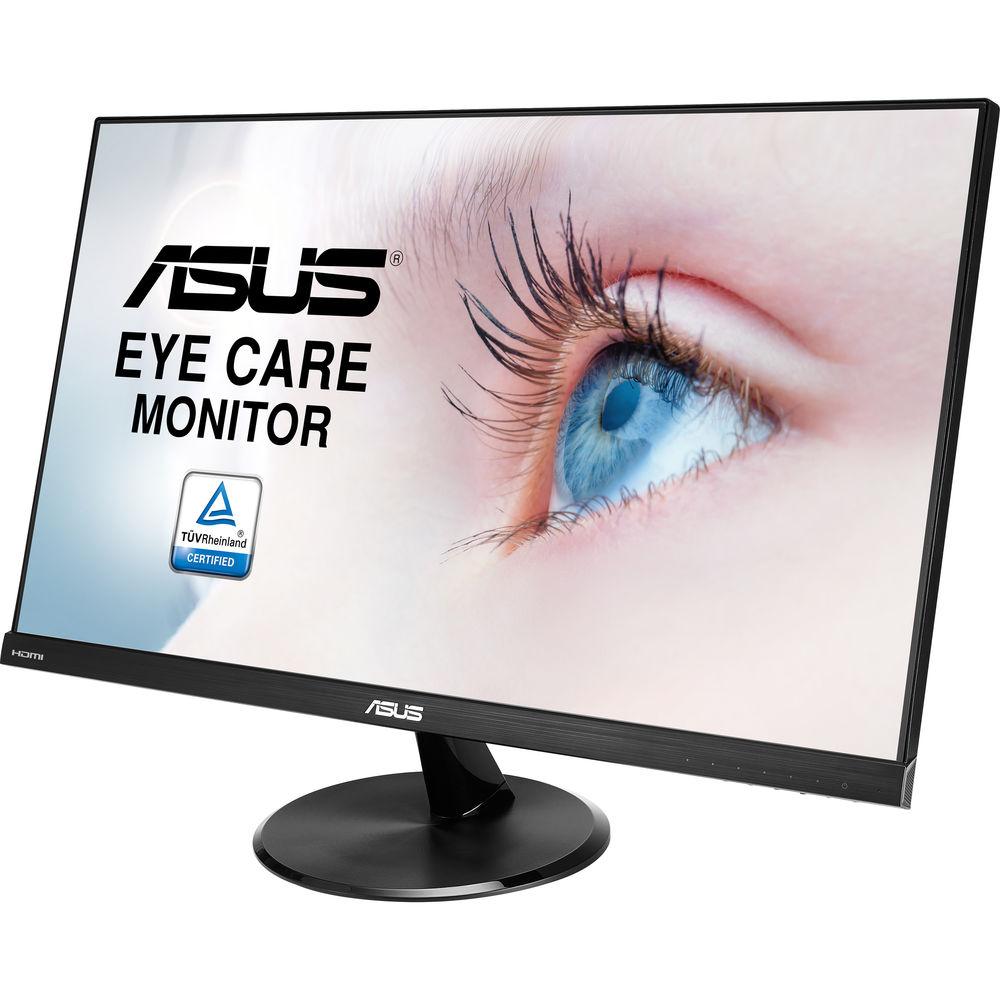

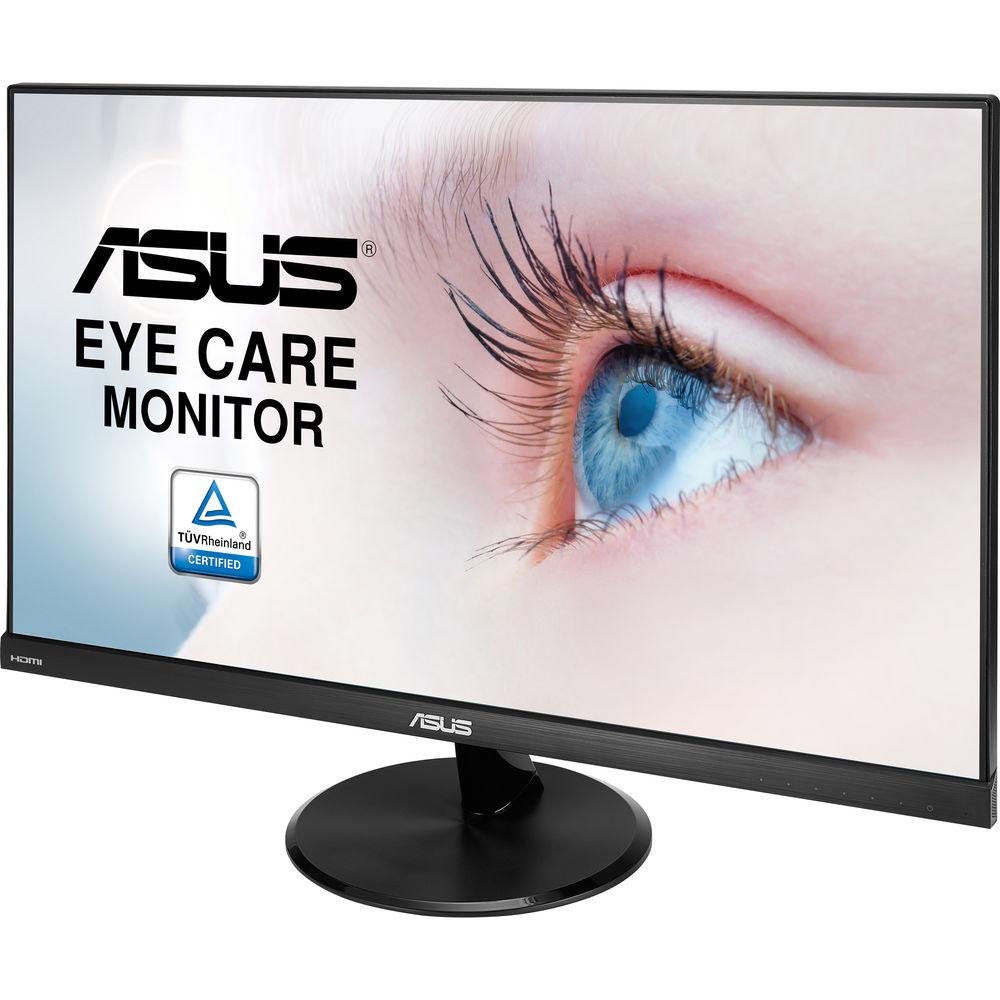

User Manual for ASUS VP249H 23.8" 16:9 Eye Care IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VP249H 23.8" 16:9 Eye Care
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VP249H 23.8" 16:9 Eye Care contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More wqyzcxufsfrstebwvrqyszryf View the screen from virtually any angle as the VP249H 23.8" 16:9 Eye Care IPS Monitor from ASUS offers enhanced 178° horizontal and vertical viewing angles. This IPS (In-Plane Switching) panel features a Full HD 1920 x 1080 resolution accompanied by a 1,000:1 contrast ratio, a 5 ms response time, a 250 cd/m² brightness rating, and support for up to 16.7 million colors to produce a crisp clear picture. Installation is simple as the VP249H monitor comes equipped with both HDMI and D-Sub inputs, making it compatible with a variety of computer configurations.
Once configured, this eye care monitor offers both Flicker-free technology and a Low Blue Light Filter designed to lessen the strain placed on your eyes when viewing the screen for extended periods of time. ASUS has also included a variety of video features including SPLENDED Video Preset modes, Skin-Tone Selection, Color Temperature Selection, QuickFit modes, and GamePlus mode, making it easy to configure the display to suit the content being viewed. - GamePlus Function
- The GamePlus hotkey enables OSD crosshair and timer functions. Select from four different crosshairs to suit your gaming environment, and keep track of spawn and build times with the on-screen timer.
- Vivid, Lifelike Visuals
- IPS Technology with 178° Wide-View Angles
The VP249H monitor features an In-Plane Switching (IPS) technology panel with a 178° wide-view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction.
100,000,000:1 ASUS Smart Contrast Ratio
With ASUS Smart Contrast Ratio (ASCR) of 100,000,000:1 and 250cd/m² brightness, the VP249H augments display contrast and sharpness by adjusting backlighting luminance to achieve deeper blacks and brighter whites for more lifelike visuals.
ASUS-Exclusive VividPixel Technology
The VividPixel Technology enhances outline, sharpness, and color saturation of images and videos to deliver high-quality visual experience. - Ultra-Low Blue Light Monitor
- The TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light, and you can easily access its four different filter settings via a hotkey. The VP249H has undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels.
- Flicker-Free Technology
- The VP249H features TÜV Rheinland-certified ASUS Flicker-free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.
- QuickFit Virtual Scale
- ASUS includes its exclusive QuickFit Virtual Scale feature with the VP249H, allowing you to preview photos and documents on-screen in their actual size prior to printing. It can be activated via a monitor hotkey, and serves as a highly useful guide to accurately view and edit photos in their native size.
Supporting Formats
Document: B5, Letter
Photo: 8x10", 5x7", 4x6", 3x5", 2x2"
Grid: Alignment Grid 1, Alignment Grid 2 UPC: 889349714386 In the Box ASUS VP249H 23.8" 16:9 Eye Care IPS Monitor VGA Cable Audio Cable Power Cord Limited 3-Year Warranty User Guide PDF 4.1mbwqyzcxufsfrstebwvrqyszryf More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VP249H 23.8" 16:9 Eye Care IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VP249H Specs | Panel Size | 23.8" (60.5 cm) | | Aspect Ratio | 16:9 | | Color Saturation | 72% (NTSC) | | Panel Backlight / Type | IPS | | Resolution | 1920 x 1080 | | Display Viewing Area | 20.75 x 11.67 (52.7 X 29.6 cm) | | Display Surface | Non-glare | | Pixel Pitch | 0.275 mm | | Brightness | 250 cd/m² | | Contrast Ratio | Static: 1000:1
ASUS Smart Contrast Ratio (ASCR): 100,000,000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 5 ms (GtG) | | Display Colors | 16.7 million (real 8-bit) | | Video Specifications | Trace Free Technology: Yes
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes: 8 modes
Skin-Tone Selection: 3 modes
Color Temperature Selection: 4 modes
QuickFit (modes): Yes (Letter/B5/Alignment Grid/Photo modes)
GamePlus(modes): Yes (Crosshair/Timer)
HDCP Support: Yes
VividPixel: Yes | | Audio | Stereo Speakers: 2 x 1.5 W Stereo RMS | | Convenient Hotkey | Blue Light Filter
Brightness Adjustment
Input Selection
QuickFit | | I/O Ports | Signal Input: HDMI, D-Sub | | Signal Frequency | Analog Signal Frequency: 54~83 kHz (H) / 48~75 Hz (V)
Digital Signal Frequency: 54~83 kHz (H) / 48~75 Hz (V) | | Power Consumption | Power on Mode: <25 w
Power Saving Mode: <0.5 W
Power Off Mode: <0.5 W
Voltage: 100-240 V, 50/60 Hz | | Mechanical Design | Tilt: -5 to 20°
VESA Wall Mounting: 100 x 100 mm | | Security | Kensington lock | | Compliance and Standards | ENERGY STAR, ENERGY STAR 7.0, BSMI, CB, CCC, CE, CEL level 0, CU, EPEAT Silver, ErP, FCC, J-MOSS, KCC, PSE, RoHS, TCO7.0, UL/cUL, VCCI, WEEE, WHQL (Windows 10, 8.1, 7), RCM, KC, Vietnam MEPS | | Dimensions | With Stand
21.3 x 15.5 x 8.5" (541.1 x 393.0 x 215.0 mm)
Without Stand
21.3 x 12.7 x 2.0" (541.1 x 322.9 x 51.8 mm) | | Weight | With Stand
7.89 lb (3.58 kg)
Without Stand
6.55 lb (2.97 kg) | | | | Package Weight | 11.55 lb | | Box Dimensions (LxWxH) | 23.7 x 18.5 x 5.0" |
