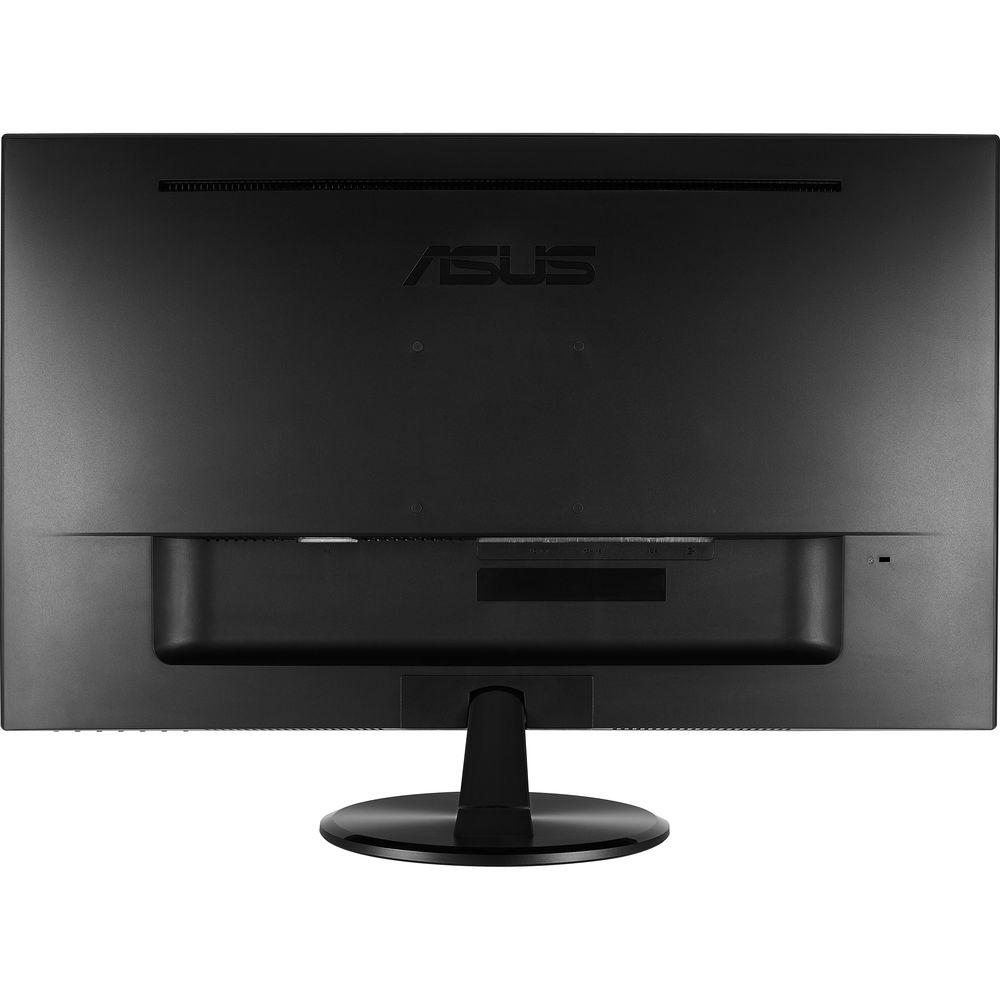

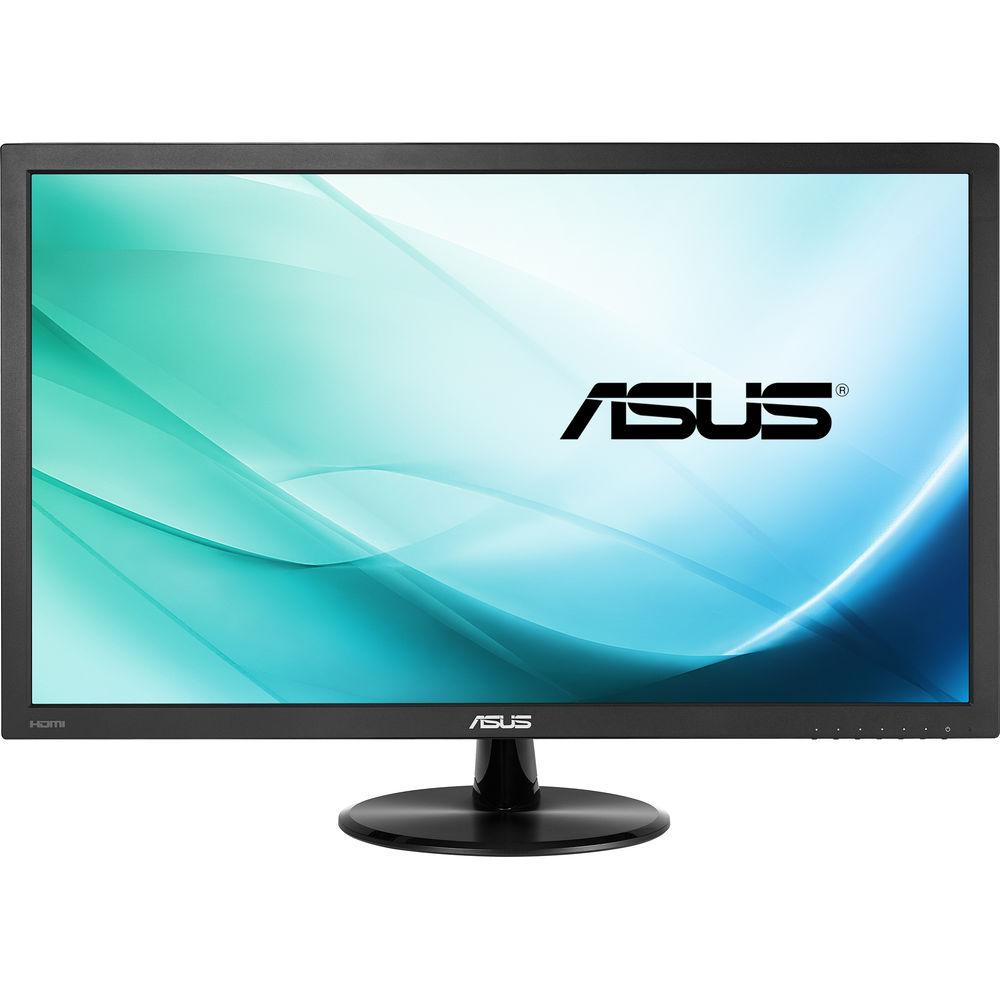

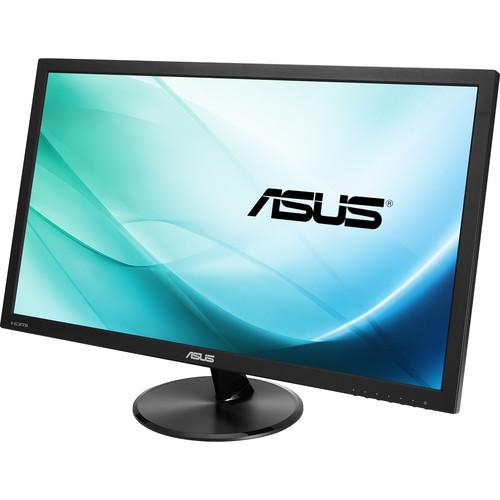

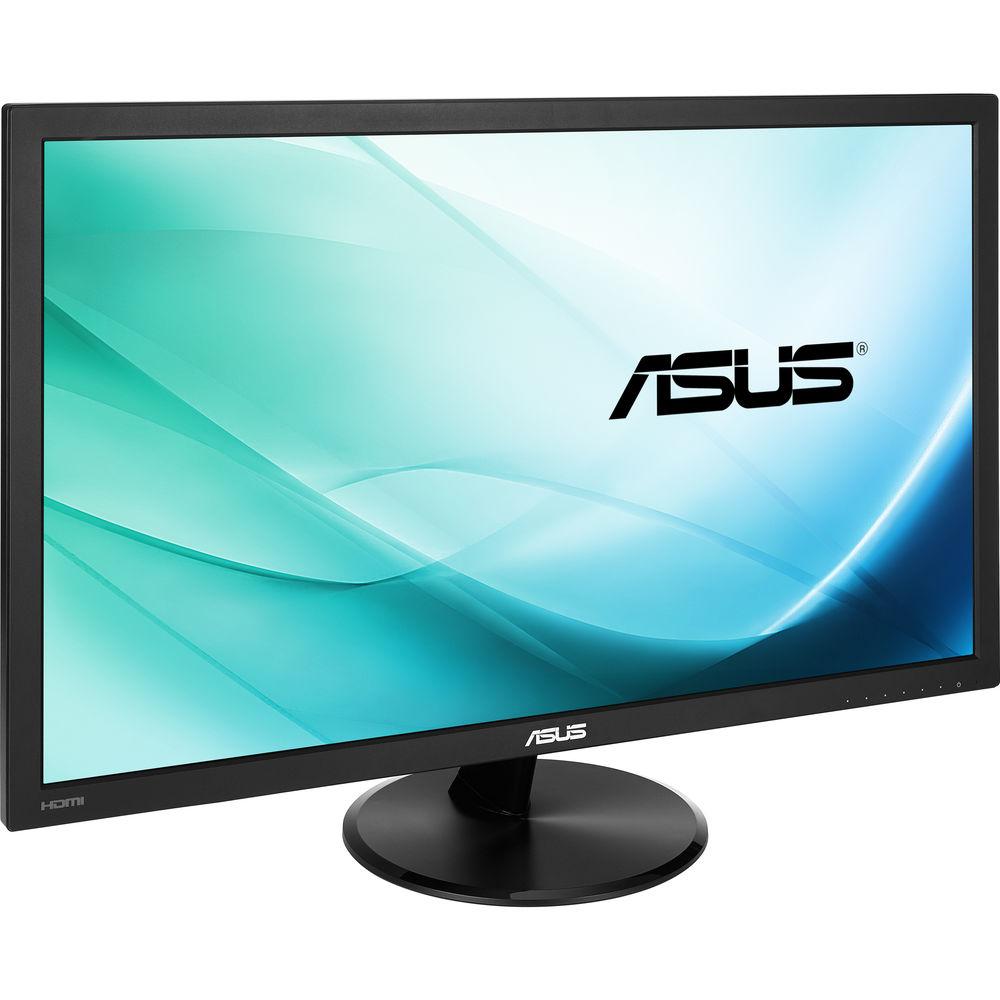

User Manual for ASUS VP278H-P 27" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VP278H-P 27" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VP278H-P 27" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

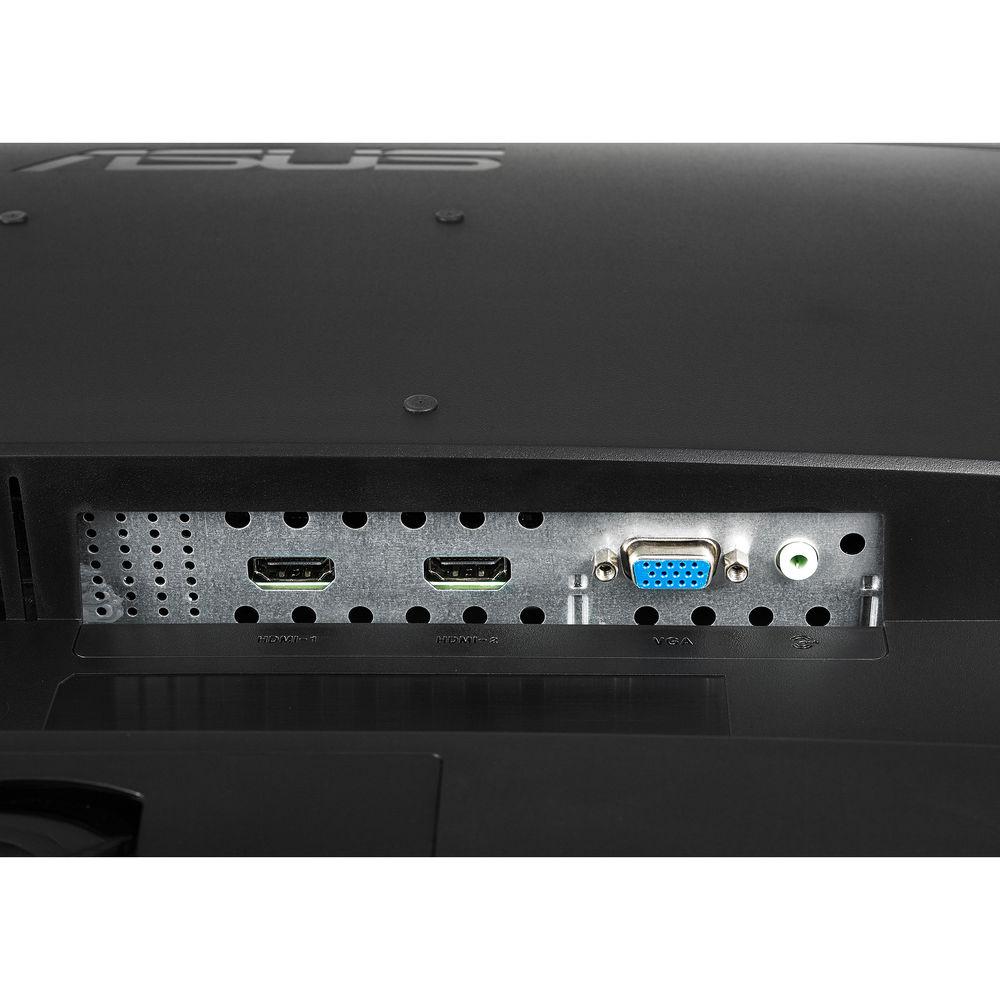

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More utcvxcservdfvrcuztvxccsdsurqbysa With a quick 1 ms response time, the VP278H-P 27" Widescreen LED Backlit LCD Monitor from ASUS offers reduced ghosting and blur when viewing videos and gaming. In addition to the ultra-fast response time, you benefit from a Full HD 1920 x 1080 resolution, support for up to 16.7 million colors, and 170° horizontal and 160° vertical viewing angles. On the back of the display you can take advantage of both HDMI and D-Sub inputs to connect the VP278H-P to a variety of computer configurations.
ASUS has included a variety of display enhancing features with the VP278H-P to improve your overall viewing experience. First off, you receive a more dynamic picture thanks to ASUS Smart Contrast Ratio. With a contrast ratio of 100,000,000:1 you benefit from deeper dark and brighter bright colors creating images that appear more lifelike. For the gamer ASUS has incorporated their GamePlus technology into this monitor. Utilize the integrated hotkey to select one of four crosshair types that best suits the gaming environment. In addition to the gaming mode, you can adjust the display to suit your specific content using SplendidPlus Technology offering a variety of viewing modes including darkroom, reading, scenery, theater, sRGB, night view, and standard. - ASUS Smart Contrast Ratio
- Dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the dark black and bright white - delivering lifelike images.
- 1 ms Quick Response Time
- With a 1 ms (GtG) quick response time you benefit from reduced ghosting and tracers for more fluid video playback.
- ASUS GamePlus Technology
- The ASUS VP278H-P features the ASUS GamePlus hotkey with crosshair and timer functions. Gamers can select four different crosshair types to suit the gaming environment; while the latter keeps players aware of the elapsed time in real-time strategy games. These tools allow gamers to practice and improve on their gaming skills.
- SplendidPlus Technologies
- The VP278H-P features the new SplendidPlus Video Intelligence Technology that optimizes videos and images by enhancing color brightness, contrast, and sharpness. SplendidPlus features two new modes - Reading and Darkroom - in addition to the Scenery, Standard, Theater, sRGB, and Night View modes. Low-blue Light and Flicker-free technologies also reduce the strain on your eyes after long periods of use.
- VividPixel Technology
- ASUS VividPixel Technology helps enhance image outlines and reduce noise bars for crystal-clear and detail-oriented viewing.
- Flicker-Free Technology
- The VP278H-P features the TÜV Rheinland-certified ASUS Flicker-Free technology designed to reduce flicker for a comfortable viewing experience. This minimizes instances of eyestrain and other damaging effects when you spend long, countless hours in front of a display.
- ASUS Blue Light Filter
- The VP278H-P also comes with the TÜV Rheinland-certified ASUS Blue Light Filter to protect you from harmful blue light; an OSD menu lets you easily access and select four different filter settings onscreen.
UPC: 889349091272 In the Box ASUS VP278H-P 27" Widescreen LED Backlit LCD Monitor VGA Cable Audio Cable Power Cord ASUS Advance Swap Program / Rapid Replacement / 2-Way Free Shipping Limited 3-Year Warranty User Manual PDF 1.9mb More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VP278H-P 27" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VP278H-P Specs | | | Size | 27" | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 83 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 1 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.311 x 0.311 mm | | | | Connectivity | 1 x 3.5 mm Input
1 x HDMI
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 0.5 W (Standby)
29.1 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, TCO Certified, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 25.3 x 15.1 x 2.2" / 64.1 x 38.3 x 5.5 mm (Without Stand)
25.3 x 17.5 x 8.6" / 64.1 x 44.5 x 21.9 mm (With Stand) | | Weight | 10.6 lb / 4.8 kg | | | | Package Weight | 14.4 lb | | Box Dimensions (LxWxH) | 27.5 x 20.0 x 5.0" |
