User Manual for ASUS VS207T-P 19.5" Widescreen LED Backlit Monitor with Built-In Speakers Click to enlarge the picture
Contents of the user manual for the ASUS VS207T-P 19.5" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VS207T-P 19.5" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

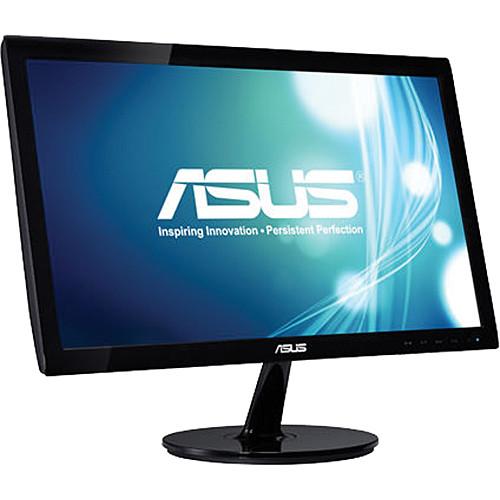

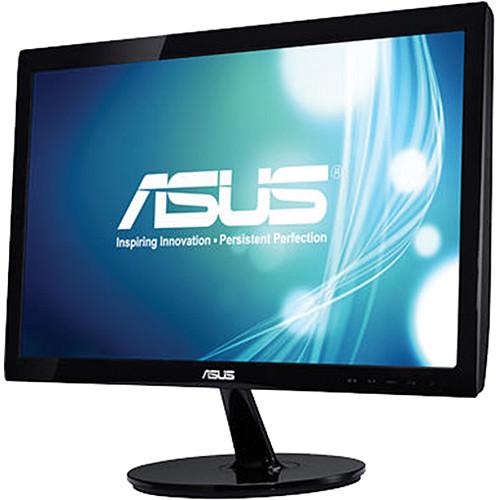

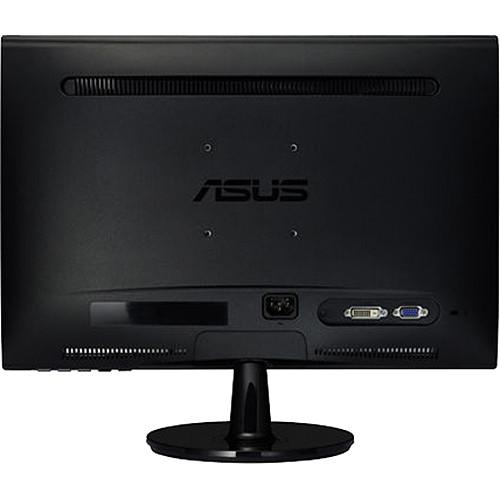

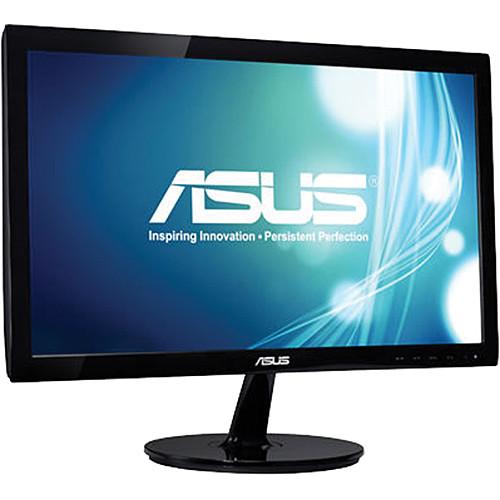

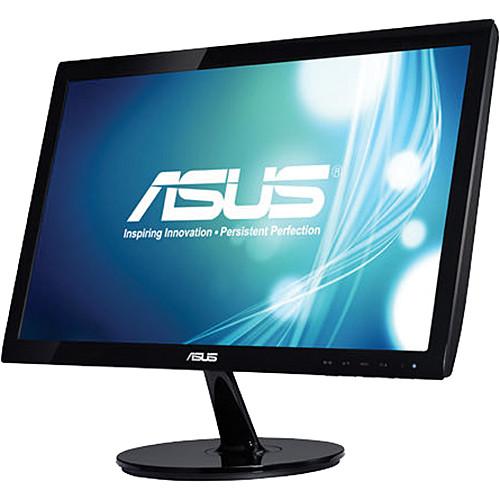

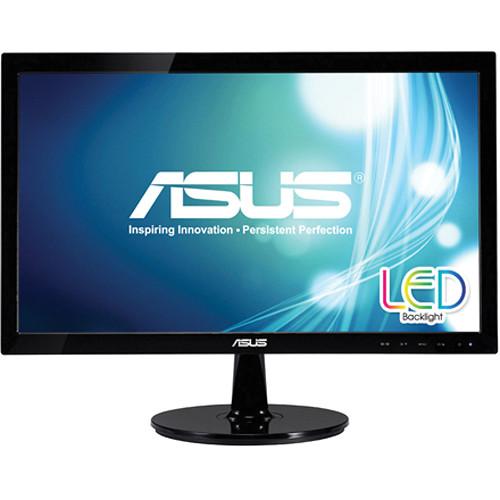

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More uxxqutqbzftzdrezcbzbwczx The VS207T-P 19.5" Widescreen LED Backlit Monitor with Built-In Speakers from ASUS is a desktop monitor with a resolution of 1600 x 900 and an aspect ratio of 16:9. The display features built-in stereo speakers and its sturdy stand and slim profile offer a unique style while ensuring stability and durability. The display also boasts an amazing 80,000,000:1 Smart Contrast Ratio, 250 cd/m² brightness rating, 5ms response time, support for 16.7 million colors and a 170°/160° viewing angle. The eco-friendly design reduces power consumption by 25% and is manufactured with 50% less hazardous materials. - Superior Image Quality Meets Classic Elegant Design
- With 80,000,000:1 high contrast ratio, HDCP support and built-in stereo speakers, the VS207T LED Monitor is optimized for visual and audio enjoyment. It features a sturdy stand and slim profile that offer a unique style while ensuring stability and durability.
- Excellent Visual Performance
- Indulge your visual senses with 1600 x 900 high-definition resolution and 5ms quick response time for work and entertainment.
19.5" widescreen fits two pages side by side, meaning ample screen space for different contents to help enhance your working efficiency.
The 16:9 aspect ratio enables borderless high-definition full-screen video display and gaming together with multimedia HD devices.
The best dual-display companion with your widescreen notebook enlarges visual space for multi-tasking efficiency.
Aspect Control function allows users to select a preferred display mode among full and 4:3 for true-to-life gaming or movie watching without any data loss or image distortion. - Splendid Video Intelligence Technology
- The exclusive Splendid Video Intelligence technology optimizes video performance and image fidelity by enhancing color, brightness, contrast and sharpness. Six preset video modes (Scenery, Theater, Game, Night View, sRGB and Standard) can be selected via a hotkey.
- User-Friendly Design for Modern Sophistication
- Built-in hidden stereo speakers enable audio enjoyment and provide a true-to-life visual experience.
Convenient key controls are available for functional set-up in a multi-language On-Screen Display.
VESA wall mount standard (75 x 75 mm).
25° (forward 5°, backwards 20°) tilting angle.
Kensington security lock. - Energy Saving
- Mercury-free LED-backlit panel.
37.2 kWh electricity saving. UPC: 886227296576 In the Box ASUS VS207T-P 19.5" Widescreen LED Backlit Monitor with Built-In Speakers VGA Cable DVI Cable Audio Cable Power Cord Limited 3-Year Warranty Users Manual PDF 2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VS207T-P 19.5" Widescreen LED Backlit Monitor with Built-In Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VS207T-P Specs | | | Size | 19.5" | | Touchscreen | No | | Resolution | 1600 x 900 | | Aspect Ratio | 16:9 | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 80,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 80 kHz | | Vertical Frequency | 55 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.2768 x 0.2768 mm | | | | Connectivity | 1 x 3.5 mm Input
1 x DVI-D
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 0.5 W (Standby)
25 W (Typical) | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 75 x 75 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 18.4 x 14.0 x 7.3" / 46.8 x 35.6 x 18.5 cm | | Weight | 5.7 lb / 2.6 kg | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 20.6 x 16.0 x 4.8" |
