ASUS VS247H-P 23.6" LED Computer Display

Search your instruction manual in PDF to download

User Manual for ASUS VS247H-P 23.6" LED Computer Display

Click to enlarge the picture
ASUS VS247H-P 23.6" LED Computer Display Contents of the user manual for the ASUS VS247H-P 23.6" LED Computer Display
  • Product category: Computer Monitors ASUS
  • Brand: ASUS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ASUS Computer Monitors

ASUS VS247H-P 23.6" LED Computer Display ASUS VS247H-P 23.6" LED Computer Display ASUS VS247H-P 23.6" LED Computer Display ASUS VS247H-P 23.6" LED Computer Display
User manual for the ASUS VS247H-P 23.6" LED Computer Display contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ASUS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!



Product description

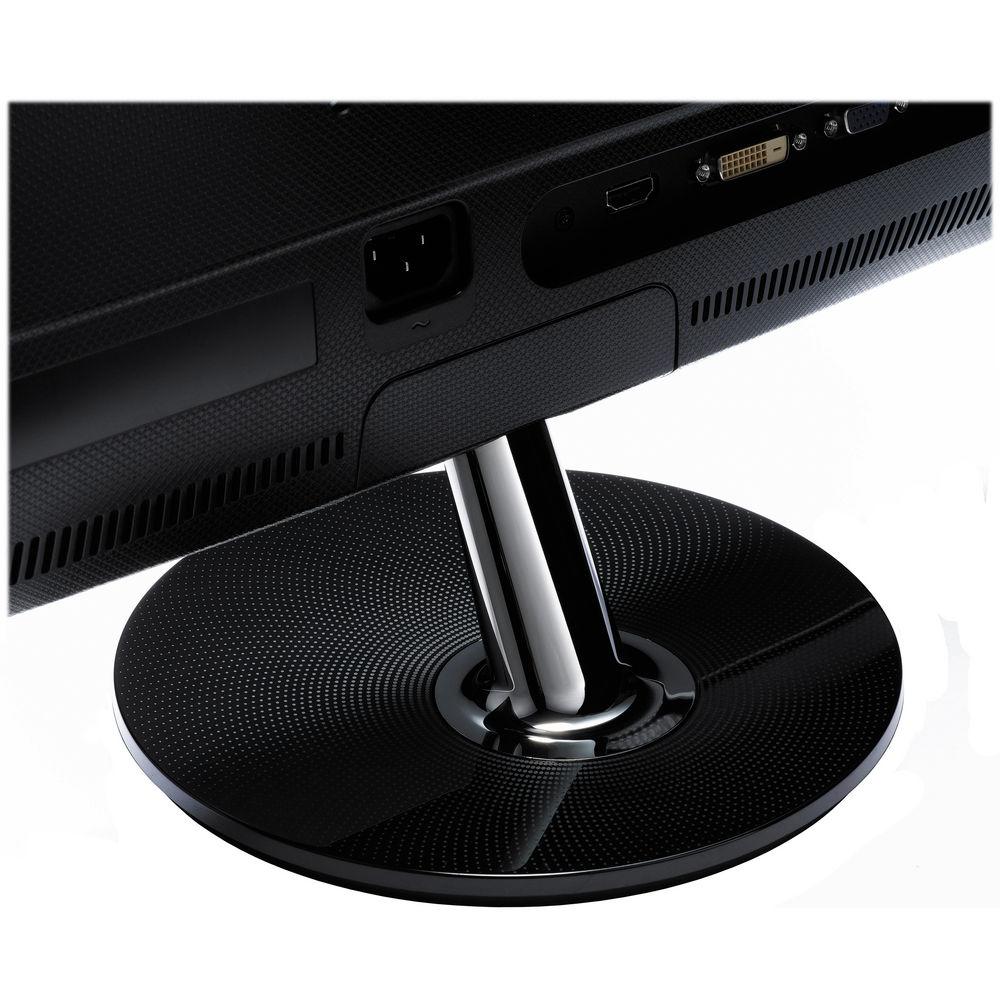

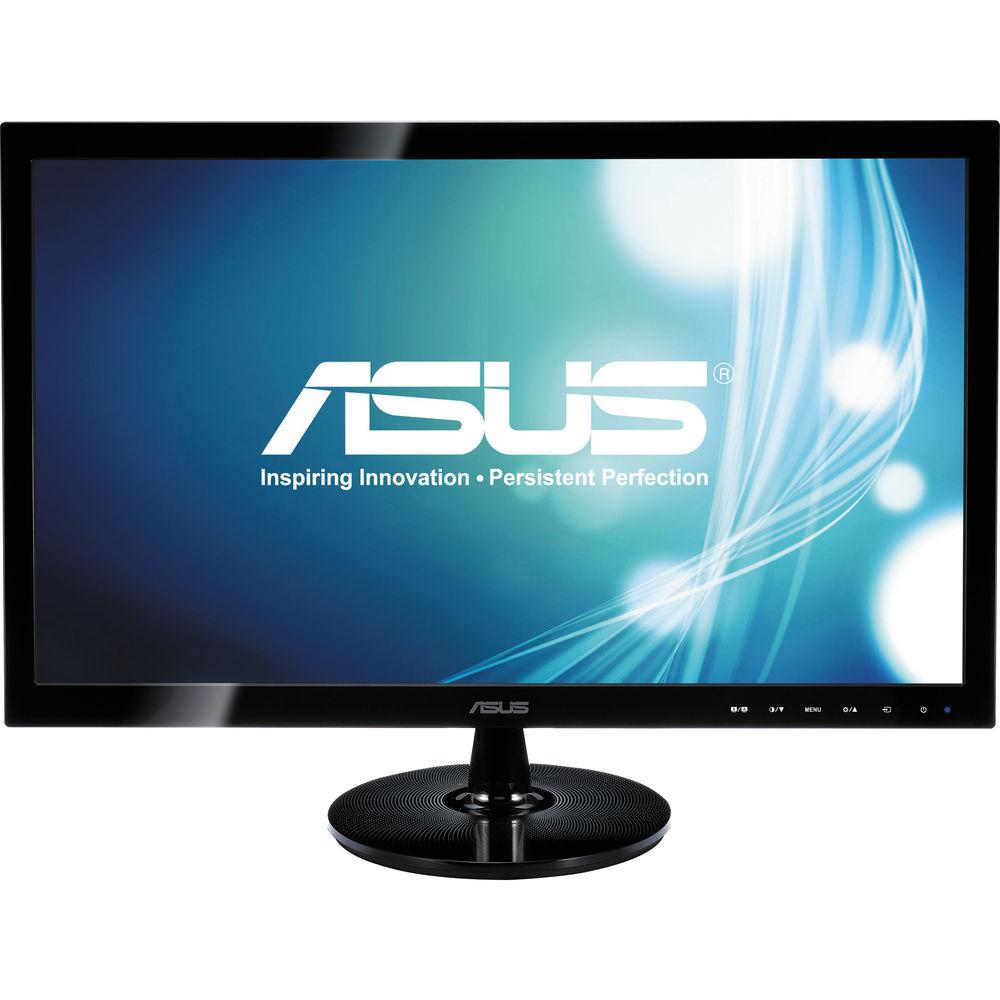

10 Factors to Consider When Selecting A Monitor for Video Editing Read More The VS247H-P 23.6" LED Computer Display from ASUS is a desktop computer monitor with a 16:9 aspect ratio and energy-efficient LED backlight. The display features a modern design, highlighted by a glossy black frame and smooth desktop stand.

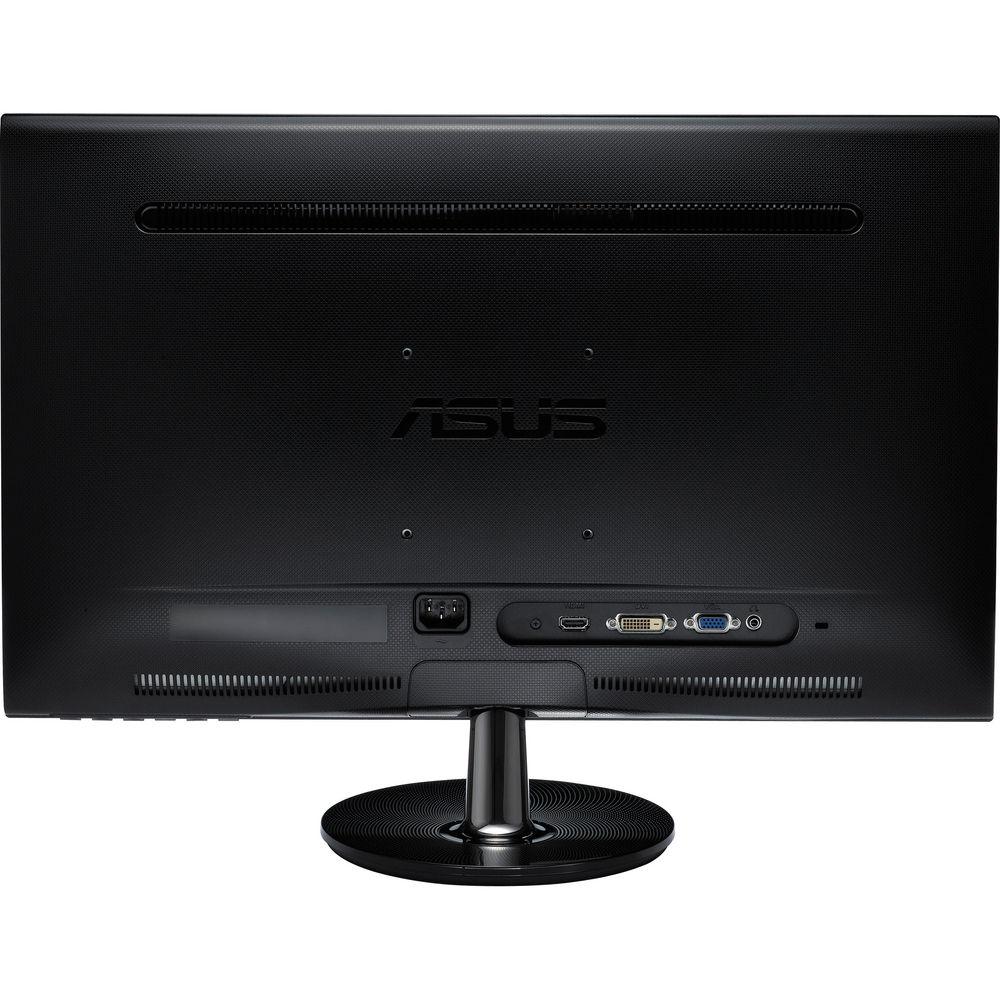

The display features a native resolution of 1920 x 1080. It also boasts an amazing 50,000,000:1 dynamic contrast ratio, 300cd/m² brightness rating, 2ms response time, support for 16.7 million colors, and 170°/160° viewing angles. It can connect to a computer via VGA, DVI-D, or HDMI.* Note: For a DVI-D connection, you must use an HDMI-to-DVI cable.

True-to-Life Pictures Powered by LED

    50,000,000:1 ASUS Smart Contrast Ratio
  • Dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white -- delivering lifelike images.
    Full HD with HDMI
  • Enter a spectacular world of colors with Full HD 1080p (1920 x 1080) support and HDMI port.
    2ms Response Time
  • Quick response time of 2ms (Gray-to-Gray) eliminates ghosting and tracers for more fluid video playback.
    Aspect Control Function
  • Aspect Control function allows users to select either 4:3 or the full aspect ratio for true-to-life gaming or movie watching without any data loss or image distortion.
    Splendid Video Intelligence Technology
  • The Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. Six preset video modes (Scenery, Theater, Game, Night View, sRGB, and Standard) can be selected via a hotkey.
    Stylish and User-Friendly Design for Modern Sophistication
    • Convenient key controls for functional set-up in the multi-language OSD
    • Easily detachable base for wall mount
    • VESA Wall Mount Standard (100 x 100mm)

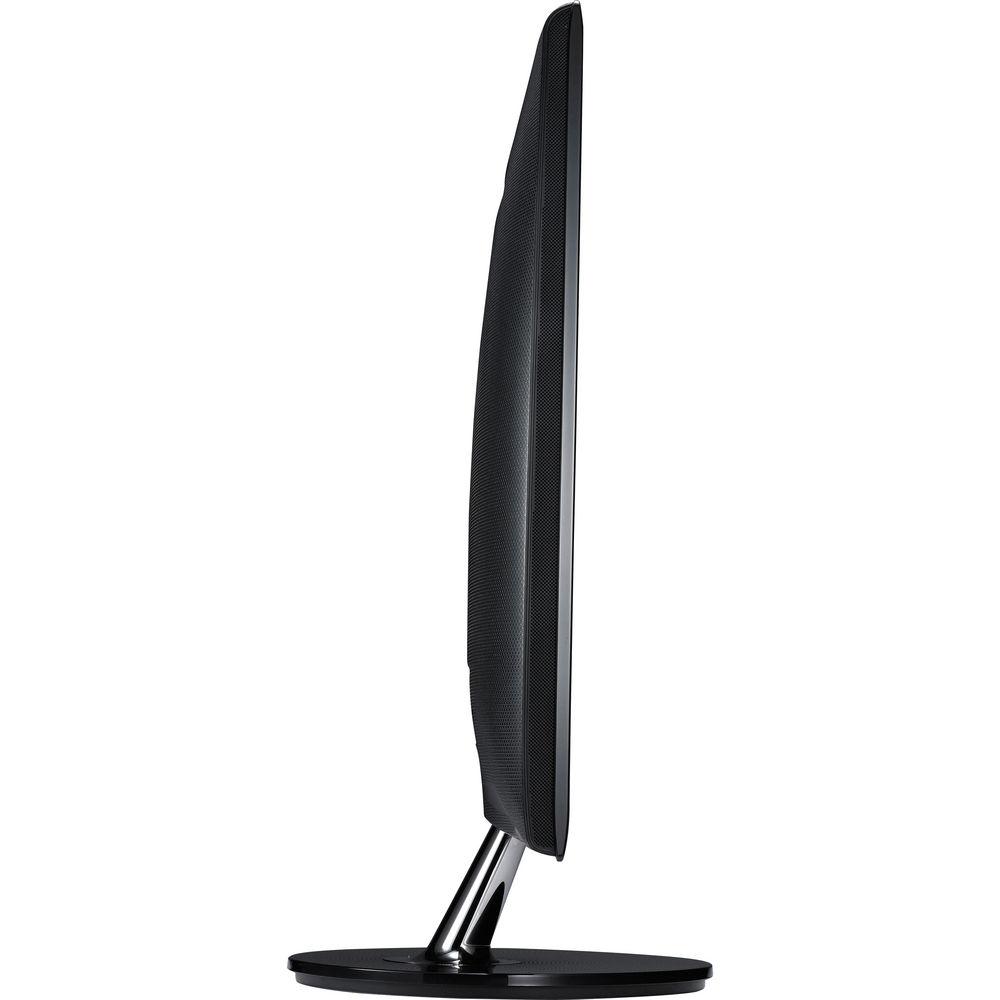

    • 25° (Forward 5°, Backwards 20°) Tilting Angle
    • KENSINGTON Security Lock
    Complete After-Sale Service
  • ASUS's limited warranty covers the display and panel for three years, and provides for free pick-up service in select countries.
    Rapid Replacement
  • Along with a 3 year warranty for the display panel and system, you get the complimentary ASUS Rapid Replacement service that covers free 2-way shipping and offers free cross-shipping that swaps any defective unit with a replacement.

Green in Mind

    Greener Materials
    • Mercury-free LED-backlit panel
    • Corrugated cardboard packaging with at least 80% recycled content
    • Slim-flat packaging allows more cartons to be fitted per cargo, reducing transportation costs and CO₂ emission
UPC: 610839380862 In the Box ASUS VS247H-P 23.6" LED Computer Display
  • DVI Cable
  • VGA Cable
  • Power Cord
  • Quick Start Guide
  • Rapid Replacement Service Warranty
  • Limited 1-Year North American Warranty (USA, Canada & Mexico)
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ASUS VS247H-P 23.6" LED Computer Display in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ASUS VS247H Specs

    Size 23.6"
    Touchscreen No
    Resolution 1920 x 1080
    Maximum Brightness 300 cd/m2
    Dynamic Contrast Ratio 50,000,000:1
    Adaptive Sync Technology None
    Horizontal Frequency 30 to 80 kHz
    Vertical Frequency 55 to 75 Hz
    Bit Depth / Color Support 8-Bit (16.7 Million Colors)
    Response Time 2 ms (GtG)
    Viewing Angle Horizontal: 170°
    Vertical: 160°
    Dot Pitch 0.272 x 0.272 mm
    Connectivity 1 x DVI-D
    1 x HDMI
    1 x VGA
    Power Consumption 0.5 W (Standby)
    33 W (Typical)
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Certifications ENERGY STAR, RoHS, WEEE, as per Manufacturer
    Tilt Adjustment -5 to 20°
    Mounting-Hole Pattern 100 x 100 mm
    Lock Slot Yes
    Dimensions (W x H x D) 21.1 x 16.2 x 7.9" / 56.2 x 41.1 x 20.0 cm
    Weight 9.7 lb / 4.4 kg
    Package Weight 12.0 lb
    Box Dimensions (LxWxH) 24.2 x 18.2 x 5.25"
