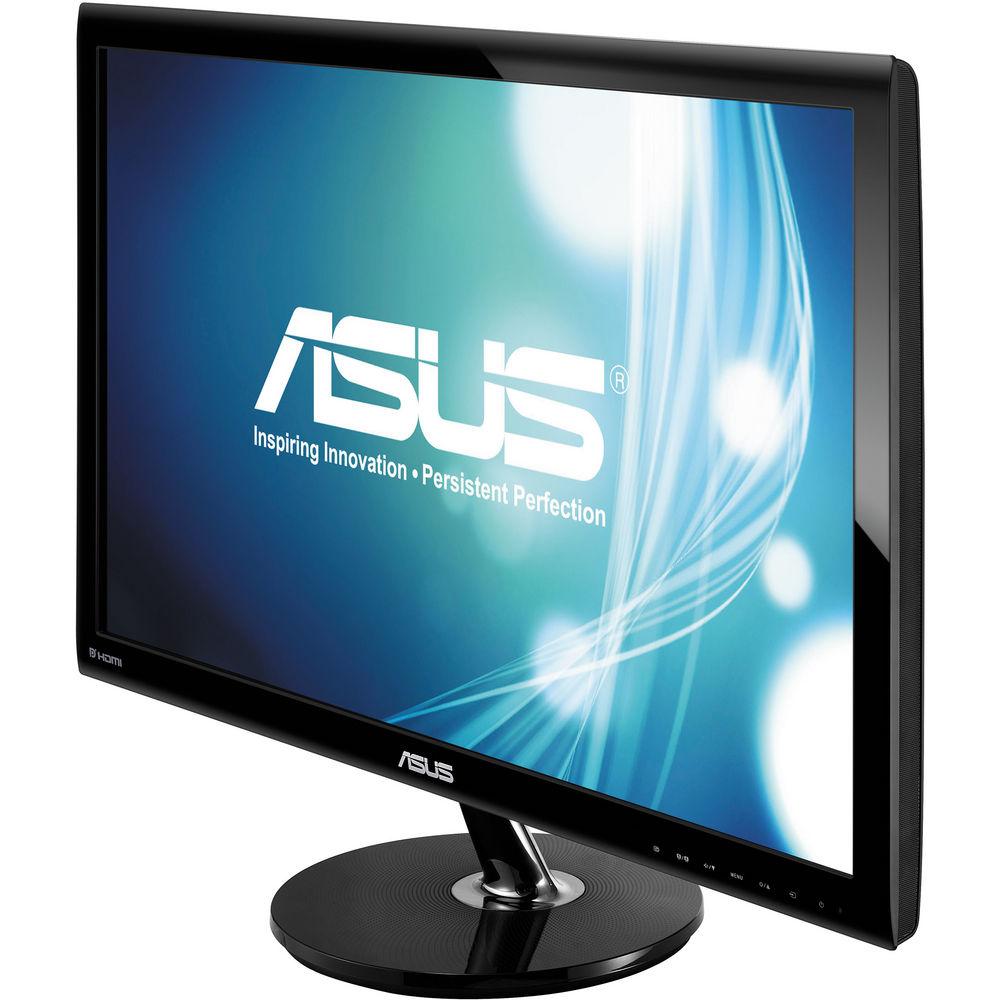

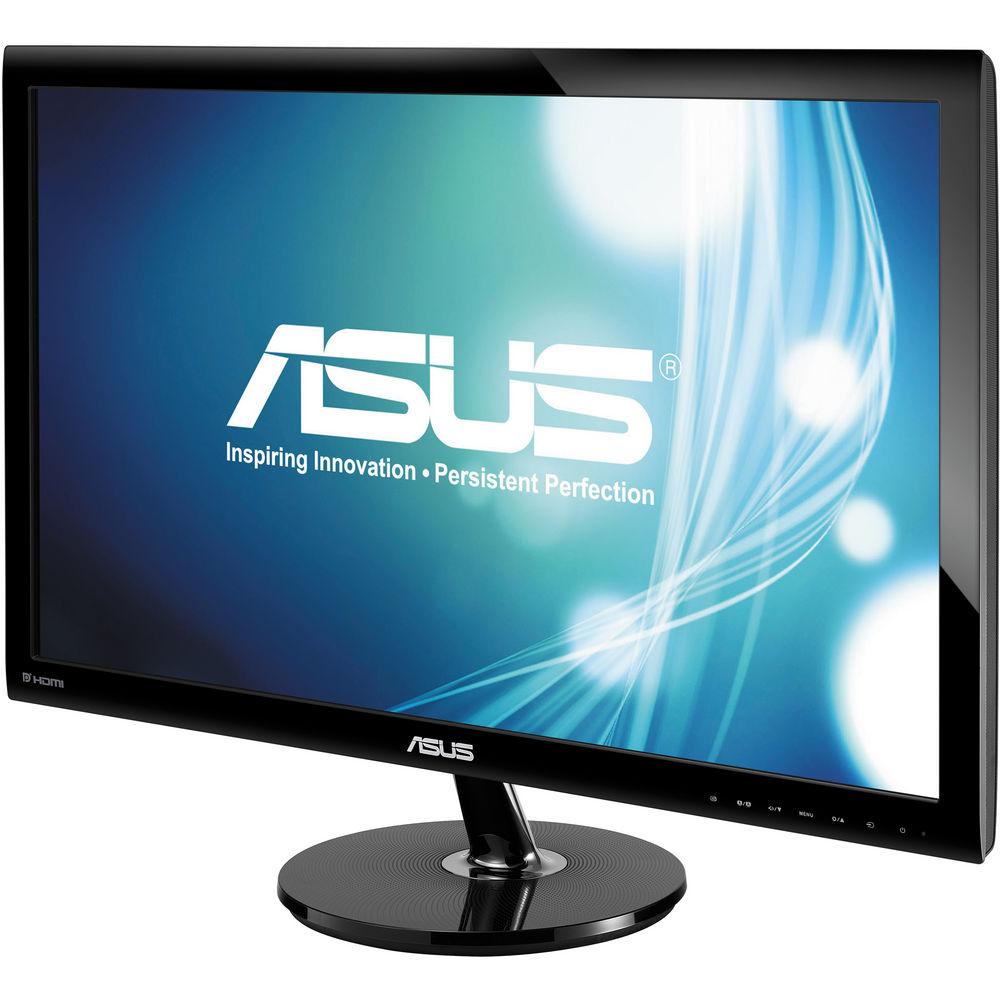

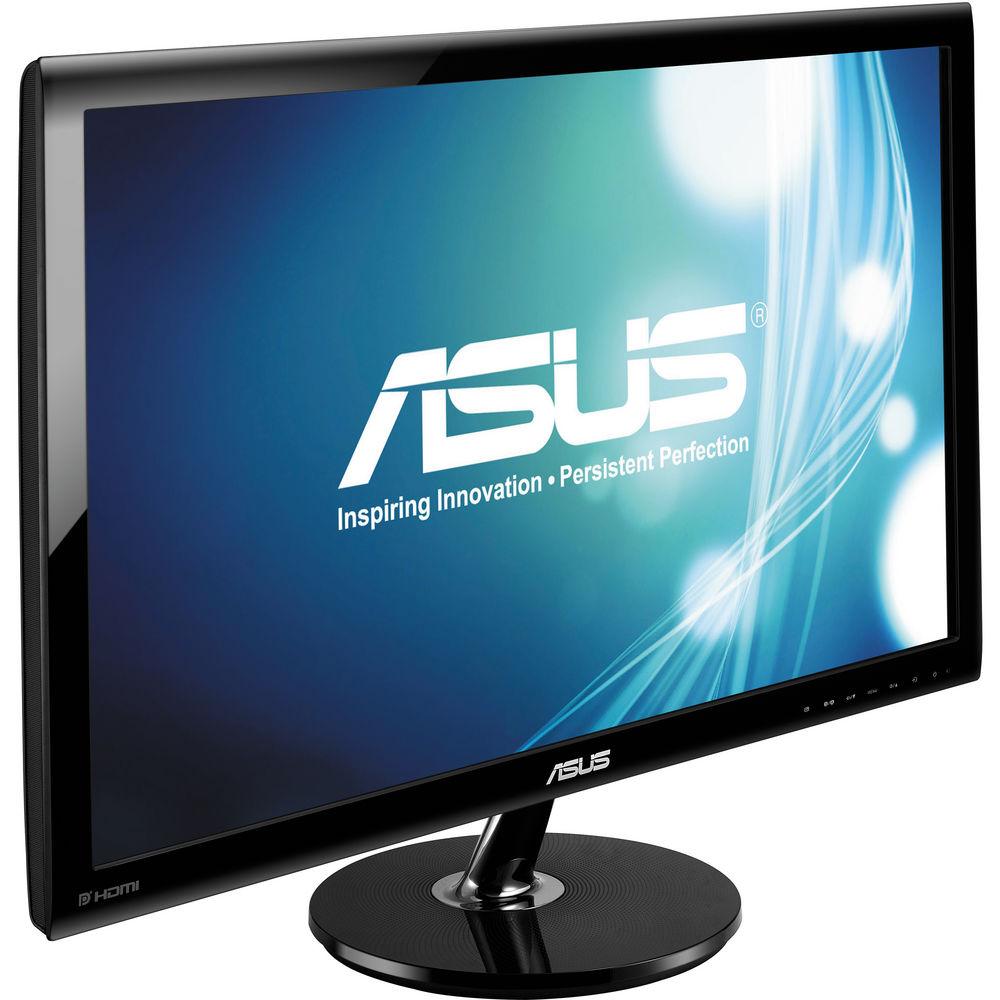

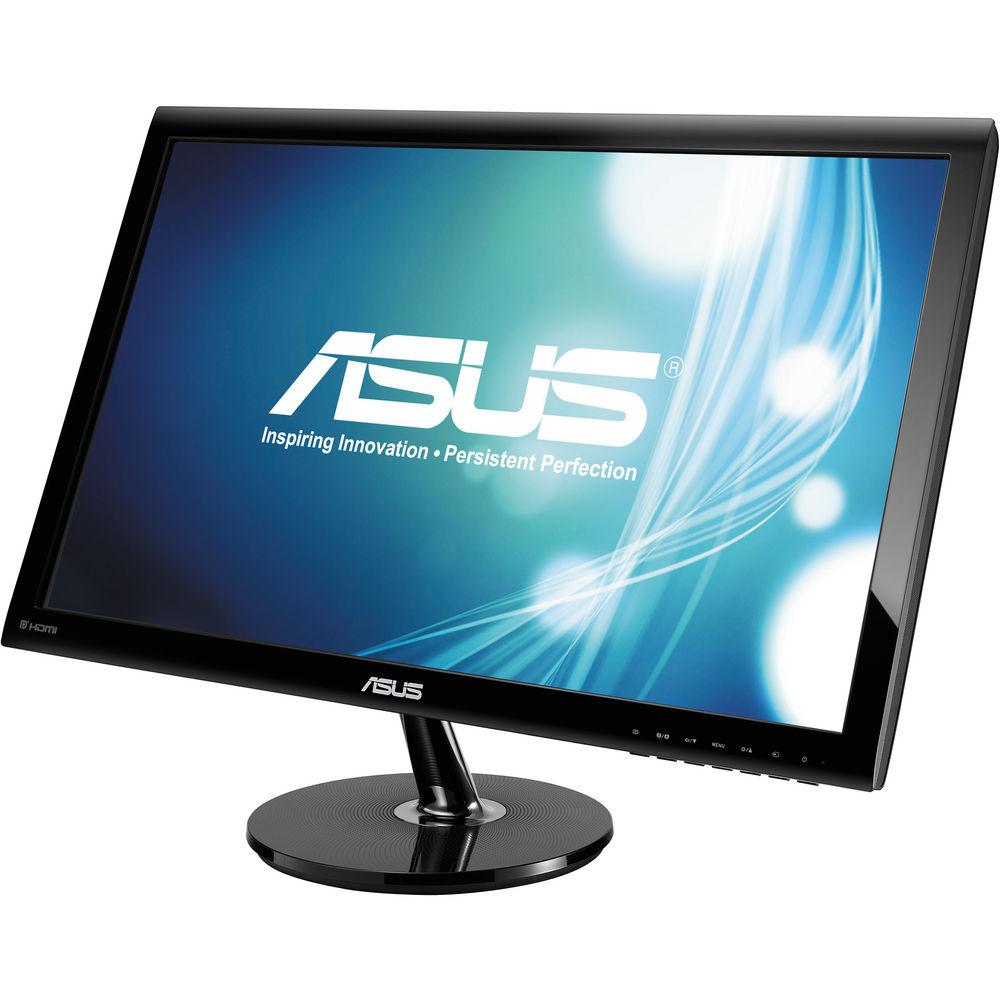

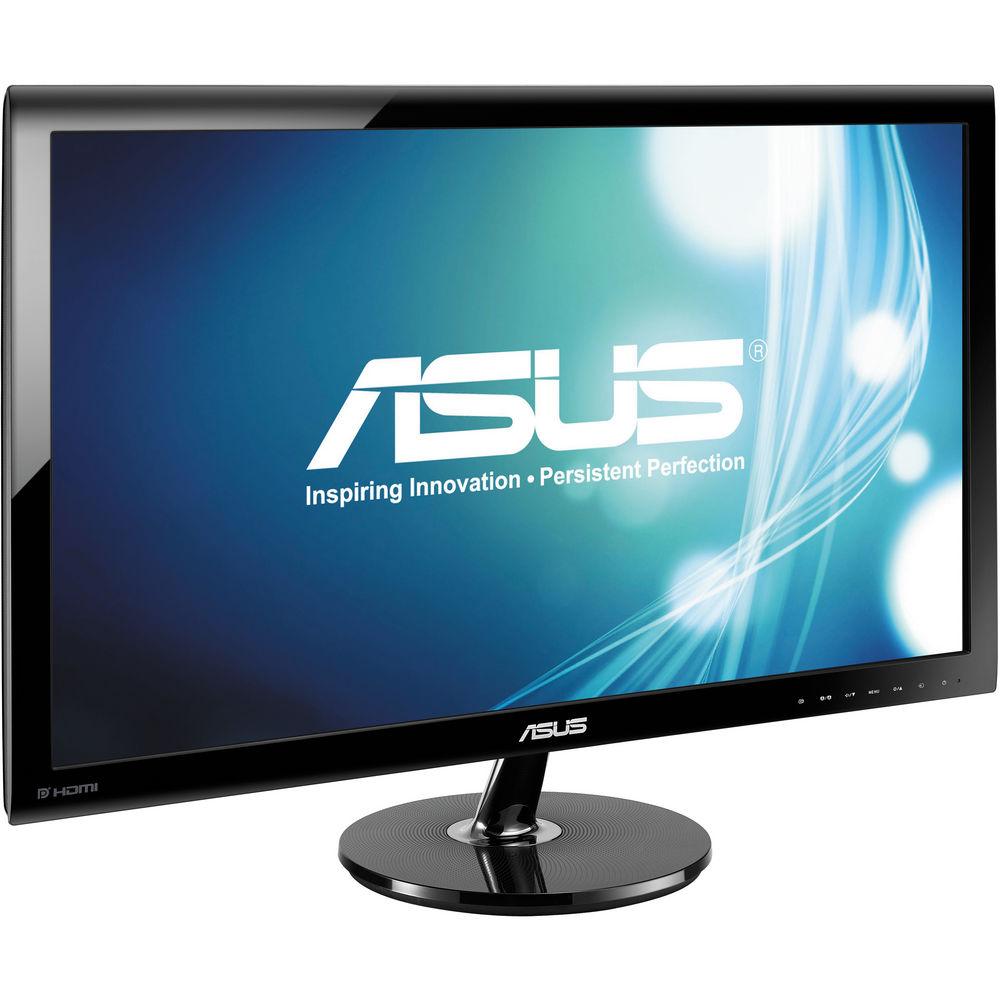

User Manual for ASUS VS278Q-P 27" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VS278Q-P 27" 16:9 LCD Monitor
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VS278Q-P 27" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description Which ASUS Monitor is Right for You? Read More The VS278Q-P 27" 16:9 LCD Monitor from ASUS features a 1920 x 1080 resolution and a 16:9 widescreen aspect ratio. The monitor's 16.7 million display colors provide high color fidelity, while its bright 300 cd/㎡ display and 80,000,000:1 smart contrast ratio provide easy viewing experience in any light without straining the eyes. The monitor features a -5 ~ 20° tilt so you can easily position it at an optimal viewing angle. Additionally, its 170° horizontal/160° vertical viewing angle facilitates viewing the screen from virtually anywhere in the room. The VS278Q-P LED Monitor also features dual HDMI, D-sub and DisplayPort interfaces. It provides an extremely quick 1 ms response time and thus eliminates ghosting and tracers for more fluid video playback. - Superior Image Quality Meets Classic Elegant Design
- The VS278Q-P LED Monitor features an unprecedented design, a fusion between the contrasts of gloss black and mat texture. Sleek texture with an expressly designed vortex pattern on the pedestal and the fingerprint-proof embossment at the back add versatility. The metallic stand delivers a sense of advanced and cosmopolitan chic.
- 80,000,000:1 ASUS Smart Contrast Ratio
- ASUS Smart Contrast Ratio dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white, delivering lifelike images.
- Full HD 1080p Support
- Enter a spectacular world of colors with full HD 1080p (1920 x 1080) support.
- 1 ms Response Time
- Quick response time of 1 ms (GTG) eliminates ghosting and tracers for more fluid video playback.
- Aspect Control Function
- Aspect control function allows you to select a preferred display mode among full and 4:3 for true-to-life gaming or movie watching without any data loss or image distortion.
- Extensive Connectivity and Built-in Stereo Speaker for Multimedia Enjoyment

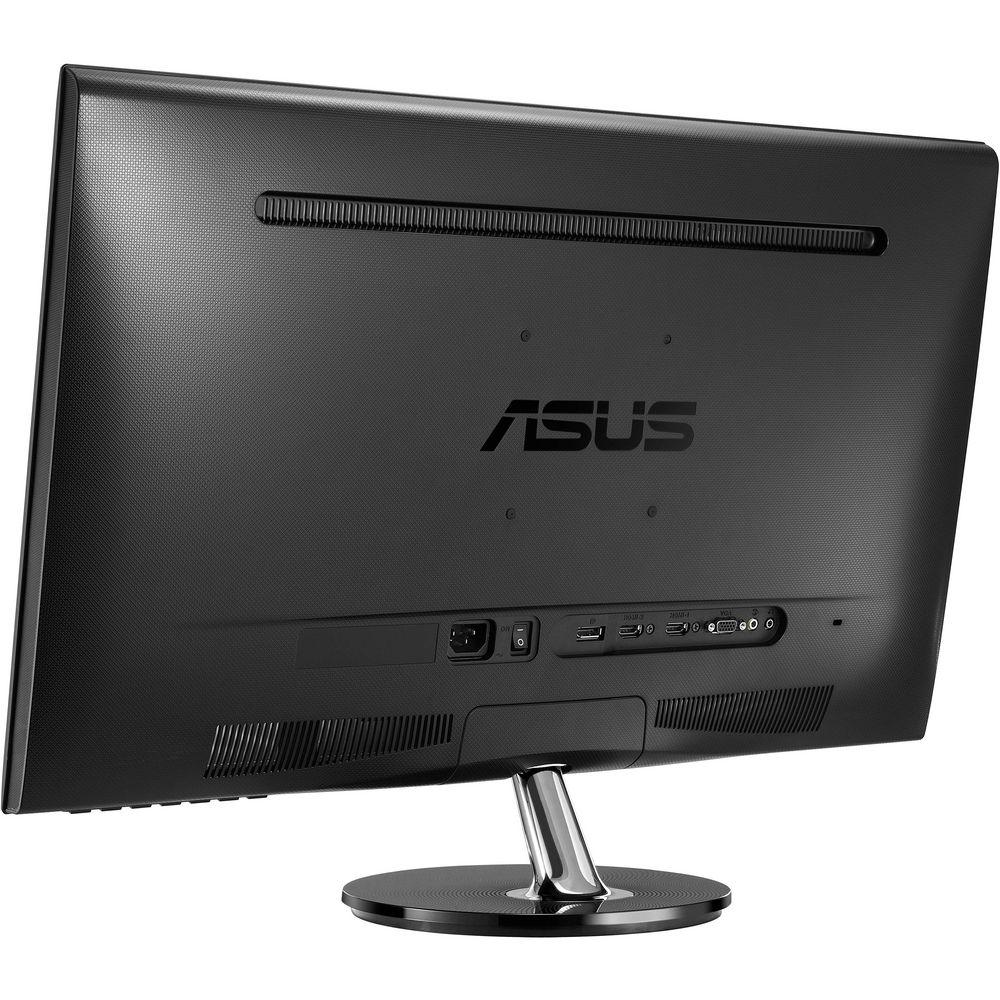

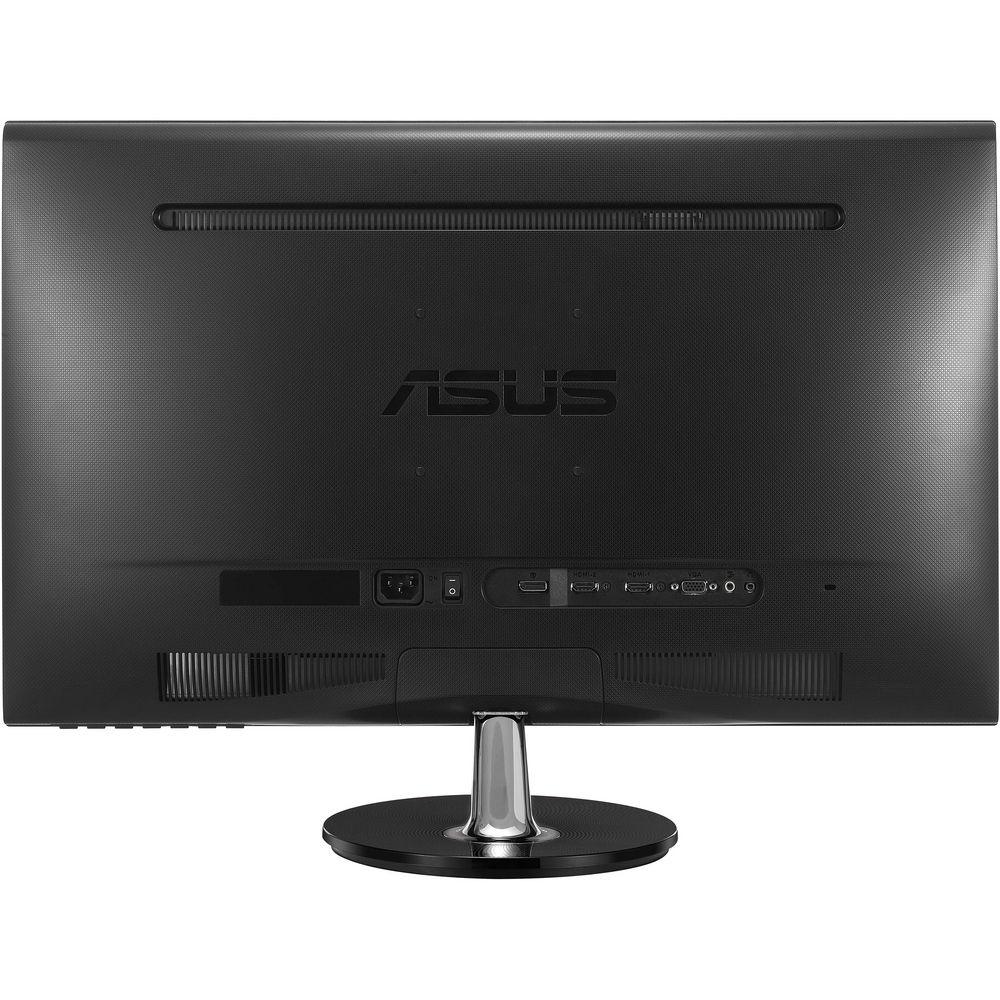

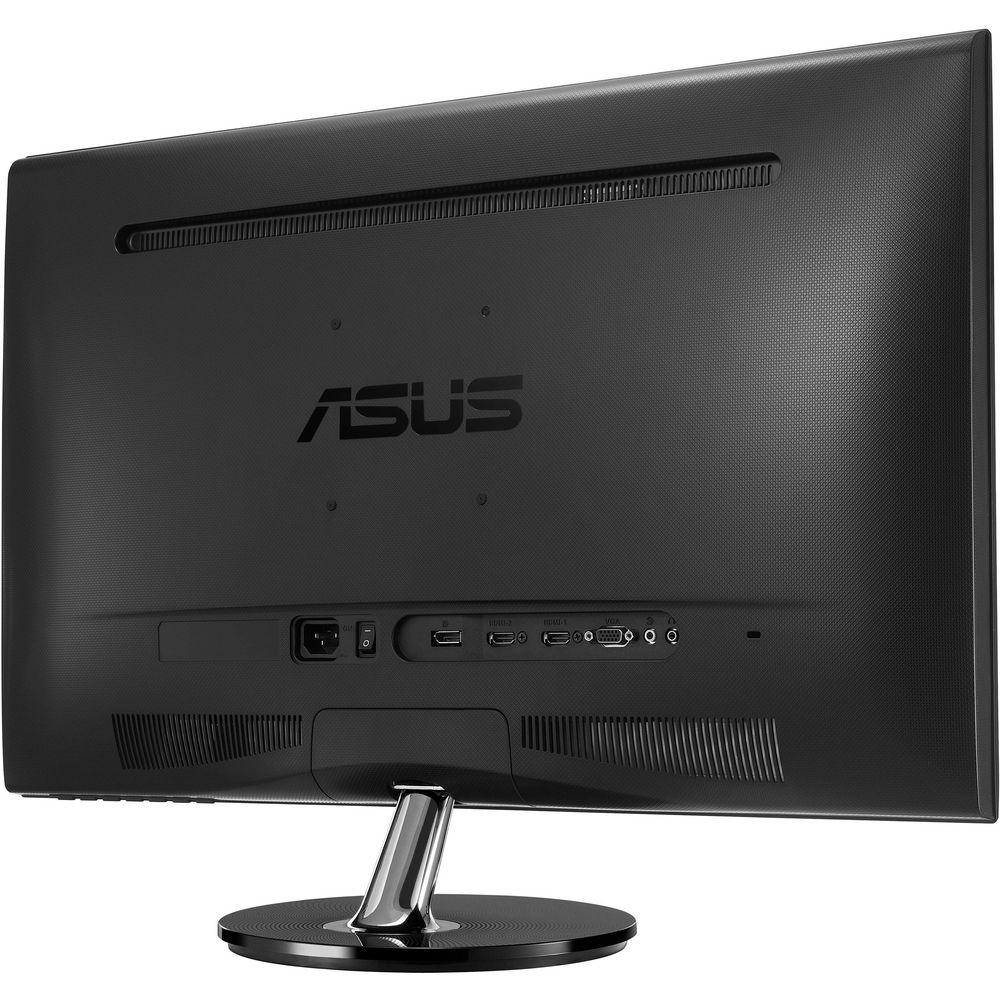

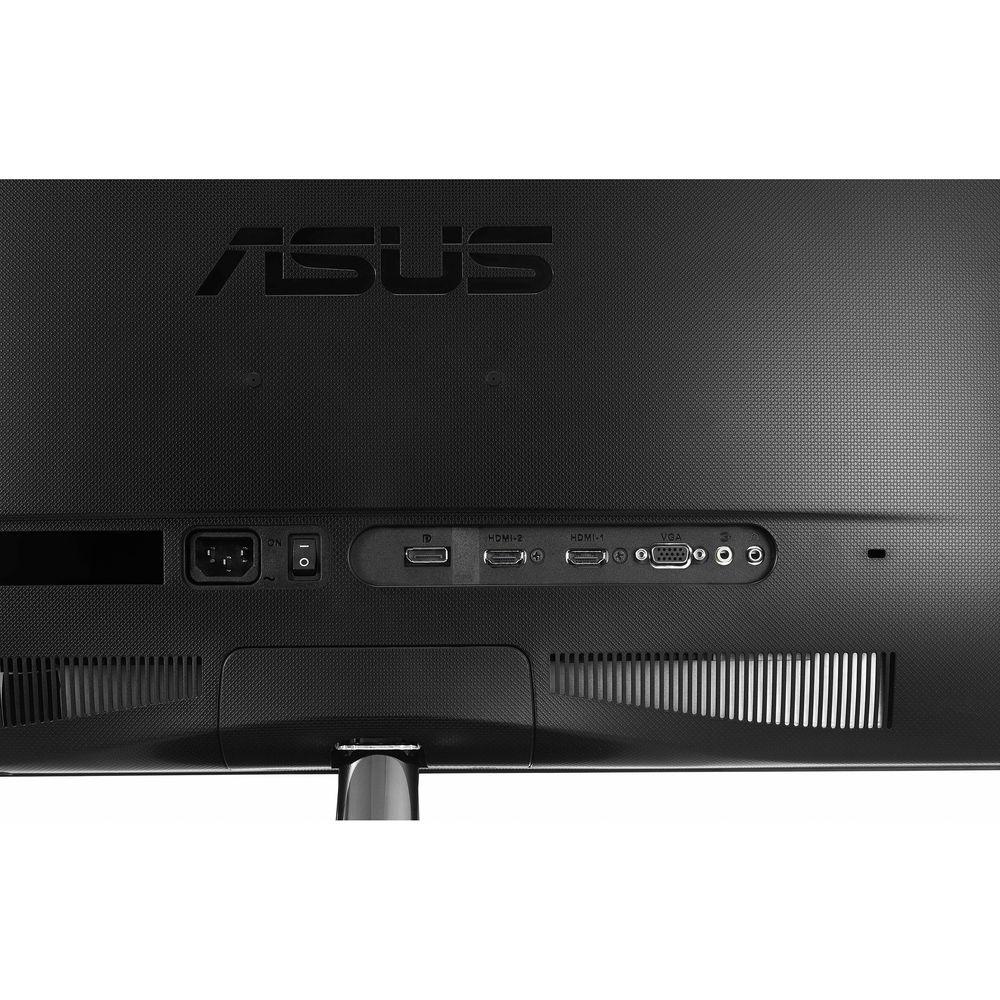

- The VS278Q-P LED Monitor comes with rich connectivity, including dual HDMI, DisplayPort and D-sub so that you can easily connect it to full HD Blu-ray disc players and myriad HD playback devices like DVD players and set-top boxes for limitless entertainment and multimedia enjoyment with the built-in stereo speakers.
- Splendid Video Intelligence Technology
- The exclusive Splendid Video Intelligence technology optimizes video performance and image fidelity by enhancing color, brightness, contrast and sharpness. The 6 preset video modes, including scenery, theater, game, night view, sRGB and standard can be selected via a hotkey.
- QuickFit Virtual Scale
- The ASUS-exclusive QuickFit built into the monitor provides real-size document, photo and grid modes on top of the operating windows on the screen. It can be activated via a hotkey on the monitor and used as a guide to accurately view and edit photos.
Supporting Formats:
Document: A4, letter
Photo: 8 x 10" (20.3 x 25.4cm), 5 x 7" (12.7 x 17.7cm), 4 x 6" (10.1 x 15.2cm), 3 x 5" (7.6 x 12.7cm), 2 x 2" (5 x 5cm)
Grid: Alignment - Stylish and User-Friendly Design for Modern Sophistication
- Convenient key controls for functional set-up in the multi-language OSD.
Easily detachable base for wall mount.
VESA wall mount standard 100 x 100mm.
25° (forward 5°, backwards 20°) tilting angle.
Kensington security lock. - Greener Materials
- The VS278Q-P LED Monitor features a mercury-free LED-backlit panel.
- ASUS Rapid Replacement Service
- The VS278Q-P LED Monitor comes with complimentary ASUS Rapid Replacement service that covers free 2-way shipping and offers free cross-shipping that swaps any defective unit with a replacement.
UPC: 886227177738 In the Box ASUS VS278Q-P 27" 16:9 LCD Monitor VGA Cable Audio Cable Power Cord HDMI-to-DVI Cable ASUS Rapid Replacement Service Limited 3-Year Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 Users Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VS278Q-P 27" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VS278Q-P Specs | | | Size | 27" | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 80,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 50 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 1 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.311 x 0.311 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DisplayPort Input
2 x HDMI
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 0.5 W (Standby)
45 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 25.3 x 17.5 x 0.2" / 64.3 x 44.5 x 0.6 mm (Without Stand)
25.5 x 18.5 x 2.0" / 64.9 x 47.0 x 5.0 mm (With Stand) | | Weight | 11.2 lb / 5.1 kg | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 29.0 x 21.0 x 7.0" |
