User Manual for ASUS VW199T-P 19" LED Backlit Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VW199T-P 19" LED Backlit Monitor
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VW199T-P 19" LED Backlit Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

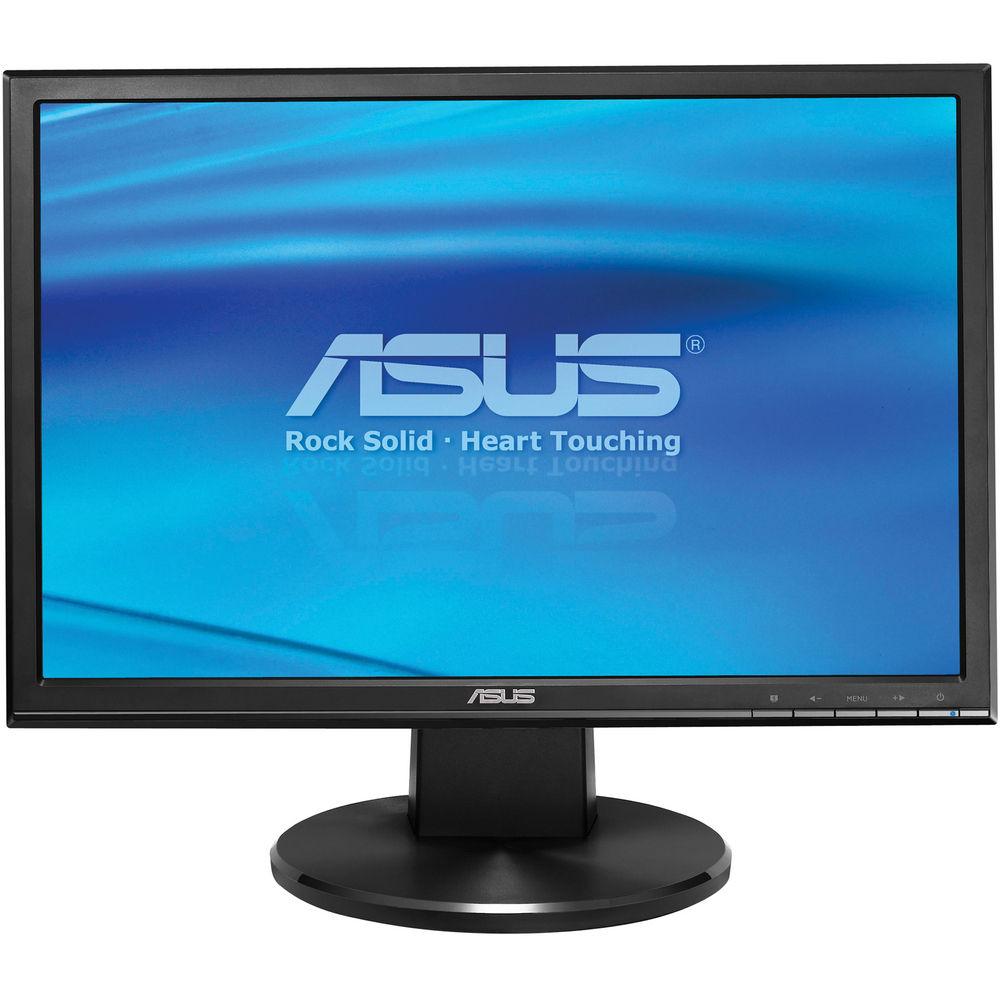

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More cyxzxzuw The VW199T-P 19" LED Backlit Monitor from ASUS is a wide-screen computer monitor designed for high-performance and energy efficiency. The monitor features two stereo speakers for playing computer audio and has VGA and DVI input ports for connecting to your computer. The monitor supports HDCP with DVI.
The monitor has a native resolution of 1440 x 900. Plus, you can switch between its full aspect ratio to 4:3, depending on whether or not you want to play games or watch movies for instance.The display features a 10,000,000:1 dynamic contrast ratio, 170°/160° viewing angles, 250cd/m² brightness, and support for 16.7 million colors.

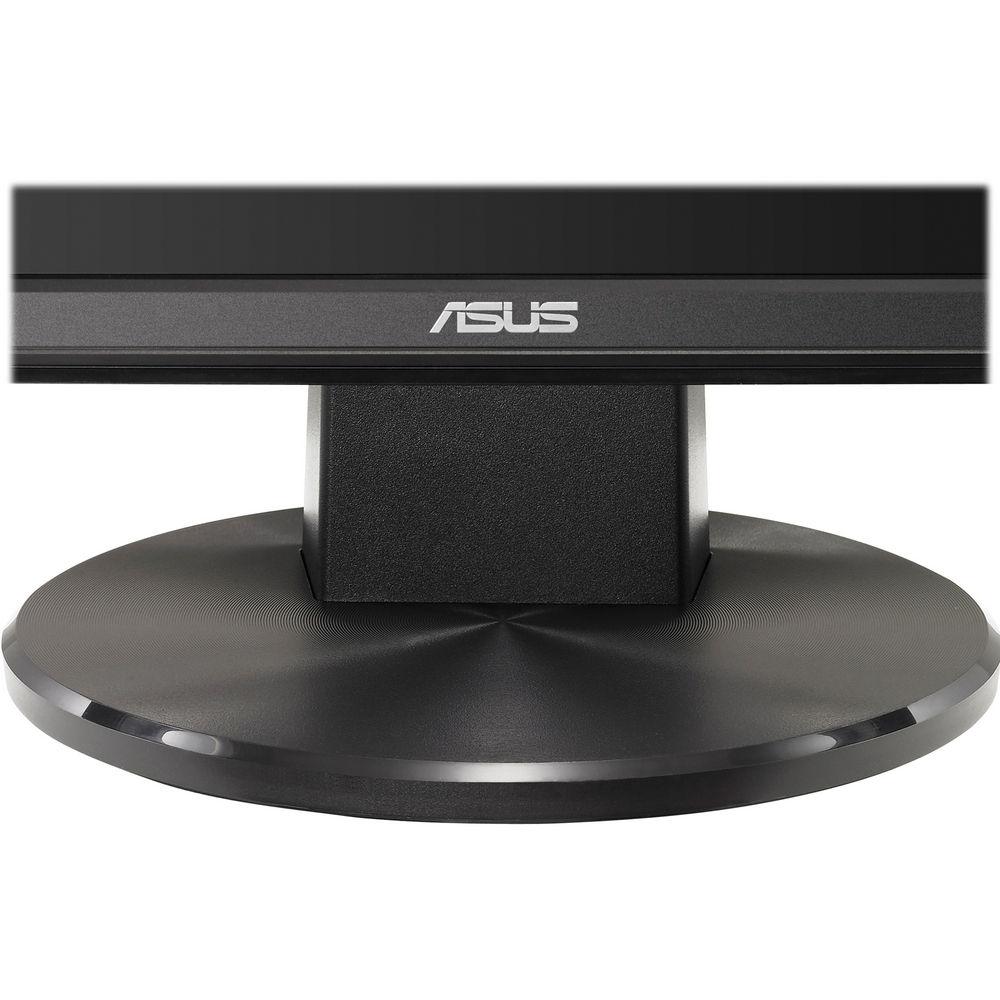

The monitor's desktop stand supports tilt adjustment, and you have the option of mounting the display to a wall thanks to its standard VESA 100mm mounting pattern. It can also be secured via a standard Kensington security lock. - 10,000,000:1 ASUS Smart Contrast Ratio
- Dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white - delivering lifelike images.
- Excellent Visual Performance
- ·Indulge your visual senses with 1440 x 900 resolution and 5ms quick response time for work and entertainment.
·The best dual-display companion with your widescreen notebook enlarges the visual space for multi-tasking efficiency.
·Dual inputs of D-sub and DVI with HDCP support.
·Aspect Control function allows you to select between the full aspect ratio and 4:3 without any data loss or image distortion. This feature is great for changing the size of your screen for different applications, such as games or movies. - Splendid Video Intelligence Technology
- The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 5 preset video modes (Scenery, Theater, Game, Night View, and Standard) can be selected via a hotkey.
- User-friendly Design
- ·Built-in hidden stereo speakers enable audio enjoyment together with true-to-life visuals.

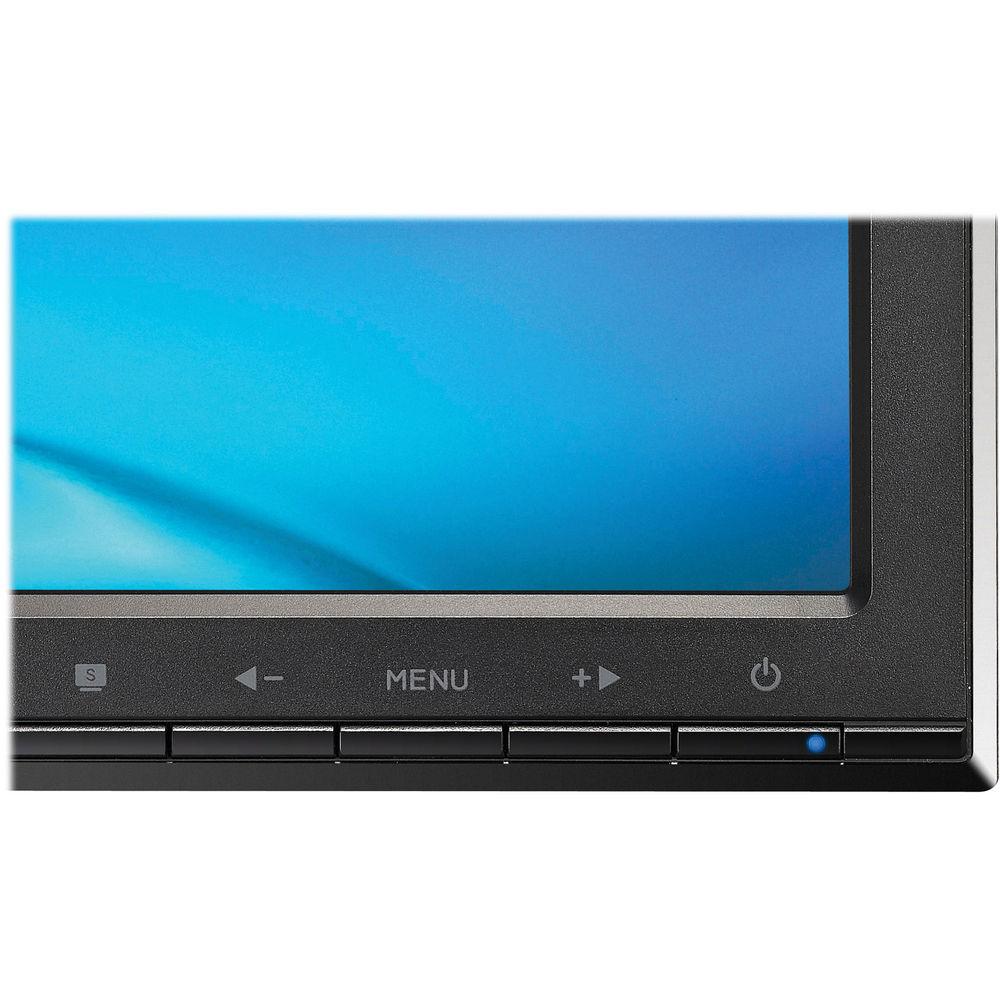

·Convenient key controls for functional set-up in the multi-language OSD.

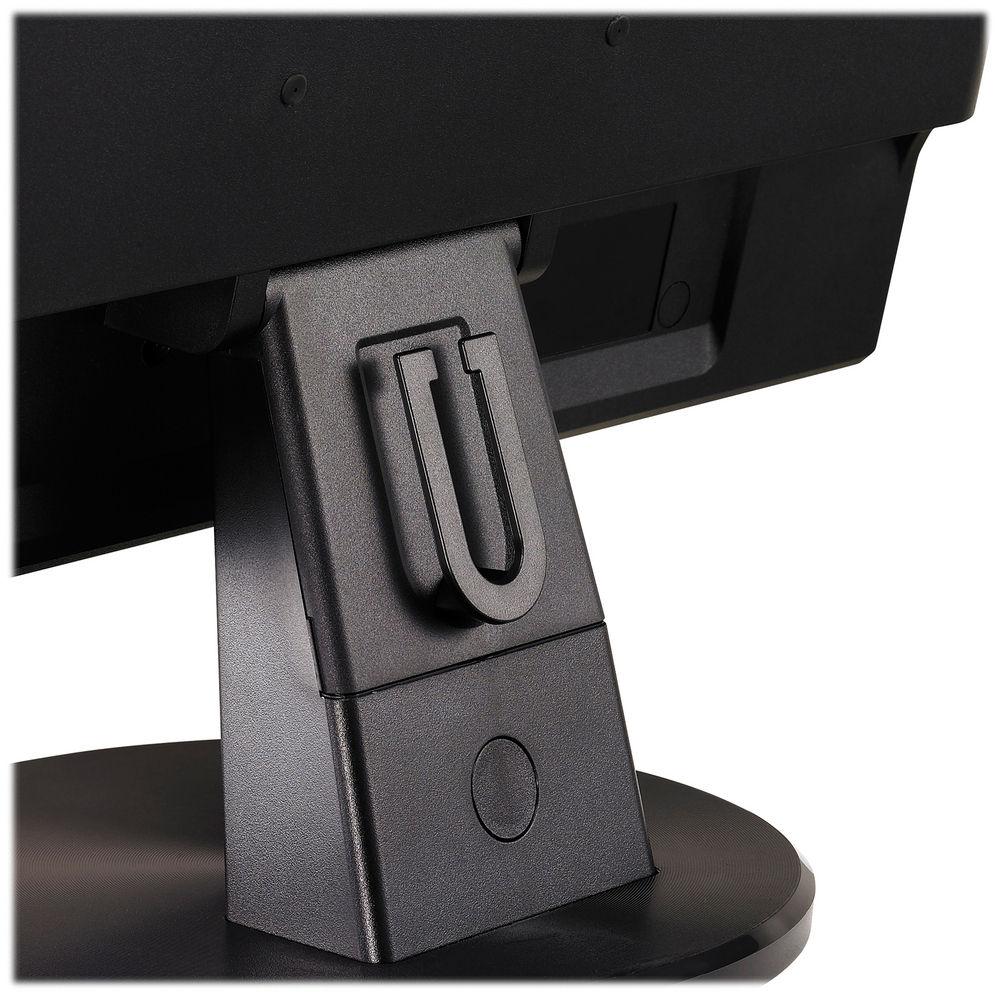

·Cable manager gets rid of tangling cables and wires.

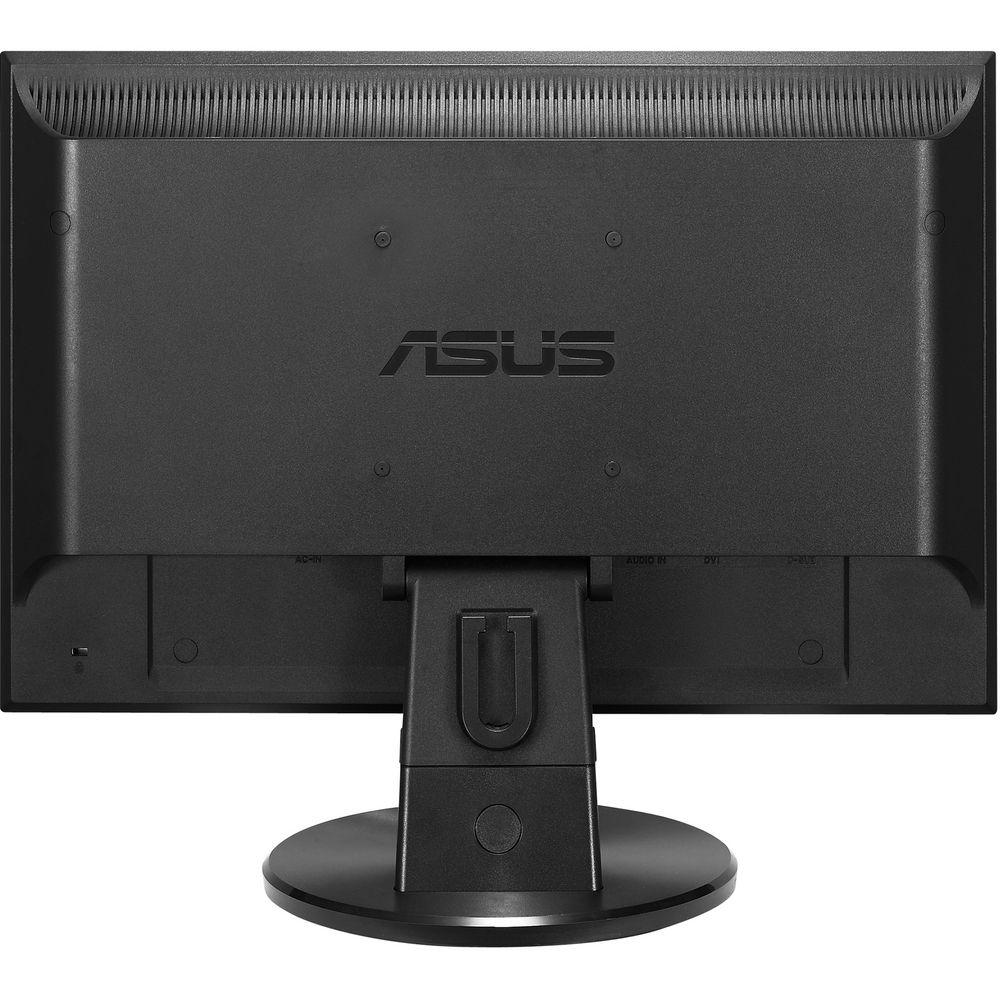

·VESA Wall Mount Standard (100 x 100 mm).
·25° Tilting Angle (forward 5°, backwards 20°).
· KENSINGTON Security Lock. - Greener Materials
- ·The LED backlit panel is mercury-free.
·Slim-flat packaging allows for more cartons to be fit per cargo, reducing transportation costs and CO₂ emission.
·The monitor is packaged in corrugated cardboard that is made up of at least 80% recycled content. UPC: 610839350759 In the Box ASUS VW199T-P 19" LED Backlit Monitor VGA Cable Audio Cable Power Cord Quick Start Guide Support CD Limited 1-Year North American Warranty (USA, Canada & Mexico) cyxzxzuw Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VW199T-P 19" LED Backlit Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VW199T-P Specs | | | Size | 19" | | Touchscreen | No | | Resolution | 1440 x 900 | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 10,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 80 kHz | | Vertical Frequency | 55 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.2835 x 0.2835 mm | | | | Connectivity | 1 x 3.5 mm Input
1 x DVI
1 x VGA | | Built-In Speakers | Yes, 2 | | | | Power Consumption | 0.1 W (Standby)
27 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, TCO Certified, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 17.5 x 14.3 x 8.3" / 44.4 x 36.4 x 21.0 cm | | Weight | 9.3 lb / 4.2 kg | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 19.4 x 16.2 x 5.4" |
