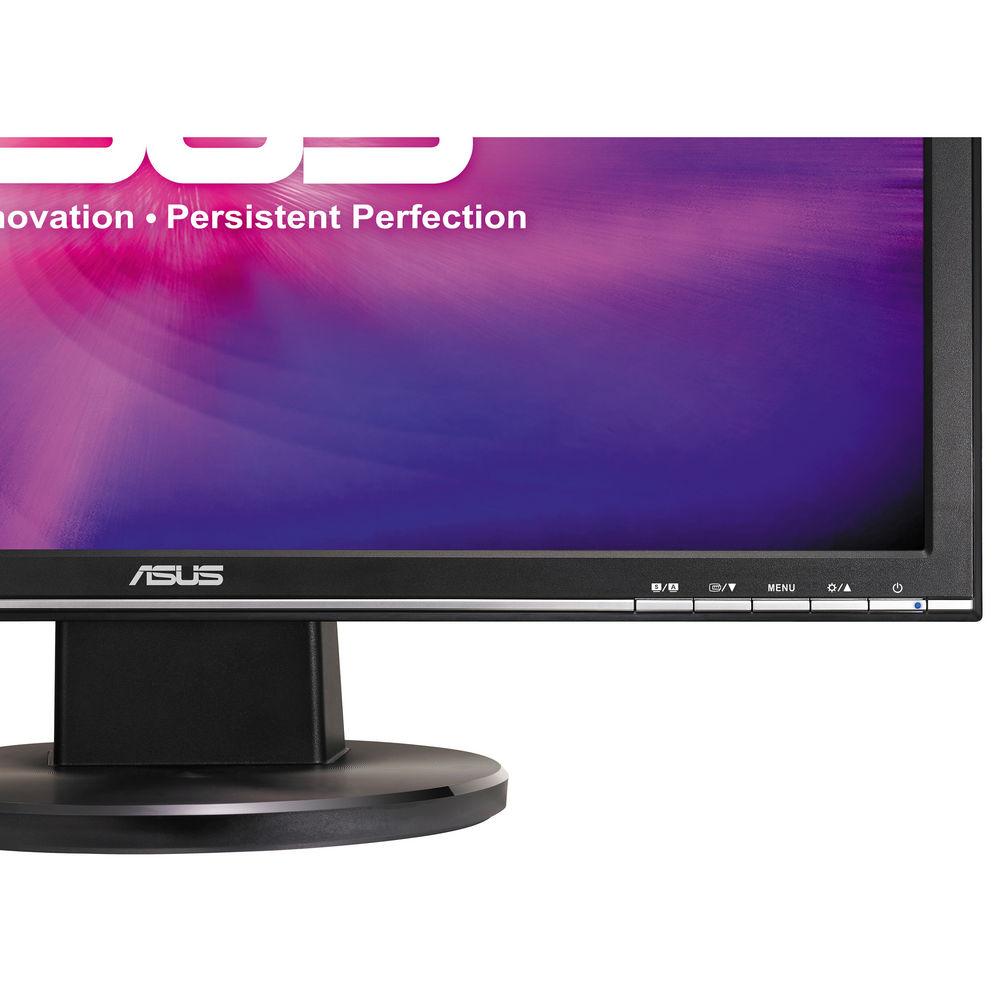

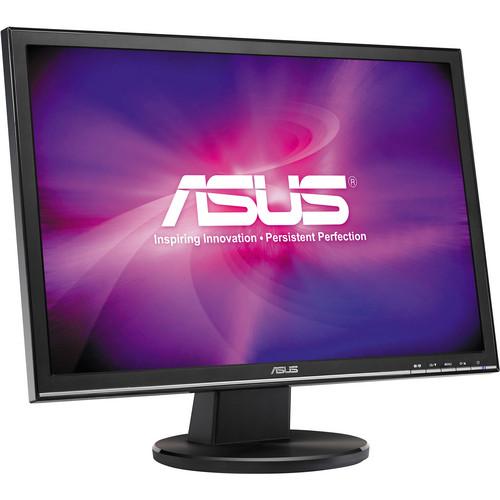

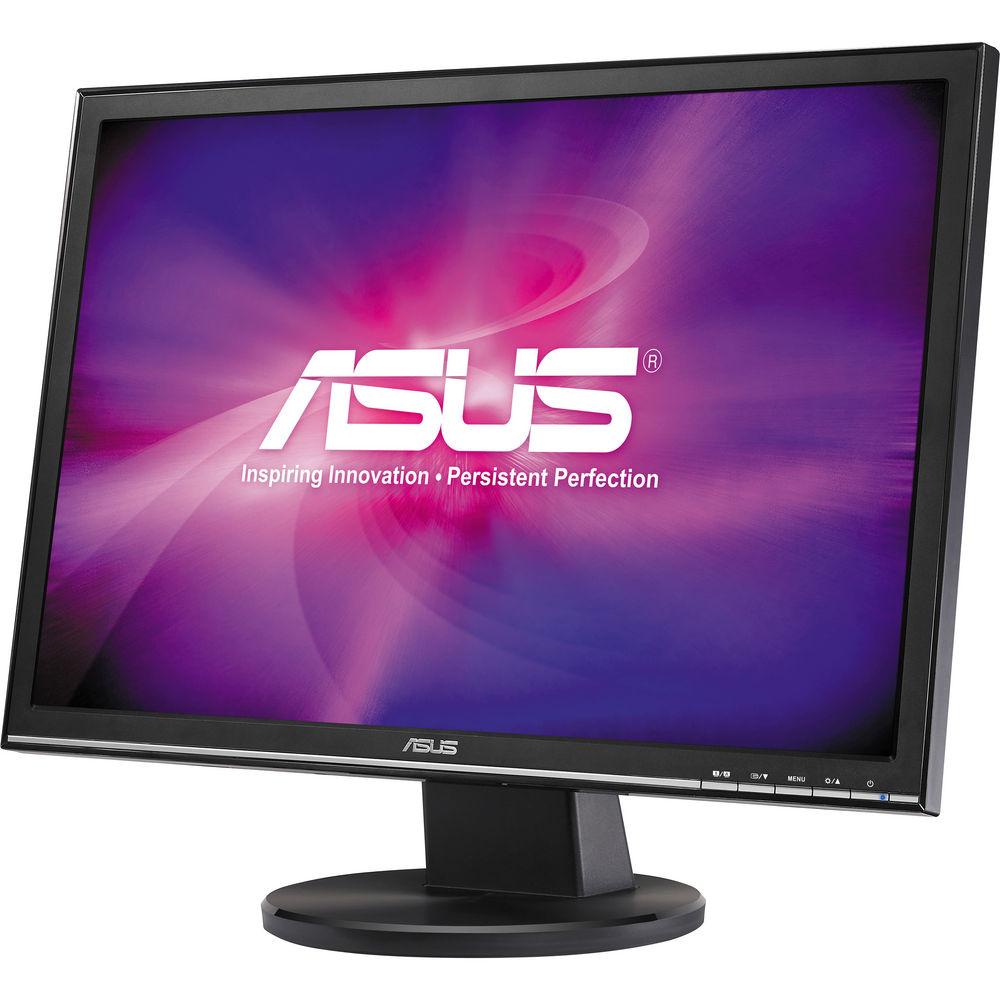

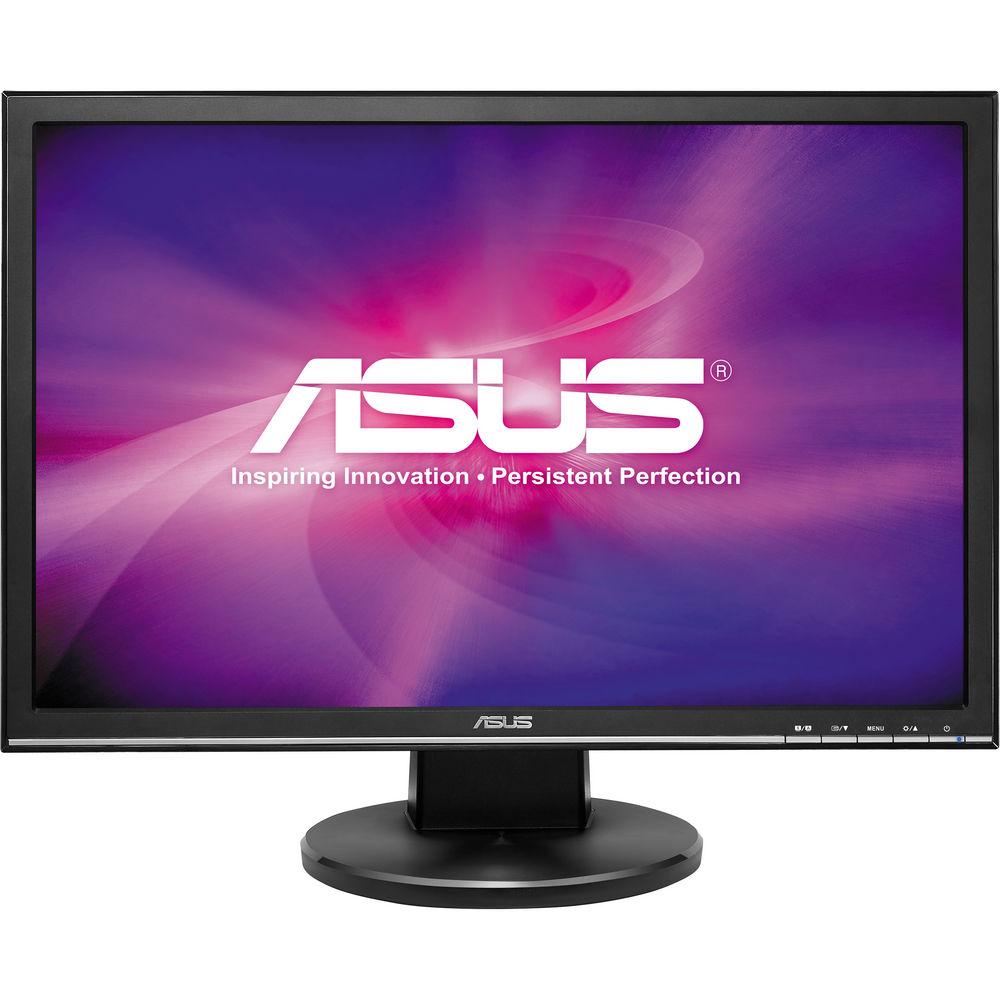

User Manual for ASUS VW22AT-CSM 22" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VW22AT-CSM 22" Widescreen LED Backlit
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VW22AT-CSM 22" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More bbcedyzr With a 1680 x 1050 resolution, the VW22AT-CSM 22" Widescreen LED Backlit LCD Monitor from ASUS provides a clear picture great for viewing movies, photos, videos, and more. You also benefit from a 5ms response time designed to reduce ghosting and blur when viewing fast moving video clips. ASUS has included their own SPLENDID Video Intelligence Technology into this display offering six video preset modes, three skin-tone selection modes, four color temperature selection modes, and a QuickFit mode. Each of these modes are selectable via the dedicated convenient hotkey for easy configuration. ASUS has also built-in two 1 watt stereo speakers right into the housing of the monitor for a complete multimedia experience. - 50,000,000:1 ASUS Smart Contrast Ratio
- Dynamically enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest whites.
- QuickFit Virtual Scale
- The QuickFit Virtual Scale built into the monitor provides Real-Size, Photo, and Grid Modes on-screen; these modes can be activated via a hotkey and used as guides to accurately view and edit photos.
- Aspect Control Function
- It allows users to select a preferred display mode among full and 4:3 for true-to-life gaming or movie watching without any data loss or image distortion.
- Splendid Video Intelligence Technology
- The Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 6 preset video modes (Scenery, Theater, Game, Night View, sRGB, and Standard) can be selected via a hotkey.
- Stylish and User-Friendly Design
- Convenient key controls for functional set-up in the multi-language OSDBuilt-in hidden stereo speakers for multimedia enjoymentCable manager gets rid of tangled cables and wiresEasily detachable base for wall mountVESA Wall Mount Standard (100 x 100 mm)25° (forward 5°, backwards 20°) tilting angleKensington security lock
- Greener Materials
- Mercury-free LED-backlit panel
- Convenient Hotkey
- Splendid Video Preset Mode selectionAuto / Brightness / Volume adjustmentQuickFit
UPC: 886227152780 In the Box ASUS VW22AT-CSM 22" Widescreen LED Backlit LCD Monitor DVI Cable VGA Cable Audio Cable Power Cord Limited 3-Year Warranty Users Manual PDF 1.6mbbbcedyzr Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VW22AT-CSM 22" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VW22AT Specs | | | Size | 22" | | Touchscreen | No | | Resolution | 1680 x 1050 | | Maximum Brightness | 250 cd/m2 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 31 to 83 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.282 x 0.282 mm | | | | Connectivity | 1 x 3.5 mm Input
1 x DVI-D
1 x VGA | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 0.5 W (Standby)
33 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | ENERGY STAR, RoHS, TCO Certified, WEEE, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.2 x 16.0 x 8.3" / 51.4 x 40.6 x 21.0 mm (With Stand)
20.2 x 13.4 x 2.5" / 51.4 x 34.1 x 6.3 mm (Without Stand) | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 23.0 x 18.0 x 5.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
