User Manual for ASUS VZ239H-W 23" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VZ239H-W 23" 16:9 IPS Monitor
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VZ239H-W 23" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

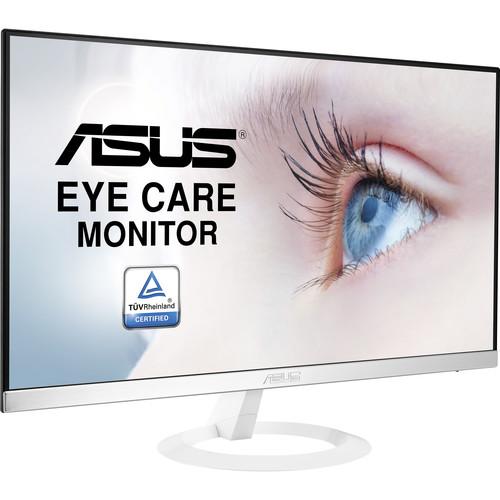

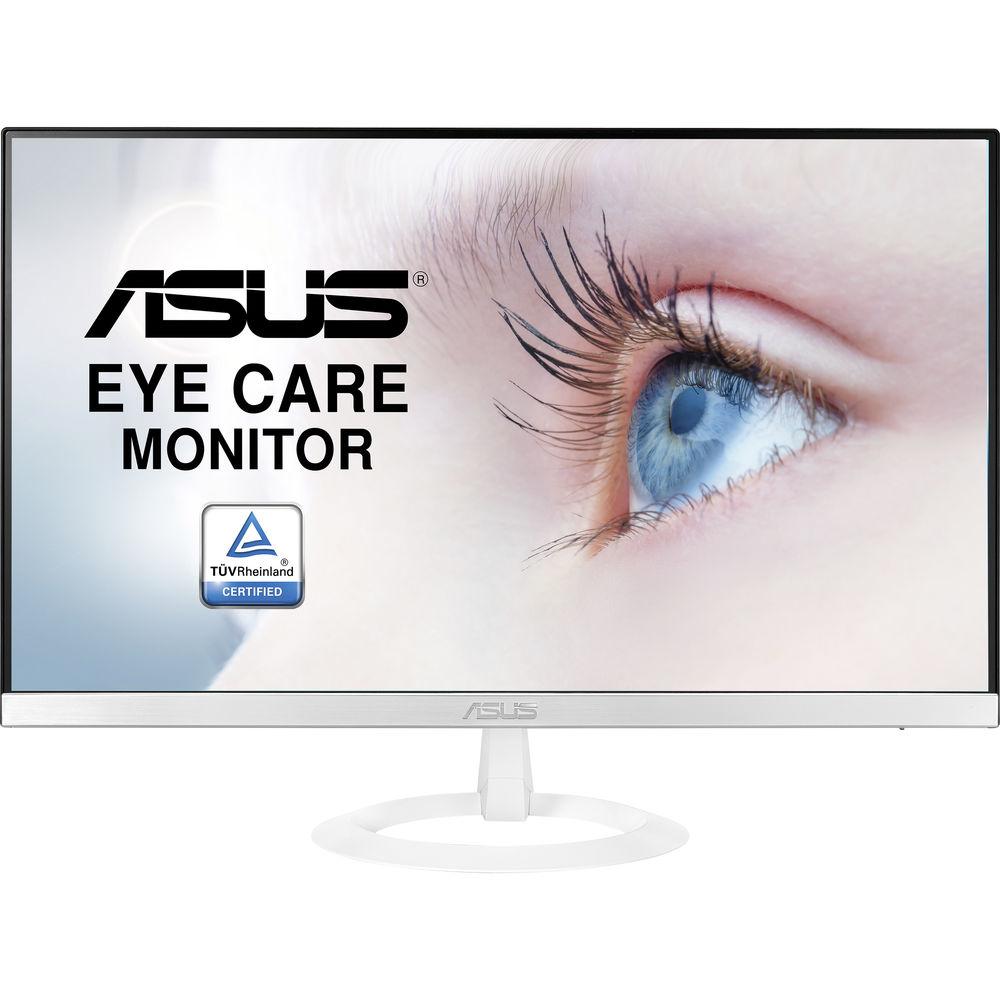

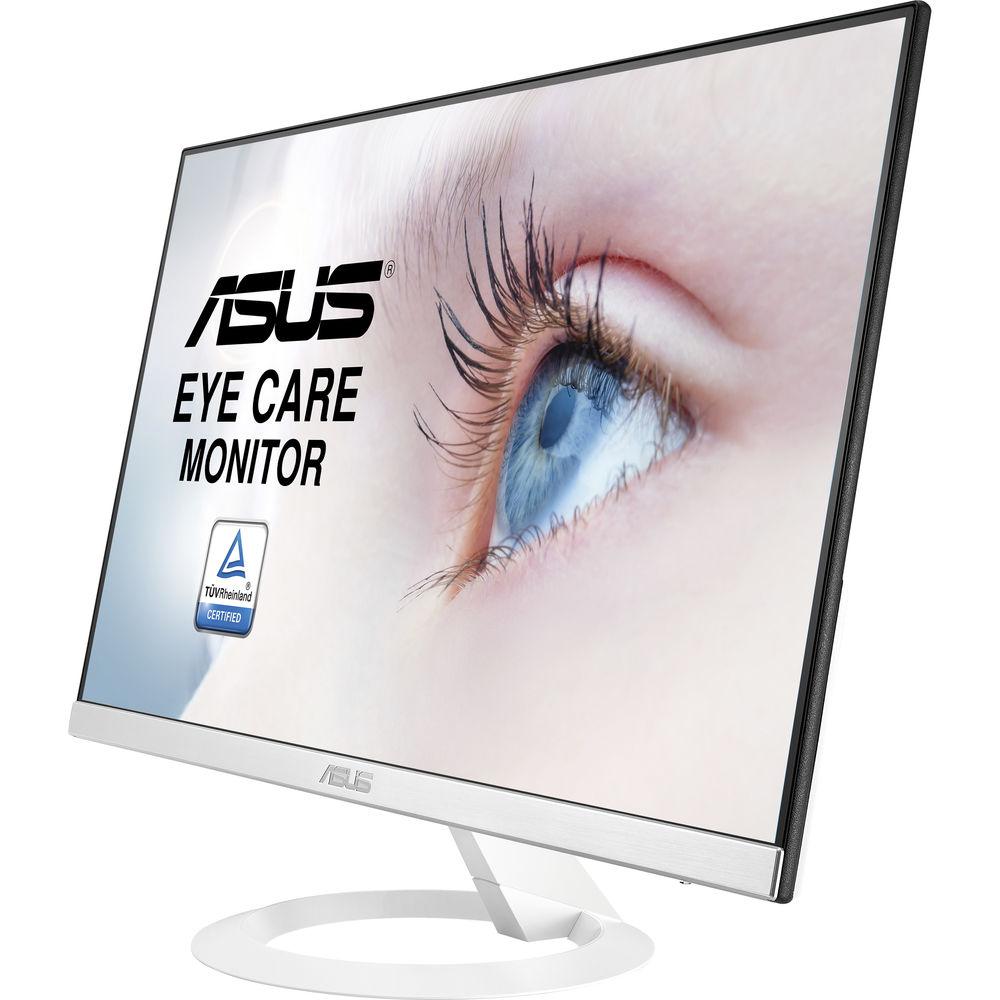

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an ultra-slim profile and reduced-size bezel, the VZ239H-W 23" 16:9 IPS Monitor from ASUS takes up less space on your desktop and can be used in multi-monitor setups. Whether using the VZ239H-W monitor by itself or with other displays it offers a Full HD resolution of 1920 x 1080, an ASUS Smart Contrast Ratio of 80,000,000:1, and a 5 ms response time to offer a crisp, clear picture quality with reduced ghosting.
Built in to the ASUS VZ239H-W display are a variety of video features designed to further enhance your viewing experience. With SPLENDID Video Preset Modes, you can choose from 8 viewing modes designed to accommodate the content being viewed on the screen as well as 4 color temperature selection modes. You can even utilize the GamePlus mode, which supports crosshair/timer mode for an enhanced gaming experience. ASUS even takes into consideration eye comfort with their Eye Care technology features, which includes both a low blue light filter and Flicker-free technology.

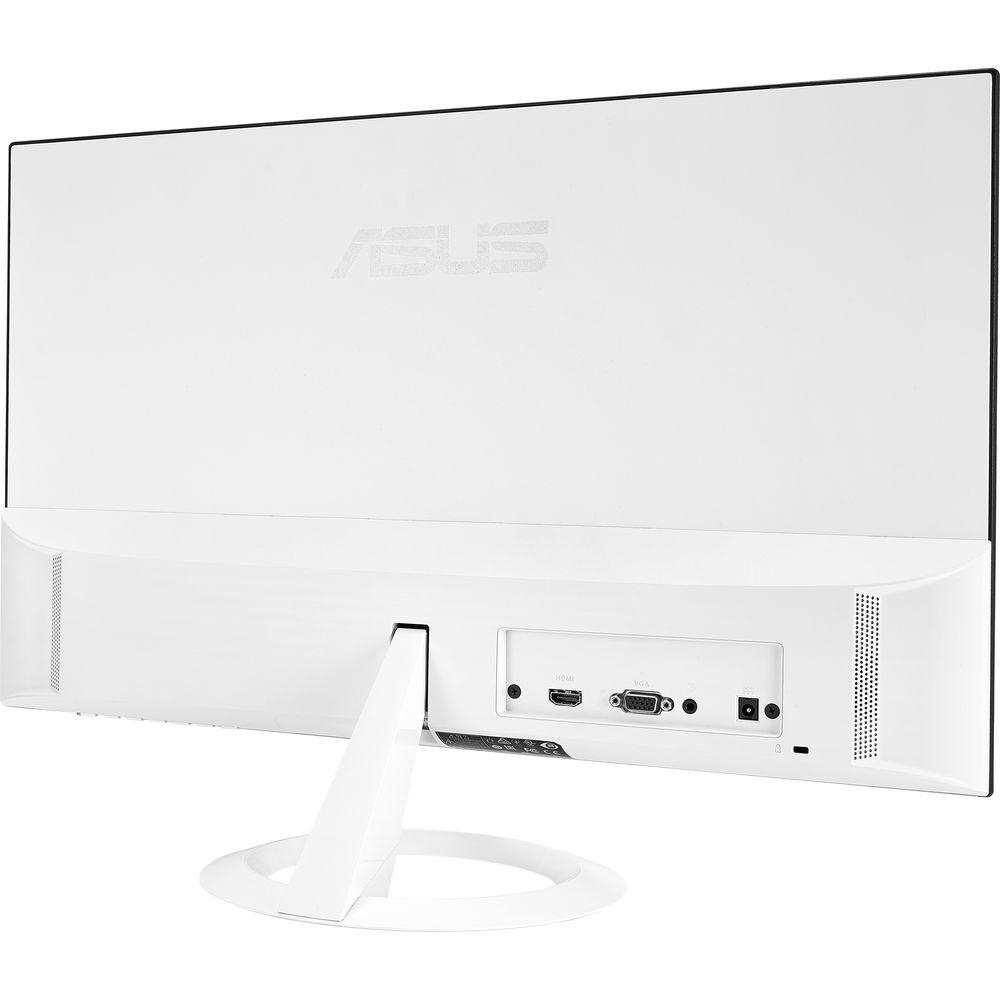

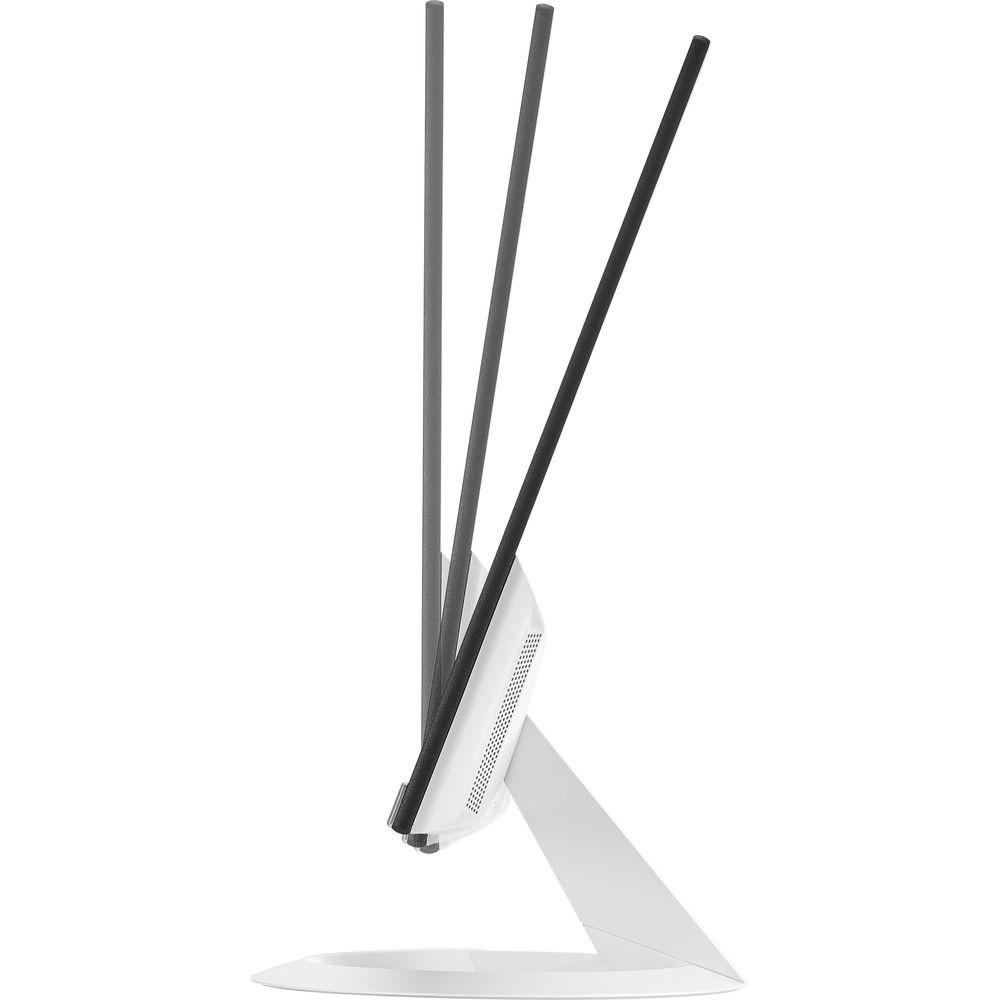

Setup and configuration of the VZ239H-W display is simple as it comes equipped with HDMI and D-Sub inputs. For audio playback, users can choose to utilize the dual 1.5W built-in speakers or plug their headphones into the dedicated 3.5mm headphone jack. Once configured, the display can be tilted from -5 to 22° to take full advantage of the 178° horizontal and vertical viewing angles. - Ultra-Slim, Frameless Design

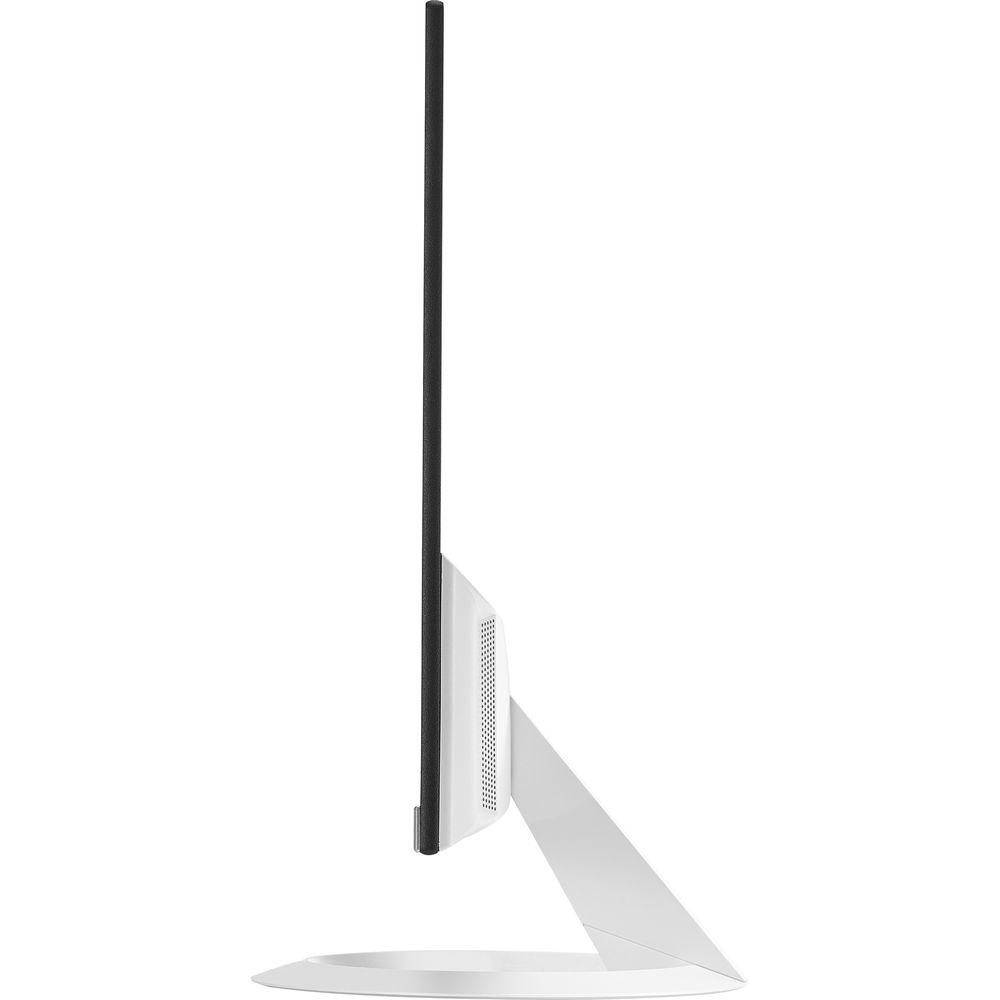

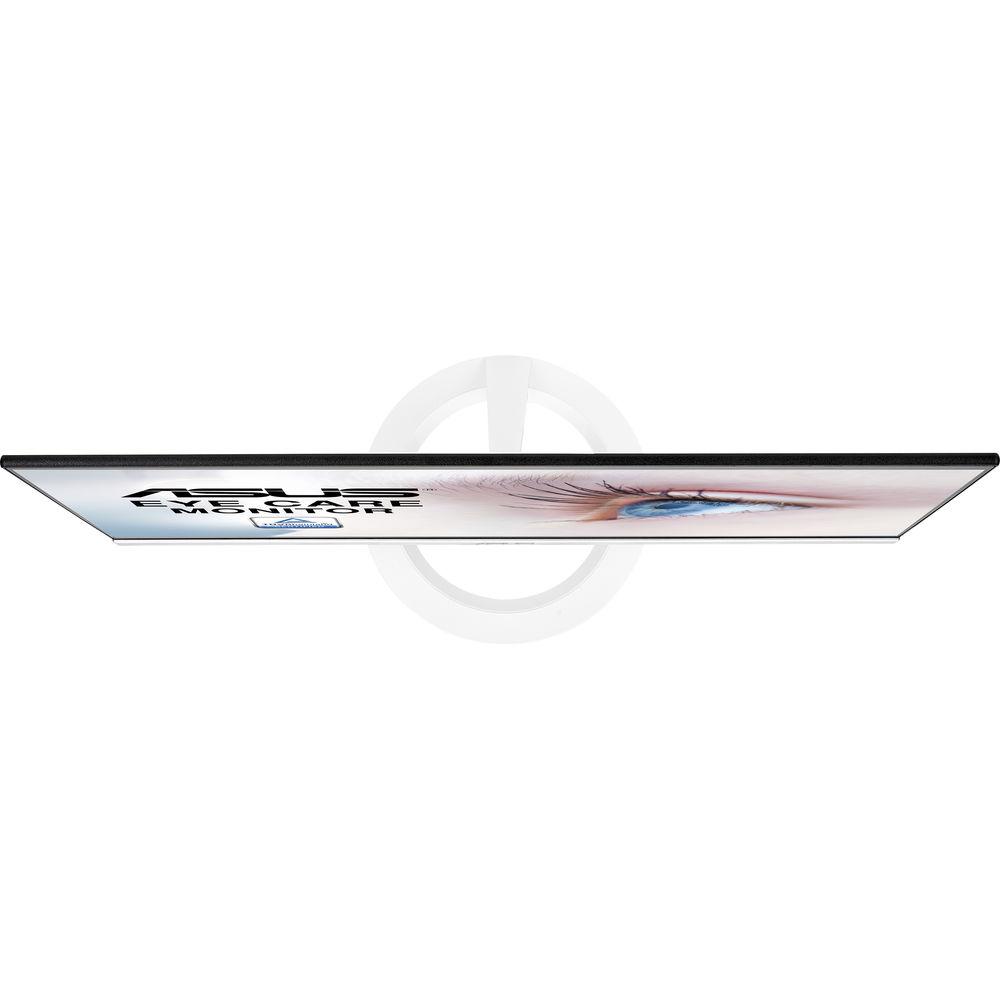

- The ASUS VZ239H-W has a space-saving design with an ultra-slim profile that measures a mere 7mm at its thinnest point. Its frameless design makes it suitable for almost-seamless multi-display setups that give you an even greater degree of immersion. An advanced high-performance IPS (In-Plane Switching) panel gives you 80,000,000:1 ASUS Smart Contrast Ratio and wide 178° viewing angles. In addition, ASUS Eye Care technology ensures a comfortable viewing experience.
- Perfect for Multi-Display Setups
- Whether you're playing games, watching a movie, or getting some work done, the VZ239H-W's frameless design means two or three monitor setups are virtually seamless, giving you a panoramic display for an even greater degree of immersion.
- ASUS Eye Care Technology
- Ultra-Low Blue Light Technology
Exclusive ASUS Ultra-Low Blue Light technology protects you from harmful blue light. It offers four blue-light filter settings that are easily accessed through the on-screen display menu via the hotkey.
Flicker-Free Technology
The VZ239H-W features TÜV Rheinland-certified ASUS Flicker-free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos. - Wide 178° Viewing Angles
- The VZ239H-W has an advanced high-performance IPS panel that provides an 80,000,000:1 dynamic contrast ratio and wide 178° viewing angles. This LED-backlit display covers the entire sRGB color space - ensuring extremely accurate color reproduction for professional-grade photo and video editing, or for home entertainment.
UPC: 889349727010 In the Box ASUS VZ239H-W 23" 16:9 IPS Monitor (White) Power Cord Power Adapter Limited 3-Year Warranty User Manual PDF 4.4mbztastxcqwdasxtxbrcdvcvufvyxwdu Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VZ239H-W 23" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VZ239H Specs | Panel Size | Wide screen 23" / 58.4 cm | | Aspect Ratio | 16:9 | | Color Saturation | 72% (NTSC) | | Panel Type | IPS | | Resolution | 1920 x 1080 | | Display Viewing Area | 20 x 11.3" / 509.2 x 286.4 mm | | Display Surface | Non-glare | | Pixel Pitch | 0.2652 | | Brightness | 250 cd/m² | | ASUS Smart Contrast Ratio (ASCR) | 80,000,000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 5 ms (GtG) | | Display Colors | 16.7 million | | Video Specifications | SPLENDID Video Preset Modes
8 modes (sRGB / Scenery / Theater / Standard / Night View / Game /Reading / Darkroom)
Skin-Tone Selection
3 modes
Color Temperature Selection
4 modes
QuickFit (Modes)
Yes (Letter/B5/Alignment Grid/Photo)
GamePlus (Modes)
Yes (Crosshair/Timer)
Low Blue Light
Yes
HDCP Support
Yes
VividPixel
Yes | | Audio Specifications | Stereo Speakers
2 x 1.5 W stereo RMS | | Convenient Hotkey | Blue Light Filter
Brightness Adjustment
Input Selection
QuickFit | | I/O Ports | Signal Input: HDMI, D-Sub
PC Audio Input: 3.5 mm mini-jack | | Signal Frequency | Analog Signal Frequency: 54~85.5 kHz(H) / 48~76 Hz(V)
Digital Signal Frequency: 54~85.5 kHz(H) / 48~76 Hz(V) | | Power Consumption | Power On Mode: <24 w
Power Saving Mode: < 0.5 W
Power Off Mode: <0.5 W
Voltage: 100-240 V, 50/60 Hz | | Tilt | -5~22° | | Security | Kensington lock | | Compliance | ENERGY STAR, BSMI, CB, CCC, CE, CEL level 1, C-Tick, CU, EPEAT () by region, ErP, FCC, RoHS, UL/cUL, VCCI, WEEE, WHQL (Windows 10, 8.1, 7), TUV Flicker-free, TUV Low Blue Light | | Dimensions | With Stand
20.9 x 15.3 x 8.3" / 531 x 387 x 211 mm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 9.3 lb | | Box Dimensions (LxWxH) | 23.0 x 19.5 x 5.0" |
