User Manual for ASUS VZ27AQ 27" 16:9 WQHD IPS Monitor Click to enlarge the picture
Contents of the user manual for the ASUS VZ27AQ 27" 16:9 WQHD IPS
- Product category: Computer Monitors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Computer Monitors
 |
User manual for the ASUS VZ27AQ 27" 16:9 WQHD IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

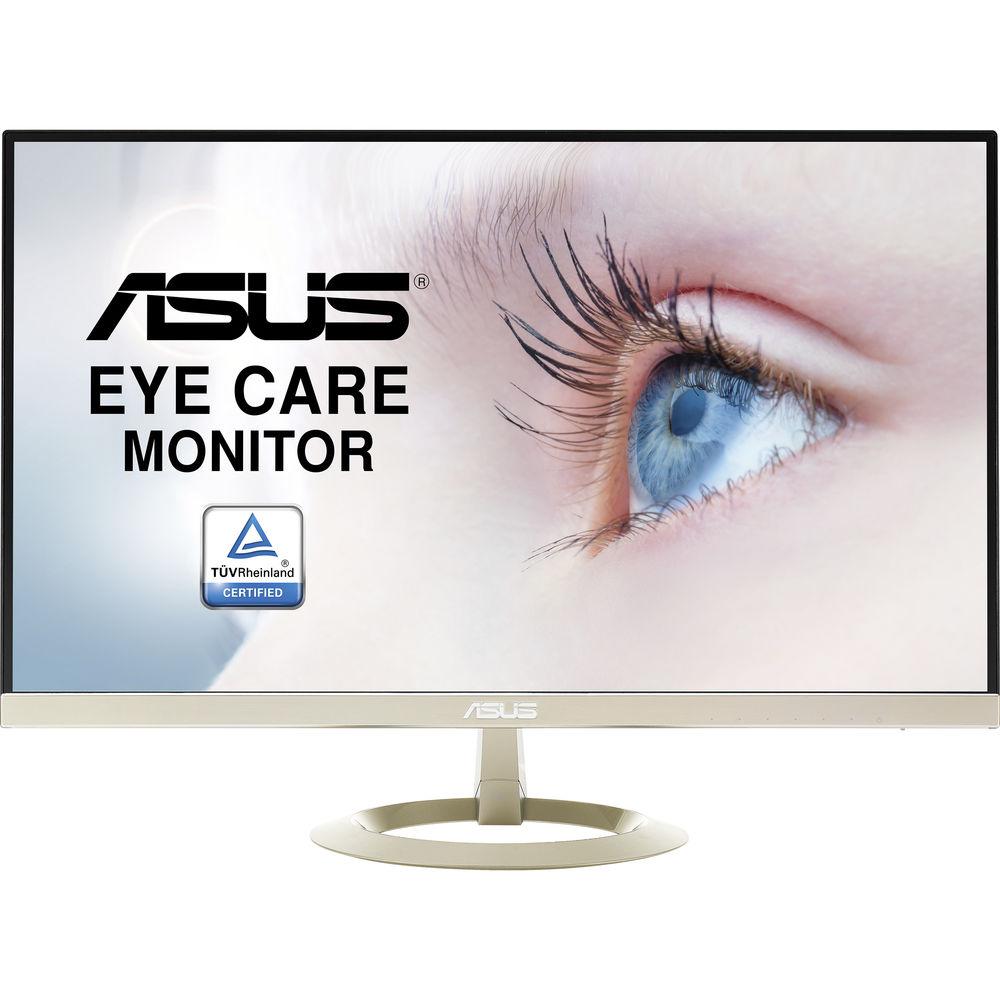

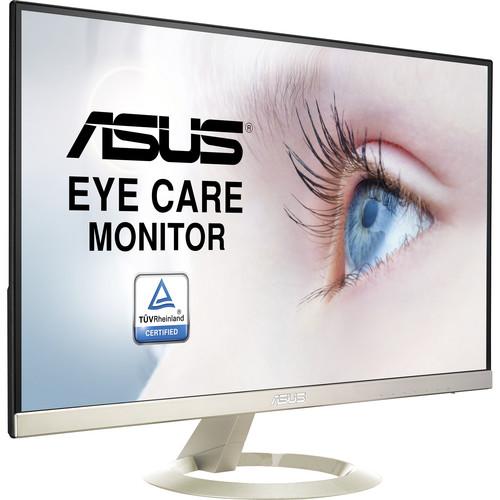

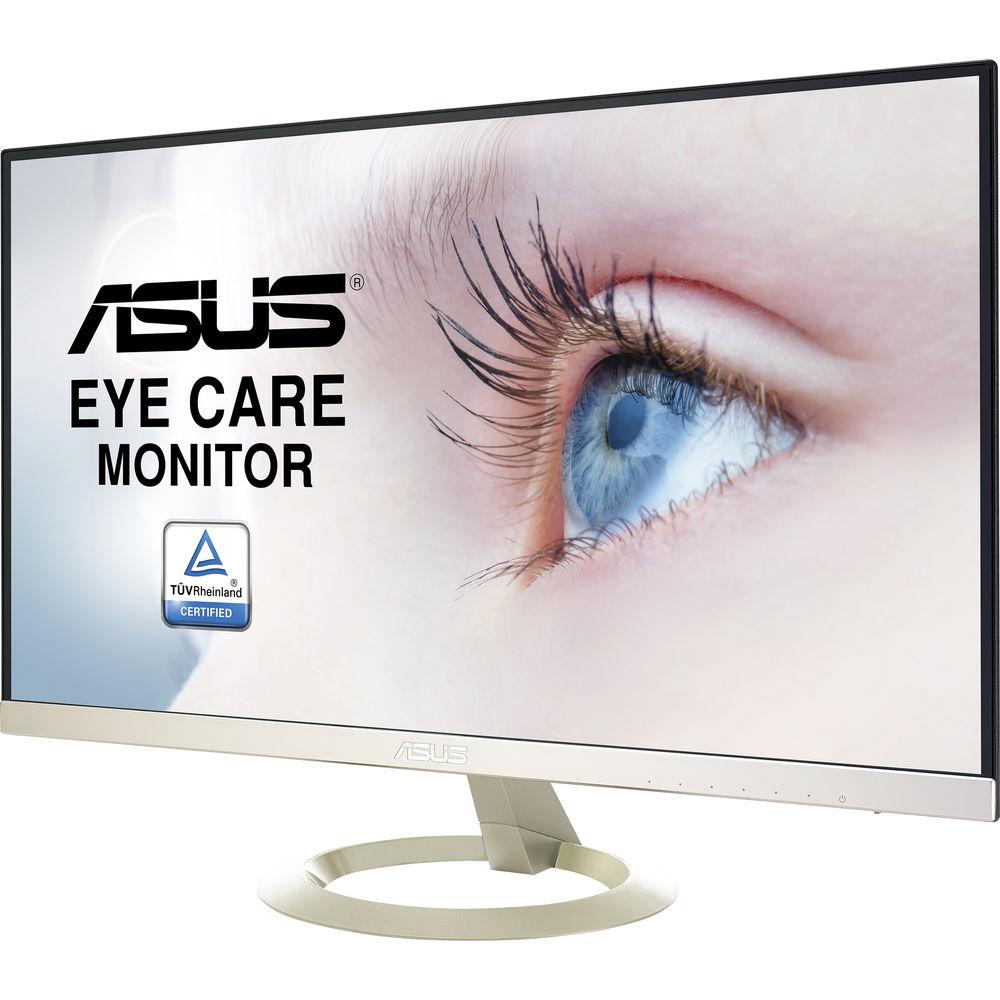

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an ultra-slim profile and reduced size bezel, the VZ27AQ 27" 16:9 WQHD IPS Monitor from ASUS takes up less space on your desktop and can be used in multi-monitor setups. Whether using the VZ27AQ monitor by itself or with other displays it offers a WQHD resolution of 2560 x 1440, a static contrast ratio of 1,000:1, and a 5 ms response time to offer a crisp, clear picture quality with reduced ghosting.
Built in to the ASUS VZ27AQ display are a variety of video features designed to further enhance your viewing experience. With SPLENDID Video Preset Modes you can choose from 8 viewing modes designed to accommodate the content being viewed on the screen as well as 4 color temperature selection modes. You can even utilize the GamePlus mode, which supports crosshair/timer mode for an enhanced gaming experience. ASUS even takes into consideration eye comfort with their Eye Care Technology features, which includes both a low blue light filter and flicker-free technology.

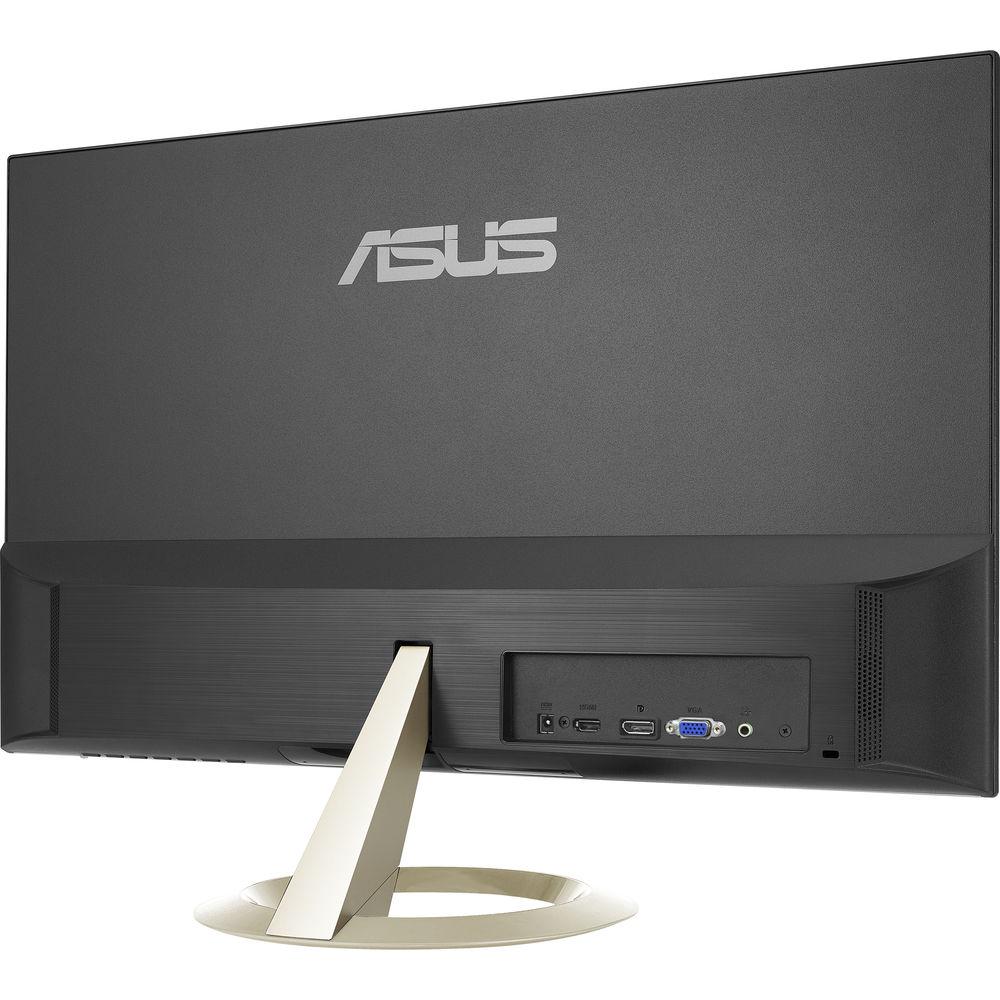

Setup and configuration of the VZ27AQ display is simple as it comes equipped with HDMI, D-Sub, and DisplayPort inputs. For audio playback, users can choose to utilize the dual 2-watt built-in speakers or plug their headphones into the dedicated 3.5mm headphone jack. Once configured the display can be tilted from -5 to 22° to take full advantage of the 178° horizontal and vertical viewing angles. - Ultra-Slim, Frameless Design

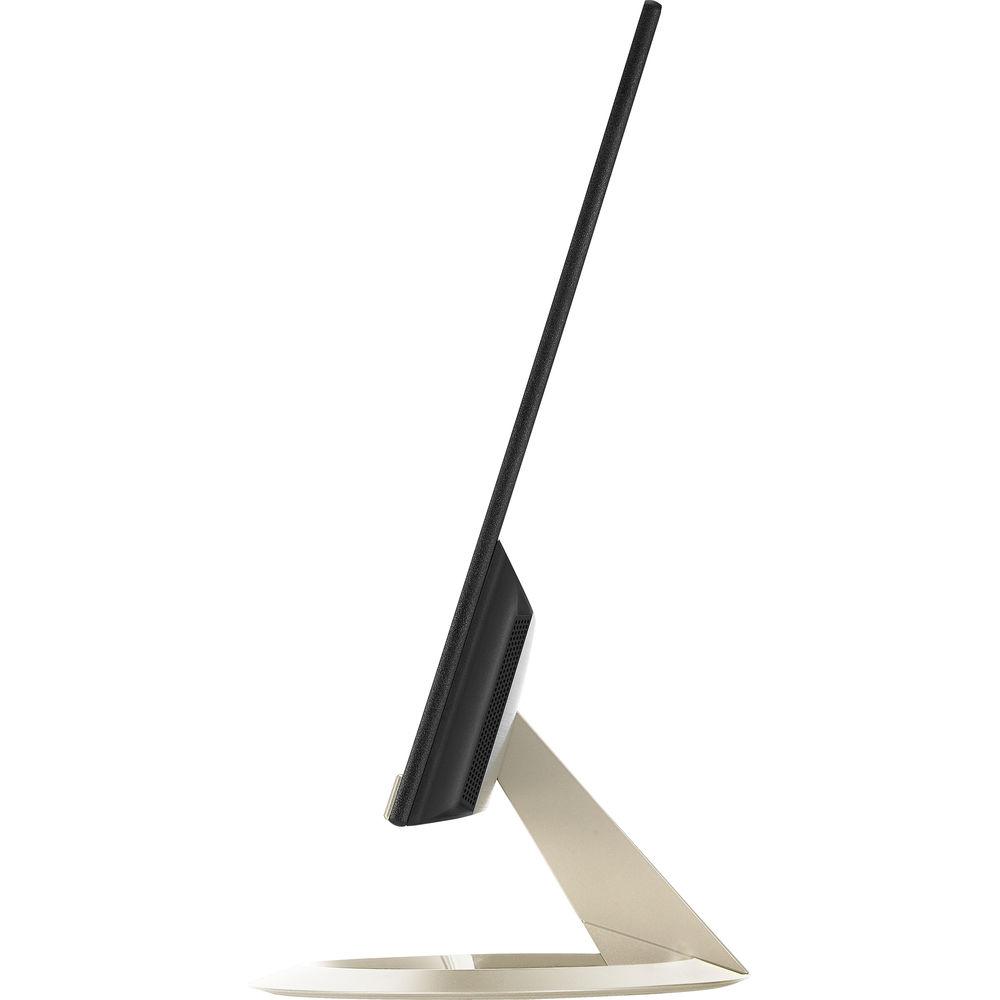

- The ASUS VZ27AQ has a space-saving design with an ultra-slim profile that measures a mere 7mm at its thinnest point. Its frameless design makes it suitable for almost-seamless multi-display setups that give you an even greater degree of immersion. An advanced high-performance IPS (In-Plane Switching) panel gives you a 1,000:1 static contrast ratio and wide 178° viewing angles. In addition, ASUS Eye Care technology ensures a comfortable viewing experience.
- See Better with WQHD Resolution
- Take advantage of the 2560 x 1440 resolution for enhanced visuals with the VZ27AQ. With its 27" WQHD display, the VZ27AQ gives you 25% sharper images and up to 77% more onscreen space than a similarly sized Full HD display - allowing you the freedom to spread out your various desktop windows.
- Perfect for Multi-Display Setups
- Whether you're playing games, watching a movie, or getting some work done, the VZ27AQ's frameless design means two or three monitor setups are virtually seamless, giving you a panoramic display for an even greater degree of immersion.
- ASUS Eye Care Technology
- Ultra-low Blue Light Technology
Exclusive ASUS Ultra-Low Blue Light technology protects you from harmful blue light. It offers four blue-light filter settings that are easily accessed through the onscreen display menu via the hotkey.
Flicker-Free Technology
The VZ27AQ features TÜV Rheinland-certified ASUS Flicker-free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos. - Wide 178° Viewing Angles
- The VZ27AQ has an advanced high-performance IPS panel that provides an 80,000,000:1 dynamic contrast ratio and wide 178° viewing angles. This LED-backlit display covers the entire sRGB color space - ensuring extremely accurate color reproduction for professional-grade photo and video editing, or for home entertainment.
UPC: 889349624661 In the Box ASUS VZ27AQ 27" 16:9 WQHD IPS Monitor VGA Cable Audio Cable Power Cord Limited 3-Year Warranty User Manual PDF 2.5mbruazacrtzfzxztyy More info from ASUS Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS VZ27AQ 27" 16:9 WQHD IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS VZ27AQ Specs | Panel Size | Wide screen 27.0" / 68.6 cm; 16:9 | | Color Saturation | 100% sRGB | | Panel Type | IPS | | Resolution | 2560 x 1440 | | Display Surface | Non-glare | | Pixel Pitch | 0.233 | | Brightness | 250 cd/m² | | Contrast Ratio | 1,000:1 | | ASUS Smart Contrast Ratio (ASCR) | 80,000,000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 5 ms (GtG) | | Display Colors | 16.7 million | | Video Specifications | SPLENDID Video Preset Modes
8 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode/Reading Mode/Darkroom Mode)
Color Temperature Selection
4 Modes
GamePlus (modes)
Yes (Crosshair/Timer)
Low Blue Light
Yes
HDCP Support
Yes
EyeCheck
Yes | | Audio Specifications | Stereo Speakers
2 x 2-watt stereo RMS | | Convenient Hotkey | SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Input Selection
EyeCheck | | I/O Ports | Signal Input: HDMI, D-Sub, DisplayPort
PC Audio Input: 3.5 mm mini-jack
AV Audio Input: HDMI | | Signal Frequency | Digital Signal Frequency: 29~130 kHz(H) / 49~76 Hz(V) | | Power Consumption | Power Consumption: <40 w
Power Saving Mode: <0.5 W
Power Off Mode: <0.5 W | | Tilt | -5~22° | | Security | Kensington lock | | Compliance | ENERGY STAR, CB, CCC, CE, CU, ErP, FCC, J-MOSS, KCC, PSB, RoHS, TCO7.0, UL/cUL, VCCI, WEEE, WHQL (Windows 10, 8.1, 7), TUV Flicker-free | | Dimensions | 24.1 x 17.4 x 8.2" / 612.7 x 440.8 x 210.0 mm | | Weight | 9.4 lb / 4.26 kg | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 27.0 x 21.0 x 4.65" |
