User Manual for ASUS Wireless N-300 3-in-1 Router Access Point Range Extender Click to enlarge the picture
Contents of the user manual for the ASUS Wireless N-300 3-in-1 Router Access
- Product category: Wireless Access Points ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Wireless Access Points
 |
User manual for the ASUS Wireless N-300 3-in-1 Router Access contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|

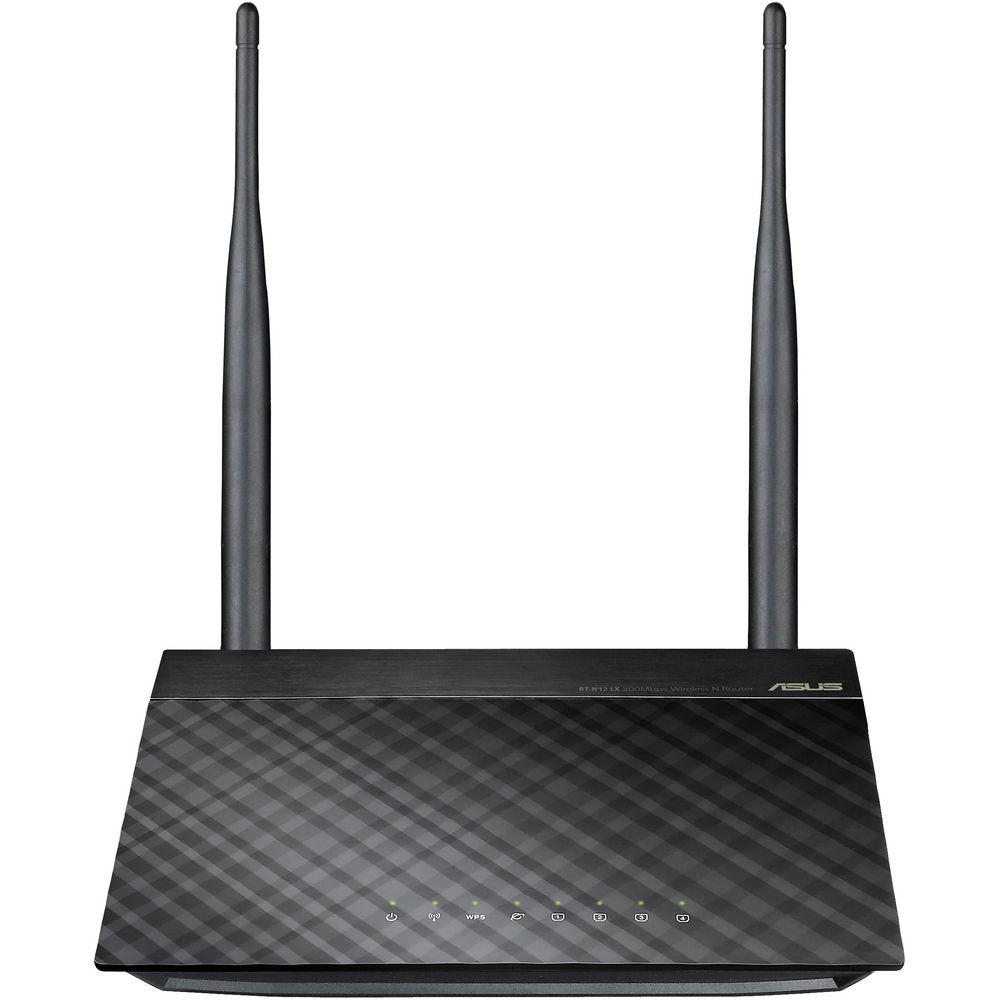

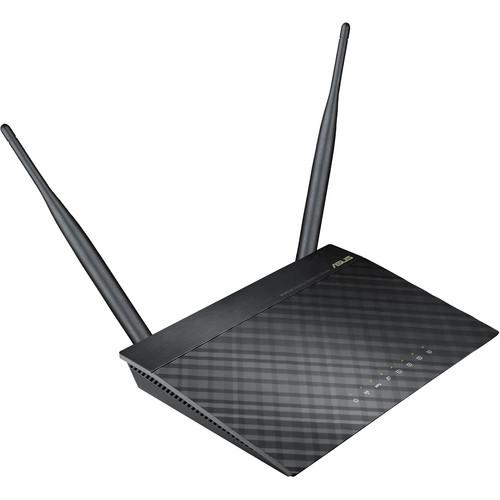

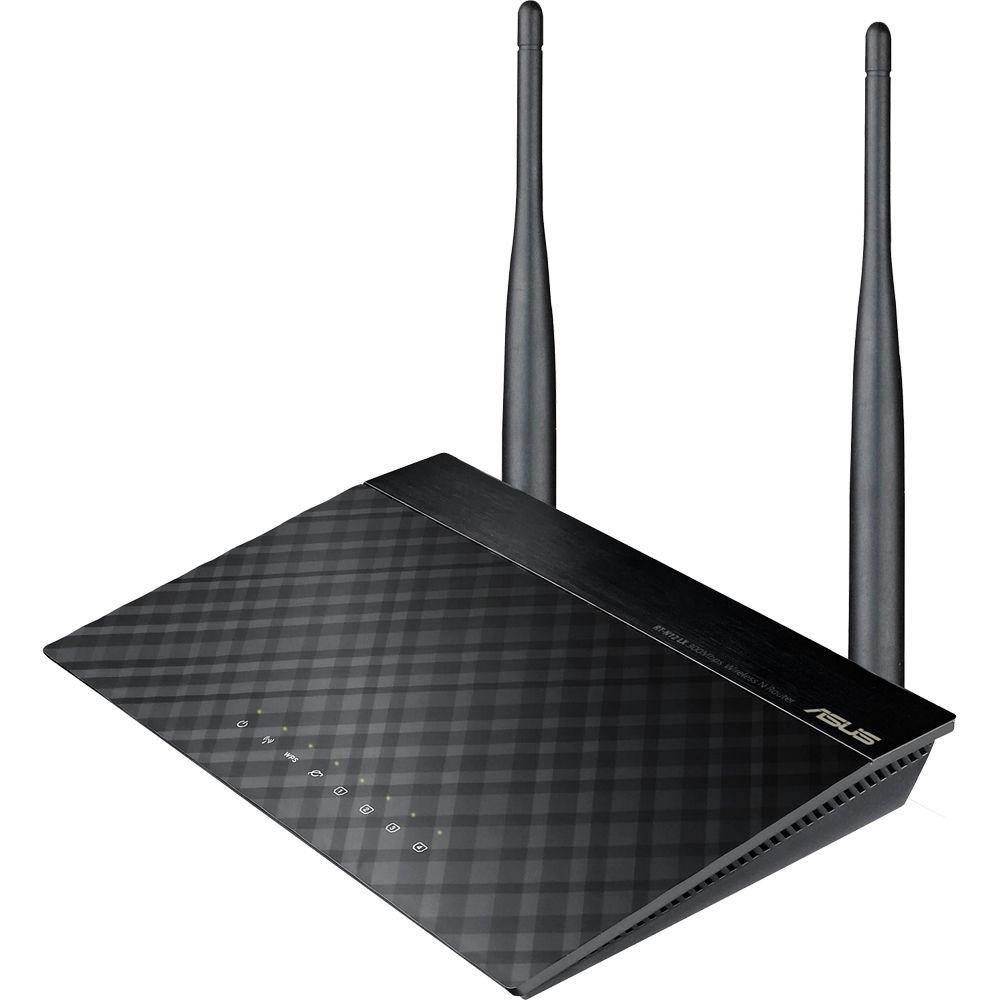

Product description The Wireless N-300 3-in-1 Router/Access Point/Range Extender from ASUS is designed specifically for small business and home office networking use. It features both wired and wireless network connections. With 2T2R MIMO technology and two detachable 5 dBi high-gain antennas, the extender creates a wide coverage area with advanced wireless performance, making it ideal for streaming HD video, placing VoIP calls and online gaming. With the ASUS unique Quick Internet Setup and graphical user interface, the extender is easy to install and manage. This extender even allows you to set up 4 SSIDs (Service Set Identification). So users can flexibly manage Internet access and bandwidth allocation. - Extended Operating Range with High Power Technology
- The unique and efficient design drastically increases wireless signal coverage and quality with a built-in signal amplifier. Furthermore, the High Power technology enhances signal strength and can almost double the range.
- Multiple SSID for Flexible Wireless Access Control
- The router provides up to four wireless networking grades with dynamic bandwidth management, such as high bandwidth and full access for managers, mid-range settings and privacy controls for staff, and basic Internet access for guests. This flexibility makes it the perfect choice for SOHO wireless networking.
- 3-Step Easy Setup
- Setting up your network is easy. Simply power and connect the router and open a browser on a Wi-Fi enabled device like a notebook or pad. You will then be taken to a setup page with a prompt to enter the ID/password from your Internet provider.
- Smart Auto-Detection Design
- Smart auto-detection design allows you to plug in the router and complete the setup process within 30 seconds. Compared to the lengthy installs and hassles of other routers, this router offers ease of use and puts higher networking speeds within your reach.
- EZ Switch
- EZ Switch software provides a quick and easy way to change between router, repeater and AP modes. So you can instantly select router, range extender, and access point modes with extra-quick settings in the user-friendly interface. No delays and no hassles; get connected instantly.
UPC: 886227335503 In the Box ASUS Wireless N-300 3-in-1 Router/Access Point/Range Extender RJ-45 Cable 2 x 5 dbi Antennas Power Supply Limited 2-Year Warranty User Manual PDF 4.7mbacqybtwservs Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Wireless N-300 3-in-1 Router Access Point Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS RT-N12/D1 Specs | | | Wireless Frequency Bands | 2.4 GHz | | Number of Antennas | 2 | | WLAN Mode | 802.11n | | Antenna Gain | 5 dBi | | Supported Protocols | IPv4

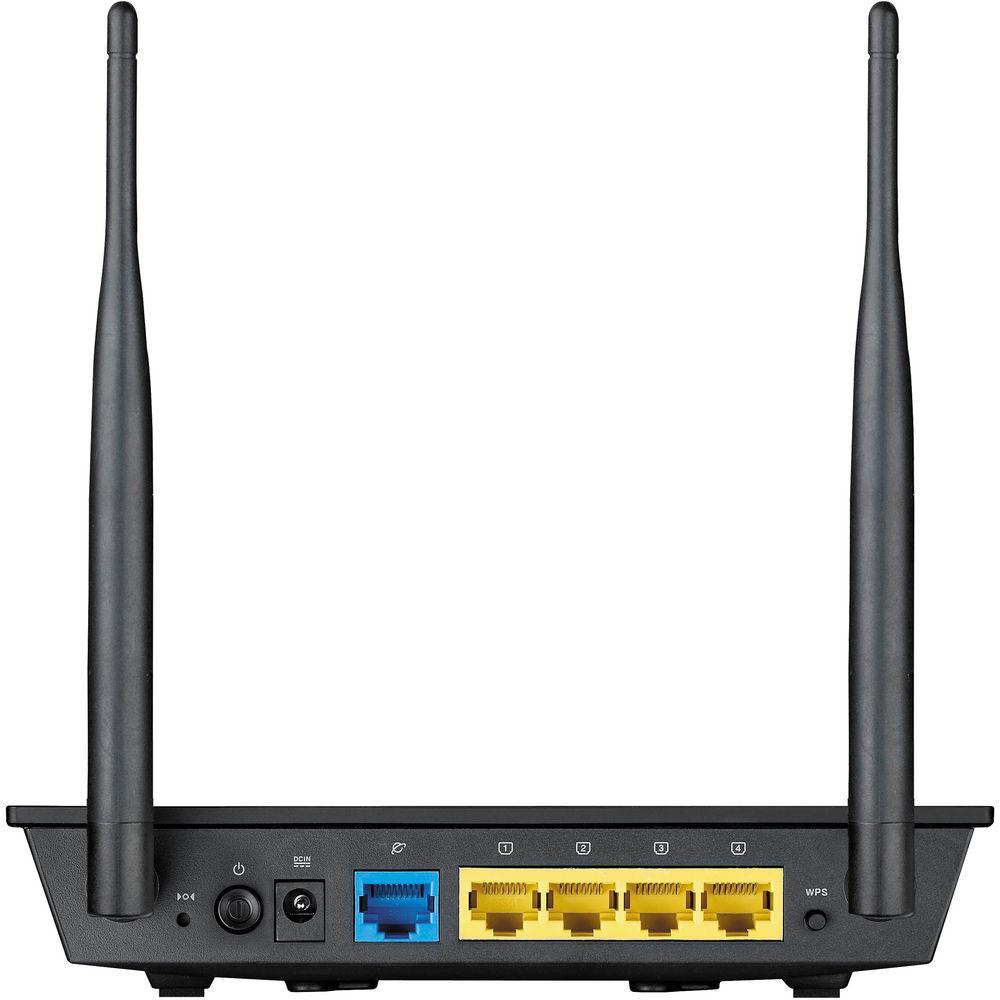

IPv6 | | | | Ports | 1 x 10/100 Mb/s Ethernet (RJ45) (Uplink)
4 x 10/100 Mb/s Ethernet (RJ45) | | | | Wireless Security | WEP, WPA, WPS | | | | Throughput | 2.4 GHz: 300 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.3, 802.3u | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 0.5 A | | | | Dimensions | 7 x 1.1 x 5.3" / 17.9 x 2.8 x 12.8 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 11.1 x 8.3 x 2.3" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
