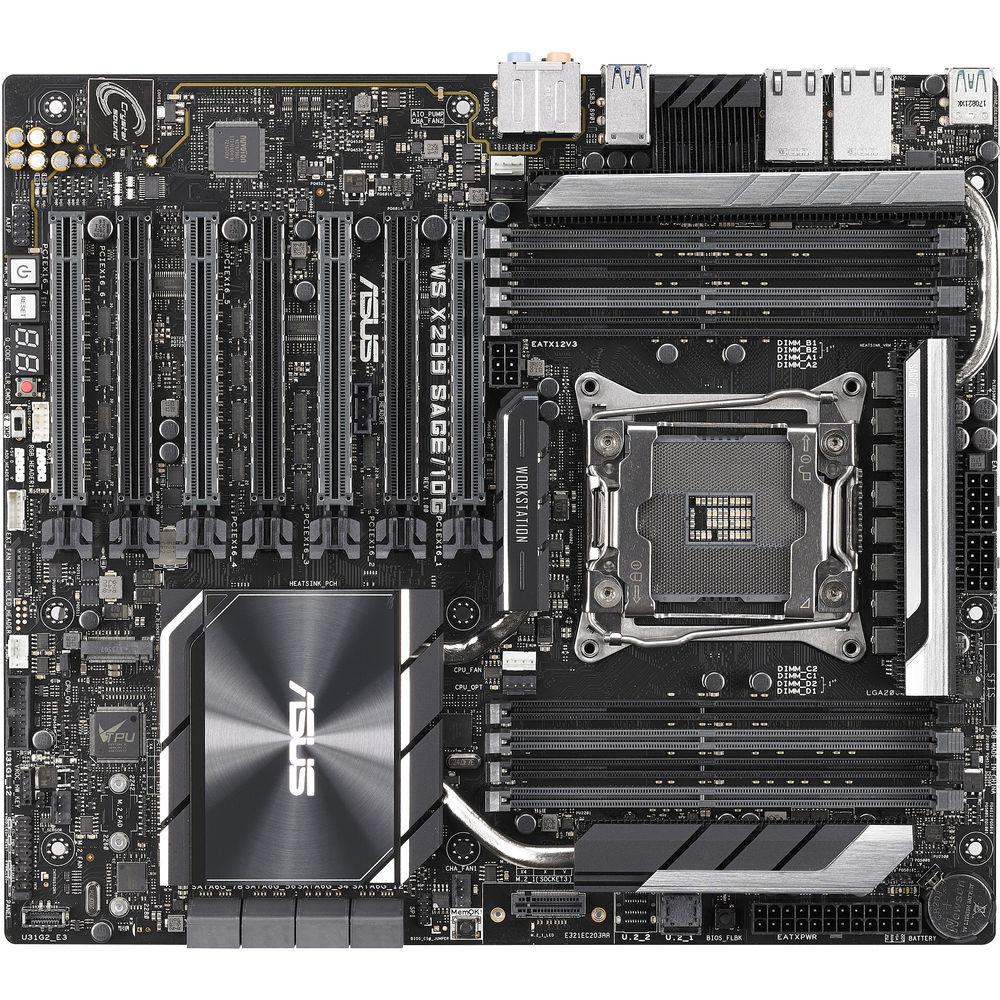

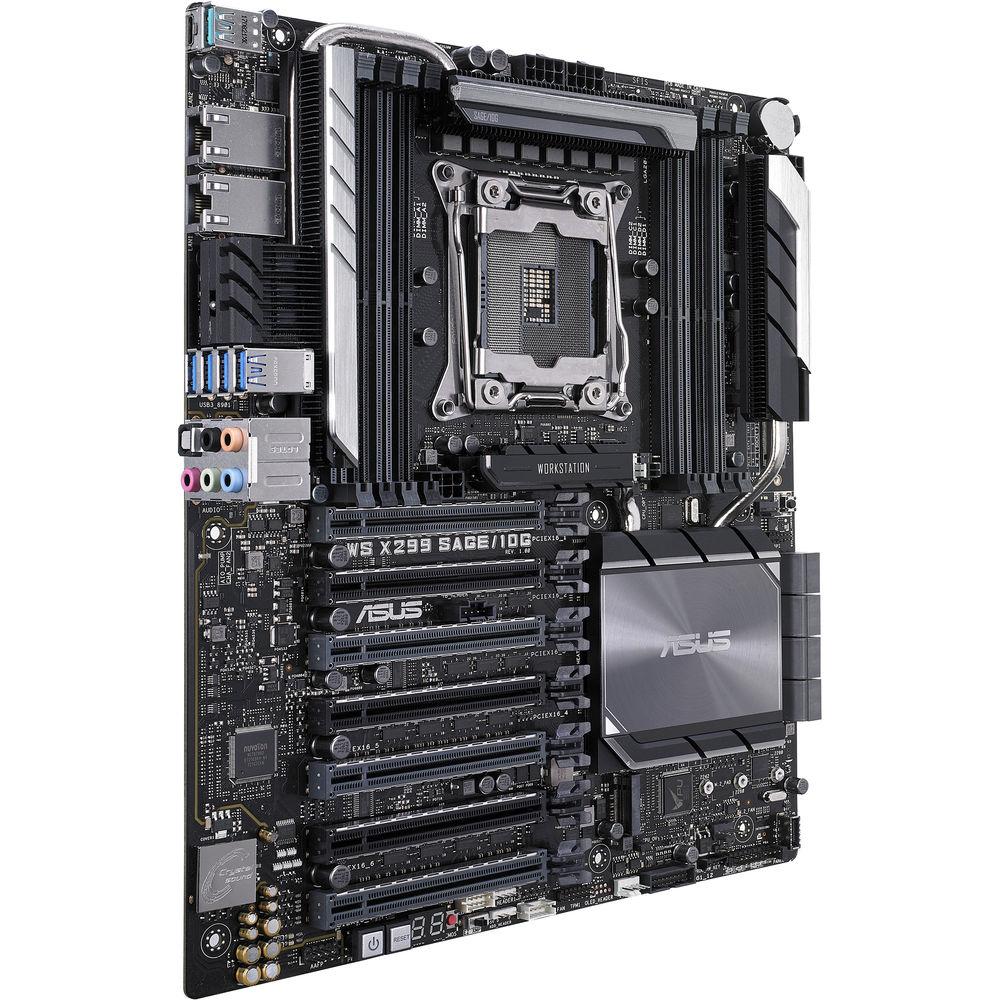

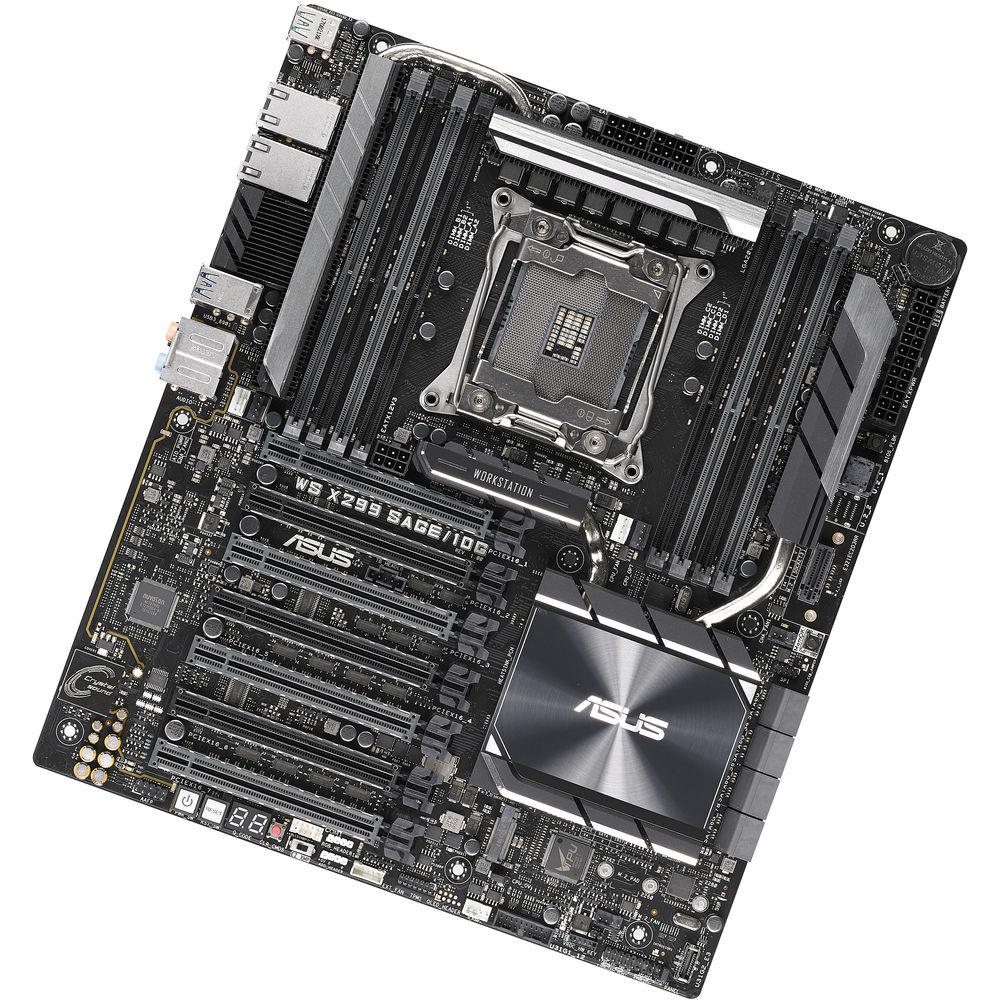

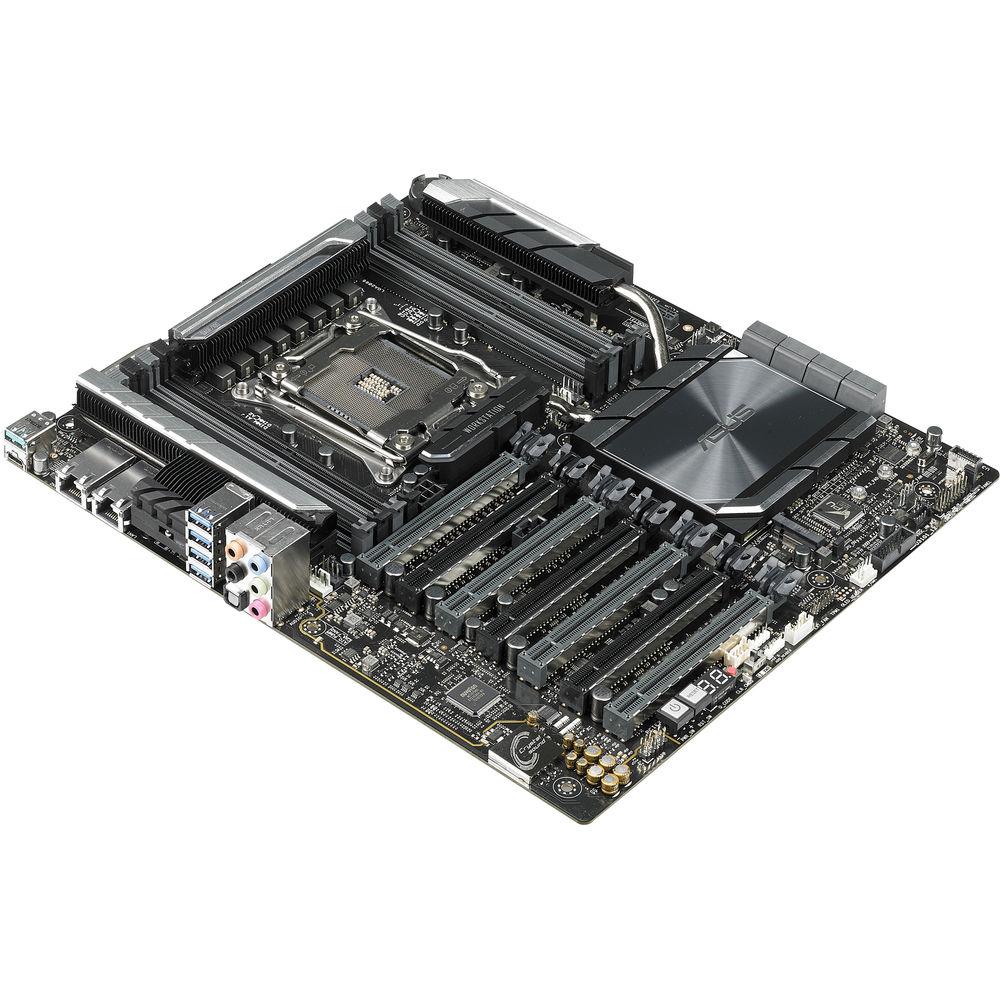

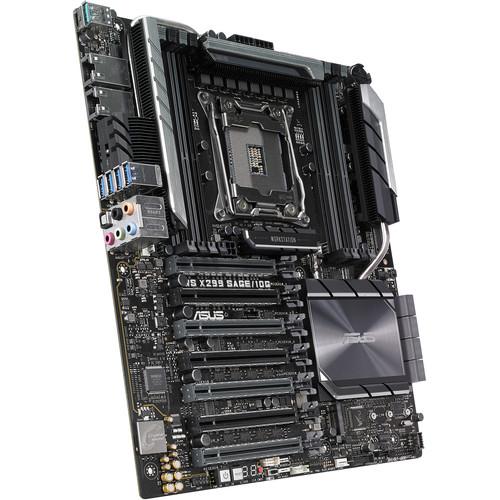

Product description The WS X299 SAGE/10G LGA 2066 CEB Motherboard from Asus is a workstation motherboard built with the connectivity and features you need for training neural networks and crunching other scalable compute loads. It's built on the Intel X299 chipset and supports Intel socket LGA 2066 X-series processors. There are eight memory slots that can accommodate up to 128GB of 4200 MHz overclocked DDR4 RAM for six-core processors, or up to 64GB in four slots with a quad-core processor. For storage, there are eight SATA III ports, two M.2 slots, and one U.2 slot. The M.2 and U.2 slots all support the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive. With seven PCIe 3.0 x16 slots, this motherboard supports up to 4-way NVIDIA SLI or AMD CrossFireX setups for enhanced processing and performance. Other notable integrated features include Realtek ALC S1220A 7.1-channel HD audio and dual Intel X550-AT2 Gigabit LAN jacks. - Dual Onboard 10G LAN
- The WS X299 SAGE/10G motherboard supports server-class connectivity thanks to its dual Intel X550AT2 10GBase-T Ethernet ports for high-density, high-bandwidth, and low-latency networking. With speeds up to 10 Gb/s, you'll be able to transfer 4K videos and other large files within minutes. Moreover, because the controller is built in, you won't need to sacrifice a PCIe slot for a network card.
- Multi-GPU Support
- Supporting up to 4-way NVIDIA SLI or AMD CrossFireX, this motherboard can be used for design, modeling, medical research, and processing-intensive simulations and rendering applications.
- Asus Control Center
- Asus Control Center is a centralized and integrated IT management platform for monitoring and controlling commercial Asus products such as servers, workstations, and digital signage. It supports remote BIOS updates, multiple system monitoring via mobile devices, and one-click software updates and dispatching.
- 5-Way Optimization
- Asus 5-Way Optimization provides you with one-click system tuning and optimization. It can stress test the overclock and configure cooling profiles for silent operation.
- Memory
- The memory slots on this motherboard are built with optimized trace paths and Asus T-Topology technology for enhanced stability and compatibility, supporting up to 128GB of 4200 MHz DDR4 RAM.
- Cooling
- For cooling, this motherboard is equipped with multiple fan and liquid-cooling pump headers that support both DC and PWM modes that you can configure within BIOS or a third-party software to find the perfect balance between cooling and noise. Additionally, it's built with multiple heatpipes and heatsinks to help dissipate heat and ensure maximum performance and stability.
- Storage
- There are two M.2 slots on this motherboard that can utilize the PCIe 3.0 x4 connection for data transfer speeds of up to 32 Gb/s with an appropriate drive. It also supports Intel Optane Memory and has a U.2 slot for additional storage.
- Additional Features
-
- TPU - TurboV Processing Unit that handles automated system tuning, including voltages, overclocking parameters, and more
- EPU - Energy Processing Unit automatically adjusts power consumption and maximizes savings with Away mode
- Fan Xpert 4 - Fan management system built in the UEFI BIOS for automatic or manual fan speed adjustments and profiles
- Digi+ Power Control - Real-time control over voltage droops, switching frequency, and power-efficiency settings
- Turbo Core App - Tool used to set CPU overclocking, apply fan profiles, prioritize network data, optimize audio settings, and more
- Asus PRO Clock II Technology - A dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins
- SafeSlot - Metal-reinforced PCIe slot with stronger retention force and shearing resistance
UPC: 889349952009 In the Box ASUS WS X299 SAGE/10G LGA 2066 CEB Motherboard Vertical M.2 Bracket Set I/O Shield COM Port Cable 8 x SATA Cable M.2 Screws MOS Cooling Kit 2-Way SLI Bridge 3-Way SLI Bridge 4-Way SLI Bridge Q-Connector Limited 3-Year Warranty User Manual PDF 14.6mbzdcqbrrtvbt Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS WS X299 SAGE 10G LGA 2066 CEB Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

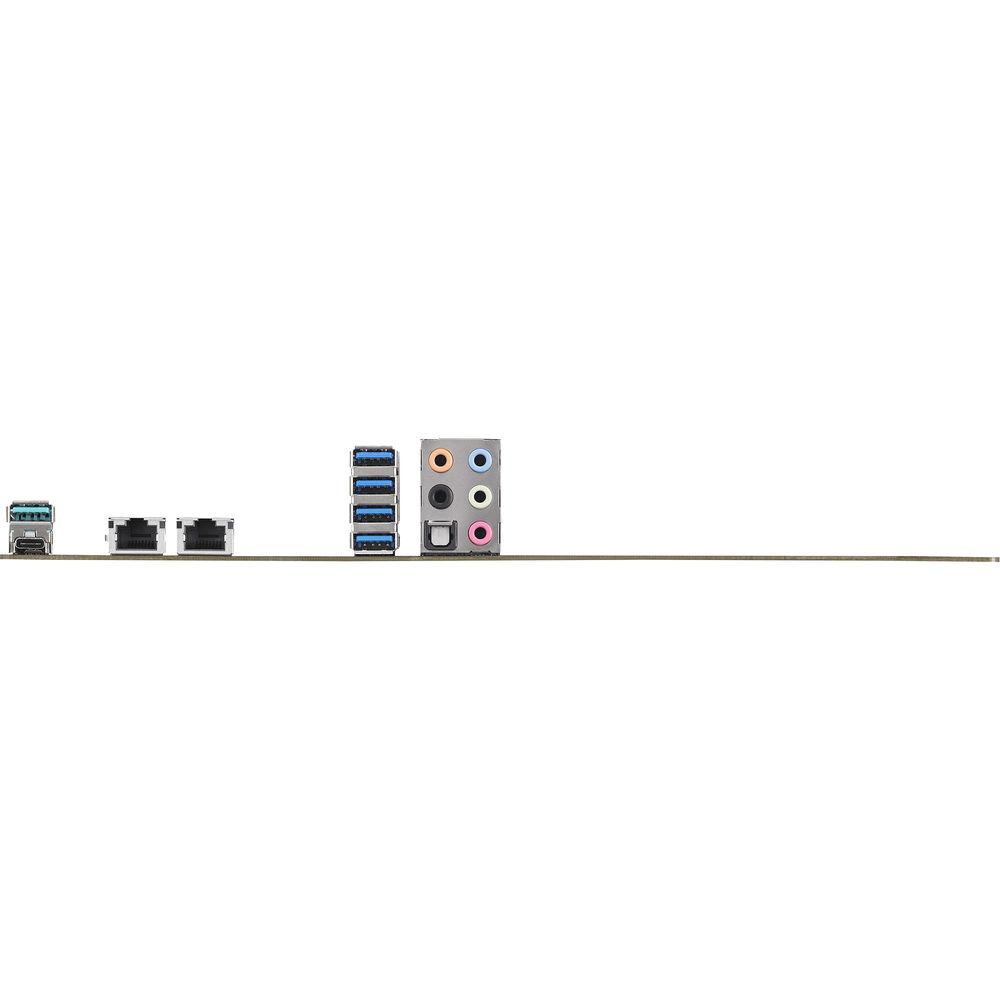

Technical parametersASUS WS X299 SAGE/10G Specs | | | Chipset | Intel X299 | | CPU Socket | LGA 2066 | | | | USB | 1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C
4 x USB 3.1 Gen 1 Type-A | | Display | None | | Audio | 1 x S/PDIF
5 x 3.5 mm | | Ethernet / Controller | 2 x Intel X550-AT2 Gigabit | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2666, 3600, 4000, 4133, 4200 MHz | | Maximum Capacity | 128 GB | | ECC Support | Non-ECC Unbuffered | | | | SATA | 8 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) | | U.2 | 1 | | Optane Memory Support | Yes | | RAID Support | RAID 0, 1, 5, 10 (SATA) | | | | Expansion Slots | 7 x PCIe 3.0 x16 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 3.1 Gen 2 Header (Supports 1 USB Type-A Ports) | | Multi-GPU Support | 4-Way AMD CrossFireX
4-Way NVIDIA SLI | | Air Cooling | 1 x 4-Pin CPU
1 x 4-Pin Assistant
2 x 4-Pin System
1 x 5-Pin Extension
1 x Thermal Sensor | | Liquid Cooling | 2 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 6-Pin ATX
1 x 8-Pin CPU | | Security | TPM Module | | LED Header | 2 x RGB | | Audio | None | | Diagnostics | BIOS Selection, Clear CMOS, EZ XMP, Power, RAM Check, Reset | | Add-On | 1 x Thunderbolt Card Header | | Legacy | 1 x Serial | | | | I/O Connection Headers | AAFP, USB 3.1 | | | | Audio Codec | Realtek ALC S1220A (7.1-Channel) | | | | Supported Operating Systems | Windows 10 (64-Bit) | | | | Form Factor | CEB | | Dimensions | 12 x 10.5" / 304.80 x 266.70 mm | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 13.2 x 11.5 x 3.1" |
