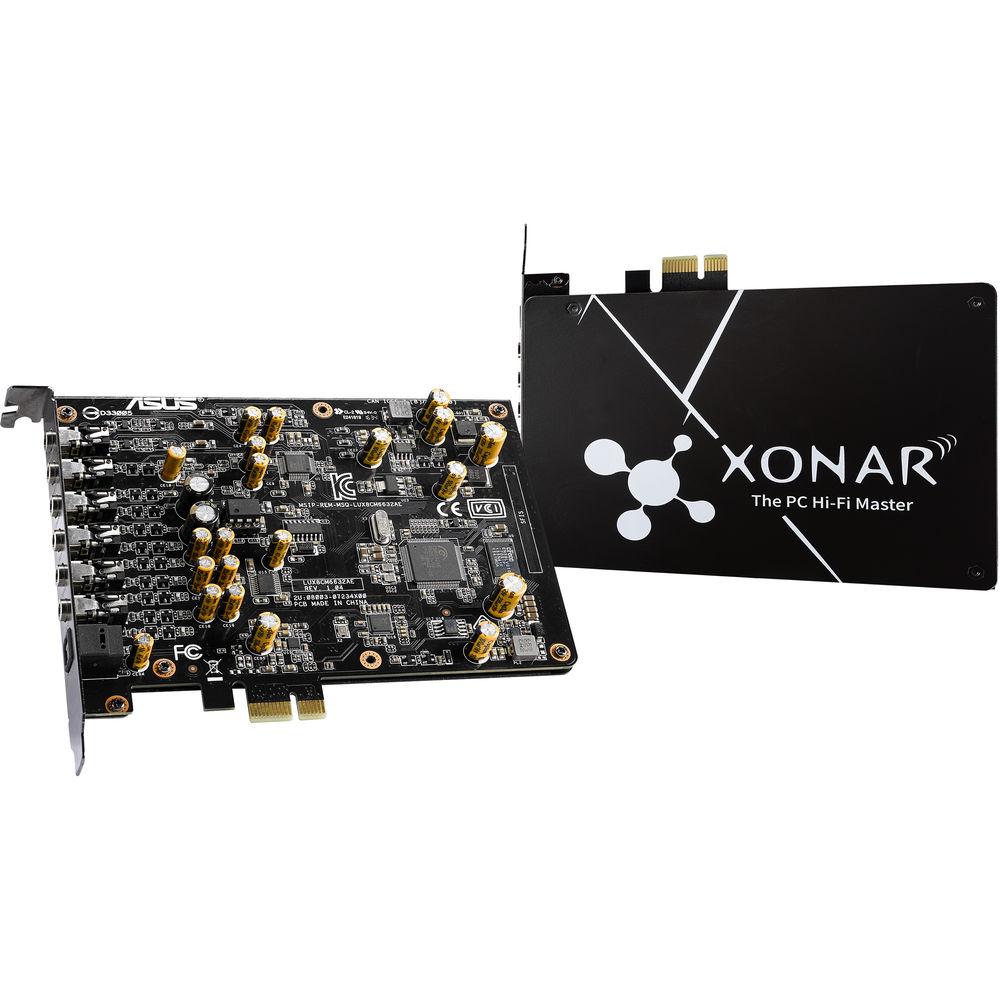

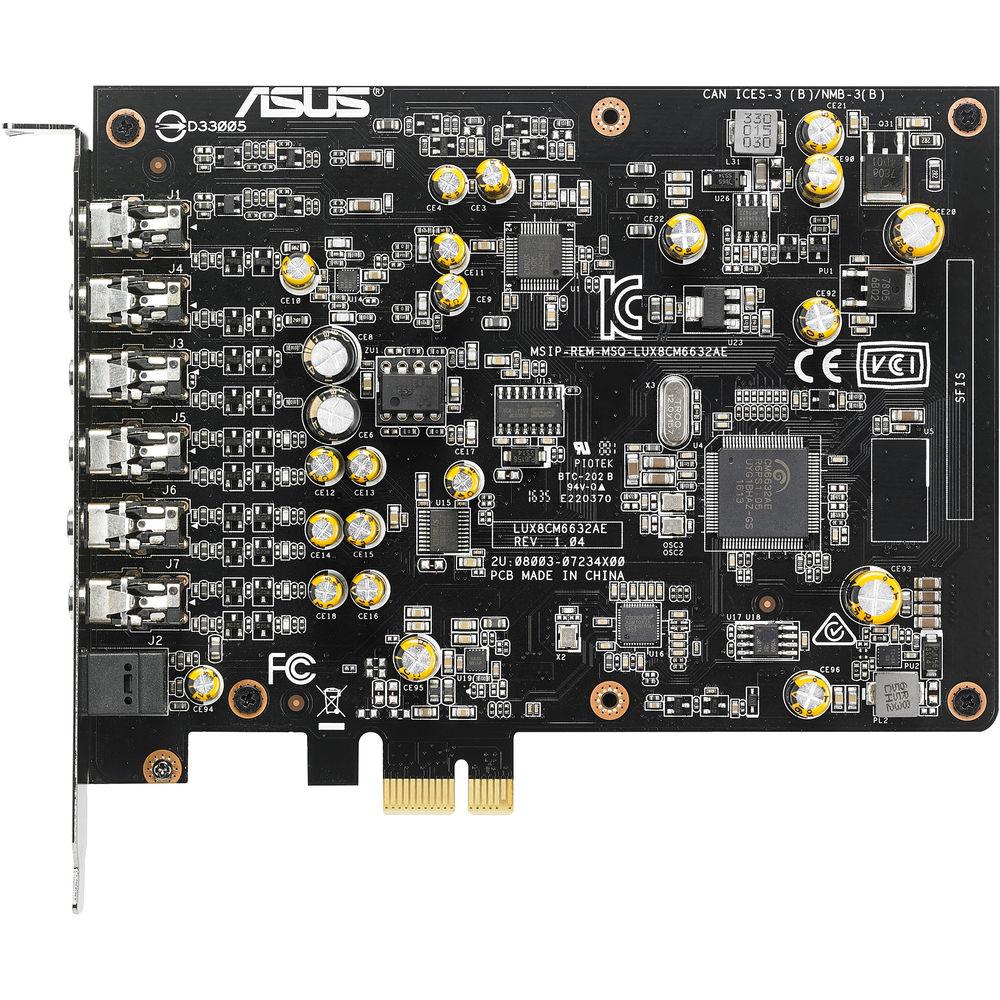

Product description The Xonar AE 7.1-Channel PCIe Gaming Audio Card from ASUS is a compact 7.1-channel sound card designed to provide Windows 10, 8.1, and 7 users with high-quality audio for games, music, and movies. The Xonar AE has no standalone power supply and connects to your computer via PCIe. It features 192 kHz/24-bit sound, a 150-ohm headphone amp, an ESS DAC with a 110 dB signal-to-noise ratio (SNR), an EMI backplate with ASUS Hyper Grounding technology to help ensure minimal sound distortion and interference, Sonic Studio software to enable full control over your audio, and Perfect Voice technology to help eliminate background noise for clearer in-game communication. Included is an S/PDIF optical adapter and protection is provided by a limited 3-year warranty. General Features Immersive Audio Optimized for Gaming - 192 kHz/24-Bit Hi-Res Audio & Cinematic 7.1-Channel Surround
- With up to 7.1-channel output and support for 192 kHz/24-bit hi-res audio, the Xonar AE lets you enjoy truly cinematic sound while gaming, watching movies, and listening to music.
- Swappable Operational Amplifiers
- The Xonar AE features a swappable operational amplifier (op-amp), allowing you to customize your listening experience with no soldering required.
- 110 dB Signal-to-Noise Ratio (SNR)
- An ESS 9023P DAC delivers a high-quality, jitter-free audio signal with a 110 dB signal-to-noise ratio (SNR) for greater clarity than average integrated audio chips.
- Integrated Headphone Amplifier
- Since many gamers choose to play wearing headphones, the Xonar AE features a high-quality, 150-ohm headphone amplifier that delivers detailed, immersive sound with punchy, defined bass.
ASUS-Exclusive Sound-Insulation Technology - Hyper Grounding Technology
- Exclusive ASUS Hyper Grounding PCB fabrication helps to ensure strong signal insulation to reduce distortion and interference, also known as component crosstalk.

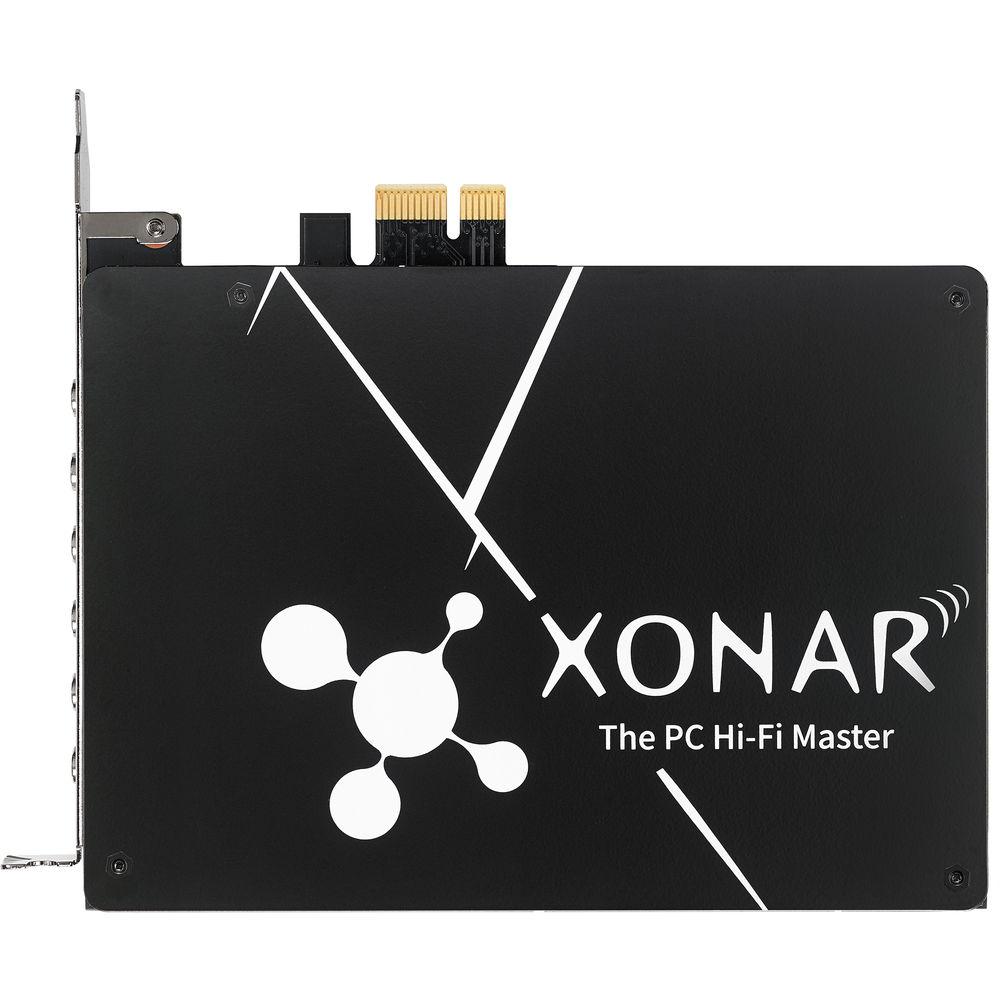

- Exclusive EMI Backplate
- The Xonar AE is built with an ASUS-exclusive EMI back plate that helps blocks static noise to provide you with a pure audio experience.
Total Audio Control - Take Complete Control with Sonic Studio
- The Xonar AE features the Sonic Studio software suite for full control over every sound technology, from equalization (EQ) to the 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements.
- Perfect Voice Technology
- Sonic Studio includes controls for Perfect Voice, a noise-cancellation technology that helps eliminate noise for clearer in-game communications.
- Windows 10 Compatible
- The Xonar AE is fully compatible with Windows 10 and features Windows Hardware Quality Labs (WHQL) support, ensuring an improved audio experience with minimal setup hassles.
UPC: 889349633601 In the Box ASUS Xonar AE 7.1-Channel PCIe Gaming Audio Card with EMI Back Plate S/PDIF Optical Adapter Limited 2-Year Warranty More info from ASUS sqqrwvqevdwu Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Xonar AE 7.1-Channel PCIe Gaming Audio Card with EMI Back Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Xonar AE Specs | Audio Interface | PCI Express | | Audio Performance | Output Signal-to-Noise Ratio (A-Weighted)
110 dB
Output Signal-to-Noise Ratio (A-Weighted, Headphone-out)
108 dB
Input Signal-to-Noise Ratio (A-Weighted)
103 dB
Output THD+N at 1 kHz (Front-out) <0.00158% (-96 dB)
Input THD+N at 1 kHz
<0.0022% (-93 dB)
Frequency Response (-3 dB, 24-bit/192 kHz input)
10 Hz to 65 kHz | | Chipset | Audio Processor
C-Media USB2.0 6632AE High-Definition Sound Processor (max. 192 kHz/24-bit) | | Digital-to-Analog Converter (DAC) | ESS ES9023P (112 dB DNR, max. 192 kHz/24-bit)
Cirrus Logic CS4245 (104 dB DNR, max. 192 kHz/24-bit)
Cirrus Logic CS4361 (103 dB DNR, max. 192 kHz/24-bit) | | Sample Rate and Resolution | Analog Playback Sample Rate and Resolution
44.1/48/88.2/96/176.4/192 kHz @ 16-/24-bit
Analog Recording Sample Rate and Resolution
44.1/48/88.2/96 kHz @ 16-/24-bit
S/PDIF Digital Output
44.1/48/88.2/96/176.4/192 kHz @ 16-/24bit
ASIO 2.2 Driver Support
44.1/48/96/192 kHz @ 24-/32-bit | | Connectivity | Analog Output

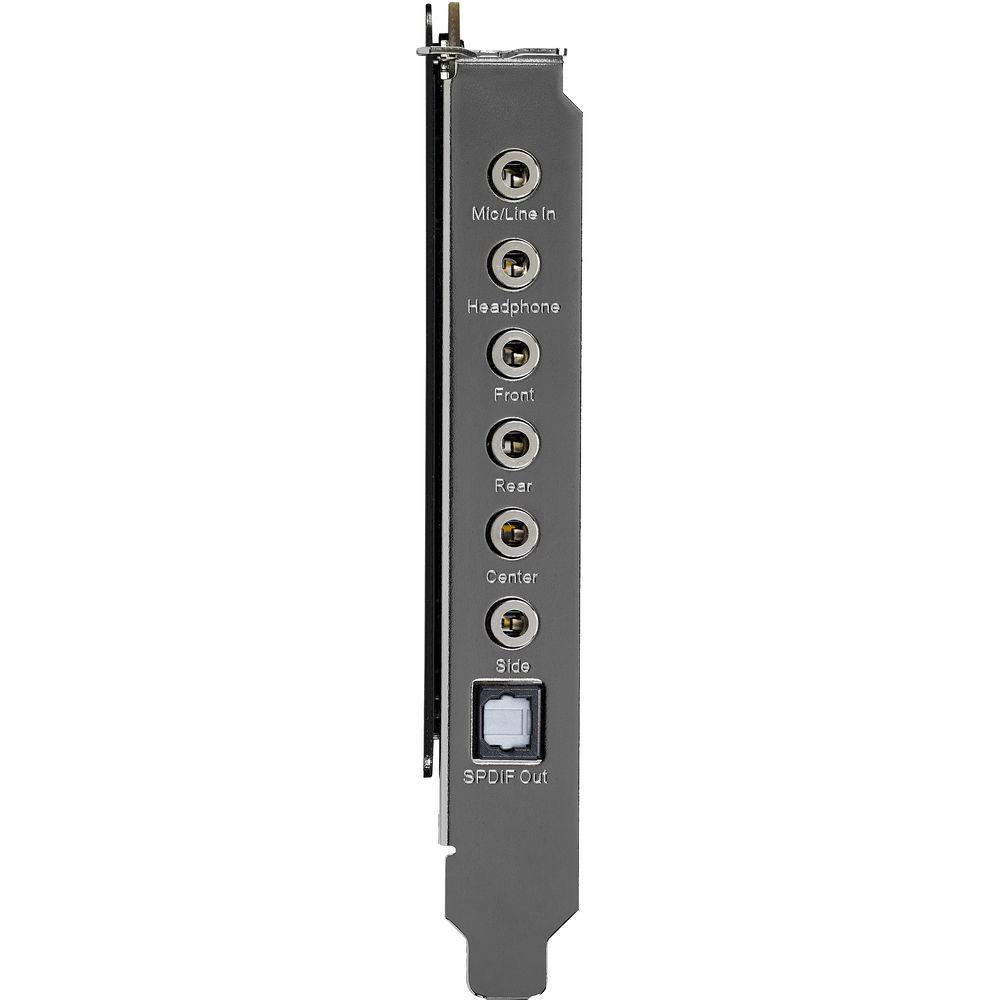

5 x 3.5 mm jack (1/8" headphone-out, front-out, side-out, center/subwoofer-out, rear-out
Analog Input
1 x 3.5 mm jack (1/8") (line-in/mic-in combo)
Digital
1 x S/PDIF out (1 x Optical (Toslink) | | Operating System | Windows 10, 8.1, and 7 (32-/64-bit)
Please update your BIOS and drivers to the latest version to support Windows 7 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.4 x 6.4 x 2.4" |
