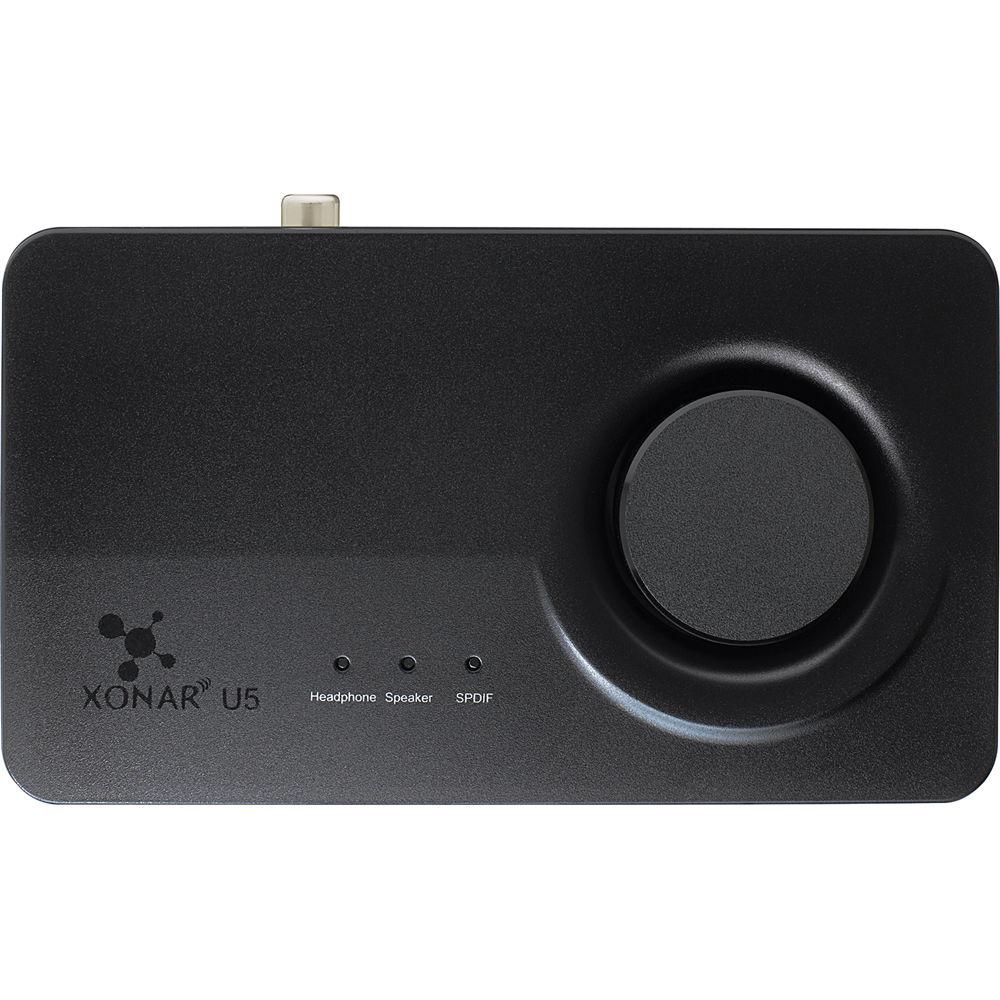

User Manual for ASUS Xonar U5 5.1-Channel USB Sound Card and Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the ASUS Xonar U5 5.1-Channel USB Sound
- Product category: Sound Cards ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Sound Cards
 |
User manual for the ASUS Xonar U5 5.1-Channel USB Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description The Xonar U5 5.1-Channel USB Sound Card and Headphone Amplifier from ASUS is a compact 5.1-channel USB sound card designed to provide Windows and Mac users with high quality audio for games, music, and movies. The Xonar U5 has no standalone power supply and connects to your computer via USB, allowing you to instantly plug-in without having to open your system's case. - Sonic Studio
- The Xonar U5 features the Sonic Studio software suite, which will help you have full control over every audio setting ranging from equalization (EQ) to 5.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, using a point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements
- Perfect Voice Technology
- Unlike noise-reduction technologies that rely on inverse phase noise cancellation, Xonar U5's Perfect Voice technology uses advanced algorithms to separate ambient noise from speech. The result is crystal clear in-game voice communication, so you can be heard even in noisy gaming environments like LAN parties
- Powerful Audio
- The compact and lightweight Xonar U5 features 192 kHz/24-bit audio quality, a 104 dB signal-to-noise ratio (SNR) and 5.1-channel surround sound for high-definition output and consistent quality across all surround channels
- Integrated Headphone Amplifier
- The Xonar U5 includes a headphone amplifier that supports headphones all the way up to 150Ω impedance
- Dedicated Microphone and Master Volume Controls
- Dedicated controls let you tweak audio settings without interrupting your game. You can quickly adjust master and microphone volumes without pausing or entering menus. The master volume control doubles as an instant switch for selecting between headphone output and speakers with just a click
UPC: 886227820733 In the Box ASUS Xonar U5 5.1-Channel USB Sound Card and Headphone Amplifier Driver CD S/PDIF Adapter USB Cable Limited 1-Year North American Warranty (USA, Canada & Mexico) Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Xonar U5 5.1-Channel USB Sound Card and Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS U5 Specs | Audio Interface | USB | | Audio Performance | Output Signal-to-Noise Ratio (A-Weighted) (Front-out)
104 dB
Output THD+N at 1 kHz (Front-out)
>0.005% (-86 dB)
Frequency Response (-3 dB, 24-bit/96 kHz input)
10 Hz to 44 kHz
Output/Input Full-Scale Voltage
Line output (RCA, 3.5): 1 Vrms (2.828 Vp-p)
Headphone output : 1.3 Vrms (3.677 Vp-p) | | Chipset | Audio Processor: C-Media CM6631A High-Definition Sound Processor | | Sample Rate and Resolution | Analog Playback Sample Rate and Resolution
44.1, 48K, 96K, and 192 kHz @ 16 & 24-bit
Analog Recording Sample Rate and Resolution
44.1, 48, 96, 192 kHz @ 16 & 24-bit
S/PDIF Digital Output
44.1, 48, 96, and 192 kHz @ 16 & 24-bit
ASIO Driver Support
44.1, 48,88.2, 96, 176.4, 192 kHz @ 16 & 24-bit | | Connectivity | Analog Output

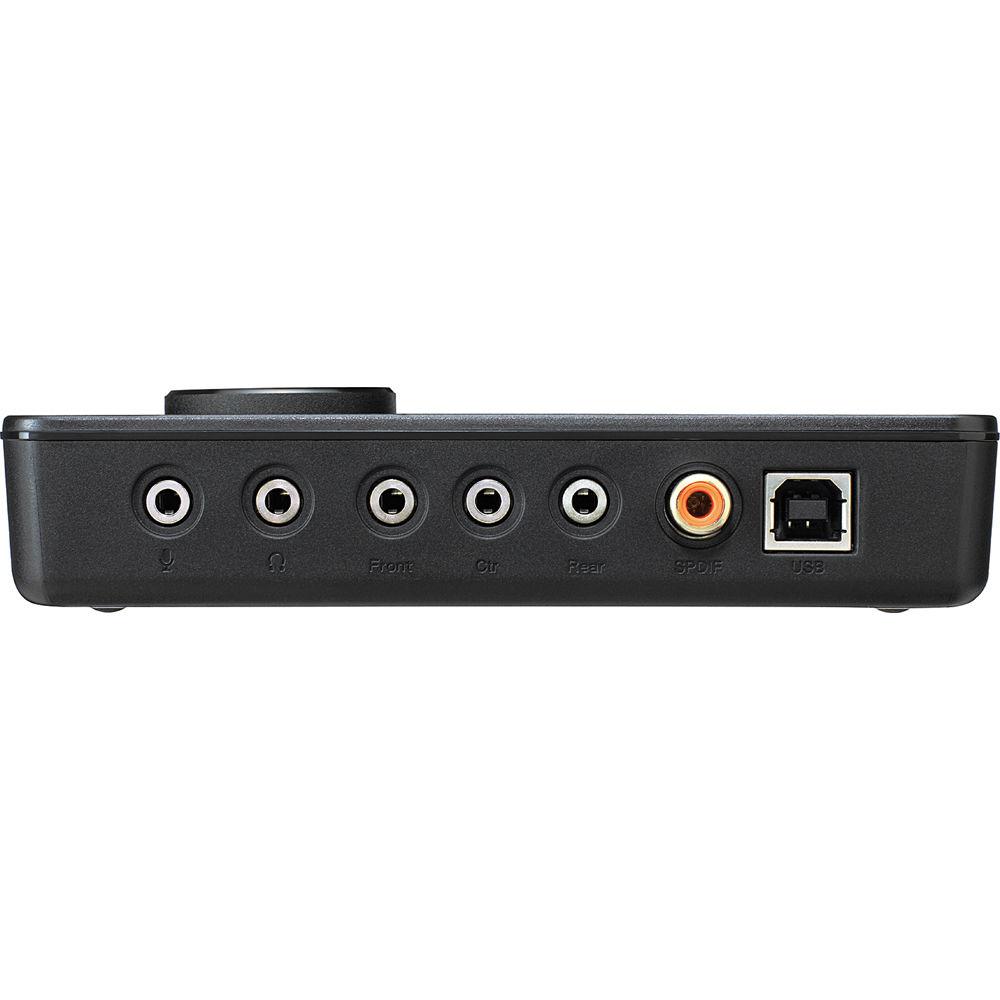

4 x 3.5 mm jacks (1/8") (Headphone out / Front out / Center-Subwoofer out / Rear out)
Analog Input
1 x 3.5 mm jack (1/8") (Line-in / Mic-in combo)
Digital 1 x S/PDIF out (1 x Coaxial) | | Special Features | Sonic Studio | | Operating System | Windows 8.1, 8 (32 & 64-bit), 7 (32 & 64-bit), Mac OS X | | Dimensions | 5.12 x 3.15 x 0.98" / 130.00 x 80.00 x 25.00 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.9 x 6.8 x 2.9" |
