ASUS Xonar U7 MKII 7.1 USB

Search your instruction manual in PDF to download

User Manual for ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier

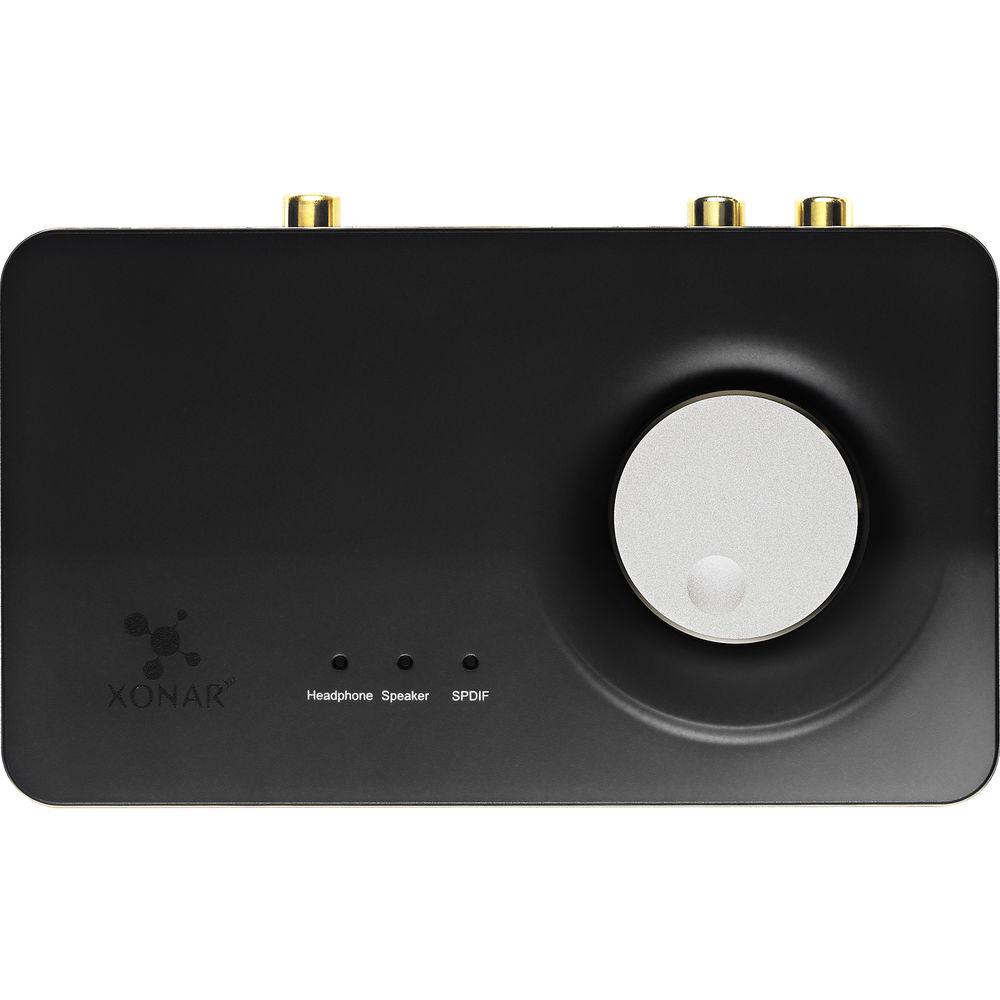

Click to enlarge the picture
ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier Contents of the user manual for the ASUS Xonar U7 MKII 7.1 USB
  • Product category: Sound Cards ASUS
  • Brand: ASUS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ASUS Sound Cards

ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier
User manual for the ASUS Xonar U7 MKII 7.1 USB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ASUS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!



Product description

The Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier from ASUS helps overcome the limitations of other external USB-based audio devices by delivering 7.1-channel surround sound with 192 kHz / 24-bit fidelity and a 114 dB SNR for clear and crisp HD audio output. Its integrated headphone amplifier helps boost sound, while dedicated headphone and microphone volume controls allow users to make quick audio adjustments while gaming or streaming media. There is also a clickable volume control knob that allows for switching between the headphone and speaker output, and Sonic Studio software helps map opponent locations while engaging in first-person shooters. The Xonar U7 MKII is compatible with Windows and Mac OS, and included is a USB cable and an S/PDIF adapter.

General Features

    Compact & Portable
  • Xonar U7 MKII engineering helps overcome the space and power supply limitations of other external USB-based audio devices to offer 7.1-channel surround. Sound processing uses 192 kHz / 24-bit fidelity for high definition output, maintaining consistent quality across all surround channels.

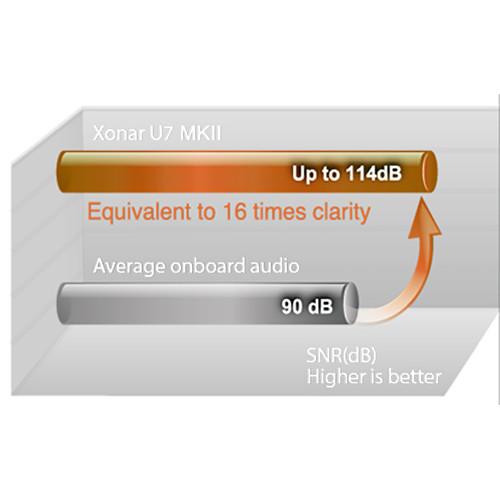

    114 dB Signal-to-Noise Ratio (SNR)
  • Greater audio clarity compared with the SNR ratios of average onboard audio units.
    Hyper Grounding Technology
  • ASUS Hyper Grounding PCB fabrication helps ensure strong signal insulation to reduce distortion and interference, also known as component crosstalk.
    Digital to Analog Converter (DAC)
  • A Cirrus Logic CS4398 DAC (digital-to-analog converter) brings clarity with a good signal-to-noise ratio (SNR) and low total harmonic distortion (THD).

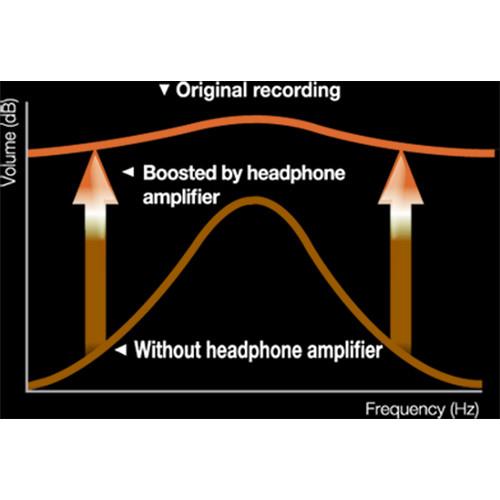

    Integrated Headphone Amplifier Pumps Up Sound Details
  • Xonar teams have integrated a headphone amplifier on the U7 to boost immersive headphone output.
    Dedicated Headphone and Mic Volume Controls
  • Dedicated headphone and microphone volume controls enable audio level adjustments without the need to pause your game or navigate software menus, helping to ensure uninterrupted gaming and media streaming experiences.
    Switch Between Headphone and Speaker Outputs

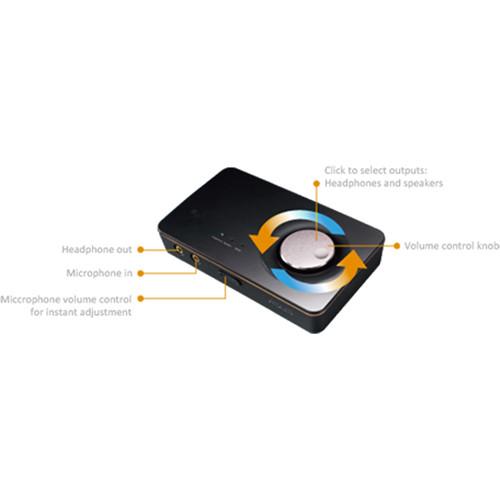

  • The headphone volume control knob doubles as a clickable output selector for switching between listening with headphones and speakers.
    Plug-and-Play USB Convenience
  • With its USB design, the Xonar U7 MKII upgrades your PC's audio performance simply by plugging it in. It draws power directly from the USB port, thus eliminating the need for a separate power adapter. Its compact design fits almost anywhere and is easily portable, so you can bring it with your laptop and enjoy improved audio while on-the-go.
    Sonic Studio

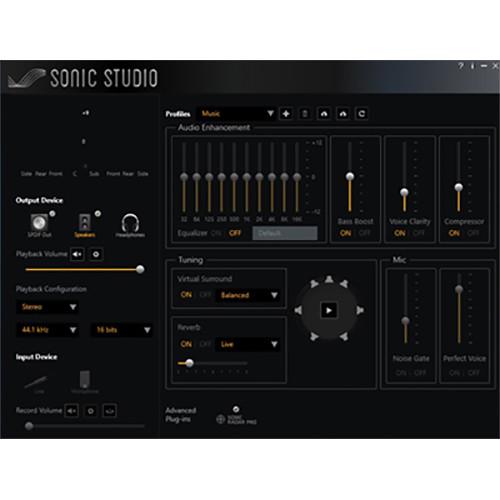

  • The Xonar U7 MKII features the Sonic Studio software suite for control over sound technologies from equalization (EQ) to 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements.
    Sonic Radar Pro
  • Fire up your favorite game and Sonic Radar Pro displays a 'radar' HUD (heads-up display) that pinpoints in-game actions relative to your position, so you'll know where you are on the battlefield and what's happening around you.
UPC: 889349481394 In the Box ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier
  • USB Cable
  • S/PDIF Adapter
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ASUS Xonar U7 MKII 7.1 USB Soundcard and Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ASUS U7 MKII 7.1 Specs

    Audio Interface USB 2.0 and 1.0
    Audio Performance Output Signal-to-Noise Ratio (A-Weighted):
    114 dB

    Input Signal-to-Noise Ratio (A-Weighted):
    110 dB

    Output THD+N at 1kHz (Front-out):
    >0.0006% (104 dB)

    Frequency Response (-3 dB, 24-bit/96 kHz input):
    10 Hz to 46 kHz

    Output/Input Full-Scale Voltage:
    Line Output (RCA, 3.5 mm): 1 Vrms (2.828 Vp-p)
    Headphone Output: 1.3 Vrms (3.677 Vp-p)
    Chipset Audio Processor:
    C-Media USB2.0 6632AX High-Definition Sound Processor (max. 192 kHz/24-bit)
    Digital-to-Analog Converter (DAC) Cirrus Logic CS4398
    Cirrus Logic CS4362
    Sample Rate and Resolution Analog Playback Sample Rate and Resolution:
    44.1/48/88.2/96/176.4/192 kHz @ 16/24-bit

    Analog Recording Sample Rate and Resolution:
    44.1/48/88.2/96/176.4/192 kHz @ 16/24-bit

    S/PDIF Digital Output:
    44.1/48/88.2/96/176.4/192 kHz @ 16/24-bit

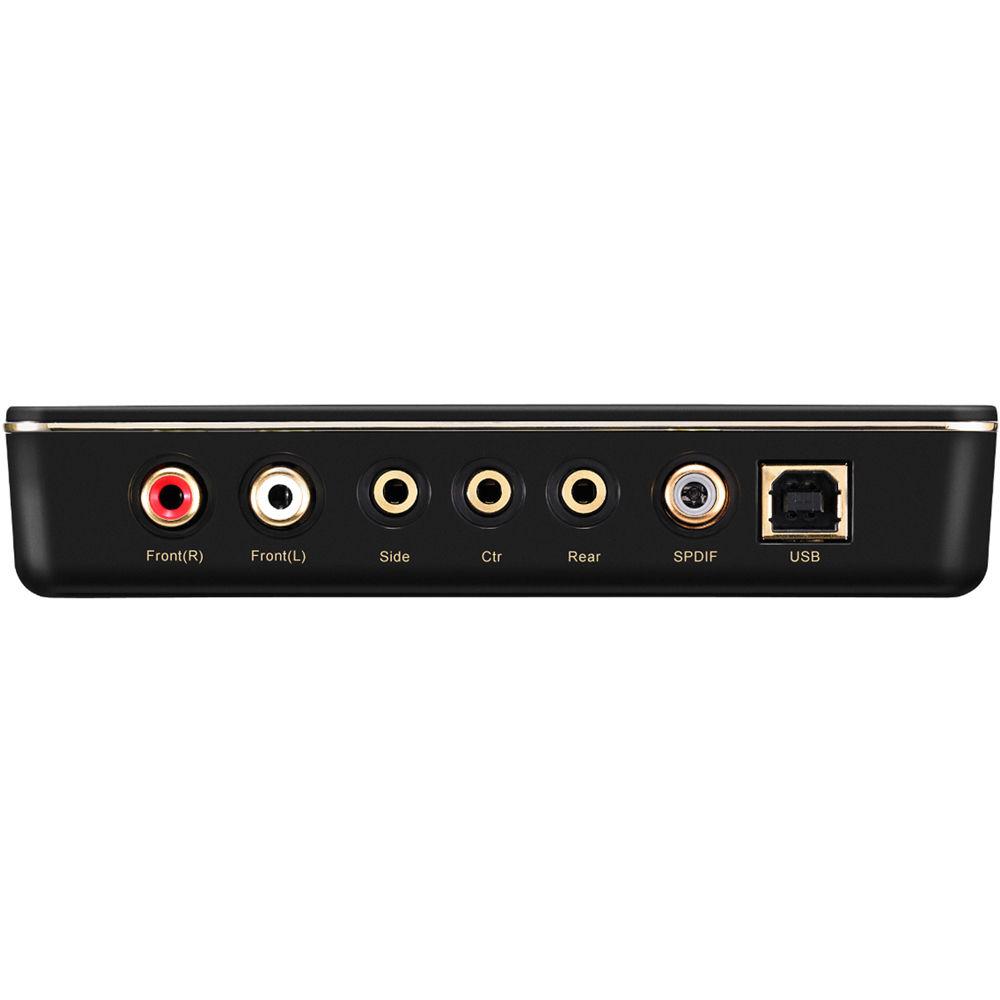

    Connectivity Analog Output
    4 x 3.5 mm jacks (1/8") (Headphone-out / Side-out / Center-Subwoofer-out / Rear-out
    2 x RCA (unbalanced)

    Analog Input
    1 x 3.5 mm jack (1/8") (Line-in / Mic-in combo)

    Digital
    1 x S/PDIF out (1 x Coaxial)
    Operating System Windows 10, 8.1, and 7 (64-bit)
    Mac OS X
    Dimensions 5.1 x 3.1 x 1.0" / 130.0 x 80.0 x 25.0 mm
    Weight Not specified by manufacturer
    Package Weight 1.45 lb
    Box Dimensions (LxWxH) 10.0 x 6.7 x 2.9"

    Rating

    96% users recommend this product to others. And what about you?
