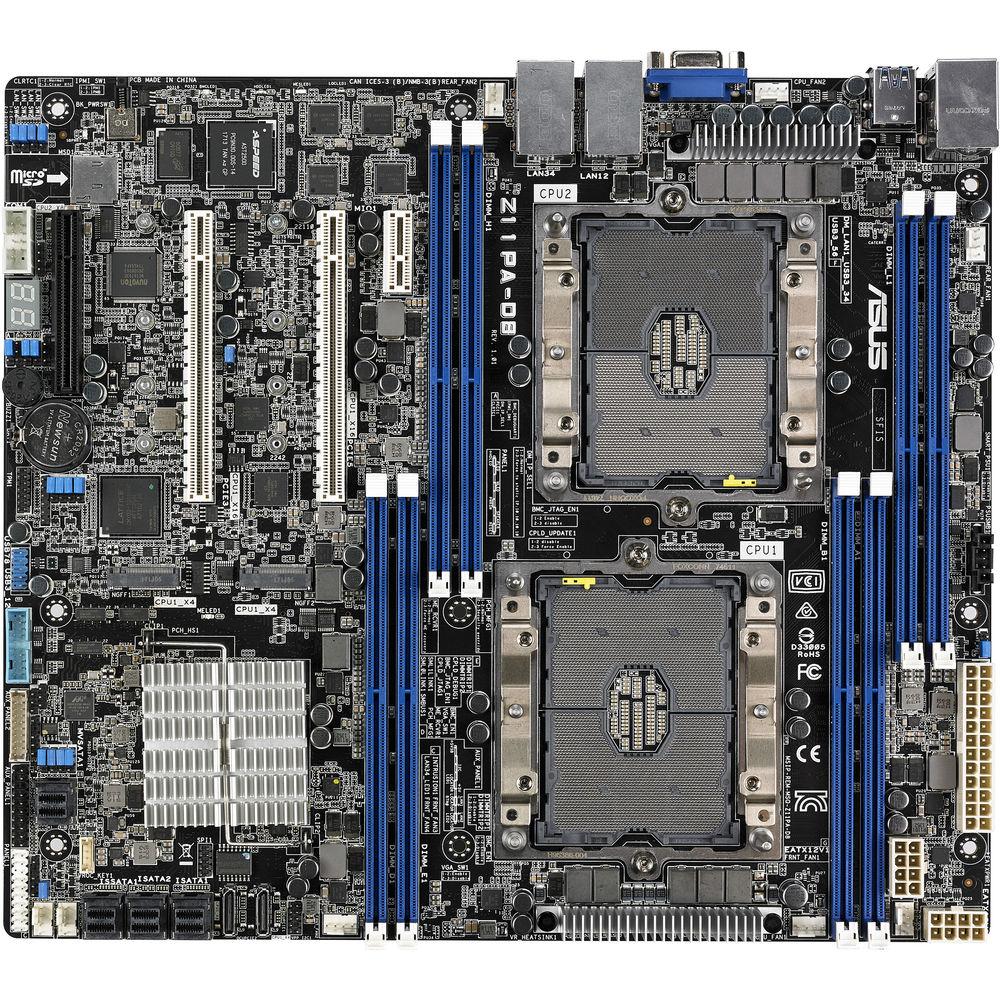

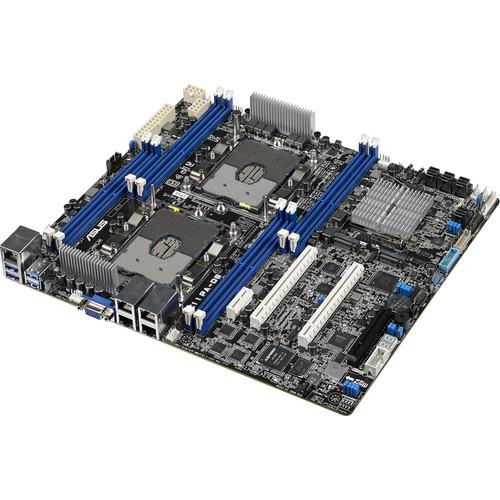

Product description Built with a CEB form factor and ATX mounting holes for use in chassis, tower, or rack systems that are being used for SMB, print/file/mail, and entry storage servers, the Z11PA-D8 Server LGA 3647 CEB Motherboard from ASUS features the Intel C621 chipset and dual LGA 3647 sockets, each of which can support one processor. Each processor supports four DIMM slots and compatible memory types include 4, 8, 16, and 32GB RDIMM modules, 32 and 64GB LR-DIMM modules, and 64 and 128GB LR-DIMM 3DS modules. With all eight DIMM slots in use, up to 1TB of memory is supported.

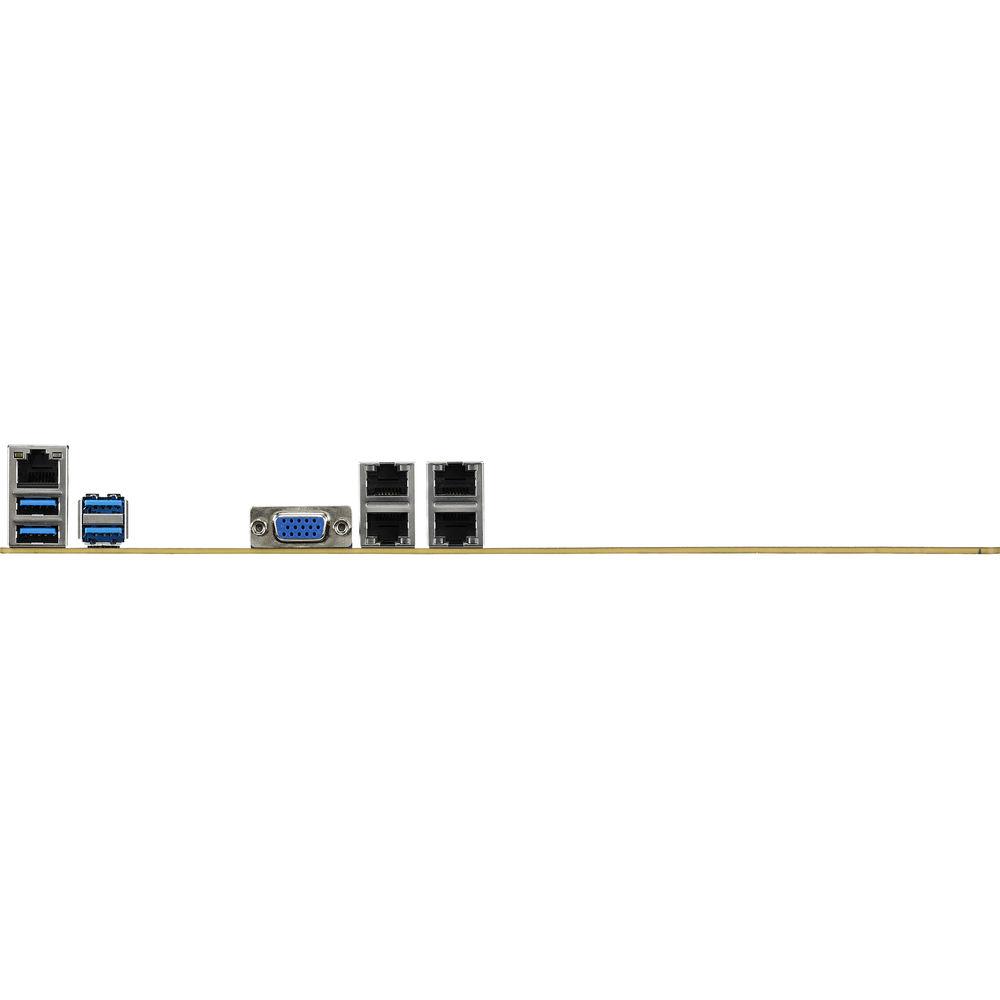

The Z11PA-D8 has a total of four mini-SAS connectors that can support a total of 16 SATA III 6 Gb/s ports, as well as two M.2 connectors that support 2242, 2260, 2280, and 22110 SSDs via PCIe 3.0 x4. There are also four USB 3.0 Type-A ports, one VGA port, four Gigabit Ethernet ports, and one LAN management port. Internal expansion can be accomplished using two PCIe 3.0 x16 slots, one PCIe 3.0 x8 slot, and one MIO PCIe x1 slot for an audio card. Additional peripherals can be utilized via one USB 3.0 header and one USB 2.0 header, each of which supports two devices, and one serial port header.
ASUS' Z11PA-D8 Server LGA 3647 CEB Motherboard includes two LGA 3647 carriers and an I/O shield. Protection is provided by a limited 3-year warranty. General Features - Powerful Performance with Intel Xeon Scalable Processors and ECC Memory
- The Z11PA-D8 is built on the Intel Xeon Scalable Platform to deliver higher per-core performance and four memory channels that provide 50% more memory bandwidth and capacity for 1.65x faster average system-level performance compared to previous-generation processors. The Intel Xeon Scalable platform also delivers better virtualization performance, enabling 4.2x more virtual machines (VMs) per system. With eight DIMM slots that support up to 1TB of DDR4 RAM, the Z11PA-D8 delivers efficient memory capabilities for your business.
- Increased Performance or Data Redundancy with Dual M.2 SSDs in RAID Mode
- In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are up to 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy. The Z11PA-D8 comes with an optional Virtual RAID on CPU (VROC) enabling connector to support NVMe SSDs with Intel Volume Management Device technology. The NVMe SSDs are directly connected to the CPU, enabling latency reduction and increased bandwidth, while reducing power consumption by 15W compared to traditional hardware RAID cards.
- High-Speed Storage Interface Support with Dual OCuLink for NVMe
- The Z11PA-D8 features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.
- Connect up to 16 SATA III 6 Gb/s Storage Devices
- The Z11PA-D8 comes with four mini-SAS hard drive connectors that support up to 16 SATA III ports each for 6 Gb/s connectivity with external devices and cleaner cable routing.
- IT Infrastructure Management Software
- The Z11PA-D8 features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics, even if the operating system is down or offline, through a user-friendly, web-based graphical interface that works with most major browsers. - Integrated microSD Card Slot for Maintenance
- The Z11PA-D8 includes a microSD card slot to provide additional storage for video and log files, as well as ISO files for OS recovery via the web-based ASMB9-iKVM user interface. This additional storage option enables users to view their files on other devices and keep their data backed up.
- Initialization Guidance for Improved BIOS Tracking Enhancement
- The Z11PA-D8 features quick initialization guidance that enables users to realize the system initialization state in seconds. It provides instant system information including the BMC firmware version, system series number, memory error messages, and any unusual diagnostic results for improved and more efficient IT operation. A progress bar displays the current boot status and a two-digit POST code provides users with comprehensive information about the startup process and indicates the boot status for troubleshooting.
UPC: 889349756386 In the Box ASUS Z11PA-D8 Server LGA 3647 CEB Motherboard 2 x LGA 3647 Carriers I/O Shield Limited 3-Year Warranty User Manual PDF 10.3mbasvuyefvqsduavsssyqdf Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS Z11PA-D8 Server LGA 3647 CEB Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS Z11PA-D8 Specs | | | Chipset | Intel C621 | | CPU Socket | LGA 3647 | | | | USB | 4 x USB 3.1 Gen 1 Type-A | | Display | 1 x VGA | | Audio | None | | Ethernet / Controller | 4 x Intel I210AT Gigabit
1 x Management | | | | Memory Slots | 8 x 288-Pin | | Memory Support | DDR4 2400, 2666 MHz | | Maximum Capacity | 1 TB | | Channel Architecture | Quad Channel | | | | SATA | 16 x SATA III | | M.2 | 2 x 2242, 2260, 2280, 22110 (PCIe 3.0 x4) | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 (SATA) | | | | Expansion Slots | 2 x PCIe 3.0 x16
1 x PCIe 3.0 x8
1 x MIO PCIe x1 | | USB | 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports)
1 x USB 2.0 Header (Supports 2 USB Type-A Ports) | | Multi-GPU Support | None | | Air Cooling | 8 x 4-Pin System | | Power Connectors | 1 x 24-Pin Mainboard
8 x 8-Pin CPU | | Security | Chassis Intrusion | | Audio | None | | Legacy | 1 x Serial | | | | I/O Connection Headers | None | | | | Form Factor | CEB | | Dimensions | 12 x 10.5" / 304.80 x 266.70 mm | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 16.2 x 15.0 x 3.0" |
