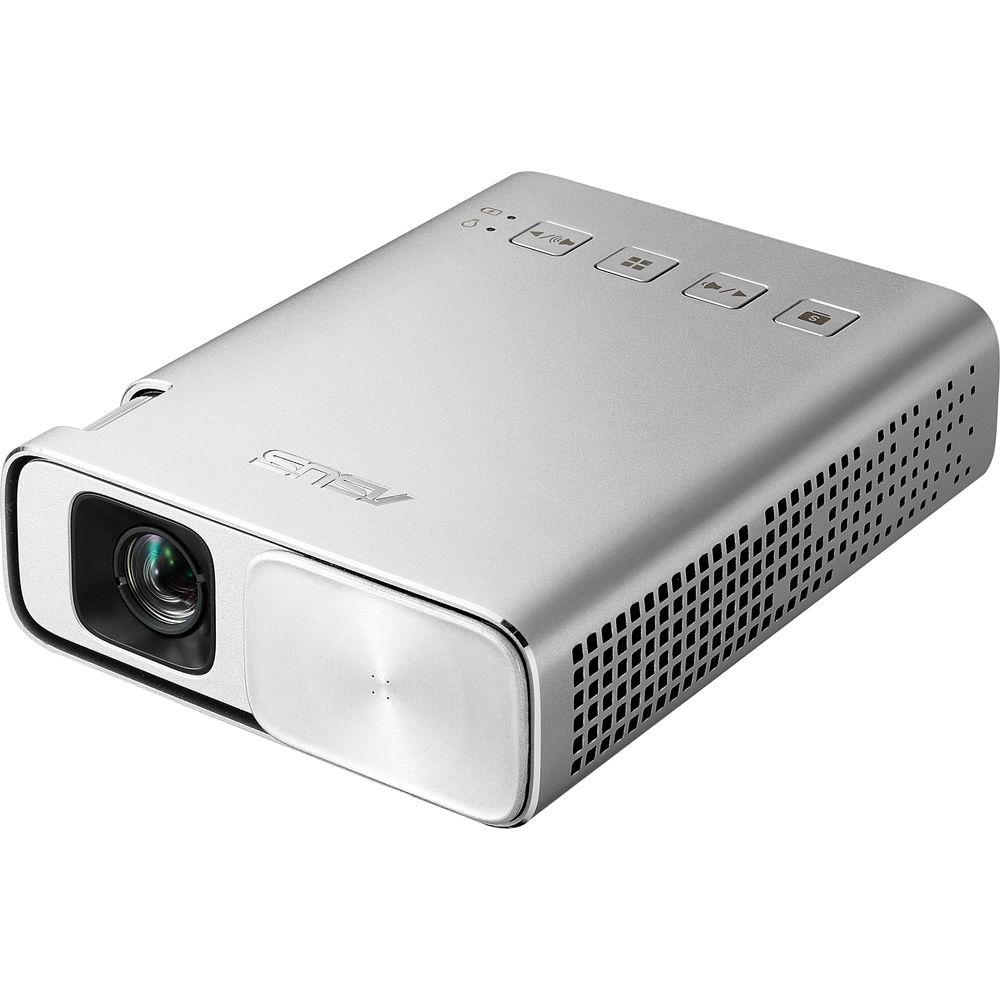

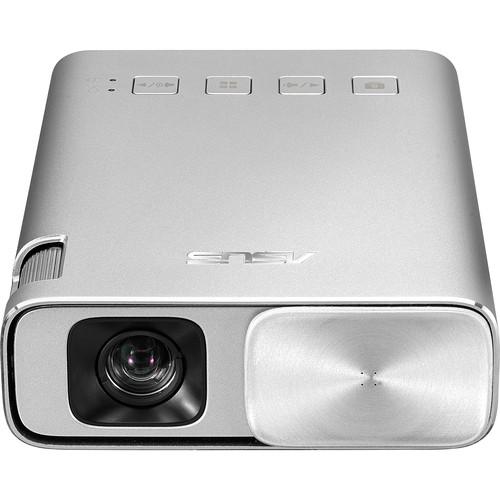

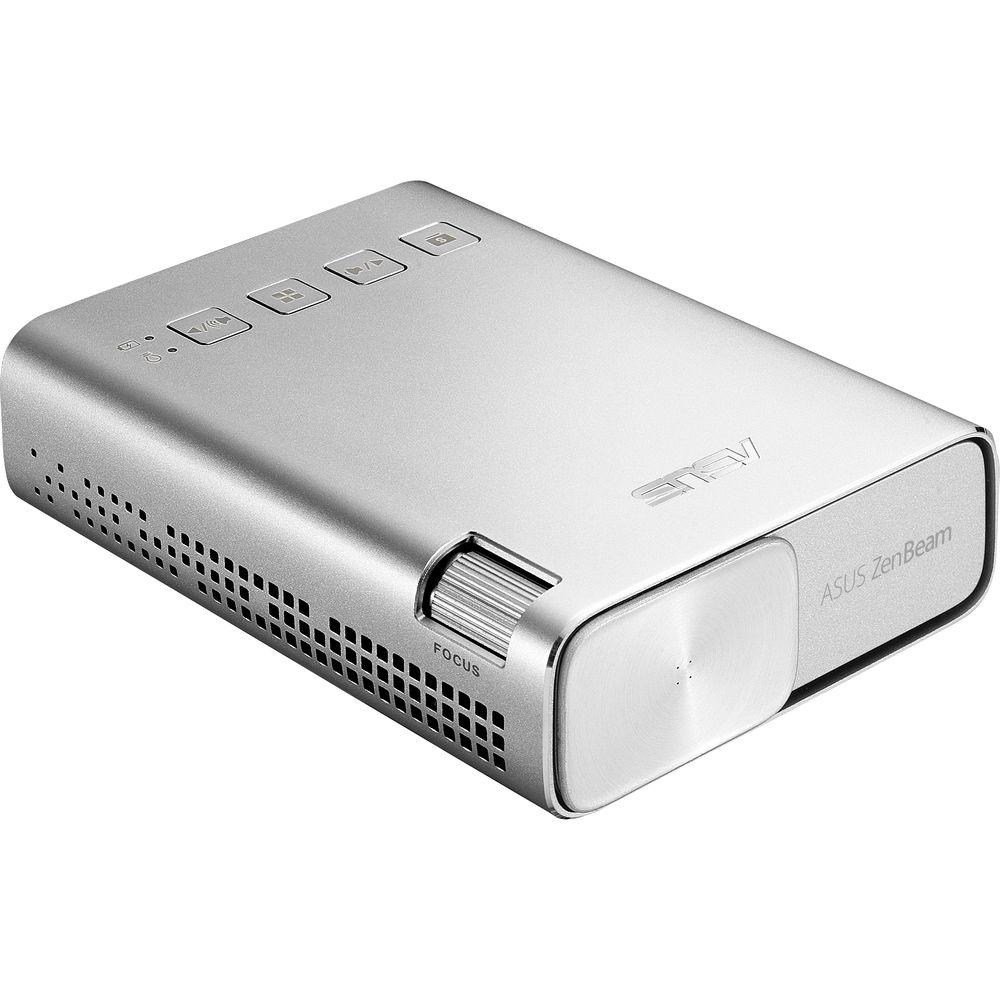

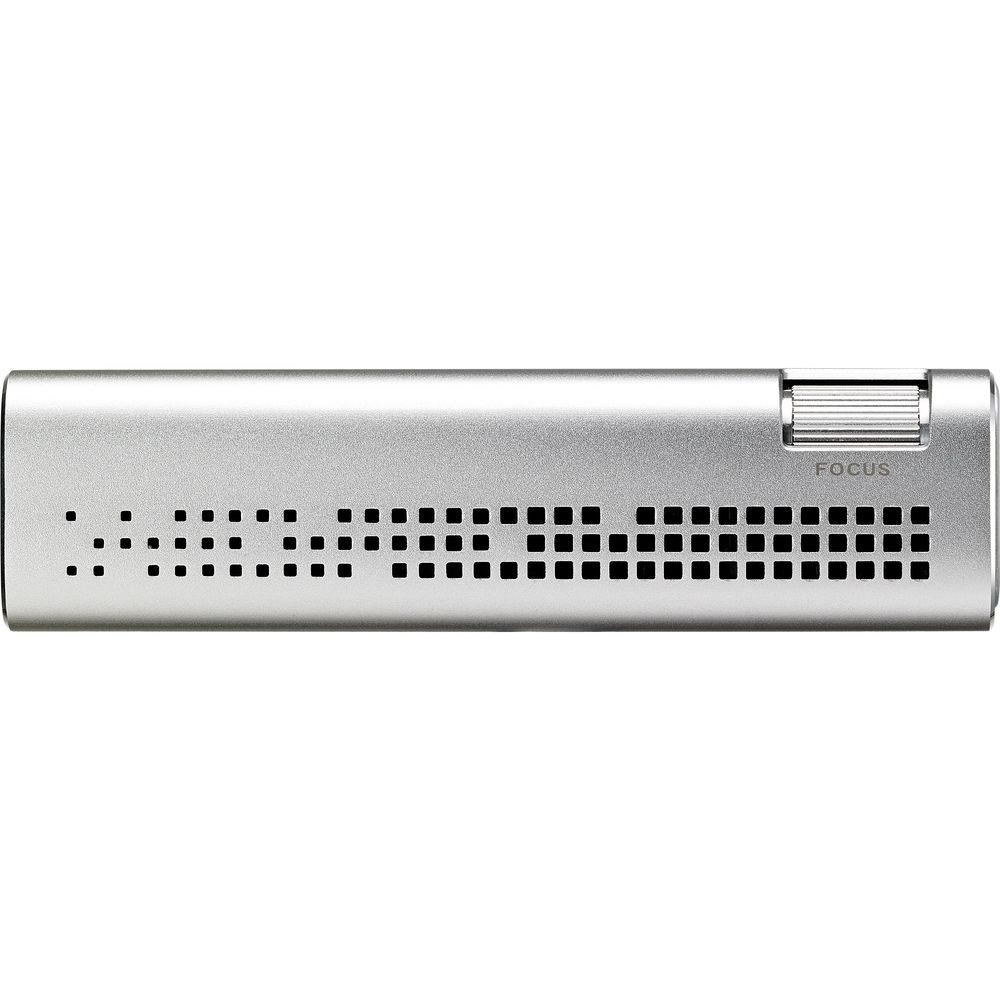

User Manual for ASUS ZenBeam E1 150-Lumen WVGA DLP Pico Projector Click to enlarge the picture
Contents of the user manual for the ASUS ZenBeam E1 150-Lumen WVGA DLP
- Product category: Pico Projectors ASUS
- Brand: ASUS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ASUS Pico Projectors
 |
User manual for the ASUS ZenBeam E1 150-Lumen WVGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ASUS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!
|
Product description Enjoy videos and photos nearly anywhere with the ASUS ZenBeam E1 150-Lumen WVGA DLP Pico Projector. Its 150 lumens of maximum brightness makes it suitable for use in dark rooms, and though its native resolution is 854 x 480, it will accept signals up to 1080p. The E1 has an HDMI input with MHL compatibility to connect to your compatible digital HD and mobile devices. The built-in battery can last up to five hours per charge, allowing you to project nearly anywhere. Its LED light source will last up to 30,000 hours, and for added convenience and instant connectivity, a carrying case and HDMI cable are included. - A Pocket-Sized Projector

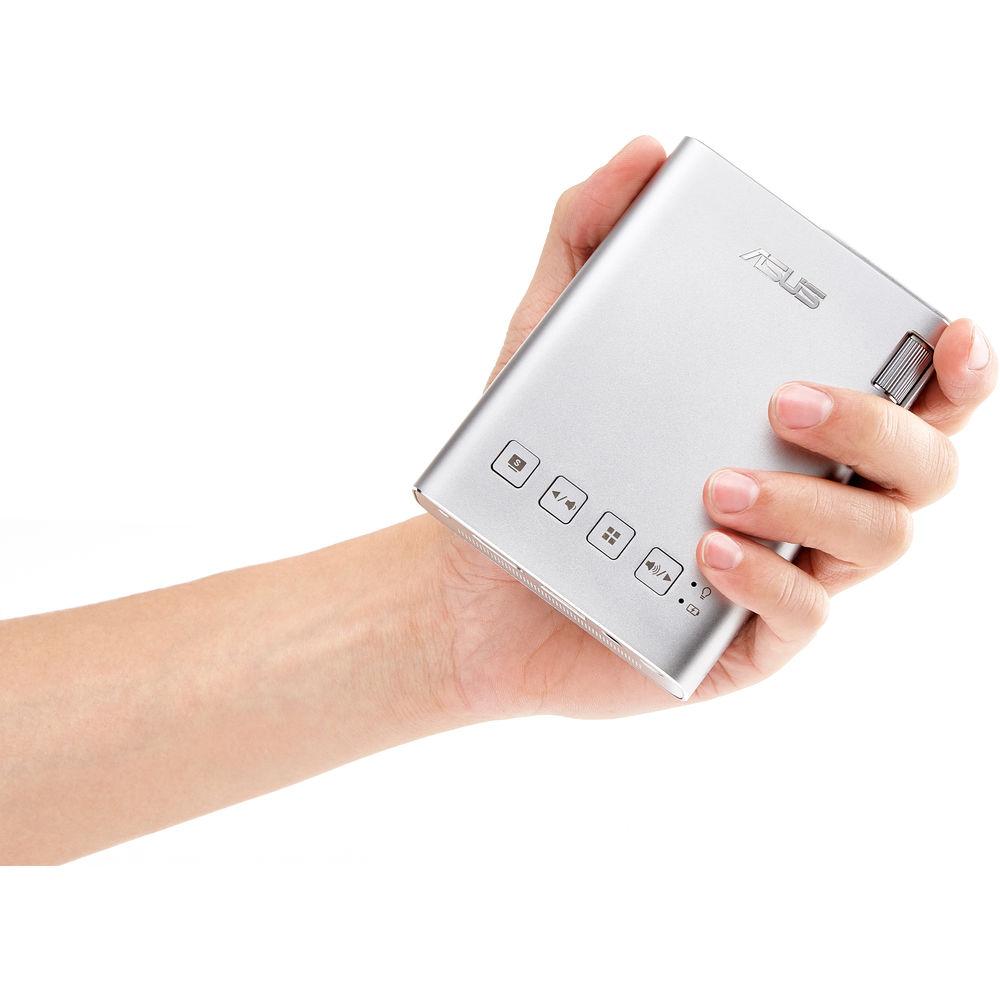

- At just 4.3 x 1.1 x 3.3", the ZenBeam E1 can fit in your pocket and produce images as large as 120" diagonal.
- Lightweight Design

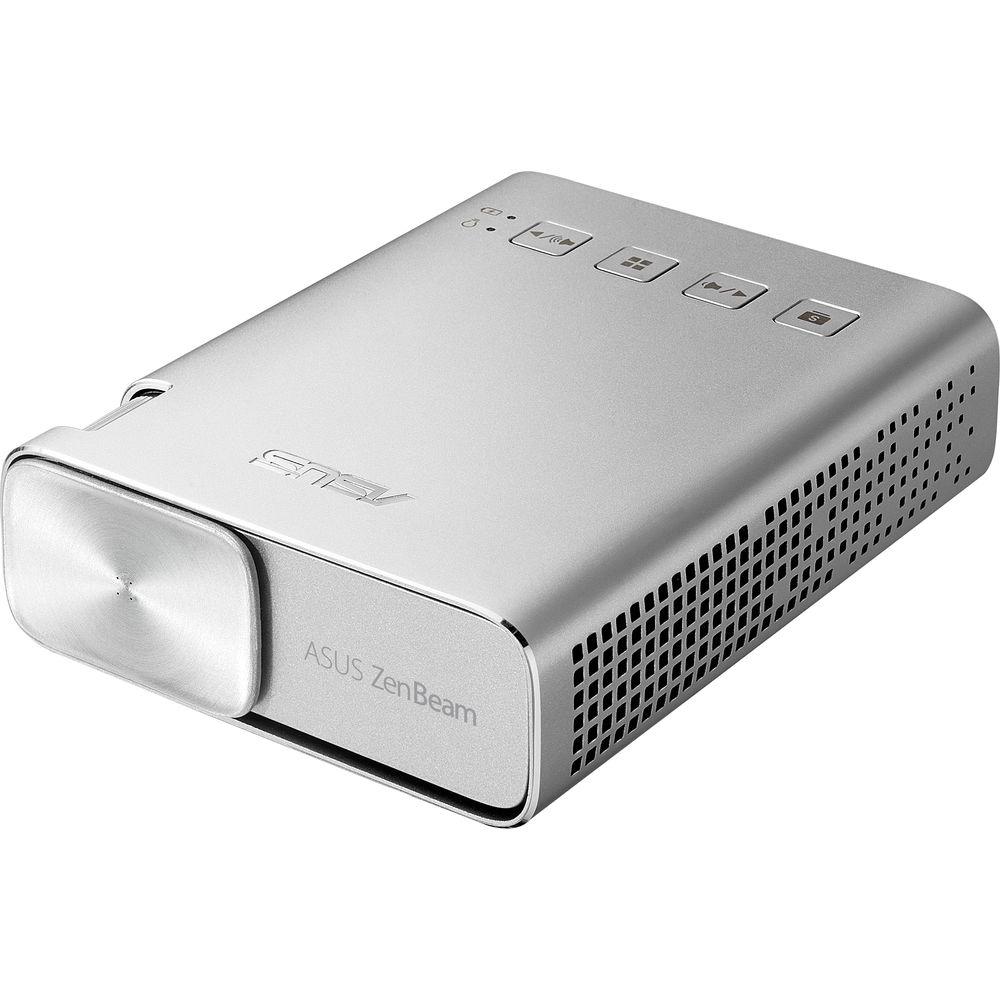

- Well-suited for on-the-go presenters, the E1 weighs just 10.83 oz and features a spun-metal finish on the integrated lens cap.
- DLP IntelliBright Technology
- DLP IntelliBright technology is designed to boost brightness and contrast by up to 30% while reducing power consumption by up to 50%. The projector also supports 100% of the NTSC color gamut and an Eco-LED light source with up to a 30,000-hour lifespan.
- Mobile Device, Game Console, and Media Streamer Connectivity

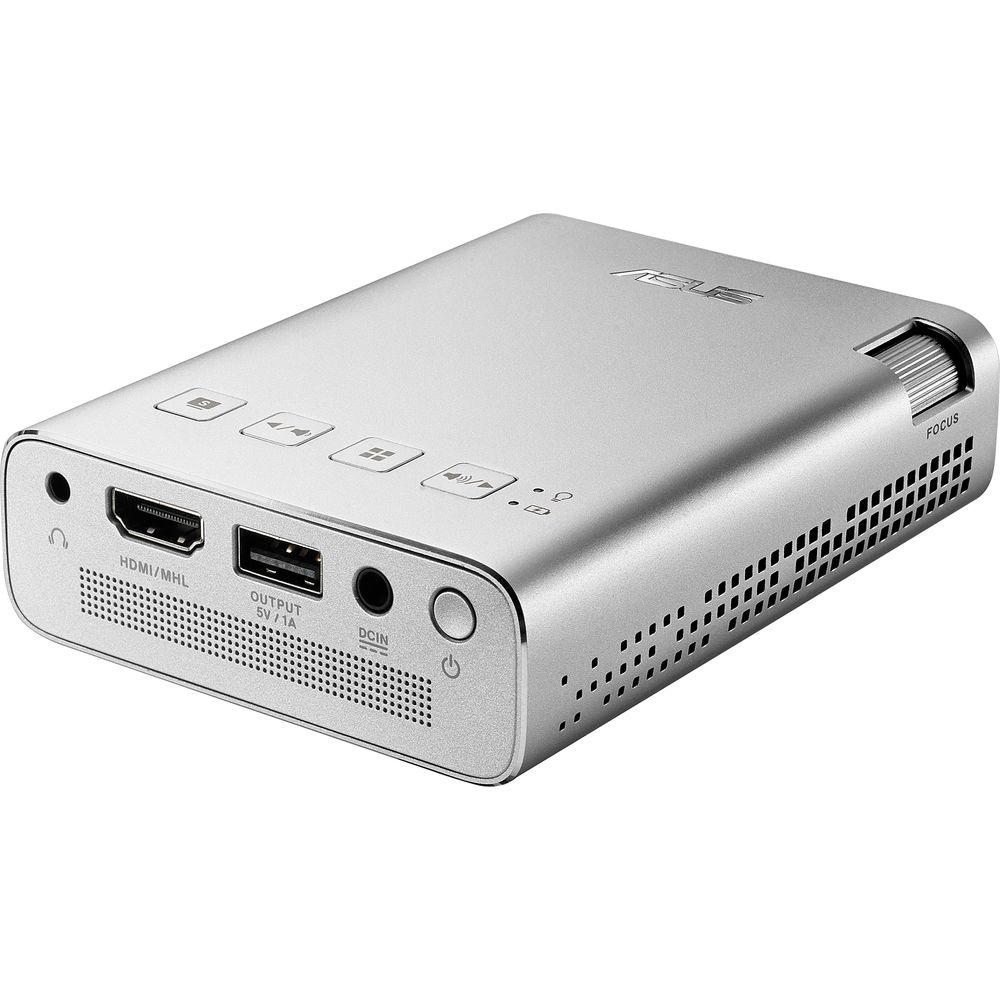

- The HDMI/MHL input allows you to connect to nearly any digital HD source device, including computers, MHL-enabled smartphones, and media streamers. You can also charge your mobile device while simultaneously projecting content.
- Up to 5 Hours of Projection
- The ZenBeam E1 has a built-in rechargeable battery that provides up to 5 hours of projection time. It also doubles as a power bank to charge mobile devices.
- Designed for Quick, Easy Setup

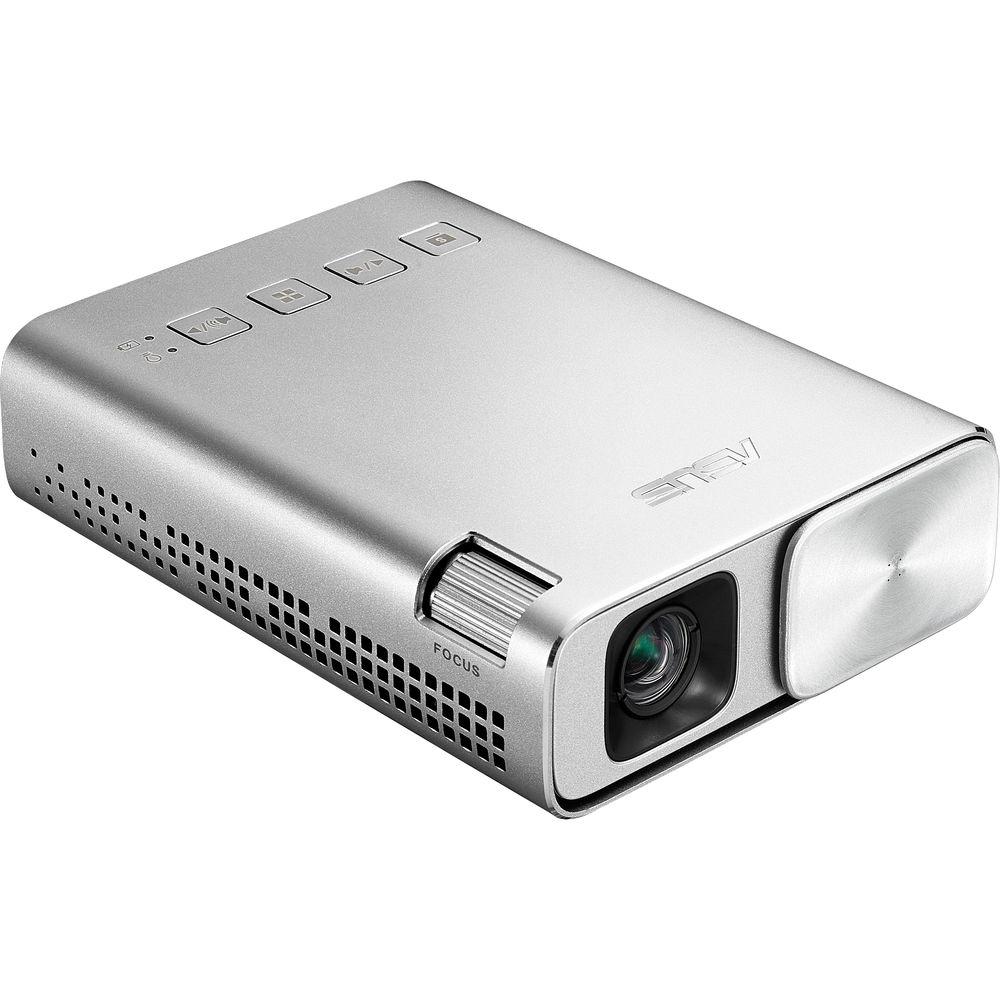

- Just connect a source device, turn the projector on, and adjust the focus using the focus ring for projections up to 120" when placed just 12' from your desired projection surface.
- Automatic Keystone Correction
- Automatic keystone correction is designed to automatically eliminate the trapezoidal images that can result from angled projection, helping to produce a rectangular screen.
- Built-In Speaker with SonicMaster Technology
- The projector is designed to provide augmented sound quality with its built-in SonicMaster-enhanced speaker.
- Additional Features
-
- R/G/B LED light source
- Integrated tripod mount
UPC: 889349316702 In the Box ASUS ZenBeam E1 150-Lumen WVGA DLP Pico Projector HDMI Cable Carrying Bag Power Adapter AC Plug Limited 1-Year Warranty More info from ASUS yvbbfvuxvtwauqfycfbs Table of Contents
|
Upload User Manual
Have you got an user manual for the ASUS ZenBeam E1 150-Lumen WVGA DLP Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersASUS E1 Specs | | | Display System | 0.2" DLP | | Native Chip Resolution | 854 x 480 (WVGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 150 Lumens | | Offset | 100% | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 3500:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 1.64 - 12.139' / 0.5 - 3.7 m | | Throw Ratio | 1.4:1 | | Projection Size | 16 - 120" / 40.64 - 304.80 cm | | | | Keystone Correction | Auto: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
1 x USB Power (Output)
1 x 1/8" (3.5 mm) Mini Headphone (Output) | | Wireless LAN / Wi-Fi | None | | | | Light Source | LED | | Expected Lamp Life | Low Brightness: 30,000 Hours | | Fan Noise | Full Brightness: 30 dB
Medium Brightness: 28 dB | | Power Consumption | Full Brightness: <24 W
Standby Mode (Lamp Off): <0.5 W | | Battery Capacity | 6000 mAh | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 - 90% | | Dimensions (W x H x D) | 4.3 x 1.1 x 3.3" / 11.0 x 2.9 x 8.3 cm | | Weight | 10.83 oz / 307 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 6.7 x 5.5 x 3.8" |
