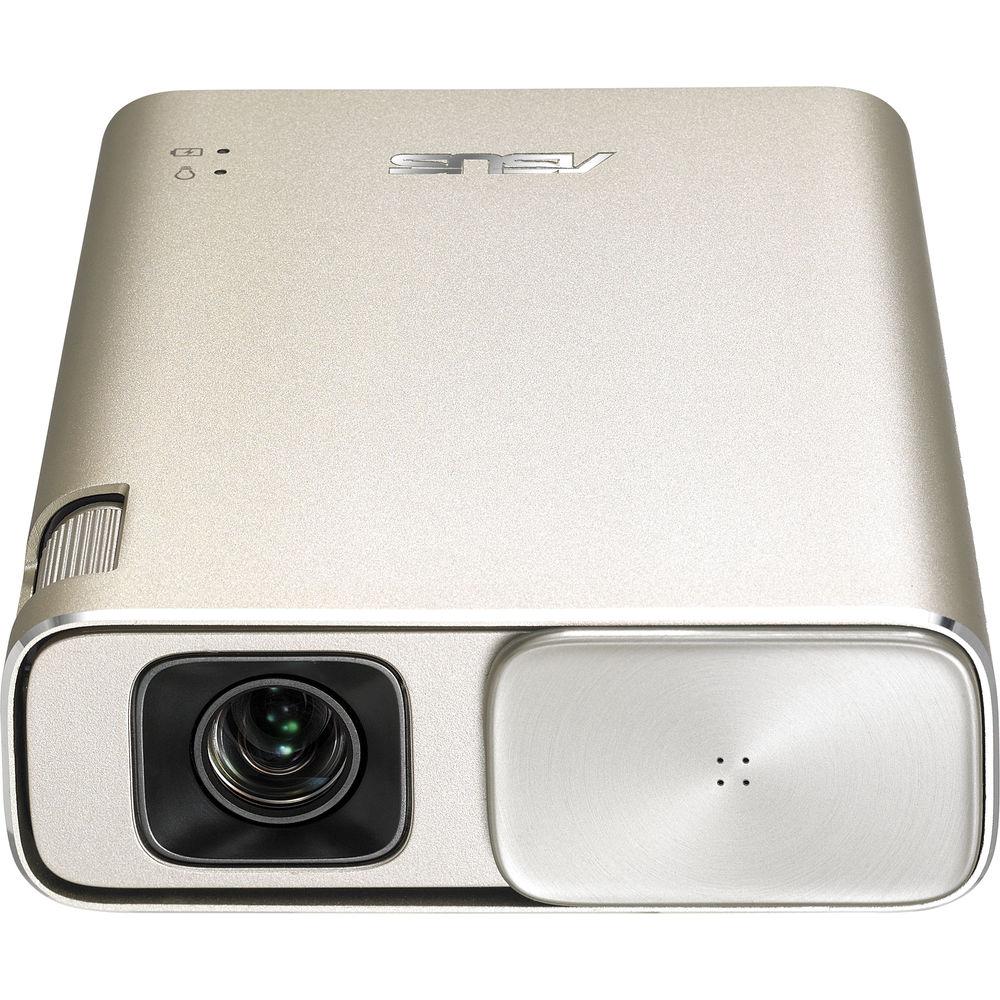

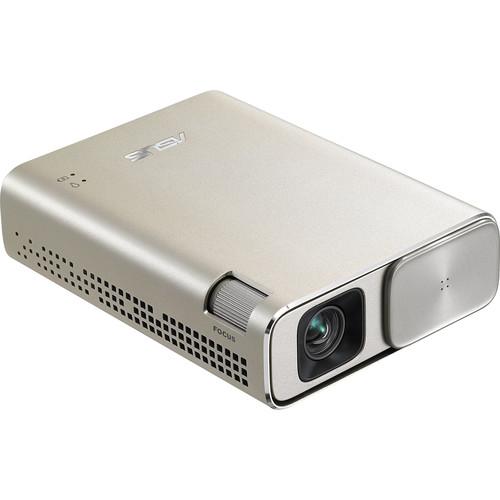

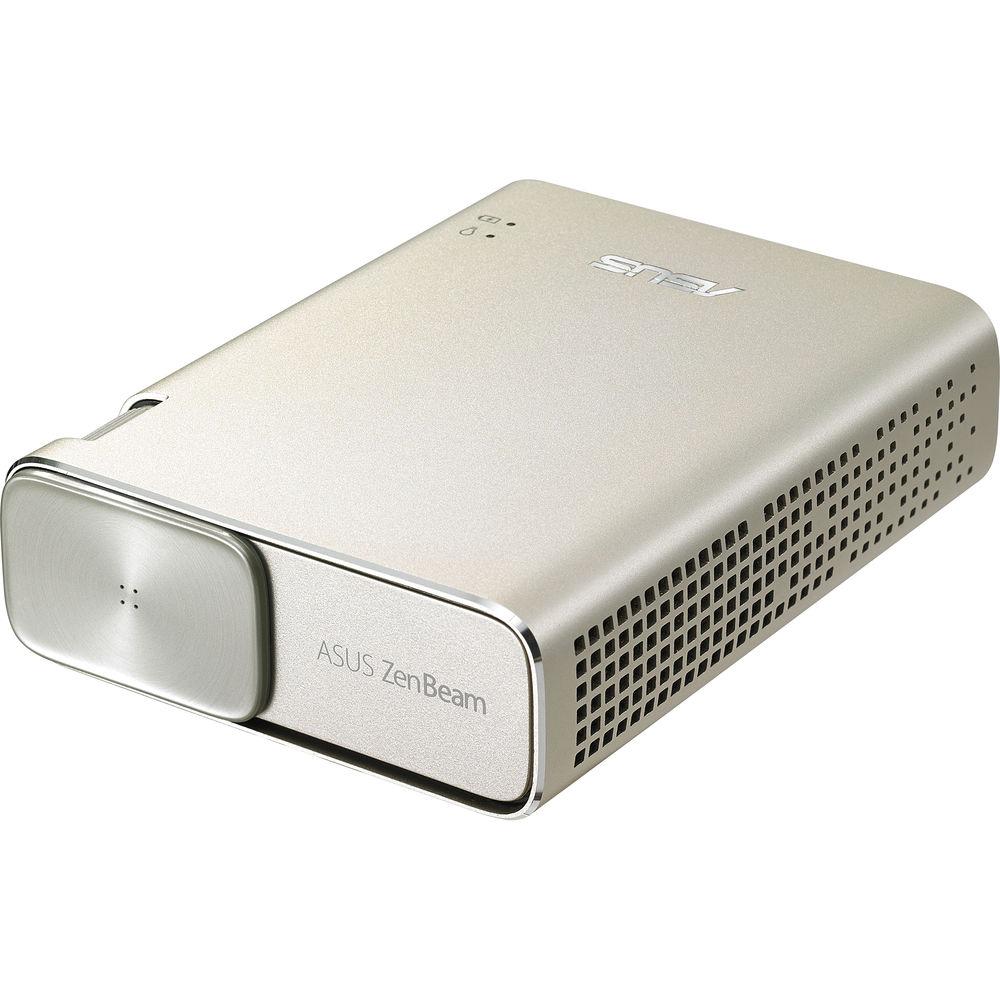

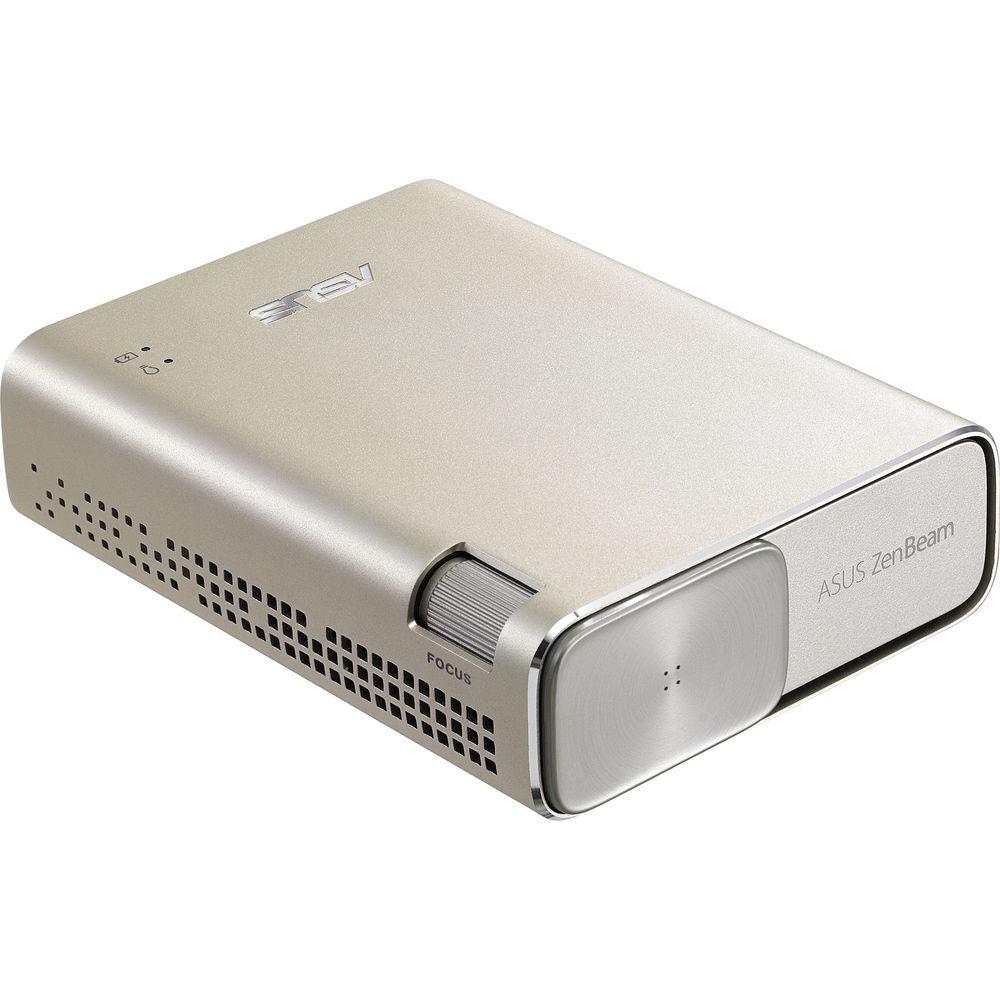

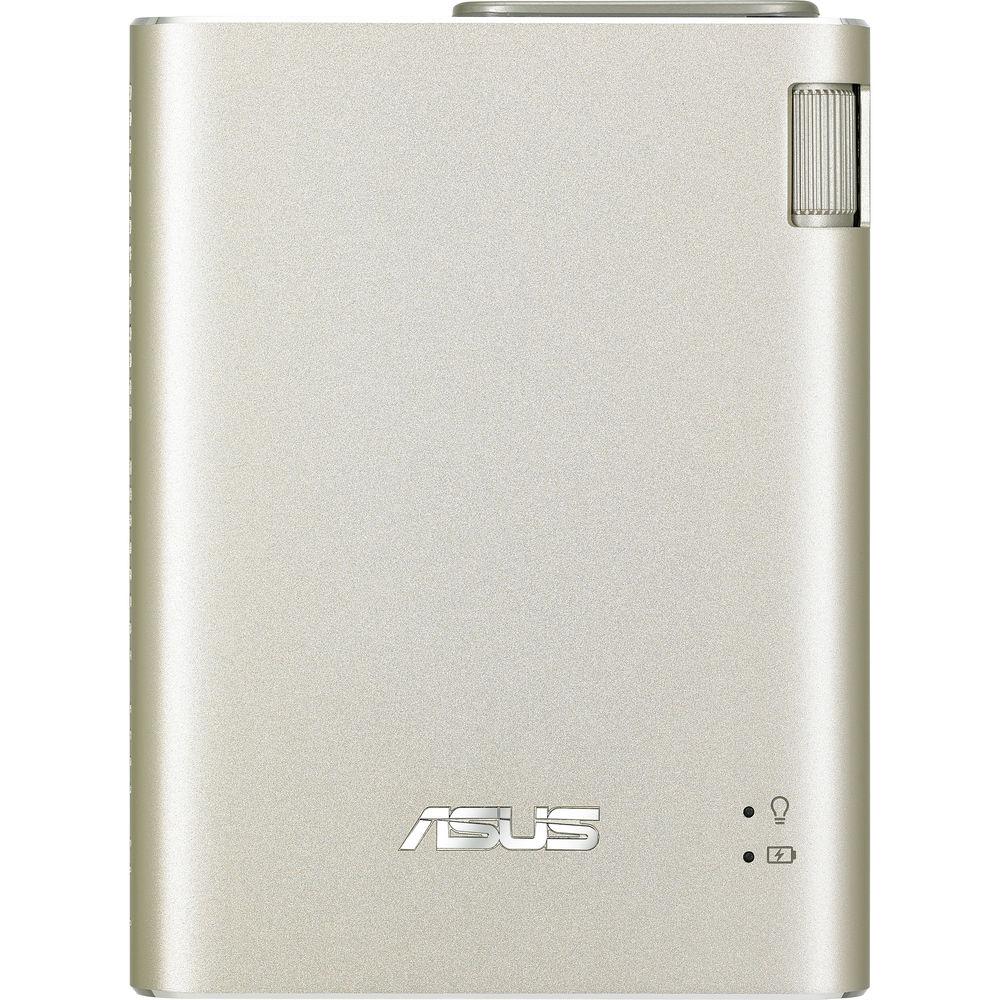

User Manual for ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector

Click to enlarge the picture
ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector Contents of the user manual for the ASUS ZenBeam Go E1Z 150-Lumen FWVGA
  • Product category: Pico Projectors ASUS
  • Brand: ASUS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ASUS Pico Projectors

ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector
User manual for the ASUS ZenBeam Go E1Z 150-Lumen FWVGA contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ASUS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ASUS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ASUS product will considerably shorten its lifespan!



Product description

Enjoy video and photos nearly anywhere with the ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector. It can read popular file formats from USB flash drives, and can also display content from your compatible Windows computer or Android smart device. Its 150 lumens of maximum brightness makes it suitable for use in dark rooms, and though its native resolution is 854 x 480, it will accept signals up to 1080p. Its LED light source will last up to 30,000 hours, and for added convenience and instant connectivity, USB cables and a USB OTG adapter are included. Note: Android 5.0 or later with Host Storage mode support is required for USB playback from mobile devices; Windows XP or later is required for desktop/laptop playback. DRM-protected content playback may be limited to playback on your Android device.
    Large Image from a Compact Projector

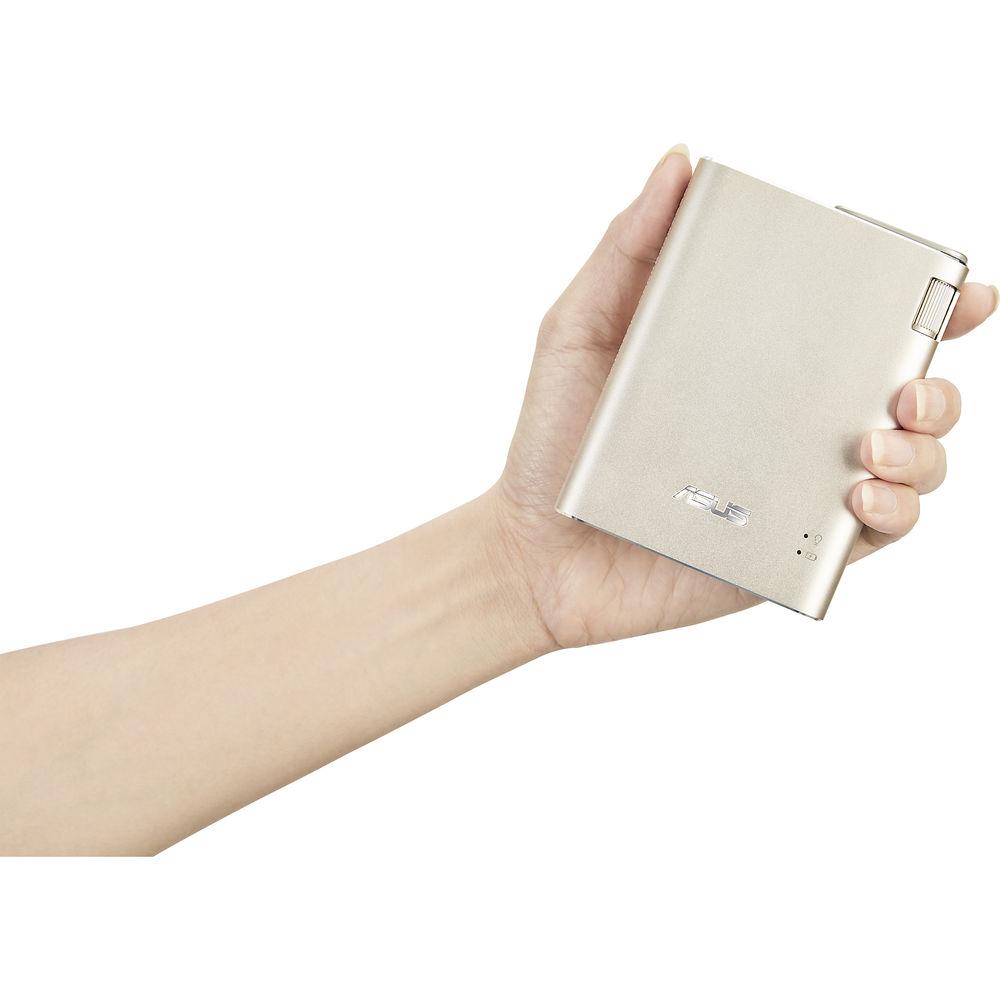

  • The ZenBeam Go E1Z measures only 3.3 x 1.1 x 4.3" and weighs just 10.8 oz, so it's small and light enough to carry around, yet it can project up to 120" diagonal images. Connect it to your laptop or mobile device via the USB port or the included USB Type-C adapter. Project nearly anywhere with the built-in rechargeable battery, which lasts up to 5 hours at 50 lumens. You can also use the projector to charge your mobile device with its USB power output.
    Connect to Android and Windows Devices
  • The ZenBeam Go E1Z connects to computers and mobile devices via the DisplayLink app. You can check the battery status or adjust brightness or battery settings using the ZenBeam app.
    Designed for Quick Setup

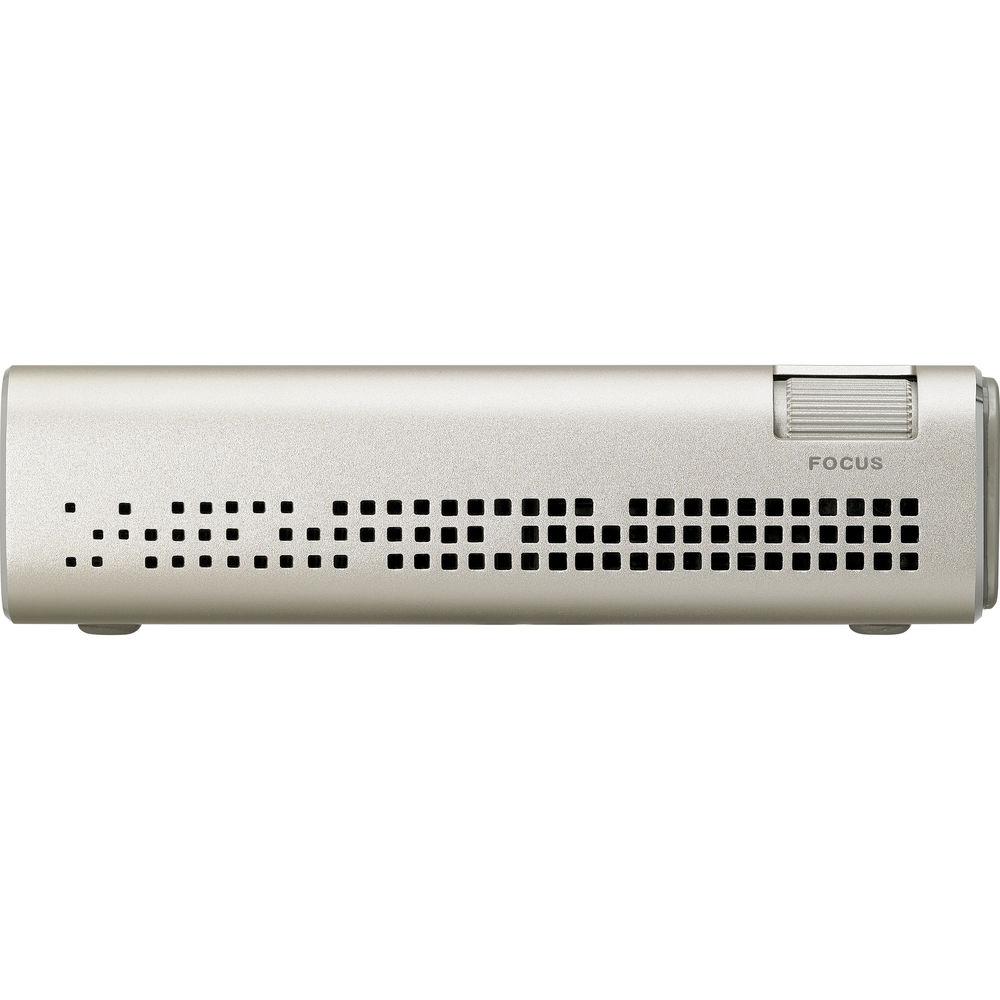

  • Just plug the ZenBeam Go E1Z in, point it at your desired screen or flat vertical surface, and start projecting. The focus ring assists with minute adjustments for clear images.
    Long LED Life with 120" Images
  • Offering 100% of the NTSC color gamut and 150 lumens of brightness with up to a 30,000-hour LED lifespan, the ZenBeam Go E1Z delivers 854 x 480 resolution and scales down Full HD videos to match its native resolution. It can project a 120" image from just 12.1' away. Integrated DLP IntelliBright technology is designed to boost brightness and contrast by up to 30% while lowering power consumption by up to 50%.
    Up to Five Hours of Cable-Free Projection
  • The built-in battery provides up to five hours of projection time on a full charge at the 50-lumen setting.
    Auto Keystone Correction
  • The Auto Keystone correction feature is designed to automatically detect the projector's orientation and correct for distortions that result from angled projection.
    Built-In Speaker
  • The ZenBeam Go E1Z has an integrated ASUS SonicMaster-enhanced speaker for clear sound.
    Additional Features
    • R/G/B LED light source
    • Six picture modes: Presentation Mode, Scenery Mode, Theater Mode, Standard Mode, Flashlight, SOS
    • Tripod mounting socket
UPC: 889349316795 In the Box ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector
  • 2 x USB Type-A to Micro-USB Cable
  • Micro-USB to Micro-USB Cable
  • USB Type-C OTG
  • Carrying Bag
  • Power Adapter
  • AC Plug
  • Limited 2-Year Warranty
  • More info from ASUS cvedwvrszdxa Table of Contents




    Upload User Manual

    Have you got an user manual for the ASUS ZenBeam Go E1Z 150-Lumen FWVGA DLP Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ASUS E1Z Specs

    Display System 0.2" DLP
    Native Chip Resolution 854 x 480 (FWVGA)
    Supported Resolutions Maximum: Full HD 1080p
    Max Brightness 150 Lumens
    Offset 100%
    Aspect Ratio Native: 16:9
    Dynamic Contrast Ratio 3500:1
    Color Depth 8-Bit (16.78 Million Colors)
    Scan Horizontal: 24.7 to 74.6 kHz
    Vertical: 50 to 60 Hz
    Focus Manual
    Optical Zoom None
    Throw Distance 1.64 - 12.139' / 0.5 - 3.7 m
    Throw Ratio 1.4:1
    Projection Size 16 - 120" / 40.64 - 304.80 cm
    Keystone Correction Auto: ± 40°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-In Speaker Yes (Mono)
    Speaker Power 2W

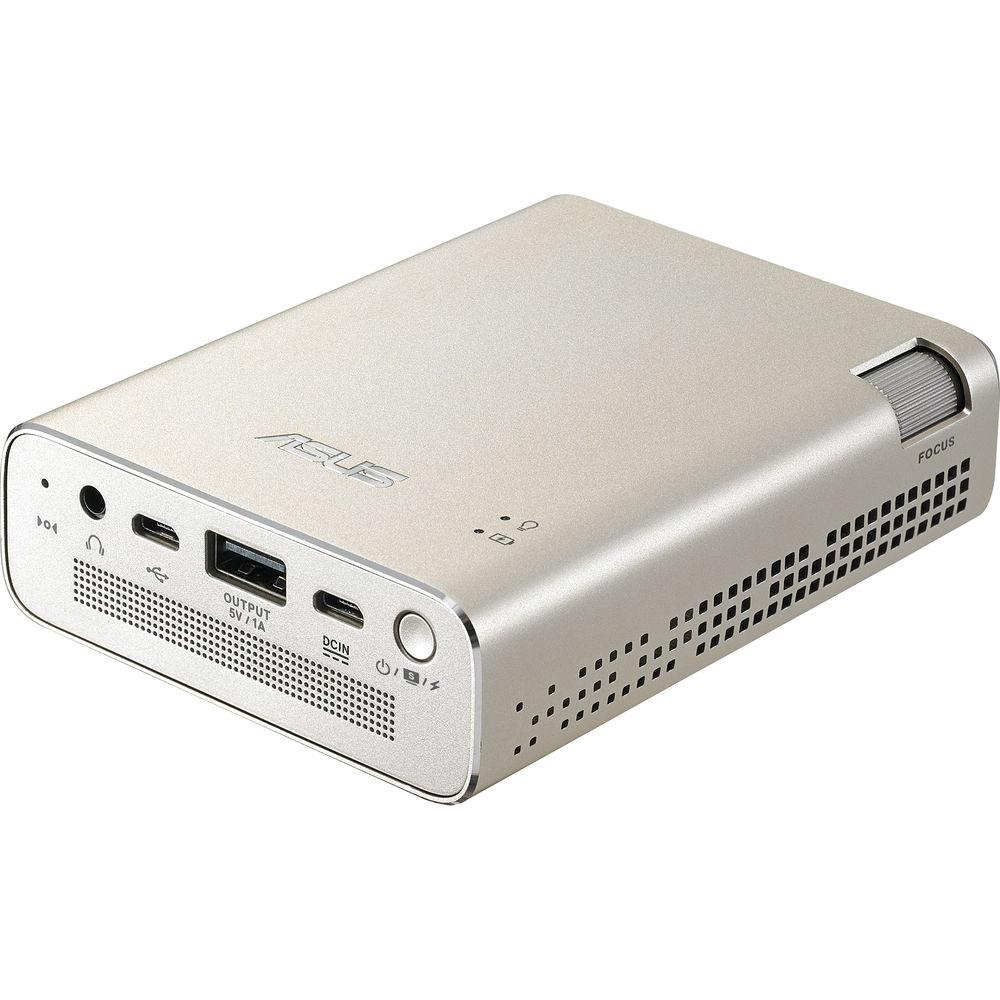

    Inputs/Outputs 1 x Micro-USB Audio/Video (Input/Output)
    1 x 1/8" (3.5 mm) Mini Headphone (Output)
    1 x USB Power (Output)
    1 x Micro-USB Power (Output)
    Wireless LAN / Wi-Fi None
    Light Source LED
    Expected Lamp Life Low Brightness: 30,000 Hours
    Fan Noise Full Brightness: 30 dB
    Low Brightness: 28 dB
    Power Consumption Full Brightness: <18 W
    Standby Mode (Lamp Off): <0.5 W
    Battery Capacity 6400 mAh
    Operating Temperature 32 to 104°F / 0 to 40°C
    Operating Humidity 20 - 90%
    Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 20 - 90%
    Dimensions (W x H x D) 4.3 x 1.1 x 3.3" / 11.0 x 2.9 x 8.3 cm
    Weight 10.83 oz / 307 g Approximate
    Package Weight 1.8 lb
    Box Dimensions (LxWxH) 9.9 x 7.7 x 3.6"
