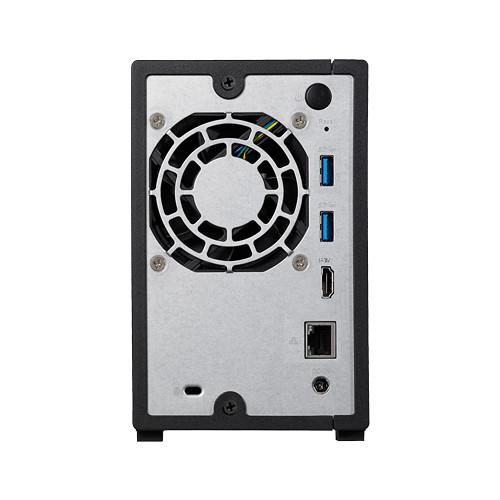

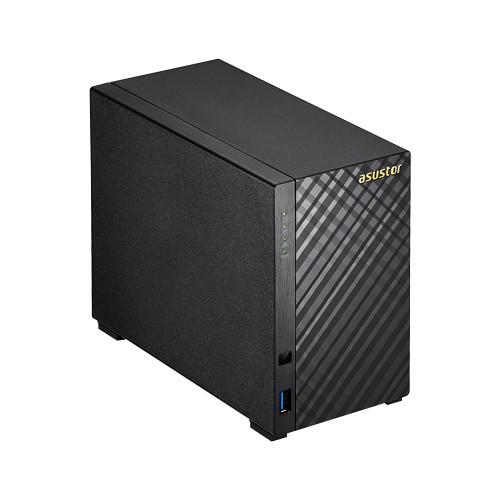

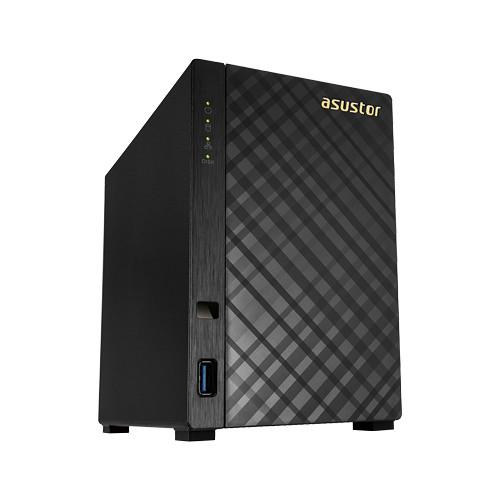

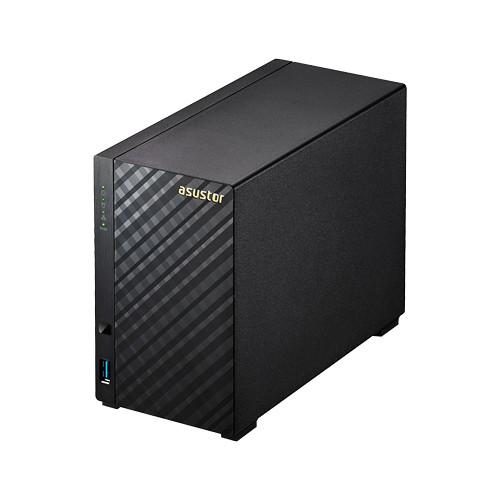

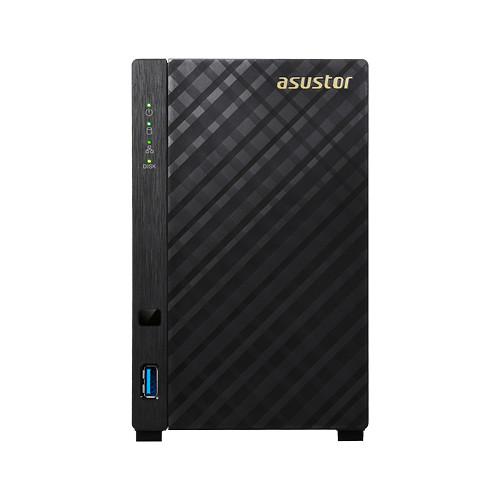

User Manual for Asustor AS3102T 2-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Asustor AS3102T 2-Bay NAS Enclosure
- Product category: NAS Enclosures Asustor
- Brand: Asustor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Asustor NAS Enclosures
 |
User manual for the Asustor AS3102T 2-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Asustor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Asustor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Asustor product will considerably shorten its lifespan!
|
Product description The AS3102T 2-Bay NAS Enclosure from Asustor is an ideal home multimedia server. It is equipped with 2GB of DDR3L RAM and a 1.6 GHz Intel Celeron Dual Core processor that can be overclocked to 2.16 GHz for increased performance. This enclosure is capable of fitting two 2.5" or 3.5" SATA II or III drives in a variety of RAID configurations including RAID 0, 1, JBOD, & Single Disc to suit all your storage needs. Together with Asustor's ADM operating system, this NAS can achieve read speeds of over 110 MB/s and write speeds of over 112 MB/s when configured as a RAID 1.
Connect to your network via its Gigabit Ethernet port, and use the three USB 3.0 Type-A ports for additional device compatibility. The Asustor NAS provides optimal data protection through RAID technology, automatic backup solutions, as well as built-in hardware encryption. When paired with mobile applications (iOS and Android), Asustor's exclusive Cloud Connect technology lets you access data on your NAS device from anywhere with an Internet connection. It also supports the use of NFS and iSCSI in the creation of shared storage for virtual environments. - Home Multimedia Center
- The built-in HDMI interface and variety of multimedia apps let you to enjoy all of your favorite multimedia from your NAS. It supports 4K output, allowing you to savor your movies, TV shows, music and photos in high-definition. Furthermore, through Asustor's App Central, you can install additional multimedia server apps such as UPnP Media Server and iTunes Server giving your NAS the ability to stream multimedia content to your computers, TVs, and mobile devices.
- Hyper-Transcoding
- You no longer need to worry about running into resolution compatibility issues when playing videos on your phone, tablet, or computer. Media Converter utilizes the Intel CPU hardware acceleration function to make video file conversions faster than normal conversions.
- Tool-Less Installation
- The sliding outer cover can be removed when needed, and the inner hard disk rails and outer cover all use hand screws for simple installation.
- Hardware Encryption Engine
- The AS31 features Intel AES-NI encryption engines, which protects data from the moment it is first stored on the NAS. This means that you won't have to worry about your data falling into the wrong hands even if your hard disks are lost or stolen.
In the Box Asustor AS3102T 2-Bay NAS Enclosure Power Adapter & Cable RJ-45 LAN Cat 5e Cable 8 x Thumb Screws for 3.5" HDD Limited 3-Year Warranty Manual PDF 8.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Asustor AS3102T 2-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAsustor AS3102T Specs | | | Number of Bays | 2 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 1 x RJ45 (Gigabit Ethernet)
3 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
1 x HDMI Type-A (HDMI 1.4b) | | Compatible Drive Interface | SATA III | | RAID Modes | RAID 0, 1, JBOD | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Celeron Dual-Core | | Clock Speed | Base: 1.6GHz / Maximum Boost: 2.16 GHz | | Total Installed Memory | 2 GB DDR3L | | | | Supported Protocols | AFP
CIFS/SMB
FTP
HTTP
HTTPS
IPv4
IPv6
NFS
Proxy
Rsync
SFTP
SNMP
SSH
Syslog
TFTP
WebDAV
iSCSI | | iSCSI LUN | 256 | | iSCSI Target | 256 | | Max Concurrent Connections | 512 | | Max Folders | 512 | | Max Groups | 512 | | Max User Accounts | 4096 | | | | OS Compatibility | Windows XP
Windows Vista
Windows 7
Windows 8
Windows Server 2003
Windows Server 2008
Windows Server 2012
Linux
UNIX
macOS 10.6 or Later | | File System Formats Supported | External: EXT3, EXT4, FAT32, HFS+, NTFS
Internal: EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 40 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Certifications | BSMI, C-Tick, CE, FCC, VCCI, as per Manufacturer | | | | Cooling | 1 x 70 mm Fan | | Noise Level | 33 dBA | | Dimensions | 6.5 x 4.0 x 8.6" / 165.0 x 102.0 x 218.0 mm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 12.7 x 9.5 x 5.5" |
