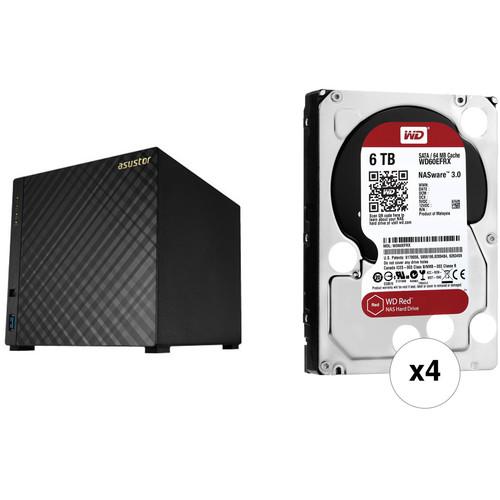

Product description This Kit provides an Asustor AS3104T 4-Bay NAS Enclosure along with four 6TB NAS-optimized hard drives so you can build a storage system that shares files and multimedia. The included 3.5", SATA-based drives are built to run reliably all day and can be installed inside the enclosure's four drive bays without the need for tools. With access to four drives, this kit offers a wider variety of RAID configurations over a two-bay system. You can set the drives to run under a JBOD, RAID 0, 1, 5, 6, or 10, which delivers the benefits of RAID 1 and 0 under a single array.
Once the drives are mounted, the AS3104T is well suited for storing media and files in one location, letting you share content with all your connected equipment. Connecting this server to your network is done by an onboard Gigabit Ethernet port. With built-in hardware encryption and transcoding, this NAS solution is capable of safeguarding your sensitive data as well as translating multimedia content to a suitable format for your notebook, TV, and mobile device. Furthermore, one HDMI port as well as three USB 3.0 ports are available so you can access a variety of peripherals such as TVs, external hard drives, and more. - Asustor AS3104T 4-Bay NAS Enclosure The AS3104T 4-Bay NAS Enclosure from Asustor is an ideal home multimedia server. It is equipped with 2GB of DDR3L RAM and a 1.6 GHz Intel Celeron Dual Core processor that can be overclocked to 2.16 GHz for increased performance. This enclosure is capable of fitting four 2.5" or 3.5" SATA II or III drives in a variety of RAID configurations including RAID 0, 1, 5, 6, 10, JBOD, & Single Disc to suit all your storage needs. Together with Asustor's ADM operating system, this NAS can achieve read and write speeds of over 112 MB/s when configured as a RAID 5.
Connect to your network via its Gigabit Ethernet port, and use the three USB 3.0 Type-A ports for additional device compatibility. The Asustor NAS provides optimal data protection through RAID technology, automatic backup solutions, as well as built-in hardware encryption. When paired with mobile applications (iOS and Android), Asustor's exclusive Cloud Connect technology lets you access data on your NAS device from anywhere with an Internet connection. It also supports the use of NFS and iSCSI in the creation of shared storage for virtual environments. - Home Multimedia Center
- The built-in HDMI interface and variety of multimedia apps let you to enjoy all of your favorite multimedia from your NAS. It supports 4K output, allowing you to savor your movies, TV shows, music and photos in high-definition. Furthermore, through Asustor's App Central, you can install additional multimedia server apps such as UPnP Media Server and iTunes Server giving your NAS the ability to stream multimedia content to your computers, TVs, and mobile devices.
- Hyper-Transcoding
- You no longer need to worry about running into resolution compatibility issues when playing videos on your phone, tablet, or computer. Media Converter utilizes the Intel CPU hardware acceleration function to make video file conversions faster than normal conversions.
- Tool-Less Installation
- The sliding outer cover can be removed when needed, and the inner hard disk rails and outer cover all use hand screws for simple installation.
- Hardware Encryption Engine
- The AS31 features Intel AES-NI encryption engines, which protects data from the moment it is first stored on the NAS. This means that you won't have to worry about your data falling into the wrong hands even if your hard disks are lost or stolen.
- 4 x WD 6TB Red 5400 rpm SATA III 3.5" Internal NAS HDD (OEM) Designed with home and small office/business customers in mind, the 6TB Red 5400 rpm SATA III 3.5" Internal NAS HDD from WD is well-suited for NAS environments with up to eight 3.5" drive bays. Engineered to handle increased workloads, this 6TB drive operates using a SATA III 6 Gb/s interface, a 64MB cache, and a rotational speed of 5400 rpm, all of which help to ensure uninterrupted data transfers with a sustained rate of up to 175 MB/s. This drive also features high levels of reliability, with 600,000 load/unload cycles, <10 in 1014 non-recoverable read errors per bits read, error recovery controls, and 1,000,000 hours MTBF for 1-8 bay NAS systems. Also built into this drive are noise and vibration protection and WD's NASware 3.0 helps increase system compatibility, allowing WD Red drives to be more easily integrated with your existing network infrastructure.
General Features - Fill Your NAS with WD Red
- Built for 1 to 8-bay NAS systems, WD Red lets users store their data in one unit
- NASware 3.0 Technology
- Built into every WD Red hard drive, NASware 3.0's technology helps improves your system's storage performance by increasing compatibility, integration, upgradeability, and reliability
- Built for NAS Compatibility
- Desktop drives aren't purpose-built for NAS, but WD Red drives with NASware are. WD's technology helps takes the guesswork out of selecting a drive. WD Red is for small NAS systems and WD's algorithm balances performance and reliability in NAS and RAID environments
- Desktop Drives vs. WD Red
- Desktop hard drives are not designed for NAS environments. Do right by your NAS and choose a drive with an array of features to help preserve your data and maintain optimum performance. Take the following into consideration when choosing a hard drive for your NAS:
- Compatibility: Without being tested for compatibility with your NAS system, improved performance is not guaranteed
- Reliability: The always-on environment of a NAS or RAID is a hot one and desktop drives aren't typically tested in those conditions. WD Red is
- Error Recovery Controls: WD Red NAS hard drives are specifically designed with RAID error recovery control to help reduce failures within the NAS system. Desktop drives are not typically designed for RAID environments where this can be an issue
- Noise and Vibration Protection: Designed to operate solo, desktop drives offer little or no protection from the noise and vibration faced in a multi-drive system. WD Red drives are designed for multi-bay NAS systems
- WD Red for Home
- Stream, backup, share, and organize your digital content at home with a NAS and WD Red drives designed to share content to the devices in your home. Red NASware helps increase your drives' compatibility with your devices, TV, stereo, and more
- WD Red for Small Business
- WD Red is a good hard drive choice for 1 to 8 bay systems. NASware 3.0 allows for integration with your existing network so WD Red can share and backup files at the speed of your business. For larger businesses with up to 16 bays, use WD Red Pro
- 3D Active Balance Plus
- This helps ensure your data is protected from excessive vibration and noise in a NAS or RAID environment. This dual-plane balance control helps reduce the degradation of your drive over time
- Reliability
- Since your NAS system is always on, a reliable drive is essential. With an MTBF of up to 1 million hours, the WD Red drive with NASware 3.0 is designed for 24x7 environments
- Cooler Operations
- By reducing power consumption, the operating temperature of your NAS stays cooler. With a lower temperature in your system, you can create a more reliable solution for your NAS
UPC: 718037827582 In the Box - AS3104T 4-Bay NAS Enclosure fwevzsbzec
- Power Adapter & Cable
- RJ-45 LAN Cat 5e Cable
- 16 x Thumb Screws for 3.5" HDD
- Limited 3-Year Warranty
- 4 x WD - 6TB Red 5400 rpm SATA III 3.5" Internal NAS HDD (OEM)
