Asustor AS3104T 32TB 4-Bay NAS Server

Search your instruction manual in PDF to download

User Manual for Asustor AS3104T 32TB 4-Bay NAS Server with Drives Kit

Click to enlarge the picture

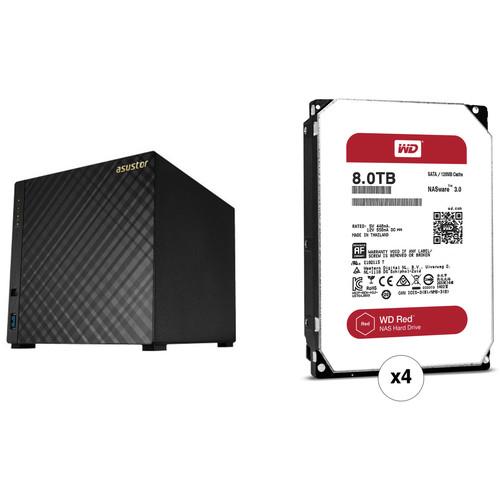

Asustor AS3104T 32TB 4-Bay NAS Server with Drives Kit Contents of the user manual for the Asustor AS3104T 32TB 4-Bay NAS Server
  • Product category: Network Attached Storage Drives Asustor
  • Brand: Asustor
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Asustor Network Attached Storage Drives

User manual for the Asustor AS3104T 32TB 4-Bay NAS Server contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Asustor product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Asustor user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Asustor product will considerably shorten its lifespan!



Product description

This Kit provides an Asustor AS3104T 4-Bay NAS Enclosure along with four 8TB NAS-optimized hard drives so you can build a storage system that shares files and multimedia. The included 3.5", SATA-based drives are built to run reliably all day and can be installed inside the enclosure's four drive bays without the need for tools. With access to four drives, this kit offers a wider variety of RAID configurations over a two-bay system. You can set the drives to run under a JBOD, RAID 0, 1, 5, 6, or 10, which delivers the benefits of RAID 1 and 0 under a single array.

Once the drives are mounted, the AS3104T is well suited for storing media and files in one location, letting you share content with all your connected equipment. Connecting this server to your network is done by an onboard Gigabit Ethernet port. With built-in hardware encryption and transcoding, this NAS solution is capable of safeguarding your sensitive data as well as translating multimedia content to a suitable format for your notebook, TV, and mobile device. Furthermore, one HDMI port as well as three USB 3.0 ports are available so you can access a variety of peripherals such as TVs, external hard drives, and more.
  • Asustor AS3104T 4-Bay NAS Enclosure The AS3104T 4-Bay NAS Enclosure from Asustor is an ideal home multimedia server. It is equipped with 2GB of DDR3L RAM and a 1.6 GHz Intel Celeron Dual Core processor that can be overclocked to 2.16 GHz for increased performance. This enclosure is capable of fitting four 2.5" or 3.5" SATA II or III drives in a variety of RAID configurations including RAID 0, 1, 5, 6, 10, JBOD, & Single Disc to suit all your storage needs. Together with Asustor's ADM operating system, this NAS can achieve read and write speeds of over 112 MB/s when configured as a RAID 5.

    Connect to your network via its Gigabit Ethernet port, and use the three USB 3.0 Type-A ports for additional device compatibility. The Asustor NAS provides optimal data protection through RAID technology, automatic backup solutions, as well as built-in hardware encryption. When paired with mobile applications (iOS and Android), Asustor's exclusive Cloud Connect technology lets you access data on your NAS device from anywhere with an Internet connection. It also supports the use of NFS and iSCSI in the creation of shared storage for virtual environments.
      Home Multimedia Center
    • The built-in HDMI interface and variety of multimedia apps let you to enjoy all of your favorite multimedia from your NAS. It supports 4K output, allowing you to savor your movies, TV shows, music and photos in high-definition. Furthermore, through Asustor's App Central, you can install additional multimedia server apps such as UPnP Media Server and iTunes Server giving your NAS the ability to stream multimedia content to your computers, TVs, and mobile devices.
      Hyper-Transcoding
    • You no longer need to worry about running into resolution compatibility issues when playing videos on your phone, tablet, or computer. Media Converter utilizes the Intel CPU hardware acceleration function to make video file conversions faster than normal conversions.
      Tool-Less Installation
    • The sliding outer cover can be removed when needed, and the inner hard disk rails and outer cover all use hand screws for simple installation.
      Hardware Encryption Engine
    • The AS31 features Intel AES-NI encryption engines, which protects data from the moment it is first stored on the NAS. This means that you won't have to worry about your data falling into the wrong hands even if your hard disks are lost or stolen.
In the Box
  • AS3104T 4-Bay NAS Enclosure adtsddfdxxdcezctetwvvftcyf
  • Power Adapter & Cable
  • RJ-45 LAN Cat 5e Cable
  • 16 x Thumb Screws for 3.5" HDD
  • Limited 3-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Asustor AS3104T 32TB 4-Bay NAS Server with Drives Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Asustor AS3104T 4-Bay NAS Enclosure
    Drive Bays 4 x 2.5"/3.5" SATA III Drive Bays
    Processor Intel Celeron 1.6 GHz Dual-Core (burst up to 2.16 GHz) Processor
    Memory 2 GB DDR3L (not expandable)​
    Network Protocol CIFS / SMB, SMB 2.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP, HTTPS, Proxy, SNMP, Syslog
    File System Format Internal Disk: EXT4
    External Disk: FAT32, NTFS, EXT3, EXT4, HFS+
    Storage Management Support Multiple Volumes with Spare Disks
    Volume Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
    Support for Online RAID Level Migration
    Support for Online RAID Capacity Expansion
    iSCSI Maximum Targets: 256
    Maximum LUNs: 256
    Maximum Snapshot Versions of a Single LUN: 256
    Target Masking
    LUN Mapping
    ISO File Mounting
    Supports MPIO
    Persistent (SCSI-3) Reservations
    Disk Management Scheduled Bad Block Scans
    Scheduled S.M.A.R.T Scans
    Network TCP/IP (IPv4 & IPv6)
    Jumbo Frame (MTU)
    VLAN
    Cloud Connect
    Wireless Network
    DDNS and EZ-Router
    Supports Wake-on-LAN (WOL)
    Backup Solutions Rsync (Remote Sync) Backup
    Cloud Backup
    FTP Backup
    External Backup
    One Touch Backup
    System Administration Log Type: System Log, Connection Log, File Access Log
    Real-time Online User Monitor
    Real-time System Monitor
    User Quota
    Virtual Drive (ISO Mounting, Maximum 16)
    UPS Support
    Access Control Maximum Number of Users: 4096
    Maximum Number of Groups: 512
    Maximum Number of Shared Folders: 512
    Maximum Number of Concurrent Connections: 512
    Supports Windows Active Directory
    Security AES 256-Bit Folder Encryption
    Firewall: Prevent Unauthorized Access
    Alert Notifications: E-mail, SMS
    Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
    Built-in Hardware Encryption Engine: AS70/61/62/10 Series
    Interface Ports SATA II/III
    1 x Gigabit Ethernet
    3 x USB 3.0
    1 x HDMI 1.4b
    External Device Support Supports USB External Storage Devices
    USB Wi-Fi Dongle Support
    Bluetooth Dongle/Speaker Support
    USB Printer Support
    USB DAC/IR Receiver/Keyboard/Mouse Support
    CD ROM Drive/DVD ROM Drive/Blu-Ray ROM
    Mac OS X 1.6 and higher
    Windows XP, Vista, 7, 8, Server 2003, Server 2008, Server 2012
    OS Compatibility UNIX, Linux, and BSD
    Browser Compatibility Internet Explorer 9 and higher
    FireFox
    Chrome
    Safari
    Cooling 1 x 120 mm system fan
    Certifications FCC, CE, VCCI, BSMI, C-TICK
    Supported Languages German, English, French, Italian, Dutch, Russian, Japanese, Hangul, Simplified Chinese, Traditional Chinese, Czech, Polish, Swedish, Danish, Norwegian, Finnish, Portuguese, Spanish, Turkish, Hungarian
    Noise Level 32.1 dB (Operation)
    Power Requirements 100 - 240 VAC
    Power Consumption Operation: W
    Disk hibernation: W
    Sleep mode: W
    Operation Temperature 40 to 95°F / 5 to 35°C
    Humidity 5% to 95% RH
    Dimensions (H x W x D) 6.5 x 6.5 x 8.6" / 165 x 164 x 218 mm
    Weight 3.53 lbs / 1.6 kg
    Box Dimensions (LxWxH) 12.7 x 9.6 x 8.3"
