User Manual for Asustor AS3202T 2-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Asustor AS3202T 2-Bay NAS Enclosure
- Product category: NAS Enclosures Asustor
- Brand: Asustor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Asustor NAS Enclosures
 |
User manual for the Asustor AS3202T 2-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Asustor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Asustor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Asustor product will considerably shorten its lifespan!
|

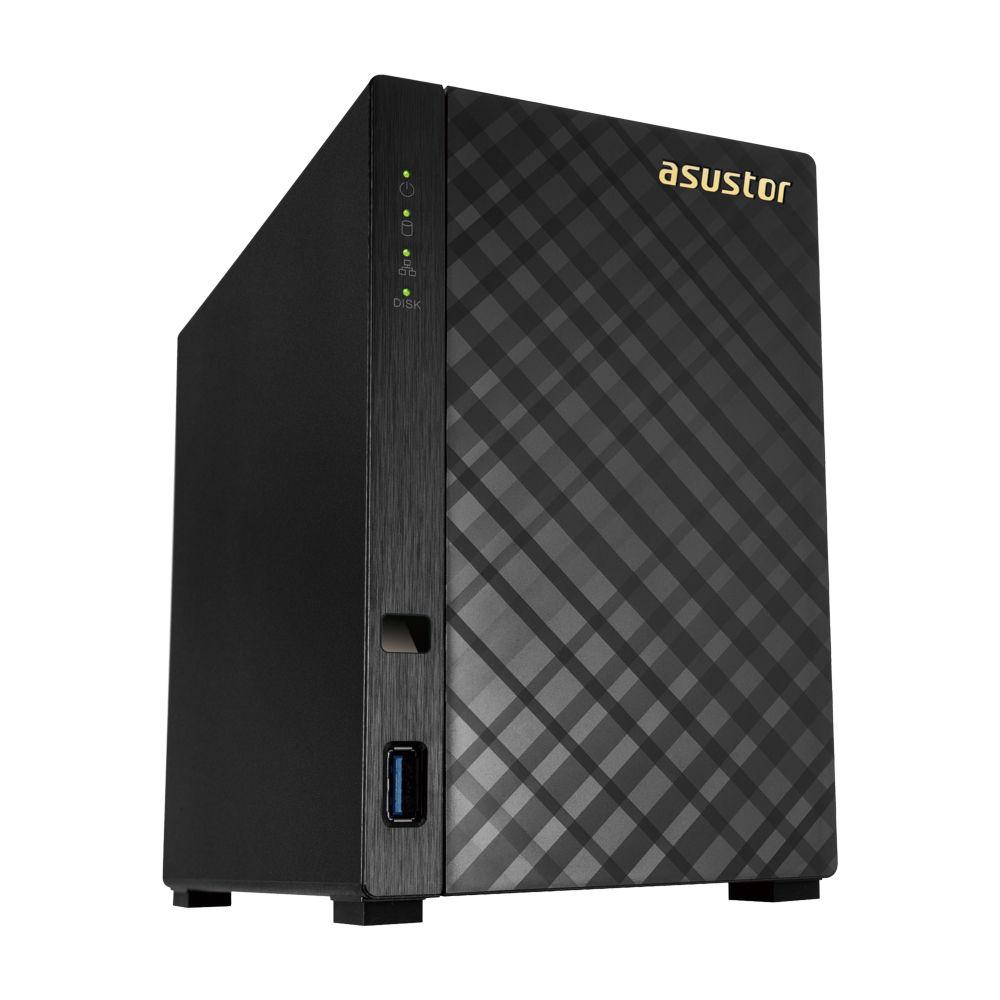

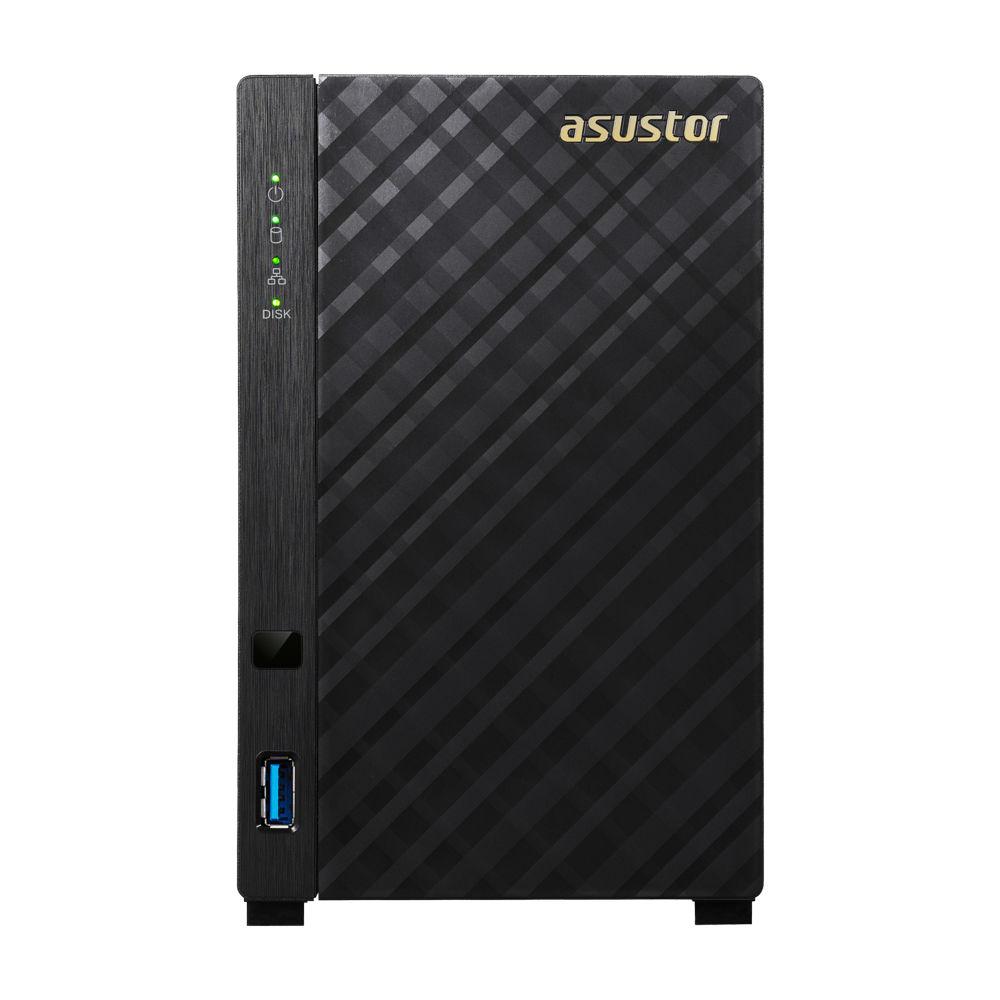

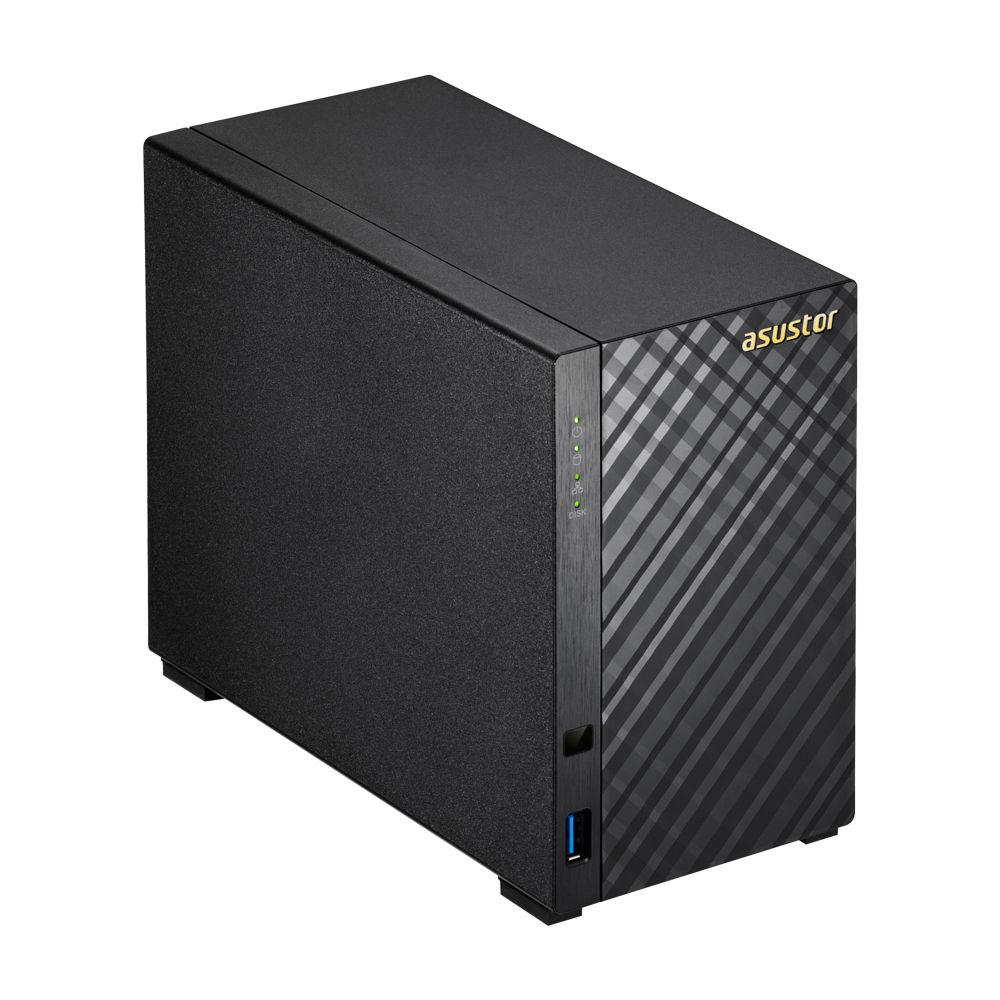

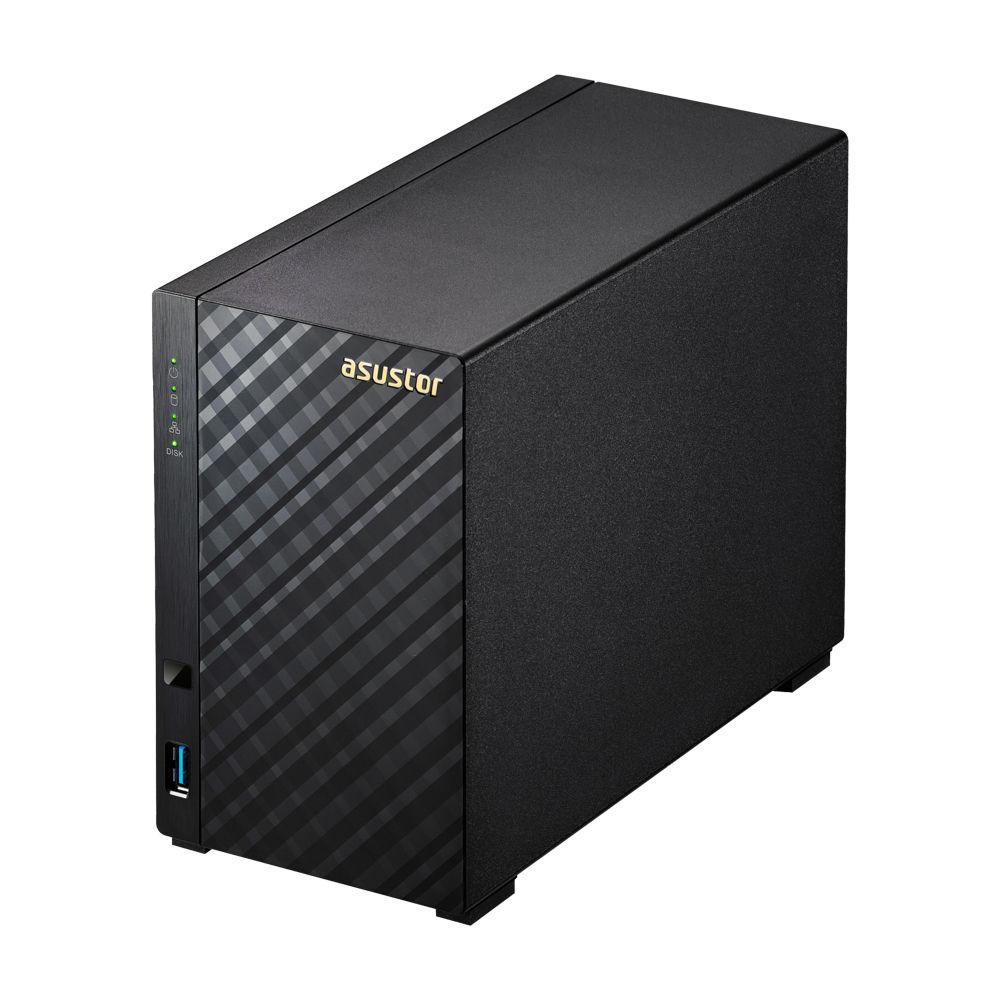

Product description The AS3202T 2-Bay NAS Enclosure from Asustor comes with a 1.6 GHz Intel Celeron quad-core processor and two drive bays so you can build a storage solution for enterprise or multimedia environments. The NAS is compatible SATA-based 3.5" hard drives and supports single disk, JBOD, RAID 0, and RAID 1 modes. With the drives configured under RAID 1, the enclosure is able to offer read speeds of 112 MB/s and write speeds of 110 MB/s. To run the ADM operating system, 2GB of memory is on board and the processor is able to achieve speeds of 2.24 GHz.

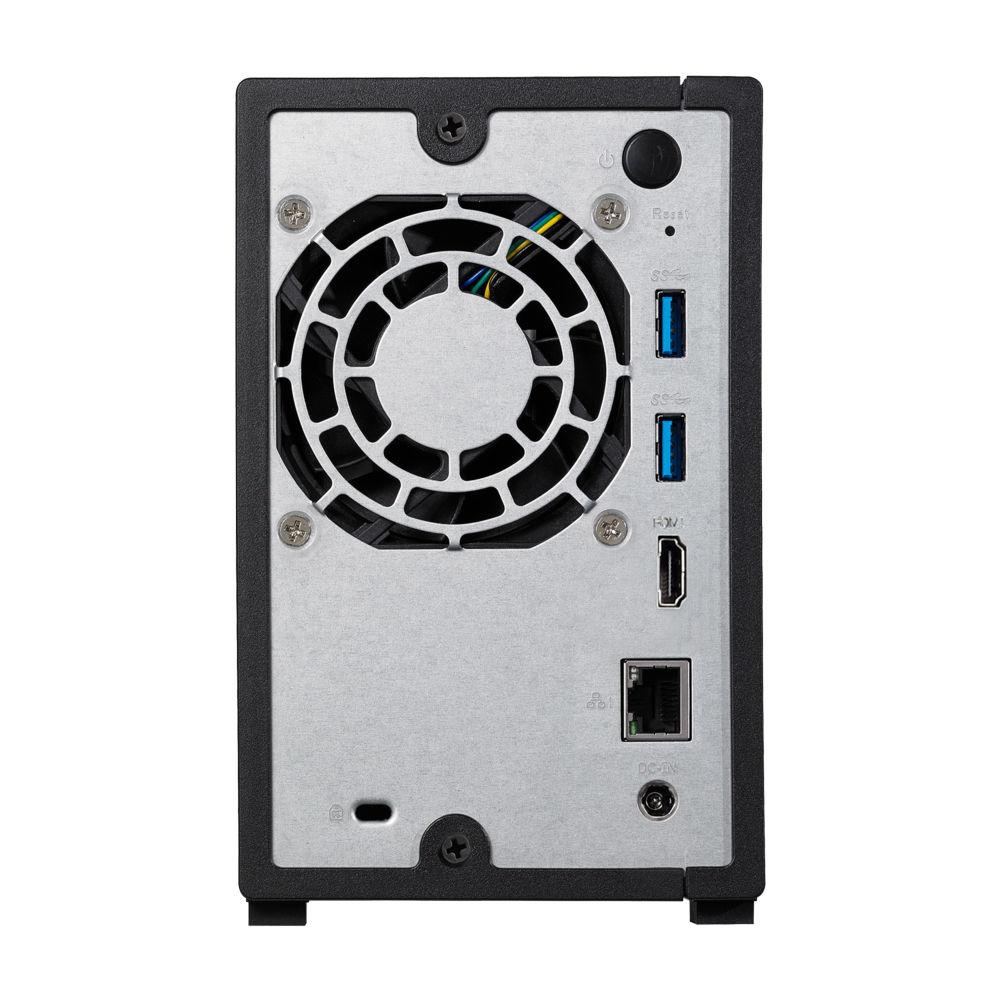

For storage expansion, it is outfitted with three USB 3.0 ports, letting you access the data on external drives. Your content is shared to Internet-connected devices utilizing Gigabit Ethernet connectivity and delivered to TVs directly via an HDMI port. Furthermore, a hardware transcoding engine modifies the resolution of your video files, so you can view the content optimally on a tablet, smartphone, or TV. - Intel Celeron Processor
- The AS3202T is powered by an Intel Celeron quad-core processor and 2GB of dual-channel memory to deliver read speeds of over 112 MB/s and write speeds of over 110 MB/s under RAID 1 configurations.
- Multimedia Experience
- The AS32 is able to play 4K video smoothly. You no longer need to worry about running into resolution compatibility issues when playing videos on your phone, tablet, or computer. Media Converter utilizes a quick and simple conversion method, allowing you to execute conversion tasks in the background. It utilizes Intel's CPU hardware acceleration function to make video file conversions faster and simpler than ever before. Using Hyper-Transcoding to convert video files can reduce the normal conversion time by at least 10 times.
- Tool-Less Installation
- The sliding outer cover can be removed when needed, and the inner hard disk rails and outer cover all use hand screws for simple installation.
- Hardware Encryption Engine
- The AS32 features Intel AES-NI encryption engines, which protects data from the moment it is first stored on the NAS. This means that you won't have to worry about your data falling into the wrong hands even if your hard disks are lost or stolen.
In the Box Asustor AS3202T 2-Bay NAS Enclosure Power Adapter & Cable RJ-45 LAN Cat 5e Cable 8 x Thumb Screws for 3.5" HDD Installation CD Limited 3-Year Warranty Brochure PDF 2.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Asustor AS3202T 2-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAsustor AS3202T Specs | | | Number of Bays | 2 x 3.5" | | Media Card Slots | None | | Connections | 1 x RJ45 (Gigabit Ethernet)
3 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
1 x HDMI Type-A (HDMI 1.4b) | | Compatible Drive Interface | SATA III | | RAID Modes | RAID 0, 1, JBOD | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Celeron Quad-Core | | Clock Speed | Base: 1.6GHz / Maximum Boost: 2.24 GHz | | Total Installed Memory | 2 GB DDR3L | | | | Supported Protocols | AFP
CIFS/SMB
FTP
HTTP
HTTPS
IPv4
IPv6
NFS
Proxy
Rsync
SFTP
SNMP
SSH
Syslog
TFTP
WebDAV
iSCSI | | iSCSI LUN | 256 | | iSCSI Target | 256 | | Max Concurrent Connections | 512 | | Max Folders | 512 | | Max Groups | 512 | | Max User Accounts | 4096 | | | | OS Compatibility | Windows XP
Windows Vista
Windows 7
Windows 8
Windows 10
Windows Server 2003
Windows Server 2008
Windows Server 2012
macOS 10.6 or Later
Linux
UNIX | | File System Formats Supported | External: EXT3, EXT4, FAT32, HFS+, NTFS
Internal: EXT4 | | Supported Browsers | Chrome, Edge, Firefox, Internet Explorer, Safari | | Supported Languages | Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 16.4 W (Typical)
7.75 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | Certifications | BSMI, C-Tick, CE, FCC, VCCI, as per Manufacturer | | | | Cooling | 1 x 70 mm Fan | | Noise Level | 18.6 dBA | | Dimensions | 6.5 x 4.0 x 8.6" / 165.0 x 102.0 x 218.0 mm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 12.7 x 9.4 x 6.1" |
