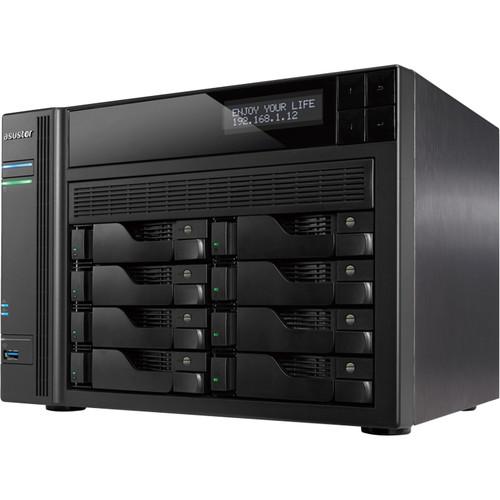

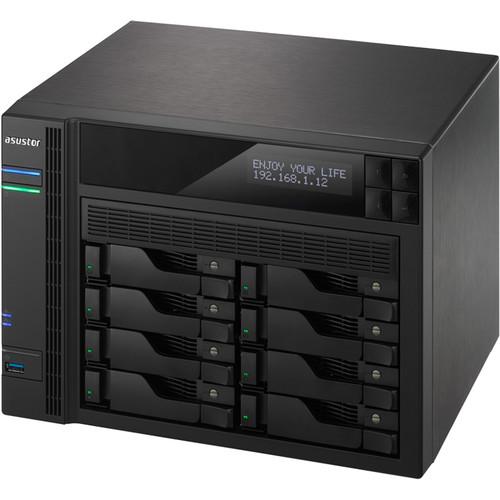

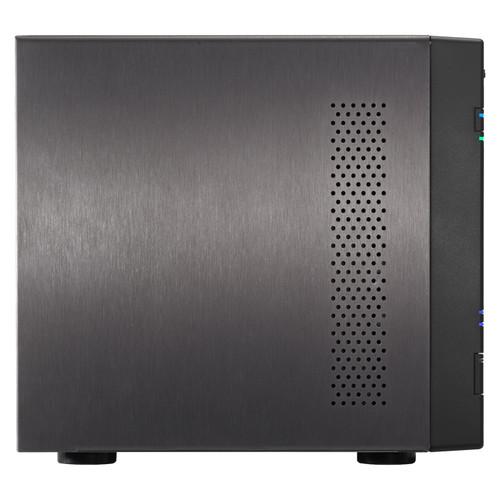

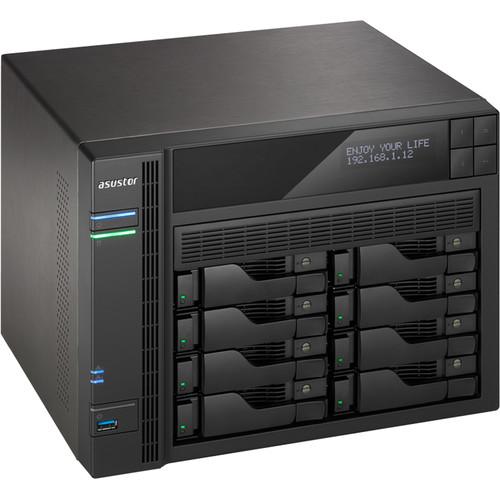

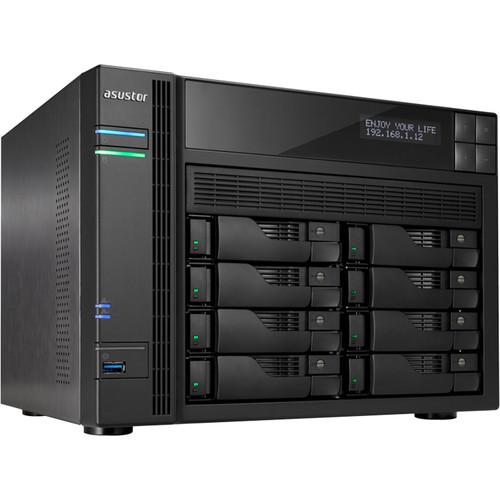

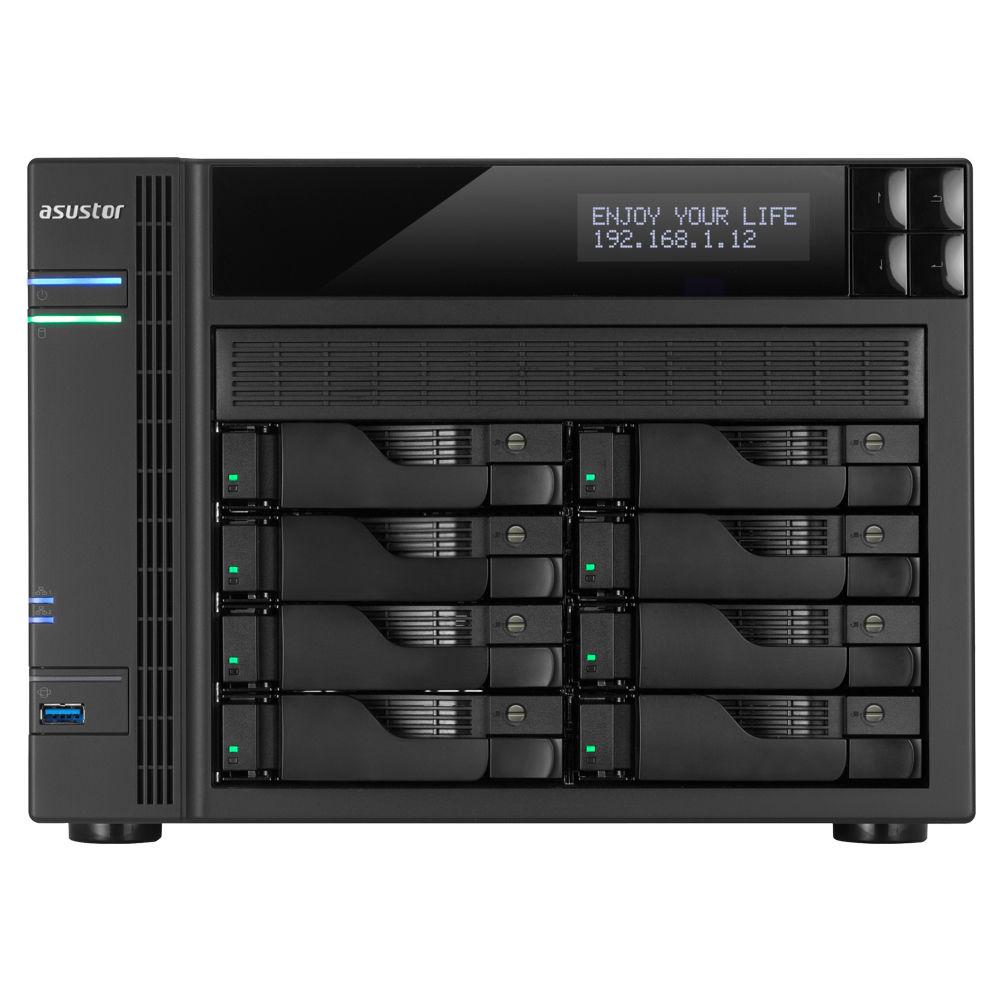

User Manual for Asustor AS6208T 8-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Asustor AS6208T 8-Bay NAS Enclosure
- Product category: NAS Enclosures Asustor
- Brand: Asustor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Asustor NAS Enclosures
 |
User manual for the Asustor AS6208T 8-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Asustor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Asustor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Asustor product will considerably shorten its lifespan!
|
Product description Provided by third party: The first NAS models to be powered by the latest Intel Celeron processors AS62 series devices are powered by IntelCeleron Braswell quad-core processors, equipped with 4GB of dual-channel memory, and feature read speeds of over 398 MB/s and write speeds of over 355 MB/s under RAID 5 configurations.
Hardware encryption engine Focusing on enterprise-class file encryption needs, ASUSTOR has launched the AS61/AS62 series models with built-in hardware encryption engines, allowing data to be completely protected from the moment it is first stored on the NAS. This means that you never have to worry about your confidential data falling into the wrong hands even if your hard disks become lost or stolen. The built-in AES-NI hardware encryption engine also provides read speeds of over 224.71 MB/s and write speeds of over 132.56 MB/s for encrypted data.

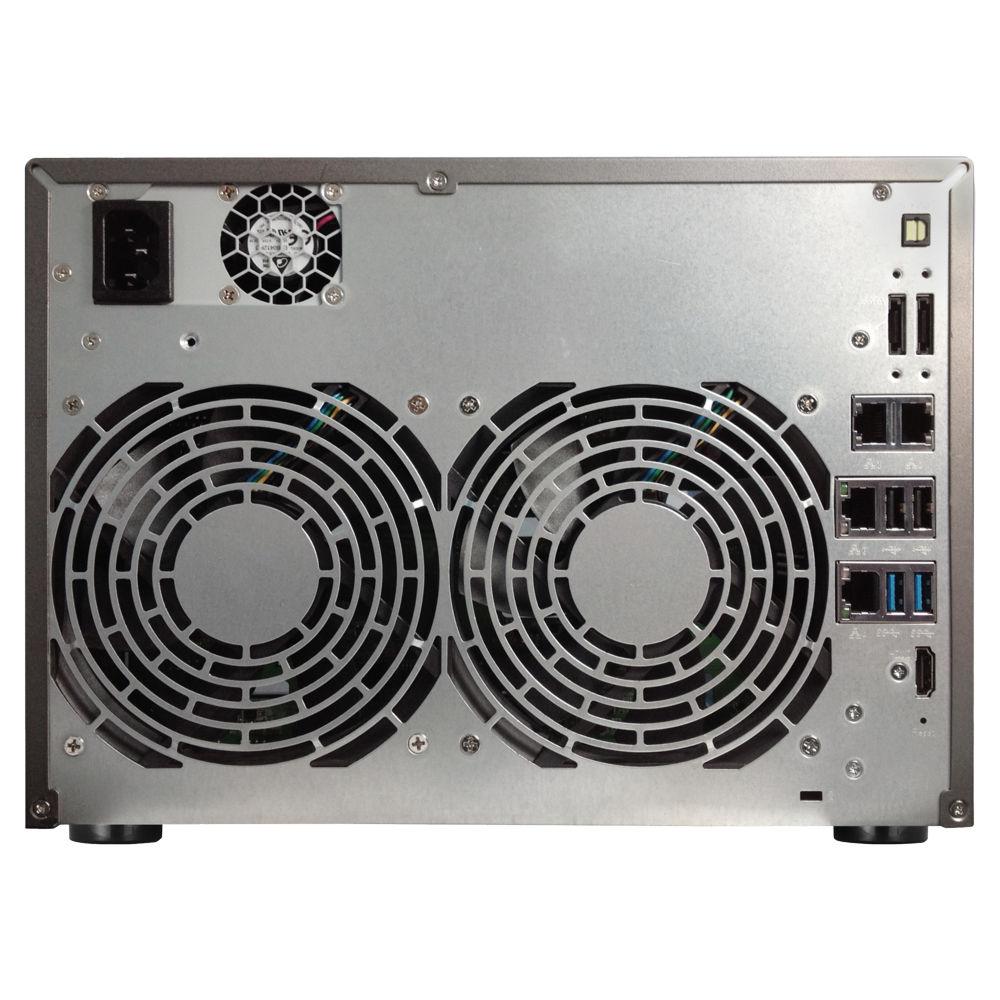

Connect with a new generation of I/O technology for limitless possibilities A professional grade NAS needs to be equipped with a diverse array of expansion functionality. ASUSTOR has built in USB 3.0, USB 2.0, eSATA, gigabit Ethernet and HDMI 1.4b ports along with a high fidelity audio S/PDIF port, allowing the NAS to connect to different types of external devices and not be limited to its internal capacity. ASUSTOR NAS redefines the meaning of flexibility and expandability in network storage.
Effortlessly upgrade memory Depending on your usage preferences, you can decide whether or not you want to upgrade memory. AS61/62 devices provide users with the ability to flexibly upgrade memory so there is no need to worry about the memory before you purchasing the device. When upgrading memory, you simply need to remove the cover of the NAS to do it (There are 2 expansion memory slots in total. Memory can be expanded up to a maximum of 8GB.), letting you easily improve system performance and allowing your NAS to simultaneously run more Apps.
Quick and Easy File Access The built-in File Explorer App allows you to access the files on your NAS through a Web browser. Enjoy drag and drop file transfers along with a directory structure view that lets you easily organize your data. Accessing files on your NAS never been easier.
iSCSI LUN Snapshots ASUSTOR's snapshot technology provides almost instantaneous creation of snapshots. It saves a significant amount of time and storage capacity when compared with traditional LUN backups.
Should files become damaged or corrupted, the simple and intuitive interface allows administrators to quickly restore data, completing disaster recovery in the fastest time possible and providing uninterrupted service.
Scheduled iSCSI LUN snapshots Configuring scheduled iSCSI LUN snapshots allows the system to automatically take regular snapshots based on the specified time period, providing continuous protection of LUN data without needing any manual operation or significantly affecting system performance. In the Box Asustor AS6208T 8-Bay NAS Enclosure AS6208T SAN/NAS Server 1 x Installation CD 1 x AC Power Cord 1 x RJ-45 LAN Cables (Cat 5e) 32 x Flat Head Screws (for 3.5" HDD) 32 x Flat Head Screws (for 2.5" HDD) Quick Start Guide Limited 3-Year Warranty Brochure PDF 2.8mbraqccratywsquetesxaazf Table of Contents
|
Upload User Manual
Have you got an user manual for the Asustor AS6208T 8-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAsustor AS6208T Specs | | | Number of Hard Drives Installed | No | | | | Processor Manufacturer | Intel | | Processor Type | Celeron | | Processor Core | Quad-core (4 Core) | | Processor Speed | 1.60 GHz | | | | Standard Memory | 4 GB | | Memory Technology | DDR3L SDRAM | | | | Ethernet Technology | Gigabit Ethernet | | | | Number of Total Expansion Bays | 8 | | Number of External 5.25" Bays | No | | Number of 2.5"/3.5" Bays | 8 | | | | Controller Type | Serial ATA/600 | | RAID Supported | Yes | | RAID Levels | 0, 1, 5, 6, 10, JBOD | | | | HDMI | Yes | | Total Number of USB Ports | 5 | | Number of USB 2.0 Ports | 2 | | Number of USB 3.0 Ports | 3 | | Network (RJ-45) | Yes | | eSATA | Yes | | | | Protocols | AFP
CHAP
CIFS/SMB
DDNS
FTP
HTTP
HTTPS
IPv4
IPv6
NFS
PAP
PPTP
RSync
RTSP
SFTP
SMB 2.0
SMTP
SNMP
SSH
SSL/TLS
TCP/IP
TFTP
UDP
UPnP
WEBDAV
iSCSI | | | | Height | 8.5" | | Width | 11.5" | | Depth | 9.1" | | Form Factor | Desktop | | Weight (Approximate) | 13.67 lb | | | | Package Weight | 17.15 lb | | Box Dimensions (LxWxH) | 14.961 x 13.543 x 12.598" |
