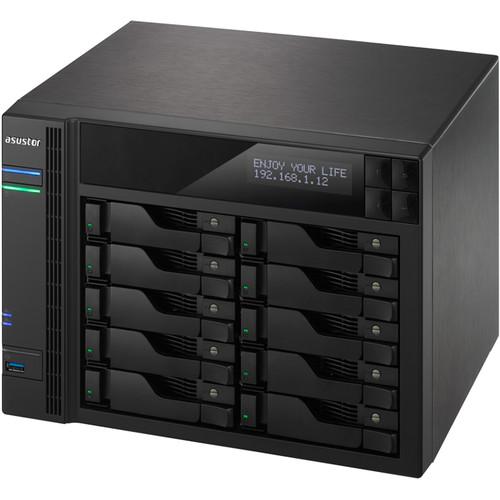

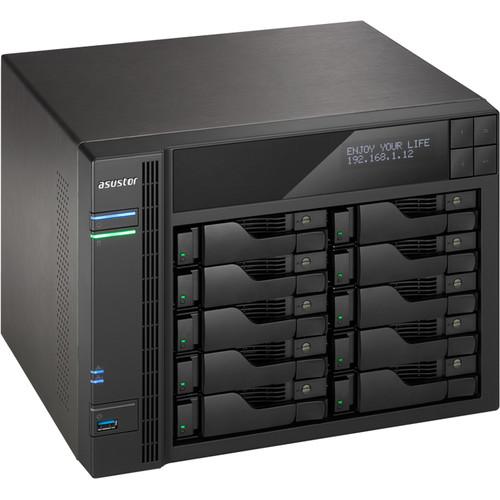

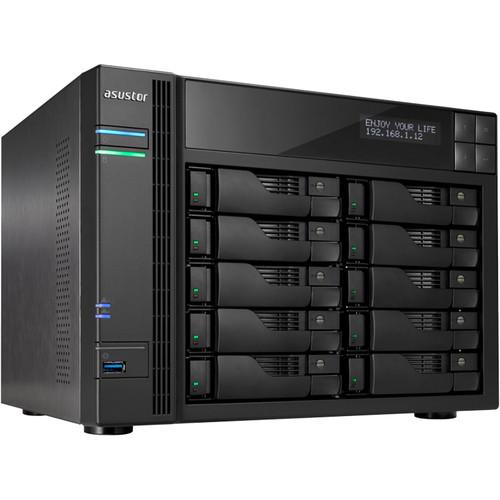

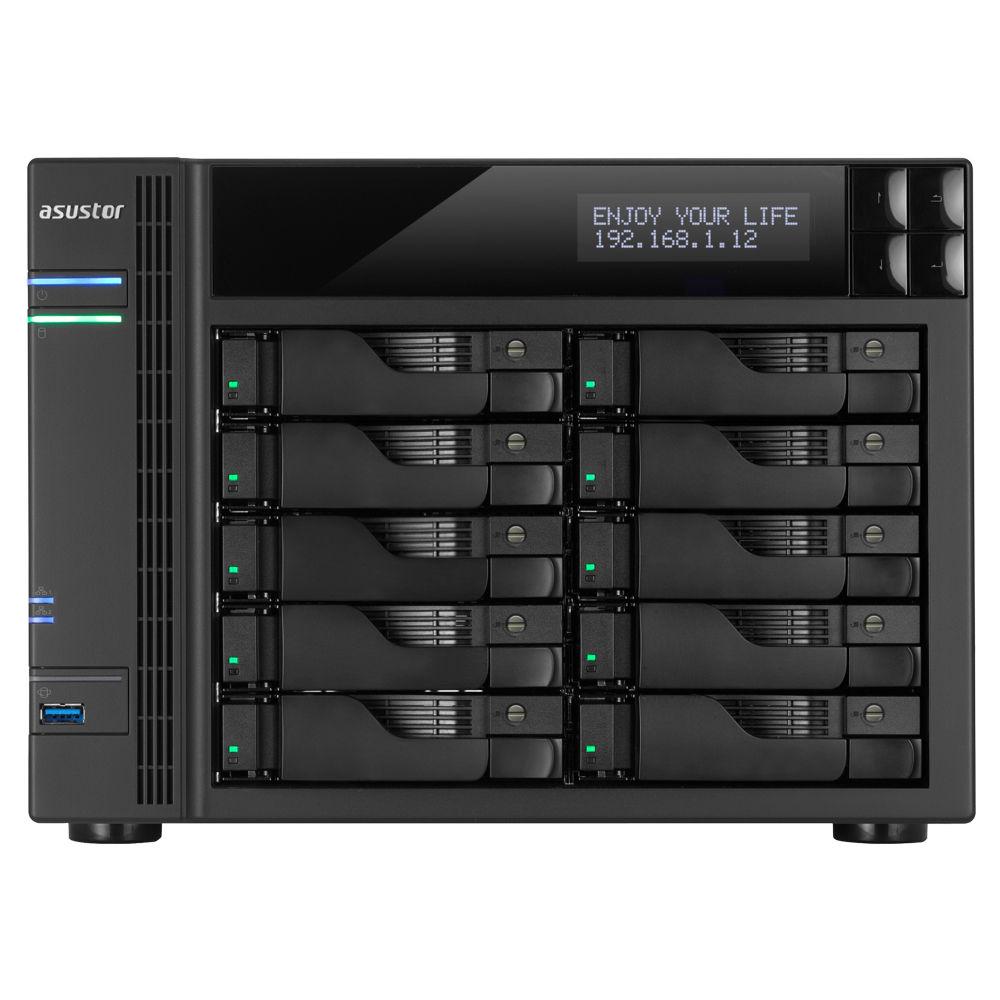

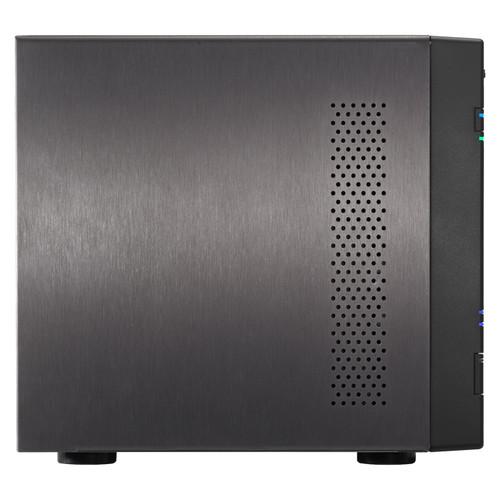

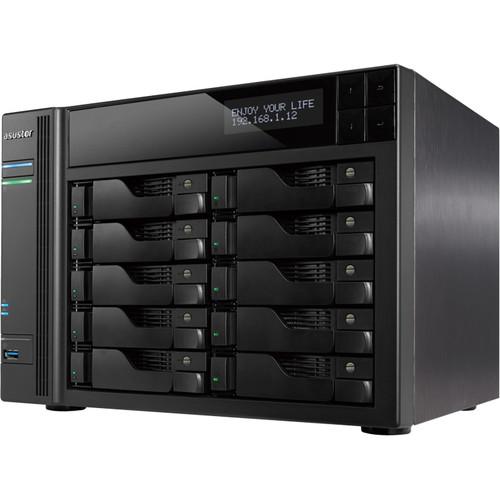

Product description The AS6210T 10-Bay NAS Enclosure from Asustor features ten storage bays, four Gigabit Ethernet ports, as well as other features so you can create a NAS solution that shares content to computer systems, TVs, and other devices. Each of the ten bays can accommodate a user-supplied SATA-based SSD or 2.5"/3.5" hard drive. Once drives are installed, you can configure them in a RAID 0, 1, 5, 6, 10, or JBOD mode using Asustor's ADM 2.6 operating system. For performance, the AS6210T is equipped with a 1.6 GHz Intel Celeron quad-core processor along with 4GB of DDR3L RAM.
Protecting sensitive data is important, which is why the AS6210T comes with an AES-NI hardware encryption engine that safeguards data even if a drive is stolen. Aside from encryption, device expansion is made possible using its onboard USB 3.0, USB 2.0, and eSATA ports. Other notable connections include an HDMI 1.4b port and an optical S/PDIF port, letting you enjoy multimedia content from your home entertainment system. There are also free apps to turn the AS6210T into a surveillance system, cloud server, and other uses. For office environments, the AS6210T supports iSCSI/IP-SAN and NFS along with being VMware, Citrix, and Hyper-V compatible. Moreover, snapshot is supported to protect data and help ensure continuous enterprise-class operations. - Intel Celeron Performance
- The AS6210T is powered by an Intel Celeron Braswell quad-core processor, equipped with 4GB of dual-channel memory, and is capable of read speeds of over 398 MB/s and write speeds of over 355 MB/s under RAID 5 configurations when drives are installed.
- Hardware Encryption Engine
- Focusing on enterprise-class file encryption needs, Asustor has launched the AS62 series models with built-in hardware encryption engines, allowing data to be completely protected from the moment it is first stored on the NAS. This means that you never have to worry about your confidential data falling into the wrong hands even if your hard disks become lost or stolen. The built-in AES-NI hardware encryption engine also provides read speeds of over 224.71 MB/s and write speeds of over 132.56 MB/s for encrypted data.
- Supports Various I/O Technologies
- A professional grade NAS needs to be equipped with a diverse array of expansion functionality. Asustor has built in USB 3.0, USB 2.0, eSATA, Gigabit Ethernet, and HDMI 1.4b ports along with a high fidelity audio S/PDIF port, allowing the NAS to connect to different types of external devices and not be limited to its internal capacity.
- Upgradeable Memory
- Depending on your usage preferences, you can decide whether or not you want to upgrade memory. AS62 devices provide users with the ability to flexibly upgrade memory so there is no need to worry about the memory before you purchasing the device. When upgrading memory, you simply need to remove the cover of the NAS. There are 2 expansion memory slots in total, and the AS6210T can be expanded up to a maximum of 8GB so you can easily improve system performance and allow your NAS to simultaneously run more apps.
- Quick and Easy File Access
- The built-in File Explorer App allows you to access the files on your NAS through a web browser. Enjoy drag-and-drop file transfers along with a directory structure view that lets you easily organize your data.
- iSCSI LUN Snapshots
- Asustor's snapshot technology provides almost instantaneous creation of snapshots. It saves a significant amount of time and storage capacity when compared to traditional LUN backups. Should files become damaged or corrupted, the simple and intuitive interface allows administrators to quickly restore data, completing disaster recovery quickly and providing uninterrupted service.
- Scheduled iSCSI LUN Snapshots
- Configuring scheduled iSCSI LUN snapshots allows the system to automatically take regular snapshots based on the specified time period, providing continuous protection of LUN data without needing any manual operation or significantly affecting system performance.
- Surveillance System
- The AS6210T provides you with stress-free reliability when installing a surveillance system in your home or office environment. Installing a Surveillance Center App from App Central instantly turns your NAS into a 24/7, high-definition surveillance system. Surveillance Center provides comprehensive cross-platform support, allowing both Windows and Mac users to use familiar web browsers to access their surveillance feeds. Four free IP camera channel licenses are included with Surveillance Center.
Another notable app is a free AiSecure mobile app that gives users access to all their surveillance feeds while on-the-go. AiSecure also provides the ability to receive instant push notifications from Surveillance Center, allowing users to keep up with the latest developments. - Home Multimedia Center
- The built-in HDMI interface and variety of multimedia Apps let you to enjoy all of your multimedia from your NAS by directly connecting it to a TV or receiver.
The Asustor NAS supports FHD (1080p) output, allowing you to enjoy your movies, TV shows, music, and photos in high definition. What's more, through Asustor's App Central, you can install additional multimedia server apps such as UPnP Media Server and iTunes Server giving your NAS the ability to stream multimedia content to your computers, TVs, and mobile devices. Additionally, you can also further add a surround sound amplifier to create an unprecedented high-definition, multi-channel listening experience. In the Box Asustor AS6210T 10-Bay NAS Enclosure Installation CD AC Power Cord 2 x Cat 5e Ethernet Cables Package of Screws for Mounting Drives Limited 3-Year Warranty Brochure PDF 3mbrwqyrxdutxsdwcxxzeywyvuuyx Table of Contents
|
Upload User Manual
Have you got an user manual for the Asustor AS6210T 10-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

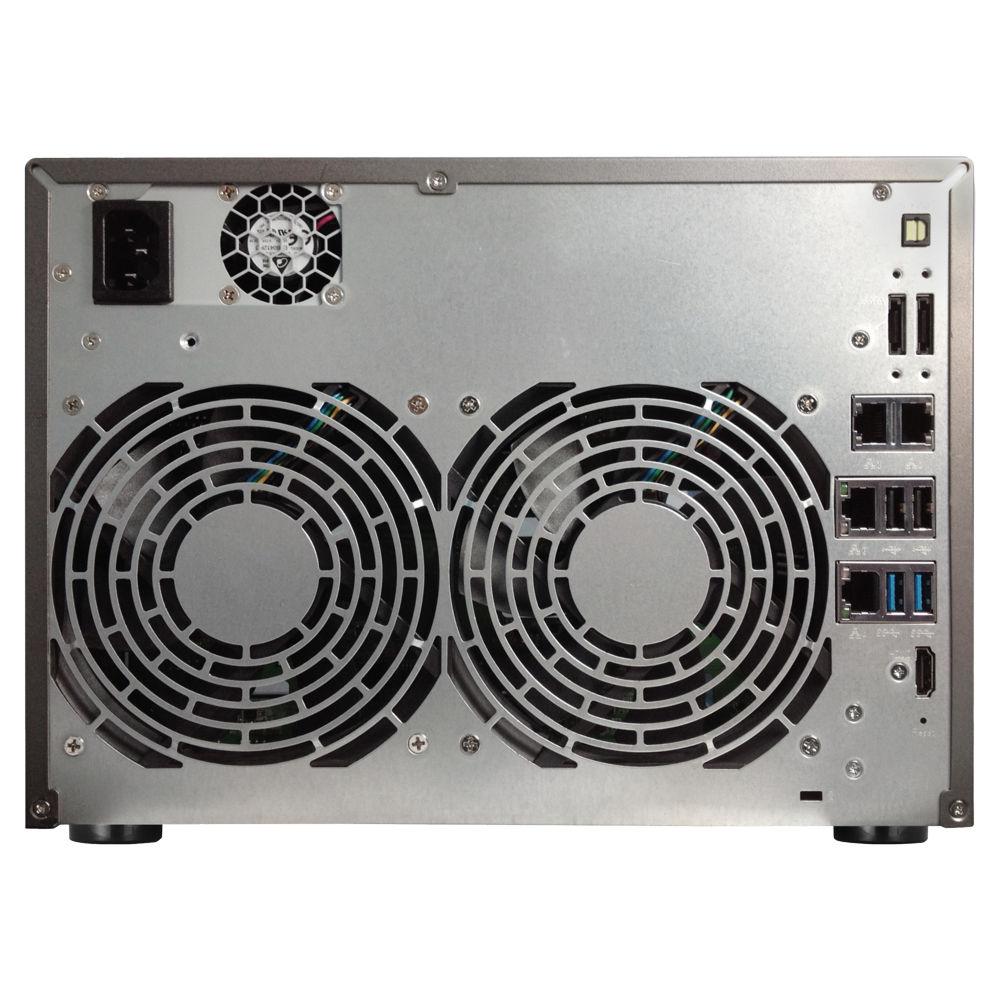

Technical parametersAsustor AS6210T Specs | | | Number of Bays | 10 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 3 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x USB Type-A (USB 2.0 (480 Mb/s))
2 x eSATA
4 x RJ45 (Gigabit Ethernet)
1 x HDMI Type-A (HDMI 1.4b)
1 x TOSLINK (S/PDIF) | | Compatible Drive Interface | SATA III | | RAID Modes | RAID 0, 1, 10, 5, 6, JBOD | | Hot-Swap Support | Yes | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Celeron Quad-Core | | Clock Speed | Base: 1.6GHz / Maximum Boost: 2.24 GHz | | Total Installed Memory | 4 GB DDR3L | | User-Replaceable Memory | 2 x 2 GB | | Total Memory Slots | 2 x SO-DIMM | | Maximum Memory Capacity | 8 GB | | | | Supported Protocols | AFP
CIFS/SMB
FTP
HTTP
HTTPS
IPv4
IPv6
NFS
Proxy
Rsync
SFTP
SNMP
SSH
Syslog
TFTP
WebDAV
iSCSI | | iSCSI LUN | 256 | | iSCSI Target | 256 | | Max Concurrent Connections | 512 | | Max Folders | 512 | | Max Groups | 512 | | Max User Accounts | 4096 | | | | Installed Operating System | ADM 2.6 | | OS Compatibility | Windows XP
Windows Vista
Windows 7
Windows 8
Windows 10
Windows Server 2003
Windows Server 2008
Windows Server 2012
macOS 10.6 or Later
Linux
UNIX | | File System Formats Supported | External: EXT3, EXT4, FAT32, HFS+, NTFS
Internal: EXT4 | | Supported Browsers | Chrome, Edge, Firefox, Internet Explorer, Safari | | | | Power Consumption | 68.3 W (Typical)
34.4 W (Standby) | | PSU Wattage | 1 x 250 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | Certifications | BSMI, C-Tick, CE, FCC, VCCI, as per Manufacturer | | | | Cooling | 2 x 120 mm Fans | | Noise Level | 22 dBA | | IR Sensor | Yes | | Status Monitoring | LCD Screen | | Dimensions | 8.5 x 11.5 x 9.1" / 215.5 x 293.0 x 230.0 mm | | Weight | 14.1 lb / 6.4 kg | | | | Package Weight | 18.05 lb | | Box Dimensions (LxWxH) | 15.0 x 13.4 x 12.8" |
