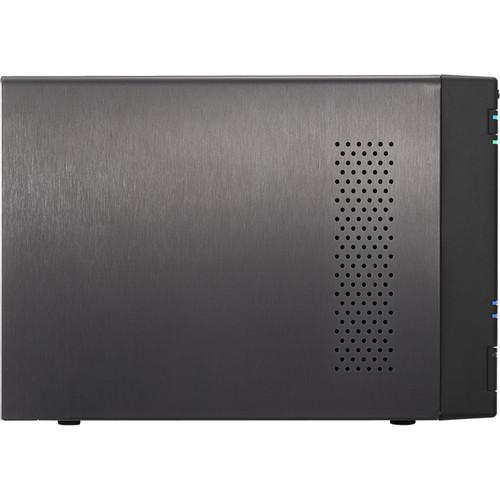

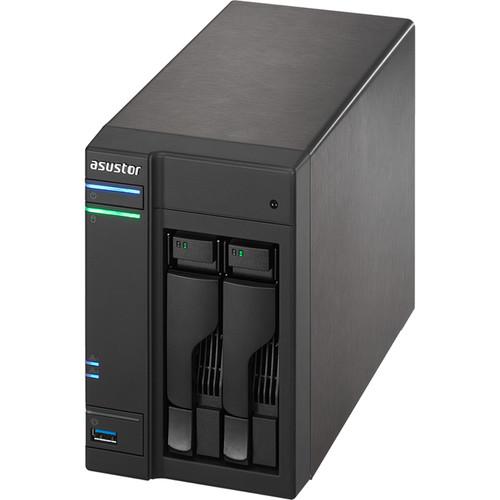

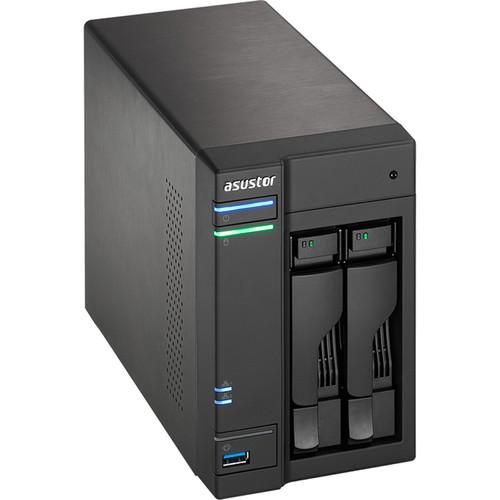

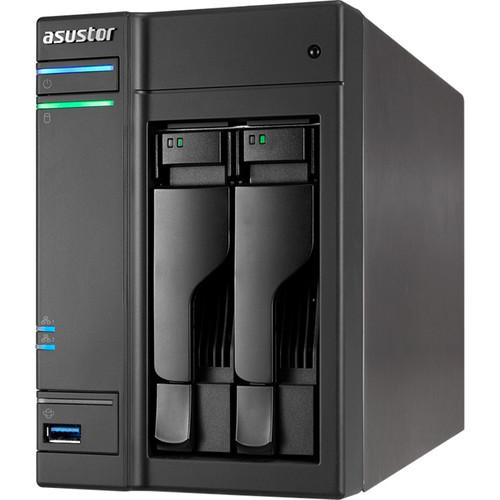

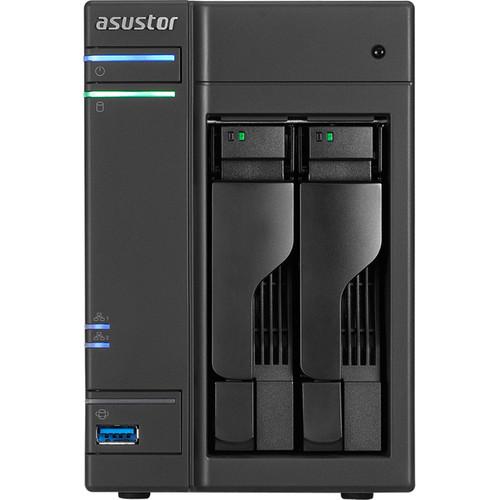

Product description Designed for home and personal use, the AS6302T 2-Bay NAS Enclosure from Asustor is powered by a 2.0 GHz Intel Celeron J3355 Dual-Core processor and 2GB of DDR3L RAM, which can be upgraded to 8GB, using one 4GB module in each of the SO-DIMM slots. Network connectivity is achieved using the two Gigabit Ethernet ports. This NAS also supports RAID 0, which offers performance, but no data redundancy, or RAID 1, which offers 1:1 data redundancy at the cost of performance. If you do not need the benefits of a RAID, JBOD is available.
This 2-bay enclosure has the ability to natively house both 3.5" and 2.5" SATA III and SATA II hard drives or SSDs. The AS6302T can reach read speeds of up to 216 MB/s and write speeds of up to 218 MB/s using link aggregation in RAID 1, as well as read speeds of up to 218 MB/s and write speeds of up to 114 MB/s when hardware encryption is enabled in RAID 1. Using the three USB 3.0 Type-A ports and one USB 3.0 Type-C port, this NAS can be connected to other devices and peripherals. There is also an HDMI 2.0 port which supports 4K/UHD 60p video. 8GB of eMMC flash memory will help speed things along and AES 256-bit encryption helps to prevent sensitive business data from unauthorized access and breaches.
The Asustor AS6302T 2-Bay NAS Enclosure operates on 100-240 VAC using a 65W external power supply and stays cool using an built-in 70mm fan. It includes two Gigabit Ethernet cables, a power cord, eight flat head screws for 2.5" drives, and eight flat head screws for 3.5" drives. Protection is provided by a limited 3-year warranty. General Features - Apollo Lake Processor
- The AS6302T is equipped with an Intel Celeron (Apollo Lake) sixth generation 14nm process built dual-core processor. It features overclocking to 2.5 GHz and overall performance that is enhanced by up to 30% when compared with previous generations, satisfying the needs for 24/7 access in small business environments.
- Enhanced GPU
- The AS6302T features a built-in Intel HD graphics engine, supporting HEVC and VP9 hardware transcoding that enhances multimedia and image processing performance by up to 30%. This provides a fluid usage experience for professionals and prosumers alike.
- USB Type-C & Type-A Connectivity
- In addition to the existing USB 3.0 Type-A ports, the AS6302T has two-way Type-C ports that allow your NAS to easily connect to a wide variety of devices, quickly completing transfers of large multimedia files.
- HDMI 2.0 & 4K/Ultra HD Output
- The AS6302T series supports next generation HDMI 2.0 specifications, featuring up to 60/50p 4K resolution video, which provides twice the fluidity of 4K 30p. Combined with 2GB of built-in dual-channel memory, this allows for the playback of 4K/Ultra HD with greater smoothness. No matter if it's your treasured collection of Blu-ray quality movies or videos that you have recorded with professional quality cameras, this NAS can display all of it in high quality.
Please note that in order to play 4K/UHD 60p videos, you will need to use an HDMI 2.0 cable. - WOW (Wake on WAN) - Always on Standby
- Want to access the data on your NAS at any time, but worried that leaving it powered on for a long period of time will result in costly power bills, wear and tear on your hard disks and NAS, or that you will become the target of hackers? Asustor has provided the AS6302T with two types of network wake (WOL/WOW) functions, easing all of the doubts mentioned above. WOL (Wake on LAN) allows you to wake the NAS from sleep mode or when its powered off, as long as you are in the same network. WOW (Wake on WAN) allows you to enable all NAS services via the internet, providing added flexibility for powering on/off the NAS and data access. These two types of network wake functions allow you to save power, extend the life of your NAS and hard disks, and lower your chances of being randomly hacked, ensuring data security.
- Compatibility with Various Platforms
- The AS6302T comes with the ADM operating system, which is compatible with a large variety of network protocols. No matter if you are using Windows, Mac OS X, or Unix-like operating systems, you will be still be able to access and share data on the NAS. No matter if you are using a desktop, notebook, tablet, or smartphone your data is within reach.
- 3-Step Seamless System Migration
- Asustor's dedicated ADM operating system provides a simple operation interface and a variety of management tools for enterprise MIS staff. These tools include online hard disk capacity expansion, 3-step seamless system migration, event notifications, and comprehensive support for all 13 Windows ACL file permissions, allowing for close integration with AD domains and providing simplified IT management and increased productivity.
- PC-less Software Installation
- Mobile installation with AiMaster takes only three steps. Finding your NAS, system initialization and installation, power management, ADM firmware updates, system information, and more are all available from the convenience of your mobile device.
- Data Protection Starts with Storage
- Asustor understands that your data is priceless, therefore they provide different RAID volume options, giving your data various levels of protection from the moment it is first stored on the NAS. Asustor recommends you plan your storage protection based on your NAS model and number of hard disks.
- Multi-Layered Protection
- Asustor ensures data security by creating an in-depth data protection plan that protects your data from the outside in. Utilization of a multi-layered deployment scheme allows for the achievement of active network, system, and data protection
- Comprehensive Backup Solutions
- The AS6302T provides over 12 different backup options and is connected to a variety of public cloud storage services, including Amazon S3, Dropbox, Google Drive, OneDrive, Box.net, HiDrive, Ralus, WonderBox, xCloud, and CrashPlan. You can also use FTP Explorer, USB external hard drive enclosures, external hard drives, and local backup to ensure proper backup for your data. No matter if you are using Windows, Mac, or Linux, Asustor provides the proper tools for your backup needs.
MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup, and share terabytes of content. - MyArchive Simplifies Backup
- MyArchive cold backup technology allows NAS hard disks to be turned into removable archive hard disks. Users only need to directly insert MyArchive hard disks into their Asustor NAS and it will act as an internal hard disk, allowing users to backup their critical data using local scheduled backups.
- MyArchive
-
- Saves power during system standby
- Create an unlimited number of MyArchive hard disks
- Utilizes built-in SATA III 6 Gb/s interface for faster data transfers
- Compatible with add-on NFS/EXT4/HFS+ file system devices
- Supports AES 256-bit encryption
- Decryption via physical USB key
- App Central
- Unleash the potential of ASUSTOR NAS. The applications that come pre-installed with each device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction, or even digital home entertainment, App Central has got you covered. With over 200 unique apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the potential of Asustor NAS devices while creating a personalized NAS device for yourself.
- Created for the Digital Home
- Asustor NAS allows you to enjoy thrilling digital entertainment at any time. Using the built-in HDMI port and various multimedia apps, the NAS can be connected directly to ultra high-resolution TVs and players. Enjoy multimedia with family and friends, or use the UPnP multimedia server to stream your favorite media to compatible computers and mobile devices.
- Comprehensive Surveillance System
- This NAS provides reliability for home and SMB users looking to set up a surveillance system. Four free camera channels are offered, making it a cost-effective surveillance solution for users with smaller demands. For users with larger demands, the number of camera channels can be expanded up to 36 via purchasable camera licenses. After installing Surveillance Center and its corresponding mobile app, AiSecure, users will also be able to stream live surveillance feeds to their smartphones while on the go, keeping an eye on their most valued assets from anywhere.
- Mobile Apps
- Asustor's Cloud Connect technology allows you to connect to your NAS with your mobile device in order to access and share your files. Asustor mobile apps provide passcode lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.
- Limited 3-Year Warranty
- All Asustor NAS products come with a limited 3-year warranty.
In the Box Asustor AS6302T 2-Bay NAS Enclosure AC Power Cord AC Power Adapter 2 x RJ45 LAN Cables 8 x Flat Head Screws for 3.5" HDDs 8 x Flat Head Screws for 2.5" HDDs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Asustor AS6302T 2-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

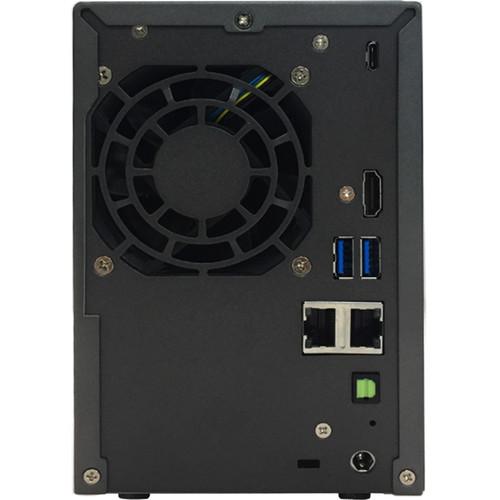

Technical parametersAsustor AS6302T Specs | | | Number of Bays | 2 x 2.5"/3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 28 TB
196 TB (with Expansion) | | Connections | 1 x USB Type-C (USB 3.1 Gen 1 (5 Gb/s))
3 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x RJ45 (Gigabit Ethernet)
1 x HDMI Type-A (HDMI 2.0)
1 x TOSLINK (Audio Out) | | Compatible Drive Interface | SATA II, SATA III | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, JBOD | | Link Aggregation and Failover Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Intel Celeron J3355 Dual-Core | | Clock Speed | Base: 2.0GHz / Maximum Boost: 2.5 GHz | | GPU | Intel HD Graphics 500 | | Total Installed Memory | 2 GB DDR3L | | User-Replaceable Memory | 2 x 1 GB | | Total Memory Slots | 2 x SO-DIMM | | Maximum Memory Capacity | 8 GB | | | | Supported Protocols | AFP
CIFS/SMB
FTP
HTTP
HTTPS
L2TP/IPSec
NFS
OpenVPN
PPTP
Proxy
Rsync
SAN
SFTP
SMB 3.0
SNMP
SSH
SSL
Syslog
TFTP
WebDAV
iSCSI | | iSCSI LUN | 256 | | iSCSI Target | 256 | | Max Cameras Supported | 128 | | Max Concurrent Connections | 512 | | Max Folders | 512 | | Max Groups | 512 | | Max User Accounts | 4096 | | | | Installed Operating System | ADM 3.1 | | OS Compatibility | Windows XP
Windows 7
Windows 8
Windows 10
Windows Server 2003
Windows Server 2008
Windows Server 2012
macOS 10.6 or Later
Linux
UNIX | | File System Formats Supported | Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT | | Supported Browsers | Chrome, Edge, Firefox, Internet Explorer, Safari | | Supported Languages | Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | | | Power Consumption | 13.8 W (Typical)
7.2 W (Idle)
0.34 W (Standby) | | Power Source | AC Adapter | | PSU Wattage | 1 x 64 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | | | Cooling | 1 x 70 mm Fan | | Noise Level | 17.7 dBA | | Built-In Speakers | Yes | | Status Monitoring | LED Indicator | | Dimensions | 4.3 x 6.4 x 9.1" / 108.0 x 163.5 x 230.0 mm | | Weight | 4.4 lb / 2 kg | | | | Package Weight | 6.73 lb | | Box Dimensions (LxWxH) | 11.9 x 11.4 x 7.7" |
