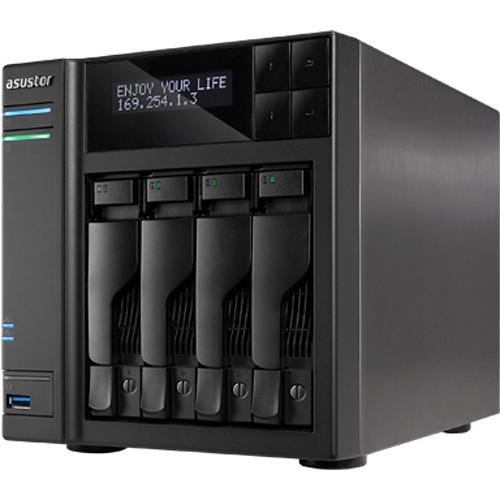

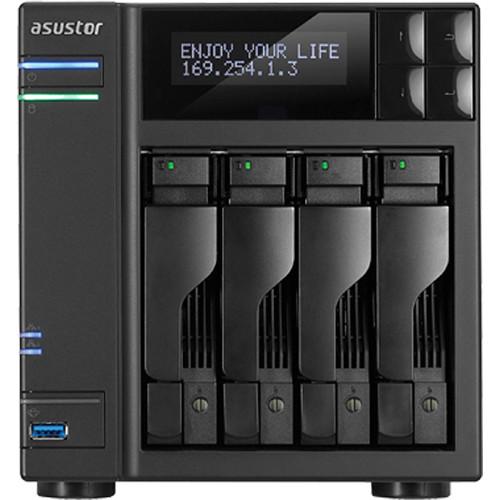

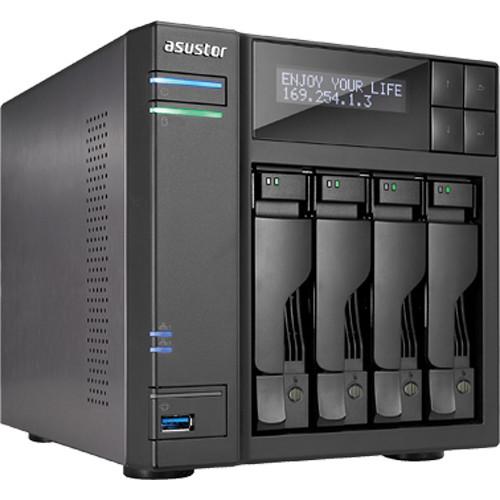

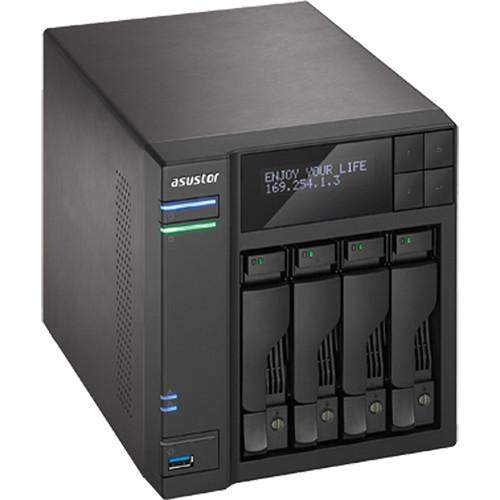

Product description Designed for home and small/medium business use, especially those with 200 or more users, the AS7004T 4-Bay Prosumer SMB NAS Server from Asustor is a high-capacity NAS engineered for prosumers who require one solution for entertainment and work needs. This 4-bay unit has been designed with AES 256-bit encryption for secure centralized data storage, while Enterprise features and stability are built into the hardware design. This unit has 4 drive bays, each of which natively supports 3.5" and 2.5" SATA III 6 Gb/s and SATA II 3 Gb/s hard drives and SSDs.
The AS7004T is powered by a 3.5 GHz Intel Core i3 Dual-Core processor, which will allow you to run multiple functions simultaneously. The built-in 2GB of DDR3 RAM will allow quick access to frequently-used files and programs. Network connectivity is achieved via the 2 x Gigabit Ethernet ports and external peripherals may be connected using the 3 x USB 3.0 ports, 2 x USB 2.0 ports, and 2 x eSATA ports. Additionally, there is 1 x HDMI 1.4a output for connecting this NAS to HDMI-compatible devices at resolutions up to 4K 2160p, as well an optical S/PDIF audio-out.
Asustor ships the AS7004T with the ADM 2.0 operating system, which helps simplify managing your NAS, as well as accessing and sharing data. Asustor also lets users download and install add-on packages that are designed for individual or business needs. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, 5, 6, 10, Single Disk, and JBOD. For those who use virtual environments such as VMware, Citrix and Hyper-V, the AS7004T provides cross-platform file sharing, allowing you to easily connect to your NAS device if you are using Windows, Mac OS, or Linux. Using backup utilities such as Backup Plan and Apple Time Machine you can easily backup data from a Windows PC or Mac directly onto NAS server. Also featured is a Network Recycle Bin, Windows ACL support, and SMB 2.0 support. The AS7004T operates on 100-240 VAC and includes an AC power cord, 2 x RJ-45 LAN (Cat 5e) cables, 16 x flat head screws (for 3.5" HDDs), and 16 x flat head screws (for 2.5" HDDs). - Quiet and Cool Operation

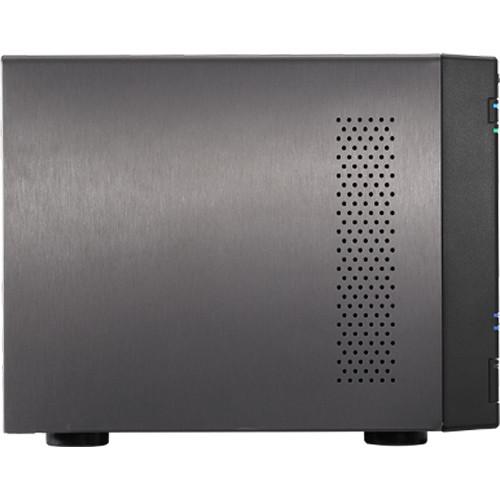

- A specialized cooling system has been designed for this high performance NAS. A single extra-large fan (different from common add-on fans) and dedicated heat pipes work with the disk tray vents to allow air to flow from the front to the back of the device, effectively cooling the CPU and hard disks. Furthermore, the ADM software comes with an automatic fan control mechanism that effectively controls the fan rotation speed, lowering any noise produced
- Expand Your Storage Space
- A professional grade NAS needs to be equipped with a diverse array of expansion functionality. In addition to the 4 drive bays, also included are 2 x USB 2.0 ports, 3 x USB 3.0 ports, and 2 x eSATA ports, allowing you to create a tailored storage space for both your work and entertainment needs
- Multimedia Playback
- No matter if it's 4K or 10-bit, XBMC 13 paired with the Intel Core i3 dual-core processor's powerful built-in graphics engine gives you the ability to play virtually any video files with ease. Get ready to enjoy powerful images on ultra high resolution monitors.
Additionally, you can also further add a surround sound amplifier to create a high definition multi-channel listening experience - After-Sales Service
- Asustor has extended the warranty period on all of its products to three years, continuing to make customer service a priority
- Data Transfer Performance
- ADM 2.3 supports SMB 2.0, which helps reduce the burden of network traffic on the NAS while simultaneously providing a greater data transfer capacity.SMB 2.0 has the capability to increase Windows networking performance and can also increases the number of concurrent Windows client connections. Additionally, it can simultaneously open files, making ADM 2.3 even more suitable for large-scale Microsoft network environments
- Disk Tray Lock Design
- In order to help users avoid accidentally pushing disk tray buttons and releasing hard disks during operation, Asustor has added a locking mechanism to its hard disk trays. The lock's flat-head design helps ensure that users will not need any special keys or tools to unlock it, only a simple flat-head screw driver. The disks trays can also be used with all Asustor NAS devices, providing an additional layer of security for applications requiring the frequent swapping of hard disks (e.g., MyArchive)
- 4K Ultra High Definition
- AsustorPortal offers complete support for 4K ultra high definition output. With 4K ultra high definition, the desktop background and icons appear clearer and sharper, giving you an immersive visual experience
- Surveillance System
- The 70 Series devices help provide you with stress free reliability when installing a surveillance system in your home or office environment. Installing the Surveillance Center App from App Central turns your NAS into a 24/7, high definition surveillance system. Surveillance Center provides comprehensive cross-platform support, allowing both Windows and Mac users to use familiar web browsers to access their surveillance feeds. Furthermore, Asustor also offers the free AiSecure mobile app that gives users access to all their surveillance feeds while on the go. AiSecure also provides the ability to receive instant push notifications from Surveillance Center, allowing users to keep up with the latest developments. No matter if you need to protect individual assets, loved ones, or your business, the 70 Series devices are a well suited choice when creating a comprehensive surveillance system.
Surveillance Center comes with 4 free IP camera channel licenses. Users can also purchase add-on camera licenses to flexibly add new camera channels. Additionally, two different camera license packages are offered: single channel and 4 channels. Currently, the 70 Series devices can be expanded up to a maximum of 16 channels - Audio Output with S/PDIF
- Turn your NAS into a digital music hub and let Asustor's 70 Series devices take your local audio playback to another level. You can use SoundsGood or iTunes Server to play high quality digital music from your NAS and further combine it with S/PDIF high fidelity optical output for an greater listening experience that will help bring your music to life
- Eco-Friendly Design
- System Automatically Enters Sleep Mode (Schedule S3)
Auto-Standby for Both Internal and External Disks
Auto Fan Control
LED Night Mode
Power Schedule: On, Off, Restart, and Sleep - Asustor Hightlights
- System Migration
Cloud Connect
Dr.ASUSTOR
2-way Backup
Task Monitor Performance - Windows Sequential Read/Write (512KB, 10GbE x 2)
- Read: 1,014.25 MB/s
Write: 1,171.47 MB/s - iSCSI Sequential Read/Write (512KB, 10GbE x 2)
- Read: 828.81 MB/s
Write: 1,019.36 MB/s - Windows Sequential Read/Write (512KB, 10GbE x 1)
- Read: 514.46 MB/s
Write: 749.31 MB/s - iSCSI Sequential Read/Write (512KB, 10GbE x 1)
- Read: 417.13 MB/s Write: 588.78 MB/s
- Windows Sequential Read/Write (10GB file, 1GbE x 2 Link Aggregation ALB)
- Read: 222.54 MB/s
Write: 225.26 MB/s - iSCSI Sequential Read/Write (10GB file, 1GbE x 2 Link Aggregation ALB)
- Read: 202.33 MB/s
Write: 219.65 MB/s - Windows Read/Write (5GB file, 1GbE x 1)
- Read: 112.86 MB/s
Write: 112.5 MB/s - iSCSI Read/Write (5GB file, 1GbE x 1)
- Read: 102.4 MB/s
Write: 119.54 MB/s In the Box Asustor AS7004T 4-Bay Prosumer SMB NAS Server 1 x AC Power Cord 2 x RJ-45 LAN Cables (Cat 5e) 16 x Flat Head Screws (for 3.5" HDD) 16 x Flat Head Screws (for 2.5" HDD) Limited 3-Year Warranty Brochure PDF 3mbzwuwzubbcerdcefdutasytx Table of Contents
|
Upload User Manual
Have you got an user manual for the Asustor AS7004T 4-Bay Prosumer SMB NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAsustor AS7004T Specs | | | Number of Bays | 4 x 3.5" / 2.5" SATA II / III Bays | | Processor | 3.5 GHz Intel Core i3 Dual-Core | | Memory | 2 GB of SO-DIMM DDR3 RAM (expandable to 16 GB) | | Ports | 3 x USB 3.0
2 x USB 2.0
2 x eSATA | | Network | 2 x Gigabit Ethernet ports | | LCD Panel | Yes | | Input Power Voltage | 100 - 240 VAC | | Volume Type | RAID 0, 1, 5, 6, 10, JBOD, and Single Disk | | Infrared Receiver | Yes | | Video Output | 1 x HDMI 1.4a (2160p 4K maximum resolution) | | Audio Output | S/PDIF | | Tray Lock | Yes | | MyArchiveDisk Bays | 2 | | Redundant Power Supply | No | | | | Power Consumption | Operation: 39.1 W
Disk Hibernation: 29.4 W
Sleep Mode: 1.8 W | | Noise Level | Not specified by manufacturer | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Humidity | Relative Humidity: 5 to 95% | | | | Operating System | ADM 2.0 Onwards
Built-in App Central for Various Apps | | Supported OS | Windows 8, 7, Vista, XP, Server 2012, Server 2008, Server 2003
Mac OS X 10.6 onwards
UNIX, Linux, and BSD | | Supported Languages | Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česká, Polski, Svenska, Dansk, Norsk, Suomi, Español, Português, Türk | | Supported Browsers | Internet Explorer 9 onwards
Firefox
Chrome
Safari | | Virtualization | VMware ready (NFS, iSCSI)
Citrix ready
Hyper-V ready | | Network Protocols | CIFS/SMB, AFP, NFS, FTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP, HTTPS, SMB 2.0, TFTP, Proxy | | File System | Internal Disk: EXT4
External Disk: FAT32, NTFS, EXT3, EXT4, HFS+ | | Storage Management | Support Multiple Volumes with Spare Disks
Volume Type: Single disk, JBOD, RAID 0, 1, 5, 6, 10
Support for Online RAID Level Migration
Support for Online RAID Capacity Expansion
Supports Single Volume Larger Than 16 TB: Yes | | MyArchive | Insert Hard Disk & Immediately Access Files
Transfer or Exchange Terabytes of Data via the Internal Hot-Swap SATA Interface
Up to 2 Bays Reserved for MyArchive Docking Purposes | | iSCSI | Maximum Targets: 256
Maximum LUNs: 512
Target Masking
LUN Mapping
ISO File Mounting
Supports MCS
Persistent (SCSI-3) Reservations | | Disk Management | Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans | | Network | TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
Jumbo Frame (MTU)
VLAN
Cloud Connect
Wireless Network
DDNS and EZ-Router Compatibility
Supports Wake-on-LAN (WOL) | | Backup Solutions | Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
One Touch Backup | | System Administration | Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
Network Recycle Bin
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support | | Access Control | Maximum Number of Users: 16,384
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 2,048
Supports Windows Active Directory | | Maximum Number of Backup Jobs | 100 | | Security | AES 256-Bit Folder Encryption
Firewall: Prevent Unauthorized Access
Network Defender: Prevent Network Attacks
Alert Notifications: email, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH | | External Devices | Supports USB/eSATA3 External Storage Devices
USB Wi-Fi Dongle Support
Bluetooth Dongle/Speaker Support
USB Printer Support
USB DAC/IR Receiver/Keyboard/Mouse Support | | | | Dimensions | 7.3 x 6.7 x 9.1" / 185.5 x 170.0 x 230.0 mm | | Weight | 8.60 lb / 3.90 kg | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 12.7 x 11.8 x 9.5" |
