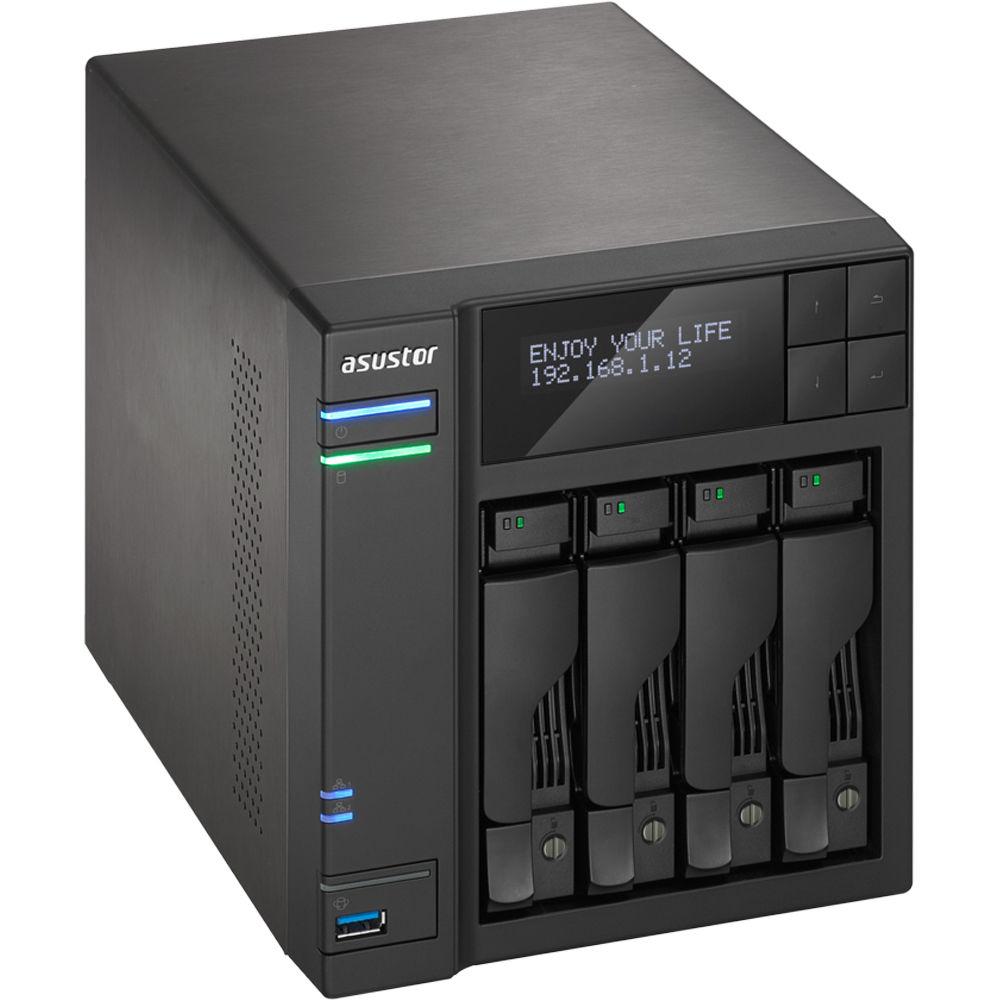

User Manual for Asustor AS7004T-i5 4-Bay Prosumer SMB NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Asustor AS7004T-i5 4-Bay Prosumer SMB NAS
- Product category: NAS Enclosures Asustor
- Brand: Asustor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Asustor NAS Enclosures
 |
User manual for the Asustor AS7004T-i5 4-Bay Prosumer SMB NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Asustor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Asustor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Asustor product will considerably shorten its lifespan!
|
Product description Provided by third party: The AS7004T is powered by a fast processor and comes with a rich variety of multimedia output, giving you an optimal solution for both your entertainment and work needs.
- Key Features
-
- Windows + Mac + Linux cross-platform file sharing
- Support for RAID 0, 1, 5, 6, 10 and hard drive hot swapping
- Local HDMI multimedia output (4K, 1080p and high-definition multi-channel audio)
- Windows ACL support combined with Windows AD infrastructure enhances management efficiency for business applications
- SMB 2.0 support increases networking performance
In the Box Asustor AS7004T-i5 4-Bay Prosumer SMB NAS Enclosure ASUSTOR AS7004T 2 x network cable Software Table of Contents
|
Upload User Manual
Have you got an user manual for the Asustor AS7004T-i5 4-Bay Prosumer SMB NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAsustor AS7004T-I5 Specs | | | Device Type | NAS server | | Host Connectivity | Gigabit Ethernet | | Total Storage Capacity | 0 GB | | Max Supported Capacity | 40 TB | | Installed Devices / Modules Qty | 0 (installed) / 4 (max) | | Width | 6.7 in | | Depth | 9.1 in | | Height | 7.3 in | | Weight | 8.6 lbs | | Built-In Devices | Status LCD, LED panel | | | | Processors Installed | 1 x Intel Core i5 3 GHz | | Number of Cores | Quad-Core | | Max Supported Qty | 1 | | RAM | 8 GB (installed) / 16 GB (supported) - DDR3 | | | | Type | RAID | | Interface Type | SATA 6Gb/s / eSATA | | RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD | | | | Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE | | Network / Transport Protocol | TCP/IP, iSCSI, DDNS, SFTP | | Remote Management Protocol | HTTP, HTTPS, SSH | | Network Services Compatibility | Microsoft Active Directory (AD), DDNS, Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) | | Features | Firewall protection, load balancing, VLAN support, wake on LAN (WOL), E-mail alert, IPv6 support, iTunes server, Jumbo Frames support, SMS alert, BitTorrent Client, UPnP Media Server, IPv4 support, cloud backup, Link Aggregation | | Encryption Algorithm | SSL, TLS, 256-bit AES, AES-NI | | Compliant Standards | IEEE 802.3ad (LACP), UPnP | | | | Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" | | Interfaces | 3 x USB 3.0 - Type A

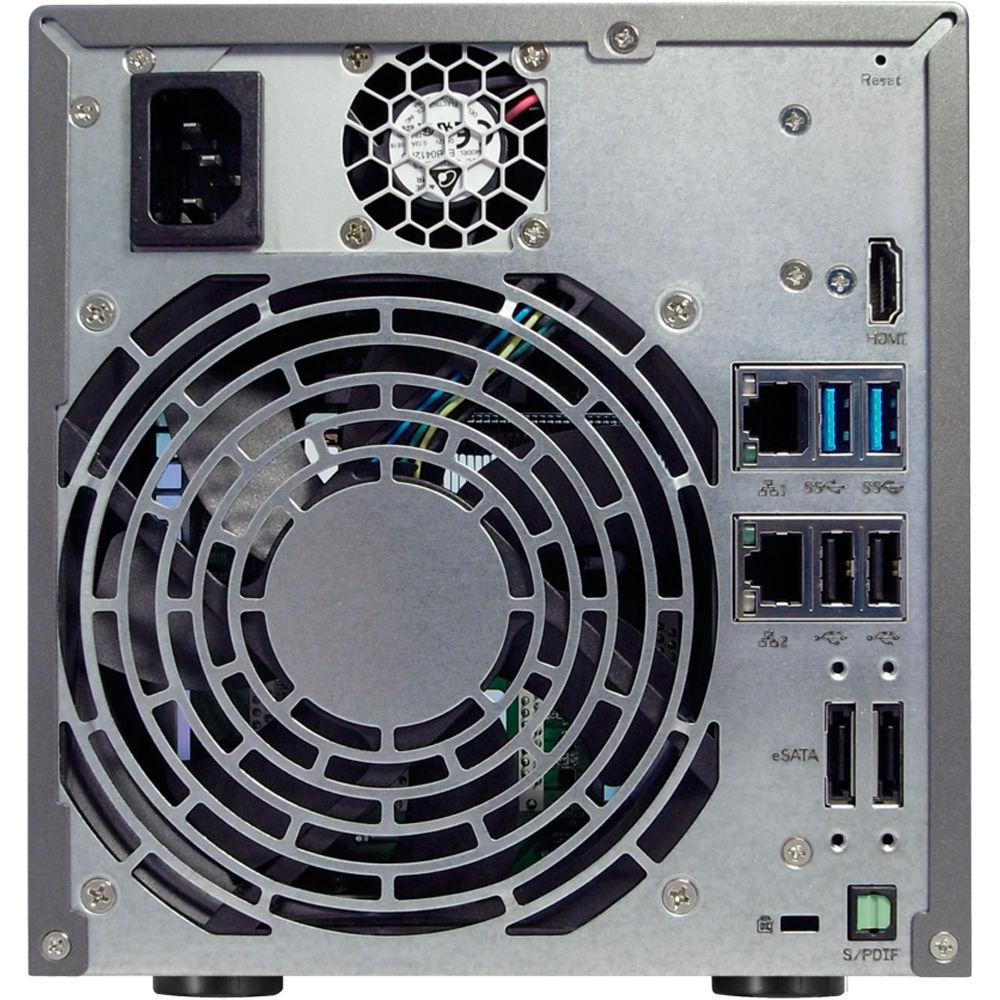

2 x USB 2.0 - Type A
2 x eSATA
2 x Ethernet 1000Base-T - RJ-45
1 x HDMI output
1 x SPDIF out | | | | Cables Included | 2 x network cable | | Features | Built-in cooling fan, UPS support, Citrix Ready, VMware Ready, S.M.A.R.T. support | | Compliant Standards | VCCI, C-Tick, BSMI, FCC | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V | | Power Consumption Operational | 39.1 Watt | | Power Provided | 250 Watt | | | | Storage Operating System | ASUSTOR Data Master (ADM) 2.7 | | Software Included | Drivers & Utilities | | OS Required | UNIX, Linux, Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Apple MacOS X 10.6 or later, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012, Windows 10 | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 41
