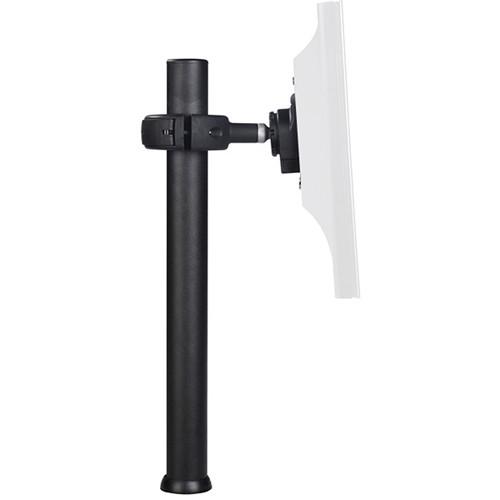

User Manual for Atdec Donut Pole Single Display Click to enlarge the picture
Contents of the user manual for the Atdec Donut Pole Single Display
- Product category: Monitor Table Top Stand Mounts Atdec
- Brand: Atdec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atdec Monitor Table Top Stand Mounts
|
User manual for the Atdec Donut Pole Single Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atdec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atdec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atdec product will considerably shorten its lifespan!
|
Product description The Atdec Donut Pole Single Display offers great display versatility. It includes a Quick Shift Donut to guarantee a customized display installation. The Quick Shift lever allows the screen to be moved up and down the pole by hand without any tools. Viewing angle and screen orientation are also fully adjustable using the ball joint mechanism, finished off with a quick release mechanism to rapidly remove and change screens. Built-in internal cable management ensures a professional finish for maximum display impact. - Product Highlights
-
- Designed for simple installation
- Quick Shift donut for easy display vertical adjustment
- Quick release mechanism for fast display attachment/removal
- Ball joint mechanism allows 20-degrees of display adjustment in any direction from the vertical plane
- Portrait to landscape orientation
- Advanced cable management
- Bolt through and desk clamp mounting options
- Comes with all mounting hardware
UPC: 881493005051 In the Box Atdec Donut Pole Single Display Mounting Hardware Limited 10-Year Warranty Brochure PDF 745.9kbayvddrvdwdadsvztzwwdtcfvfr Table of Contents
|
Upload User Manual
Have you got an user manual for the Atdec Donut Pole Single Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtdec SD-DP-420 Specs | Material | Aluminum/steel | | Max Weight Load | 26.5 lb (12 kg) per mount | | VESA Compatibility | 75 x 75mm or 100 x 100mm
Also supports 200x100 via additional adaptor plate AC-AP-2010, sold separately | | Adjustments | Screen rotation (portrait/landscape): 360°
Rotation around pole: 360° or fixed
Tilt/pan adjustment: ball joint mechanism allows 20 degrees display adjustment in any direction from the vertical plane
Display pan adjustment: 90 degrees left and right, total of 180 degrees | | Mounting Options | Desk clamp and bolt through | | Dimensions | 18.0 x 9.0 x 5.5" (46 x 23 x 14 cm) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 17.7 x 8.9 x 5.5" |
