User Manual for Atdec Spacedec Quick Shift Donut Display Click to enlarge the picture
Contents of the user manual for the Atdec Spacedec Quick Shift Donut Display
- Product category: Monitor Pole & Truss Mounts Atdec
- Brand: Atdec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atdec Monitor Pole & Truss Mounts
 |
User manual for the Atdec Spacedec Quick Shift Donut Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atdec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atdec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atdec product will considerably shorten its lifespan!
|

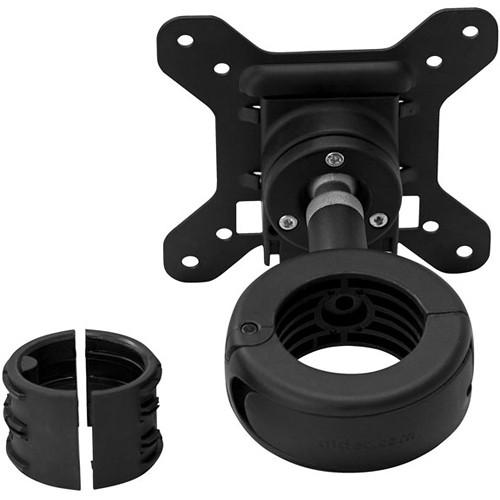

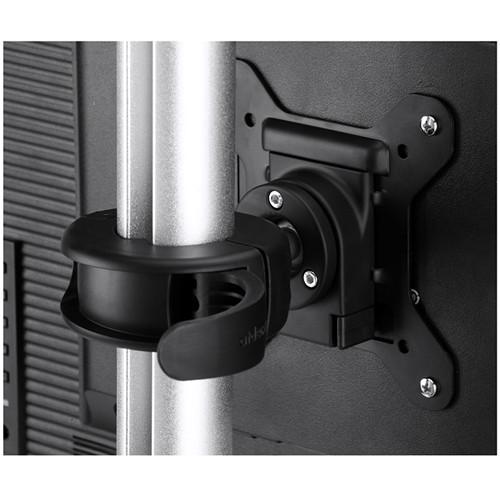

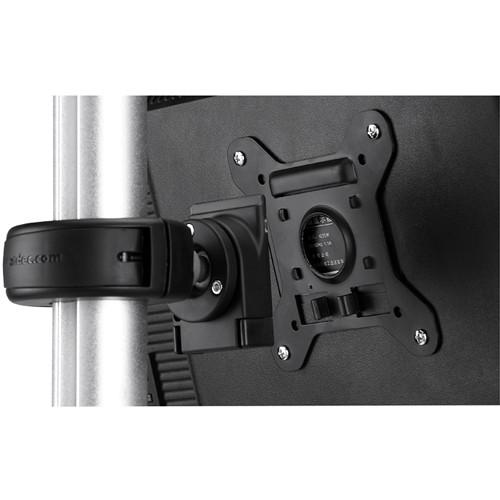

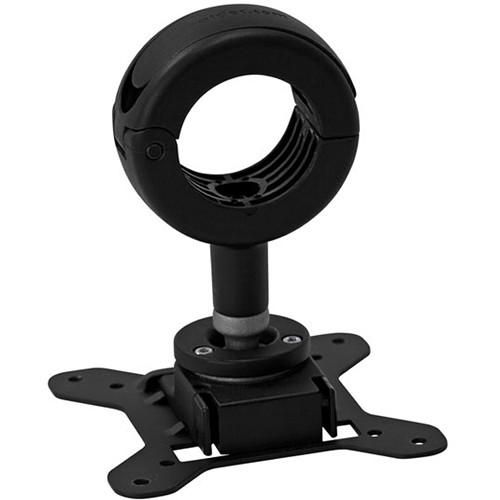

Product description The black Visidec Spacedec Quick Shift Donut Display is designed to be used with the Spacedec Display Pole, making it possible to attach an additional display. The unit works with poles that have a diameter between 1.65" and 2" and features a quick shift lever so you can quickly move and lock the display freely along a pole without using any tools. The Quick Shift Donut uses a ball joint that allows infinite and easy display adjustment for any viewing angle range up to 20 degrees in any direction. Even after the screen has been installed, it is easy to change its position from landscape to portrait orientation. Then, you can securely lock it into position. The built-in Quick Release mechanism ensures hassle-free and secure removal or replacement of the display. - Suitable for poles with a diameter of 1.65 or 2" (42 or 50mm)
- Supports displays weighing up to 26.5 lbs (12 kg) with VESA pattern of 75 x 75 mm or 100 x 100 mm
- Ball joint allows infinite display adjustment for any viewing angle up to 40 degrees in any direction
- Simple tension adjustment portrait to landscape rotation

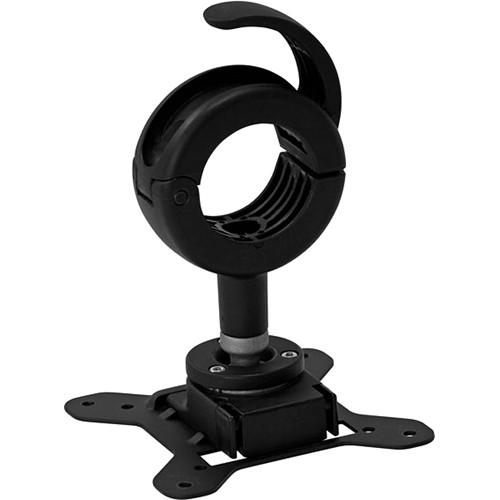

- Quick Shift lever allows to quickly move and lock the display freely along a pole without using any tools
- Quick release mechanism for fast display attachment or removal
- Quick release mechanism for fast display attachment or removal
- All mounting hardware is included to simplify installation
UPC: 881493004535 In the Box Atdec Spacedec Quick Shift Donut Display (Black) Quick Shift Donut 42mm Front Donut Insert Visidec Groove Lock 42mm Real Donut Insert Security Screw 2mm Allen Key 5mm Allen Key Tightening Tool 4 x M4x10mm Screws 4 x M4x16mm Screws Limited 10-Year Warranty Guides & Manuals yveesfaubvxwcq Table of Contents
|
Upload User Manual
Have you got an user manual for the Atdec Spacedec Quick Shift Donut Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atdec Spacedec Quick Shift Donut Display can be downloaded in PDF format at the link stated below.
Technical parametersAtdec SD-DO Specs | Number of Displays | 1 | | Mounting-Hole Pattern | 75 x 75 mm, 100 x 100 mm | | Bracket Load Capacity | 26.5 lb / 12 kg | | Rotation Adjustment | 360° | | Tilt Adjustment | -40 to 40° | | Maximum Extension | None | | Material | Steel, Plastic, Aluminum | | Dimensions (W x H x D) | 5.2 x 5.2 x 6.5" / 133.3 x 133.3 x 165.1 mm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.4 x 5.2 x 5.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
