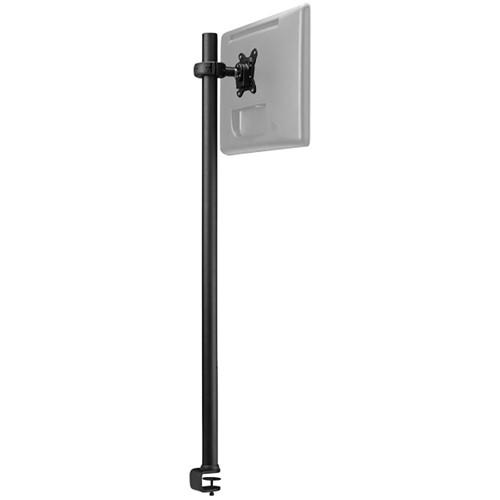

User Manual for Atdec Spacedec SD-DP-1150 45.3" Quick-Shift Donut Pole Click to enlarge the picture
Contents of the user manual for the Atdec Spacedec SD-DP-1150 45.3" Quick-Shift Donut
- Product category: Monitor Table Top Stand Mounts Atdec
- Brand: Atdec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atdec Monitor Table Top Stand Mounts
 |
User manual for the Atdec Spacedec SD-DP-1150 45.3" Quick-Shift Donut contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atdec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atdec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atdec product will considerably shorten its lifespan!
|

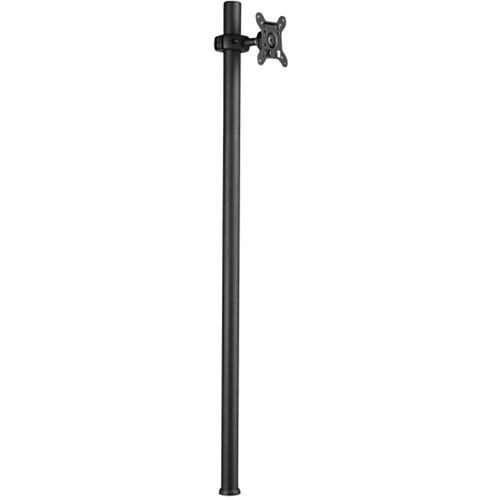

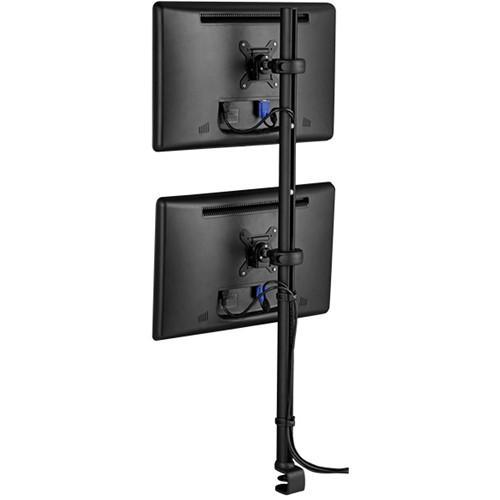

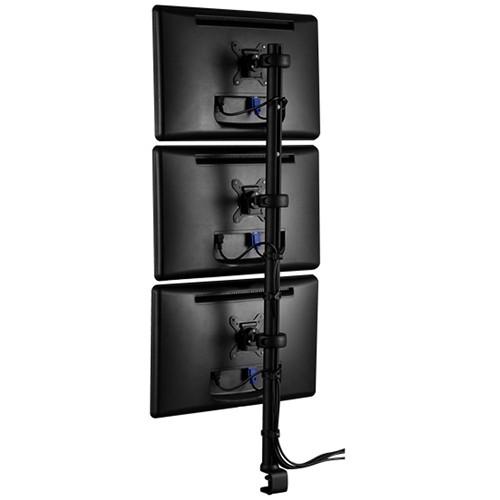

Product description The black Spacedec SD-DP-1150 45.3" Quick-Shift Donut Pole from Atdec is compatible with most flat panel displays between 12" (30cm) and 24" (61cm) that feature either 75 x 75mm or 100 x 100mm VESA mounting hole patterns. It offers good display versatility and comes with a Quick-Shift mounting donut for a customized display installation. The Quick-Shift lever allows a screen to be moved up and down the pole by hand, without the need for any tools. The viewing angle and screen orientation are also fully adjustable, and the mount also features a quick-release mechanism to rapidly remove and change screens. Built-in internal cable management ensures a professional finish for maximum display impact. Note: SD-DP-750 comes with 1 mounting donut. For a multi-display configuration, you can add more donuts by ordering the SD-DO Mounting Donut (sold separately). - Designed for simple installation

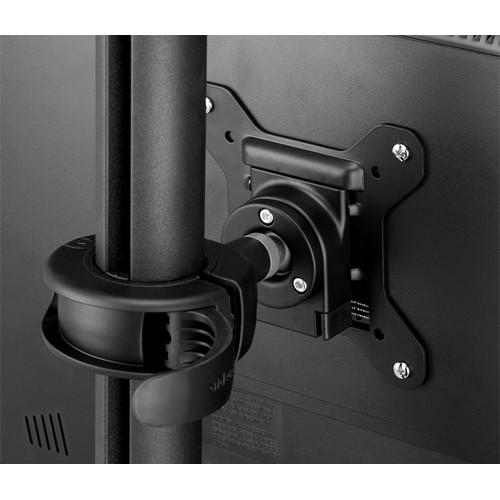

- Quick-Shift donut for easy vertical adjustment

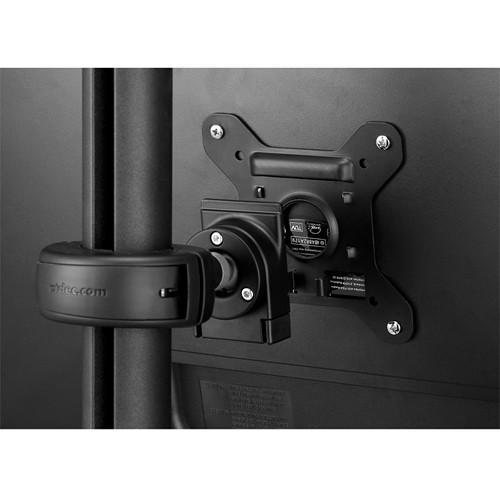

- Quick-release mechanism for fast display attachment/removal
- Ball joint mechanism allows 20° of display adjustment in any direction from the vertical plane
- Portrait and landscape rotation

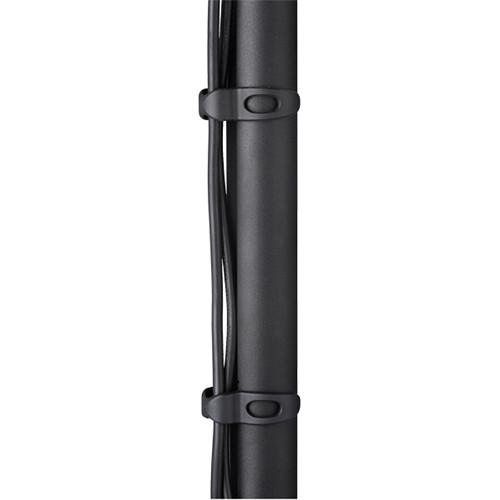

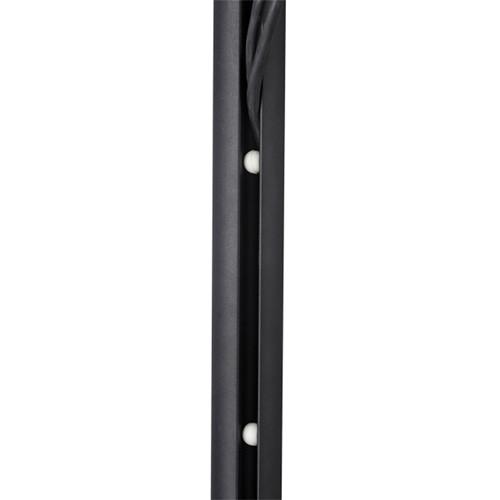

- Integrated cable management

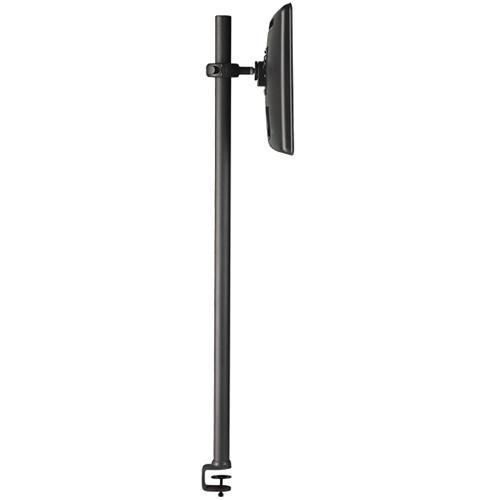

- Bolt-through and desk clamp mounting options included
UPC: 881493005075 In the Box Atdec Spacedec SD-DP-1150 45.3" Quick-Shift Donut Pole (Black) Desk Clamp Bolt-Through Mount Mounting Donut Cable Wrap Manager Clip Cable Clips Cable Wrap Mounting Hardware Limited 10-Year Warranty Brochure PDF 745.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atdec Spacedec SD-DP-1150 45.3" Quick-Shift Donut Pole in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtdec SD-DP-1150 Specs | Maximum Load Capacity | 26.5 lb (12.0 kg) | | Display Range | 12 to 24" (30 to 61 cm) | | Mounting Pattern | 75 x 75 mm; 100 x 100 mm Also supports 200 x 100 via additional adapter plate AC-AP-2010 (sold separately). | | Material | Aluminum/steel | | Screen Rotation | 360° (portrait/landscape) | | Rotation | Around Pole: 360° or fixed | | Adjustments | Tilt/Pan: Ball joint mechanism allows 20° display adjustment in any direction from the vertical plane
Display Pan: 90° left and right, total of 180° | | Cable Management | Integrated | | Mounting Options | Desk clamp and bolt through (both included)
Desk Clamp suits desktop thicknesses from 0.5 to 1.5" (12.0 to 38.0 mm)
Bolt through suits desktop thicknesses from 0.5 to 1.5" (12.0 to 38.0 mm) | | Dimensions (H x Diam.) | Pole: 45.30 x 1.65" (1150 x 41.91 mm)
Total Height: 46.5 x 1.65" (1181 x 41.91mm) | | | | Package Weight | 9.25 lb | | Box Dimensions (LxWxH) | 46.5 x 9.0 x 5.5" |
